C0460 on 2017-2018 GMC Acadia: Reduced Steering Assist Causes and Fixes

What's Unique About the 2017-2018 Gmc ACADIA

The 2017-2018 Acadia and its platform-mate, the Cadillac XT5, are unique because General Motors issued a specific Technical Service Bulletin (TSB 17-NA-284) to address C0460 Sym 5A. Unlike many other vehicles where this code might immediately point to hardware failure, on this platform, it's very frequently just a software abnormality. The bulletin notes that the 'Reduced Steering Assist' message can appear even with no actual loss of steering assist, indicating a sensitive or erroneous fault trigger in the original software calibration. Furthermore, the entire GM C1XX platform has a well-documented tendency to display this steering warning as a symptom of a completely unrelated part: a failing engine thermostat.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Reduced Steering Assist, Drive With Care" message on the Driver Information Center (DIC).
• Steering may become heavy or difficult to turn, especially at low speeds.
• The warning message may appear without any noticeable change in steering feel.
• A/C may stop working.
🎬 Watch: Why a dead temp gauge causes steering issues.
• Engine temperature gauge may read cold or stay at zero, even after the engine has warmed up.
• Radiator fans running on high constantly.
• Check Engine Light is illuminated, often with code P0128.

Most Likely Causes

1. Power Steering Control Module (PSCM) Software Anomaly 🔴 High Probability → Shop Power Steering Control Module A known software issue is documented in GM Technical Service Bulletin 17-NA-284 for the 2017-2018 Acadia and Cadillac XT5. The original calibration is overly sensitive and can log a 'Steering Angle Sensor trim error' without a real hardware fault.
   How to confirm: A professional scan tool will show DTC C0460 with symptom byte 5A. A GM dealer can confirm if TSB 17-NA-284 applies to the vehicle's VIN and that the latest calibration has not yet been installed. 🎬 Watch this guide on fixing Cadillac and Acadia steering codes.
   Typical fix: Reprogram the Power Steering Control Module (PSCM) with the latest calibration using GM's TIS2Web/SPS2 software. No parts are replaced for this specific fix.
   Est. part cost: $0
2. Faulty Engine Coolant Thermostat or Temperature Sensor 🔴 High Probability → Shop Integrated Thermostat Housing Assembly This is a very common failure on this platform. The Power Steering Control Module uses engine temperature data to compensate for the increased viscosity of cold grease in the steering gear. When the thermostat sticks open, the engine doesn't reach operating temperature, the ECM receives an invalid signal, and as a fail-safe, it disables systems like steering assist and A/C to protect the engine.
   How to confirm: Scan for codes. The presence of code P0128 ('Engine Coolant Temperature Below Thermostat Regulating Temperature') along with the steering message is a definitive indicator. The temperature gauge staying on cold and the A/C not working are also strong clues.
   Typical fix: Replace the engine coolant thermostat assembly and/or the engine coolant temperature sensor. It is highly recommended to replace both at the same time since the labor to access them is significant. This is a separate issue from the steering system itself, but directly causes the warning message.
   Est. part cost: $50-$150

Rare But Worth Checking

• Failing Power Steering Gear Assembly: → Shop Steering Gear A hardware failure within the steering rack can cause a C0460 code, often with a different symptom byte like -58. TSB 20-NA-215 addresses this for 2020 models, noting that internal component interference can cause grounding and damage. This could be the cause if reprogramming the module does not resolve the issue or if noises like squeaking or grinding are present when turning.
• Low Battery Voltage or Bad Connection: Modern electric power steering (EPS) systems are highly sensitive to voltage. A weak or aging battery, or a poor ground connection, can cause a temporary voltage drop during low-speed maneuvers or startup, triggering a fault in the PSCM. This may also set a code like C0895 (Device Voltage Malfunction).
• Damaged Wiring or Connectors: Corrosion or damage to the wiring harness for the steering angle sensor or Power Steering Control Module can cause intermittent or invalid signals, leading to the C0460 code.

Diagnosis Steps

1. Use a professional OBD-II scanner to read codes from all modules, not just the engine.
2. Check for both chassis codes (like C0460) and powertrain codes (like P0128). Note the specific symptom byte for C0460 (e.g., 5A).
3. If P0128 is present along with the steering warning, A/C failure, and a cold temp gauge, the cooling system is the primary suspect. The fix is to replace the thermostat and temperature sensor.
4. If C0460 Sym 5A is the primary code and P0128 is not present, verify if TSB 17-NA-284 applies to your VIN. If so, the recommended fix is to have a GM dealer reprogram the Power Steering Control Module (PSCM).
5. If reprogramming does not fix the issue, or if a different symptom byte like -58 is present, suspect a hardware failure. Investigate the power steering gear assembly per TSB 20-NA-215.
6. Check the 12V battery and charging system. Ensure voltage is stable (above 12.6V with engine off). A weak battery is a known cause of various electrical faults, including this one.
7. If all other steps fail, perform a detailed inspection of the wiring and connectors to the PSCM and steering rack for any signs of damage or corrosion.

Parts You'll Likely Need

• Power Steering Control Module Reprogramming — This is not a physical part, but a software update that is the most common fix for C0460 Sym 5A per TSB 17-NA-284.
  OEM price range: $150-$350 (Dealer Labor for 1-hour diagnosis and reprogram).
  Aftermarket price range: N/A
• Engine Coolant Thermostat Kit (3.6L V6) (OEM #12678779) — A very common cause of the associated 'Reduced Steering Assist' warning message, often accompanied by code P0128.
  Trusted brands: ACDelco (GM OE)
  OEM price range: $70-$120
  Aftermarket price range: $40-$80

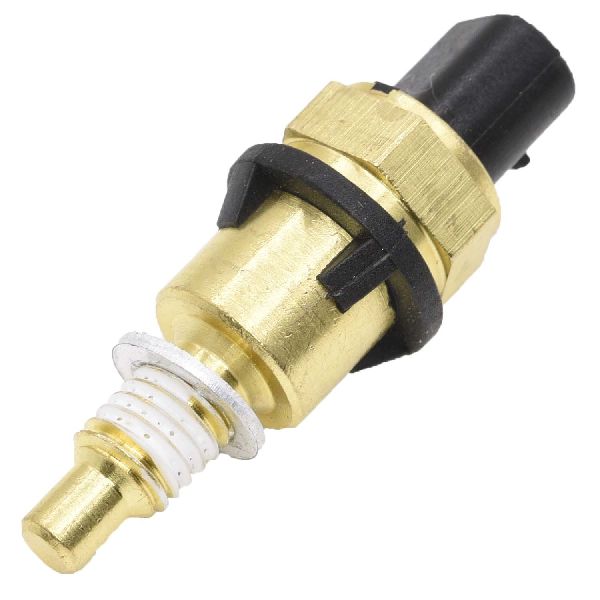

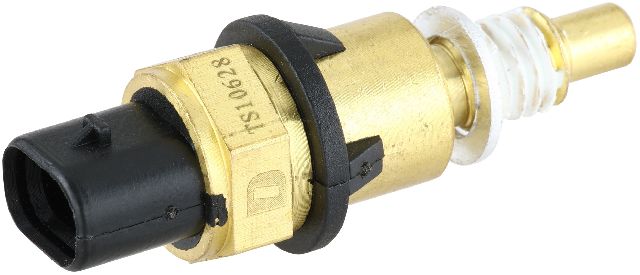

• Engine Coolant Temperature Sensor (3.6L V6) (OEM #12650595) — Often replaced along with the thermostat as a preventative measure, as it is located nearby and is critical for the same system logic.
  Trusted brands: ACDelco (GM OE)
  OEM price range: $15-$30
  Aftermarket price range: $10-$20
• Electric Power Steering Rack and Pinion Assembly — This is the necessary fix if the module itself or internal components have failed (e.g., C0460-58), which is a less common but possible cause if reprogramming doesn't work.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $1200-$1800
  Aftermarket price range: $700-$1200

Related Codes That Often Appear With This One

• P0128 — This code for the engine coolant thermostat often appears with the 'Reduced Steering Assist' message because the engine's fail-safe mode can limit power steering function when it can't get a valid temperature reading.
• C0895 — This code for 'Device Voltage Malfunction' can appear alongside C0460 if the root cause is a weak battery or faulty charging system, as the power steering module is sensitive to low voltage.

Technical Service Bulletins (TSBs) & Recalls

• 17-NA-284: The primary bulletin for C0460 Sym 5A. It identifies a software glitch and specifies a PSCM reprogram as the fix for both the Acadia and Cadillac XT5.
• 20-NA-215: Addresses a different symptom byte, C0460-58, on slightly later models

Platform-Specific Known Issues

• A software abnormality in the Power Steering Control Module is a known issue documented by GM in TSB 17-NA-284, making a reprogram the first logical step for C0460 Sym 5A.
• The logic of the power steering system is directly tied to engine coolant temperature to compensate for cold grease; this makes it uniquely susceptible to displaying a steering fault when the engine thermostat fails and sets code P0128.

Mechanic-Grade Diagnostic Values

• Steering Position Sensor 5V Reference Circuit Voltage — expected: 4.8-5.2 V (between terminal B and ground). Failure: Voltage less than 4.8V indicates a fault in the Power Steering Control Module (PSCM).
• Steering Position Sensor Low Reference Circuit Resistance — expected: Less than 2 ohms (between terminal E and ground). Failure: Resistance greater than 2 ohms indicates a fault in the circuit or PSCM.
• Steering Position Sensor Signal Voltage (Live Data) — expected: 0-5 V (Signal 1 and Signal 2 should change in opposite directions when turning the wheel). Failure: A difference greater than 2.5V between Signal 1 and Signal 2 will set the DTC. A static or non-linear voltage indicates a sensor failure.
• Battery Voltage (Engine Off) — expected: Approximately 12.6V. Failure: Voltage below 12.4V may indicate a weak battery, a known cause of spurious electronic module faults.
• Charging System Voltage (Engine Running) — expected: 13.5V or higher. Failure: Voltage below 13.5V suggests a failing alternator, which can cause the EPS module to malfunction due to insufficient power.

Hidden / Shadow Codes Worth Checking

• C0460 4B: Steering Position Sensor Calibration not Learned. This code sets when the PSCM has not undergone the steering position sensor calibration procedure, often after a module or steering column replacement. (see via Professional scan tool like GM GDS2.)
• C0460 71: Steering Wheel Angle Sensor Invalid Data. This indicates the data received from the sensor is not plausible or is corrupt. (see via Professional scan tool.)

Scan Tool Commands That Help

• GM GDS2 / High-End Scan Tool: Steering Angle Sensor Calibration — This function must be performed after replacing the Power Steering Control Module (PSCM), steering gear, steering angle sensor, or performing a wheel alignment. It resets the sensor's zero position. The function is typically found under Chassis > Electronic Brake Control Module (EBCM).
• GM GDS2 / High-End Scan Tool: PSCM Reprogramming — Used to load the updated software calibration specified in TSB 17-NA-284 to resolve the false C0460 5A error. This requires a subscription to GM's TIS2Web/SPS2 service.

Wiring & Ground Locations

• K43 Power Steering Control Module (PSCM) — The PSCM is integrated into the electric power steering gear/rack assembly.. This is the main control unit for the power steering system. All sensor inputs, power, and ground connections terminate here. A wiring diagram shows it has three main connectors: X1, X2, and X3.
• PSCM Connector X3 — On the power steering rack assembly.. This 8-pin connector is for the torque/position sensor. Pins 2 (High Reference), 3 (Signal), and 4 (Low Reference) are critical for sensor operation. Checking for 5V reference and good ground at this connector is a key diagnostic step.

Real Owner Repair Stories

• YouTube video by 'John' (2017 GMC Acadia) — Intermittent issue for a year: "steering assist reduced" message on dash, radiator fans on high, and temperature gauge on cold even when engine is warm.
  ❌ Tried (didn't work) The owner lived with the intermittent problem for a year before deciding to fix it.
  ✅ What actually fixed it Replaced the engine coolant thermostat and the temperature sensor at the same time. The parts were located under the intake manifold, requiring significant labor. This resolved all three symptoms.
• YouTube video by 'David Waltermyer' (Cadillac XT5 (platform mate)) — "Steering Assist Is Reduced" message, along with A/C not working and temperature gauge reading incorrectly.
  ❌ Tried (didn't work) Initial diagnosis might point towards the steering system.
  ✅ What actually fixed it Replacing the engine coolant thermostat and sensor. The video confirms this is a very common failure on the platform that triggers the steering warning as a secondary effect.

OEM Part Supersession History

• 12670557, 12673659 → 12678779 — Standard part revision and consolidation for the Engine Coolant Water Outlet assembly (which includes the thermostat).
  Heads up: As of September 2023, GM issued bulletin PIP5940 stating that for a simple thermostat replacement, only the thermostat housing (PN 12678780) should be replaced, not the entire assembly with pipe (12678779). The full assembly 12678779 is now intended only for when the crossover pipe itself is leaking. This was changed to reduce unnecessary parts replacement and labor time.

Model Year Variations Within This Range

• 2017-2018: There are no significant mechanical or powertrain differences between the 2017 and 2018 GMC Acadia models that would affect the diagnosis or repair of code C0460. The vehicle was redesigned for 2017, and 2018 was a carryover year with only minor feature updates.
