C0501 on 2017-2018 Jeep Compass: Left Front Wheel Speed Rationality Explained

What's Unique About the 2017-2018 Jeep COMPASS

For the second-generation Jeep Compass (2017-present), the C0501 code can be straightforward, often pointing to a failed sensor. However, a unique aspect of this platform is that this code can appear alongside a cluster of other seemingly unrelated engine and chassis codes. Manufacturer Technical Service Bulletins (TSBs) indicate that in such cases, the root cause may not be the sensor itself, but rather a software issue within the Powertrain Control Module (PCM) that requires an update from a Jeep dealership. These TSBs specifically apply to models with the 2.4L engine.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• Traction Control or Electronic Stability Control (ESC) light is on
• Cruise control may not work
• Brake pedal may feel different or pulse at low speeds
• "Service 4WD" or similar message may appear, and the AWD system may be disabled

Most Likely Causes

1. Faulty Left Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor Wheel speed sensors are exposed to harsh conditions (water, dirt, road salt) which can lead to failure over time. It's a common failure point on many vehicles, including the Compass and its platform-mate, the Jeep Renegade.
   How to confirm: Use an ABS-capable scan tool to monitor live data from all four wheel speed sensors while driving. If the left front sensor reads erratically, drops to zero, or doesn't match the other sensors, it has failed. A Reddit user with a 2018 Compass Trailhawk recommended using the JScan app with a Bluetooth OBD reader to check the ABS module for the specific failing sensor.
   Typical fix: Replace the left front wheel speed sensor. This is held by a single 5mm Allen head bolt and the wiring connector is located behind the fender liner.
   Est. part cost: $30-$60
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness leading to the wheel hub is subject to stress from steering and suspension movement. Some owners have reported general electrical issues due to wiring harness problems on this platform. One Reddit user found a corroded 10-pin wiring plug behind the driver's side headlight was the cause of multiple electrical gremlins, including ABS faults.
   How to confirm: Visually inspect the wiring from the sensor up into the wheel well for any signs of chafing, breaks, or corrosion at the connector. A user on a YouTube video diagnosing a no-start on a 2018 Compass found green corrosion on a harness zip-tied between the radiator and transmission. Tracing the harness and checking common chafe or moisture-prone points is key.

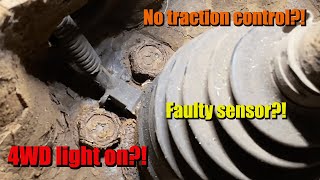

   Typical fix: Repair the damaged section of wire or replace the pigtail connector. In the case of the corroded 10-pin plug, cleaning the contacts and reconnecting it solved the issue. 🎬 Watch: How to fix common ABS light and wiring issues.
   Est. part cost: $15-$40
3. PCM Software Update Required ⚪ Low Probability As documented in TSBs 18-082-22, 18-077-20, and 18-091-19, this code can be set along with other DTCs due to a software glitch in North American market vehicles with the 2.4L engine. These TSBs also list symptoms like poor shift quality and engine starter performance issues.
   How to confirm: This is the likely cause if C0501 is present with other unrelated codes, such as P061A, P06E9, or all four wheel speed rationality codes (C0501, C0507, C050D, C0513). A Jeep dealer can check if your vehicle's VIN has a pending software update.
   Typical fix: Have a dealership reflash the Powertrain Control Module (PCM) with the latest software. The TSBs state this repair is reimbursable under warranty.
   Est. part cost: $0-$200
4. Damaged or Debris-Covered Tone Ring ⚪ Low Probability The tone ring, which the sensor reads, is part of the wheel hub assembly. Rust buildup or a crack in the ring can disrupt the signal. This is a general cause for this code on any vehicle.
   How to confirm: Remove the wheel speed sensor and visually inspect the tone ring through the mounting hole for rust, debris, or cracks. Check for excessive play in the wheel bearing, as this can also cause signal issues.
   Typical fix: Clean the tone ring. If it is cracked or damaged, the entire wheel hub bearing assembly must be replaced.
   Est. part cost: $100-$200

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is rare and should only be considered after all other possibilities (sensor, wiring, software) have been exhaustively ruled out. It is an expensive part and often requires programming by the dealer. One user on a Reddit forum for a 2014 Compass was quoted a new module for similar symptoms, but the issue started right after a tire rotation, pointing more towards a sensor/wiring issue.
• Failing or Weak Battery: → Shop Vehicle Battery On modern FCA vehicles like the Compass and Renegade, a weak or failing battery can cause a cascade of seemingly unrelated error codes and warning lights. A Reddit thread about a Jeep Renegade with 7 error codes, including ABS faults, was completely resolved by replacing the aging original battery, even though it still showed acceptable voltage.

Diagnosis Steps

1. Check for other trouble codes. If multiple, seemingly unrelated codes are present (especially P061A, P06E9, or all four wheel speed codes), investigate TSBs for software updates first.
2. Check battery health and terminal connections. Ensure the battery is fully charged and terminals are clean and tight. A weak battery can cause numerous electrical faults on this platform.
3. Connect an OBD-II scanner capable of reading ABS live data.
4. Graph the output of all four wheel speed sensors while driving in a straight line. The left front sensor's graph should be smooth and match the others.
5. If the left front signal is erratic, jumpy, or drops to zero, proceed with a physical inspection.
6. Raise and secure the front left of the vehicle. Remove the wheel.
7. Visually inspect the wheel speed sensor and its wiring harness for any obvious damage, corrosion, or loose connections. Pay special attention to the harness routing and any potential chafe points.
8. Remove the sensor (typically held by a single 5mm Allen bolt) and inspect the magnetic tip for metal debris. Inspect the tone ring inside the hub for damage or rust.
9. If the sensor and wiring appear intact, test the sensor's circuit for proper voltage and ground according to the factory service manual.
10. If the circuit tests good, the sensor itself is the most likely culprit and should be replaced.

Parts You'll Likely Need

• Left Front ABS Wheel Speed Sensor (OEM #68339596AA (Note: Part numbers can vary by FWD/AWD and build date, always verify with VIN)) — This is the most common component to fail, triggering the C0501 code.
  Trusted brands: Mopar, Delphi, Duralast, SKP, Bosch
  OEM price range: $60-$100
  Aftermarket price range: $30-$60

Related Codes That Often Appear With This One

• C0507, C050D, C0513 — Rationality codes for the other three wheels. If all four appear together, TSBs strongly suggest a PCM software update is the likely fix, rather than four simultaneously failed sensors.
• P0607, P061A, P06E9 — These are PCM performance and starter performance codes. The provided NHTSA TSBs explicitly link these codes with the C0501 code, indicating a potential software update is needed to resolve them as a group on 2.4L engines.
• U0418 — Invalid Data Received From Brake System Control Module. A user on Reddit reported this code alongside rear wheel speed sensor codes, indicating a communication problem with the ABS module itself, though the root cause ended up being the sensors.

Technical Service Bulletins (TSBs) & Recalls

• 18-082-22: For 2018 Compass 2.4L, links C0501 and other wheel speed codes with PCM performance codes (P061A, P06E9) and recommends a PCM software flash.
• 18-077-20: For 2017 Compass 2.4L (North America), lists C0501 with other codes that can cause a MIL, poor shift quality, or ESS issues, fixed by a PCM software update.
• 18-075-20: (Summary from Pass 1) Includes C0501 in a list of DTCs that may be set when a Malfunction Indicator Lamp is illuminated.
• 18-091-19: For 2018 Compass 2.4L, connects C0501 and other rationality codes with starter performance code P06E9, recommending a PCM reflash.

Platform-Specific Known Issues

• As per TSBs #18-082-22, #18-077-20, and #18-091-19, code C0501 on 2.4L models can be part of a larger group of DTCs that may be resolved by a PCM software update rather than a hardware replacement.
• Owners on Reddit forums report that a weak battery or even a loose terminal can cause a 'Christmas tree' effect on the dash, with multiple system lights including ABS, ESC, and others illuminating at once.
• A specific Reddit user identified a 10-pin wiring plug, located behind the driver's side headlight, as a point of corrosion that caused widespre

Mechanic-Grade Diagnostic Values

• Active Wheel Speed Sensor Signal (on oscilloscope) — expected: A clean, pulsed square wave that switches between approximately 0V and 5V or 0V and 12V. The frequency of the wave should increase smoothly and directly in proportion to wheel speed.. Failure: A signal that is noisy, has a low amplitude, is absent, or drops out intermittently. On a scan tool's live data, this appears as an erratic MPH reading or a speed of zero while the vehicle is moving.
• Sensor Resistance (Ohm Test) — expected: Not applicable. The 2017+ Compass uses 'Active' sensors which are electronic and cannot be accurately tested with a multimeter's resistance function.. Failure: An Ohm test is not a valid diagnostic procedure for this type of sensor. It may give misleading readings.

Scan Tool Commands That Help

• wiTECH (or advanced aftermarket): Proxi Alignment Procedure — This is a mandatory step after replacing or reprogramming the ABS control module. It synchronizes the new module with the rest of the vehicle's computer network (BCM, PCM, etc.). Failure to perform this will result in a flashing odometer and multiple communication errors.
• wiTECH: Brake Pedal Calibration — Located in the ABS module's 'Miscellaneous Functions' tab, this routine should be performed after flashing or replacing the ABS module to ensure it correctly interprets brake pedal input.
• wiTECH: Longitudinal G-Sensor Calibration — Also found in the ABS 'Miscellaneous Functions', this calibrates the sensor that detects the vehicle's forward and backward acceleration, which is critical for stability control calculations.

Wiring & Ground Locations

• ABS Power Fuses (Previous Generation) — In the under-hood fuse box (for 2011-2017 MK platform). Fuse #33 (10A, Module), #34 (30A, Valve), #35 (40A, Pump).. While this is for the previous generation, it provides a likely starting point for checking power supply to the ABS module on the MP platform if a wiring diagram is unavailable. A loss of power to the module could cause various codes, including rationality faults.
• Wheel Speed Sensor Connector — The sensor wire runs from the wheel hub, up the steering knuckle, and connects to the main harness behind the plastic fender liner.. This connector is a common point for corrosion or damage due to its location in the wheel well. Inspecting this connector is a key step in diagnosing a C0501 code.

Real Owner Repair Stories

• Reddit user on r/volt (2016 Chevrolet Volt (Note: Different vehicle, but illustrates a universal failure principle for this code)) — Check Engine Light, ABS light, and Stabilitrak message with codes P25A2 and C0501.
  ❌ Tried (didn't work) Replacing the left front wheel speed sensor., Checking and resetting the 12V battery.
  ✅ What actually fixed it The user replaced the entire front wheel hub/bearing assembly. Upon removing the old one, they found a small crack in the magnetic tone ring that is integrated into the bearing. This crack was causing the erratic signal that the new sensor was still reading, leading to the C0501 code.

OEM Part Supersession History

• 68339596AA → N/A — Part number confirmed for 2018-2019 FWD models. No supersession was found in searches.
• 68354224AA, 68354224AB → 68354224AC — This is an example for a REAR sensor on the same vehicle, showing that Mopar frequently updates these parts. The latest part number is 68354224AC.
  Heads up: Always use the latest part number when replacing components to ensure you have the most updated design.

Model Year Variations Within This Range

• 2017: The 2017 model year was a changeover year. Jeep sold both the old 'MK' platform Compass and the new 'MP' platform Compass. Parts, including the ABS module and sensors, are completely different between the two and are not interchangeable. The new 'MP' style has conventional horizontal rear door handles, while the old 'MK' style has vertical handles hidden in the C-pillar.
