C0507 on 2016 Fiat 500X: Right Front Wheel Speed Rationality Causes and Fixes

What's Unique About the 2016-2016 Fiat 500X

For the Fiat 500X and its platform-mate, the Jeep Renegade, this code is typically a hardware issue at the right front wheel. However, it's notable that Fiat has issued Technical Service Bulletins (TSBs) where a software update for the powertrain control module (PCM) can resolve a wide array of seemingly unrelated codes, including C0507. 🎬 Watch: A quick breakdown of the C0507 fault code. This suggests that in some cases, the fault may lie in software interpretation rather than a physical part failure. Additionally, these vehicles are known for developing widespread, intermittent electrical issues when the 12V battery begins to fail, which can trigger a C0507 code among many others.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light illuminated
• Traction Control (ESC) warning light illuminated
• "Service Electronic Parking Brake" message may appear
• "Drive Mode Not Available" message may appear
• ABS and stability control are non-functional
• Check Engine Light may be illuminated

Most Likely Causes

1. Failed Right Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor Wheel speed sensors are exposed to harsh conditions (water, heat, debris) which can lead to failure over time. The constant movement of the suspension can also stress the wiring integrated into the sensor.
   How to confirm: Use a scan tool with live data to monitor all four wheel speeds while driving. The right front sensor reading will be erratic, drop to zero, or differ significantly from the others. A visual inspection may reveal a physically damaged sensor.
   Typical fix: Replace the right front wheel speed sensor. The front sensors are often interchangeable side-to-side, allowing for a swap test.
   Est. part cost: $20-$100
2. Damaged Wiring or Connector 🟡 Medium Probability The sensor wiring harness runs down the suspension and is vulnerable to damage from road debris, corrosion, or improper routing during previous brake or suspension work. On Fiat/Jeep platforms, chafing on frame members is a known issue. Sometimes the internal copper wires can break even if the outer insulation looks intact.
   How to confirm: Visually inspect the entire length of the wiring from the sensor to the main harness connection. Check the connector for corrosion, pushed-out pins, or a loose fit. Test for continuity and shorts with a multimeter. A common failure point is right at the connector where the wire flexes.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. Using heat-shrink butt connectors or soldering with adhesive-lined heat shrink is recommended for a durable repair.
   Est. part cost: $15-$40

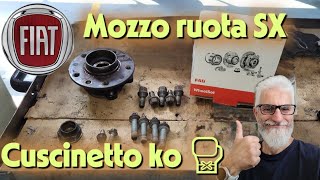

3. Damaged Tone Ring / Failing Wheel Hub Assembly 🟡 Medium Probability → Shop Hub Assembly The magnetic tone ring is integrated into the wheel hub/bearing assembly. Corrosion can cause the ring to crack or swell, or a failing bearing can introduce excessive play (wobble), altering the sensor's reading. This is a common failure point on both the 500X and Jeep Renegade.
   How to confirm: With the wheel raised, check for any play or wobble by grabbing the tire at 12 and 6 o'clock. A noisy or rough feeling when spinning the wheel also indicates a bad bearing. Visual inspection of the hub's inboard side may reveal a cracked or debris-covered tone ring.
   Typical fix: Replace the entire front wheel hub and bearing assembly. This is a single, non-serviceable unit.
   Est. part cost: $150-$315

Rare But Worth Checking

• Weak or Failing 12V Battery: Low system voltage can cause a variety of random electronic faults on modern vehicles like the Fiat 500X and Jeep Renegade. Multiple, seemingly unrelated warning lights are a common symptom. Before diving into complex diagnostics, ensure the battery is fully charged and passes a load test. A failing alternator can also cause these issues.
• ABS Control Module Software Glitch: → Shop ABS Control Module As noted in Fiat TSB #08-010-16 REV. D, a software update can sometimes resolve this code. This TSB involves flashing the PCM, BCM, and TCM. Another TSB, #05-001-16 REV. D, involves an ABS module software update to fix other brake-related issues and may be relevant.
• Faulty ABS Control Module: → Shop ABS Control Module This is the least likely cause. The module itself can fail, but all other possibilities (sensor, wiring, hub) should be exhaustively ruled out first. This is an expensive part and typically requires programming to the vehicle.

Diagnosis Steps

1. Read Fault Codes: Use an OBD-II scanner capable of reading Chassis (C) codes to confirm C0507 is present and note any other codes, especially U-codes or codes for other wheels.
2. Check Battery Health: Before proceeding, ensure the battery is fully charged and healthy. Test voltage with the car off (should be >12.4V) and running (should be 13.7-14.7V). A load test is recommended. Many owners on forums for the 500X and Renegade report a weak battery as the cause of multiple electronic faults.
3. Analyze Live Data: Monitor the live data stream for all four wheel speed sensors while driving in a straight line. Confirm that the Right Front (RF) sensor reading is erratic, drops out, or is inconsistent with the other three.
4. Inspect Wiring and Connector: Raise and safely support the vehicle. Visually inspect the RF wheel speed sensor wiring harness for any signs of chafing, breaks, corrosion, or rubbing against the frame. Disconnect the sensor and check the connector pins for damage or moisture.
5. Inspect Wheel Hub and Bearing: While the wheel is raised, check for any play by pushing and pulling on the top and bottom of the tire. A loose or noisy wheel bearing indicates the hub assembly is faulty.
6. Swap Sensors (If Applicable): If the front left and right sensors are identical parts, you can swap them. Clear the codes and drive the vehicle. If the code changes to C0501 (Left Front), the sensor is bad. If the code remains C0507, the problem is in the wiring or hub.
7. Test the Circuit: If the sensor and hub seem okay, use a multimeter to check for proper voltage and ground at the sensor connector and test for continuity in the wiring back to the ABS module. Wiggle the harness during testing to find intermittent breaks.
8. Check for TSBs: If no physical fault is found, consult a dealer or use a professional database to see if any software updates are available for the ABS, PCM, BCM, or TCM per TSBs 08-010-16 REV. D and 05-001-16 REV. D.

Parts You'll Likely Need

• Front Wheel Speed Sensor (OEM #51941079) — This is the most common failure point for a C0507 code. It's a relatively inexpensive and accessible part.
  Trusted brands: Mopar, Bosch, SKF, Standard Motor Products (SMP)
  OEM price range: $80-$100
  Aftermarket price range: $20-$50
• Front Wheel Hub Assembly (OEM #68245322AB) — This part is replaced if the integrated magnetic tone ring is damaged or if the wheel bearing itself has failed, causing excessive play. The OEM part number 68245322AA has been superseded by 68245322AB. Common aftermarket numbers include 513389 and 91-605363.
  Trusted brands: SKF, Timken, MOOG, Mevotech
  OEM price range: $255-$315
  Aftermarket price range: $150-$200
• ABS Sensor Pigtail Connector (OEM #68045322AA) — If the wiring is damaged only at the connector, replacing the pigtail is a cost-effective repair instead of replacing the entire harness.
  Trusted brands: Mopar, Dorman
  OEM price range: $25-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• C0501 — This is the rationality code for the Left Front wheel. Seeing both may indicate a common issue like a software problem, a weak battery, or a wiring harness fault affecting both sides.
• U0415 — This code means 'Invalid Data Received From Anti-Lock Brake System Control Module'. It often appears with ABS faults, indicating that other modules on the vehicle network are not trusting the data sent by the ABS module because of its internal fault (like C0507).
• P25A2 — This code can be related to the brake system control module. In some cases, it appears alongside wheel speed sensor codes.

Technical Service Bulletins (TSBs) & Recalls

• 08-010-16 REV. D: Lists C0507 'Wheel Speed Signal Right Front Rationality' among codes that may be addressed by a PCM/BCM/TCM software update for 'Diagnostic And System Improvements'.
• 0801016: Lists C0507 'Wheel Speed Signal Right Front Rationality' among codes that may be addressed by a PCM software update.
• 08-010-16 REV. B: Lists C0507 'Wheel Speed Signal Right Front Rationality' among codes that may be addressed by a PCM software update.
• 05-001-16 REV. D: Involves reprogramming the ABS module for various issues on both the Fiat 500X and Jeep Renegade, indicating software fixes are a known repair path for the brake control system.

Platform-Specific Known Issues

• Owners have reported that a variety of random electrical issues and warning lights can be caused by a failing battery or a corroded main chassis ground strap. On the Jeep Renegade, many owners report that replacing an aging battery resolves a dashboard full of warning lights.
• The provided TSBs (#08-010-16 REV. D, #0801016, #08-010-16 REV. B) indicate that a PCM software update was released to address a list of DTCs, including C0507, suggesting a potential software-related cause in some instances. This flash updates the PCM, BCM, and TCM.
• A user on The FIAT Forum with a 2016 500X experienced multiple electrical faults, including a crankshaft sensor failure caused by water ingress and subsequent wiring connector failure, highlighting the platform's sensitivity to moisture and wiring issues.

Mechanic-Grade Diagnostic Values

• Passive Wheel Speed Sensor Resistance — expected: Generally between 800 and 2,500 Ohms, but can vary. A common range is 1,000-2,500 Ohms. Comparing the reading to the sensor on the opposite side is a good diagnostic check.. Failure: A reading of 'OL' (Open Limit) or near 0 Ohms indicates a failed sensor.
• Passive Wheel Speed Sensor AC Voltage Output — expected: At least 100-200 millivolts (0.1-0.2 VAC) when spinning the wheel by hand at about one revolution every 1-2 seconds. The voltage should increase proportionally with wheel speed.. Failure: No AC voltage generated while spinning the wheel indicates a dead sensor.
• System Voltage during Flash/Reprogramming — expected: Must be maintained between 13.2 and 13.5 volts.. Failure: Dropping below 13.2V or climbing above 13.5V can cause the flash process to fail or be aborted.

Scan Tool Commands That Help

• wiTECH: Reprogram PCM/BCM/TCM — Used to apply software updates as specified in TSB #08-010-16 REV. D, which may resolve code C0507 along with a list of other unrelated DTCs. This should be considered if no physical fault is found with the sensor, wiring, or hub.
• wiTECH: Restore Configuration and Align Proxi — This function is necessary after replacing certain control modules to ensure all modules on the vehicle network can communicate correctly. It may be required if the ABS module is replaced.
• wiTECH: Clear All DTCs — After a module reprogramming, the wiTECH application will present all DTCs set during the flash and allow them to be cleared. This is a mandatory final step.

Wiring & Ground Locations

• ABS Module Connector — The ABS control module is typically located in the engine bay, attached to the hydraulic control unit (the metal block with brake lines going to it).. This is the termination point for the wheel speed sensor wiring. Testing for signal, power, and ground at this connector can confirm if the wiring harness is intact between the sensor and the module.
• Wheel Speed Sensor Connector — Located in the wheel well, connecting the sensor pigtail to the main body harness.. This is the primary point for testing the sensor itself (resistance, AC voltage) and for checking for power/ground from the ABS module. It is exposed to the elements and is a common point of failure due to corrosion or damage.
• Fuse F13 (Passenger Compartment Fuse Box) — Located in the fuse box inside the passenger compartment.. This 7.5A fuse supplies power to the Brake Control Module (BSM), also known as the ABS module. A loss of power here would disable the entire ABS system and likely set multiple codes, including C0507.

Real Owner Repair Stories

• Reddit user on r/JeepRenegade (Jeep Renegade (platform mate to Fiat 500X)) — Multiple warning lights flashing on the dash, car hesitating to start and accelerate.
  ❌ Tried (didn't work) Initial diagnosis was uncertain.
  ✅ What actually fixed it Replacing the 12V battery. After the new battery was installed, all warning lights disappeared and the vehicle ran perfectly smoothly.
• Reddit user on r/Silverado (Chevrolet Silverado (different vehicle, but same code principle)) — Code C0507, Traction Control disabled, Steering Assist warnings appeared suddenly after the truck was parked.
  ❌ Tried (didn't work) Visual inspection showed no obvious damage.
  ✅ What actually fixed it The user confirmed the final fix was replacing the passenger side wheel speed sensor.

When the Usual Fixes Don't Work

• While the most common causes for C0507 are a failed sensor, wiring, or hub assembly, a significant number of owners of the Fiat 500X and its platform-mate, the Jeep Renegade, have resolved this and other simultaneous electronic fault codes simply by replacing a weak 12V battery. Before spending time and money on diagnosing the ABS circuit, it is critical to first confirm the battery is healthy and providing stable voltage. Furthermore, Fiat has issued software updates that correct this specific code, indicating that in some cases, the root cause is not a hardware failure but a software glitch in one of the control modules.

OEM Part Supersession History

• 68245322AA → 68245322AB — This is a standard part number update by the manufacturer, likely for a minor revision or change in supplier.
  Heads up: The part listed is for a 'Front Bumper Reinforcement' according to multiple Mopar parts sites, not the wheel hub assembly. This indicates the part number in the Pass 2 data was likely incorrect for the component it described.
