C0544 on 2014-2018 Chevrolet Silverado 1500: Steering System Faults & Fixes

What's Unique About the 2014-2018 Chevrolet SILVERADO 1500

The K2XX generation of Silverado and its platform mates (Sierra, Tahoe, Yukon) are well-documented to have specific electrical gremlins that trigger this code. Two issues stand out: a poor Body Control Module (BCM) ground at location G218, and a wire 🎬 Watch: How to locate and fix the G218 ground issue. harness that can chafe near the instrument panel. The G218 ground issue is particularly common because sound-deadening insulation was often trapped under the ground lug at the factory, preventing a solid connection. These issues can interrupt communication with the steering angle sensor, causing the C0544 code even when the sensor itself is perfectly fine. These are so common that GM has issued multiple Technical Service Bulletins (TSBs) about them.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service StabiliTrak" message on the instrument cluster
• "Steering Assist is Reduced Drive With Care" message
• Traction control and/or ABS warning lights illuminated
• Intermittent or total loss of power steering assist, especially when turning slowly
• Vehicle may pull to one side
• Headlights and dash lights may flicker or dim, especially when turning the steering wheel
• Radio or infotainment screen randomly turns off or reboots
• Entire instrument panel cluster goes blank momentarily
• Vehicle may stall when turning at low speeds

Most Likely Causes

1. Poor BCM Ground at G218 🔴 High Probability This is a widely documented issue covered by GM TSBs #PIT5405B and #PIT5405C. Factory sound-deadening material was often trapped under the ground lug, preventing a solid connection. This is the most common cause reported by owners in forums and videos.
   How to confirm: Locate the G218 ground stud under the driver's side of the dashboard, to the left of the steering column, often behind the A-pillar trim and near the speaker. Visually inspect if the black dash insulator mat is under the terminal. The nut is typically 10mm. A high-resistance reading between the ground terminal and a clean chassis point confirms the issue.
   Typical fix: Disconnect the battery. Remove the 10mm nut, pull the wire terminal off the stud, and use a utility knife to cut away the circular piece of insulation/matting around the stud. Clean the contact surfaces of the terminal and the stud with a wire brush or sandpaper, then re-secure the ground connection tightly.
   Est. part cost: $0-$5
2. Chafed Wiring Harness 🟡 Medium Probability TSB #PIT5288H points to a specific issue where the dash harness gets pinched between the left instrument panel mounting bracket and the body. The vibration and movement can eventually rub through the insulation on one or more wires, causing a short.
   How to confirm: With the driver's side lower dash panel removed, inspect the wiring harness where it passes the metal I/P mounting bracket. Look for any signs of pinching, chafing, exposed copper wires, or damage. The TSB shows it can be pinched at the upper or lower portion of the bracket.
   Typical fix: Loosen the I/P mounting bracket bolts to free the harness. Open the harness loom, repair any damaged wires using appropriate connectors or soldering, and insulate the repairs with heat shrink. Protect the harness with anti-abrasion tape or loom and re-route it to prevent future contact with the bracket.
   Est. part cost: $5-$25
3. Steering Angle Sensor Needs Calibration 🟡 Medium Probability → Shop Steering Angle Sensor This is often required after a wheel alignment, suspension work, battery disconnect, or if the PSCM software issue described in TSB #20-NA-113 occurs. The system loses its 'zero' position and needs to be relearned.
   How to confirm: Use a bi-directional scan tool (like an Autel MaxiCOM or similar) to access the EBCM or PSCM and check the steering angle sensor live data. If the wheel is straight but the reading is not 0 degrees, it needs calibration.
   Typical fix: Perform the Steering Angle Sensor Learn/Calibration procedure using a compatible professional scan tool. This is typically found in the special functions menu for the Power Steering Control Module or Electronic Brake Control Module.
   Est. part cost: $0
4. Failed Steering Angle Sensor ⚪ Low Probability → Shop Steering Angle Sensor
   How to confirm: Using a scan tool, monitor the steering angle sensor's live data while turning the wheel lock-to-lock. The reading should be smooth and consistent. If it jumps, freezes, or shows no reading, and the wiring/grounds are confirmed good, the sensor has likely failed.

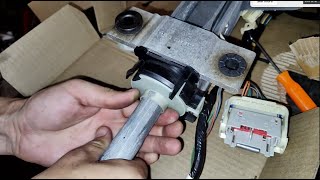

   Typical fix: Replace the steering angle sensor. It is located in the steering column. After replacement, the new sensor must be calibrated using a professional scan tool.
   Est. part cost: $60-$150

Rare But Worth Checking

• Power Steering Control Module (PSCM) Calibration Error: → Shop Power Steering Control Module According to TSB #20-NA-113, a software glitch can cause the PSCM to retain C0544 as a current code even after the initial fault (like a dead battery) is gone. The fix is to have a dealer reprogram the PSCM with updated software.
• Loose or Corroded Battery Cables: → Shop Vehicle Battery TSB #PIT5405C also mentions that high resistance in the main battery cables or a loose connection at the battery fuse block can cause widespread electrical issues, including those that trigger C0544, especially when the electrical load increases while turning the wheel.

Diagnosis Steps

1. Scan all vehicle modules for DTCs and document them. Note if C0544 is accompanied by communication codes like U0126 or U0073, which strongly suggest a wiring or ground issue.
2. Perform the G218 Ground Fix (Highest Priority): Disconnect the battery. Locate the G218 ground stud under the driver's side dash near the A-pillar speaker. Remove the 10mm nut and terminal. Cut away the foam/insulation from the stud, clean all contact surfaces with a wire brush, and re-tighten securely. This is the most common fix and should be done preventatively even if it looks okay.
3. Reconnect the battery, clear all DTCs, and test drive the vehicle, turning the wheel lock-to-lock at low speeds. If the code and symptoms do not return, the ground was the issue.
4. If the code returns, inspect the instrument panel wiring harness for chafing, as noted in TSB #PIT5288H. Pay close attention to where the harness passes the metal I/P mounting bracket. Repair any damaged wires.
5. Use a scan tool to view the live data from the steering angle sensor. Turn the steering wheel lock-to-lock. The degree reading should change smoothly and return to near-zero when the wheels are straight.
6. If the data is present but incorrect (e.g., not zero when straight), perform the steering angle sensor calibration procedure with a compatible scan tool.
7. If the live data is frozen, erratic, or absent, and the wiring/grounds are confirmed good, the steering angle sensor itself is the likely culprit and should be replaced.
8. If the code cannot be cleared or returns immediately after a fix, consult TSB #20-NA-113, as the PSCM may require a software update from a dealership.

Parts You'll Likely Need

• Steering Angle Sensor (OEM #13590209) — This sensor can fail internally, but it should only be replaced after verifying the G218 ground and associated wiring are intact, as they are the more common culprits. A new sensor requires calibration.
  Trusted brands: ACDelco (GM Genuine), Dorman, Standard Motor Products
  OEM price range: $100-$180
  Aftermarket price range: $60-$150

Related Codes That Often Appear With This One

• U0415 — Invalid Data Received From Electronic Brake Control Module. This code often appears with C0544 because the steering angle data is a critical input for the brake module.
• U0126 — Lost Communication With Steering Angle Sensor Module. This points directly to a communication breakdown, often caused by the G218 ground or wiring issues. [PIT5288H, PIT5405B]
• U0073 — Control Module Communication Bus A Off. This is a general network code that can be triggered by the faulty G218 ground affecting the BCM. [PIT5405B]
• C0710 — Steering Position Signal. This is another code related to the steering sensor that is often logged alongside C0544 due to the same root causes. [PIT5288H, PIT5405C]

Technical Service Bulletins (TSBs) & Recalls

• PIT5288H: Mentions C0544 in relation to a chafed wire harness.
• PIT5405B / PIT5405C: Cites C0544 as a potential result of a bad BCM ground at G218.
• 20-NA-113: Describes a PSCM software issue that can cause C0544 to persist, requiring a reprogram.

Platform-Specific Known Issues

• TSB #PIT5405C: Multiple trouble codes, including C0544, can be caused by a poor Body Control Module ground at location G218 or high resistance in main battery cables, especially noticeable when turning at low speeds.

Mechanic-Grade Diagnostic Values

• Steering Angle Sensor Connector Voltage (Power) — expected: 10-14 V. Failure: Voltage below 10V or no voltage indicates a wiring or power supply issue.
• Steering Angle Sensor Connector Ground — expected: Below 1 Ω. Failure: High resistance indicates a poor ground connection.
• CAN Bus Line Resistance at Sensor Connector — expected: 54 to 69 Ω. Failure: Resistance outside this range can indicate a problem with the CAN bus wiring or terminating resistors.

Hidden / Shadow Codes Worth Checking

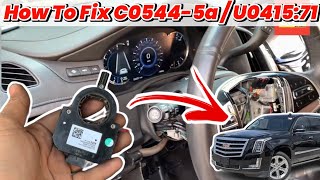

• C0544-5A: The '-5A' is a symptom byte often seen with C0544 on GM vehicles. It specifically means 'Data Not Plausible'. This indicates the data received from the sensor is illogical, which can happen from a bad sensor, incorrect calibration, or communication corruption from a bad ground. (see via A professional-grade scanner or GM's GDS2 (Global Diagnostic System 2) software is required to view symptom bytes.)

Scan Tool Commands That Help

• GM GDS2 / Professional Scan Tool: Steering Wheel Angle Sensor Learn — This function is used after replacing the sensor, performing a wheel alignment, or if the sensor's 'zero' position is lost. It calibrates the sensor to the straight-ahead position.
• GM GDS2 / Professional Scan Tool: Steering Wheel Angle Sensor Reset — This function should be performed before the 'Learn' procedure to clear old calibration values from the control module's memory.
• GM Service Programming System (SPS): Replace and Reprogram (for PSCM) — This is a dealer-level function used to update the Power Steering Control Module (PSCM) software. It's required to fix a known glitch where code C0544 remains as a current code instead of moving to history, per TSB #20-NA-113.

Wiring & Ground Locations

• G218 — Under the driver's side of the dashboard, to the left of the steering column, near the A-pillar and speaker. It is a threaded stud with a 10mm nut securing one or more ground eyelets.. This is the primary ground for the Body Control Module (BCM). A poor connection here, often caused by trapped insulation, disrupts communication networks and is a leading cause of C0544 and other electrical faults.
• Steering Angle Sensor Connector — On the steering column, under the dash. Access requires removing lower dash panels.. This is the direct connection point for the sensor. Technicians test for power, ground, and signal at this connector's pins to determine if the fault is with the sensor or the vehicle's wiring.
• Main Power/Ground Fuse Block — On top of the battery on the passenger side, under a plastic cover.. This block contains the main 175A fuse for the electric power steering system. A loose connection or corroded terminal here can cause a voltage drop when the steering load increases, triggering various codes including C0544.

Real Owner Repair Stories

• Tahoe Yukon Forum user (2017 Tahoe (platform mate)) — Stabilitrak and steering error messages on the dash with codes C0710-4B and C0544-5A after fixing a steering gear misalignment.
  ❌ Tried (didn't work) Clearing codes without performing a relearn.
  ✅ What actually fixed it The user had to physically replace the steering angle sensor on the column. After installing the new sensor, they were able to successfully perform a Steering Angle Sensor (SAS) relearn procedure using an Xtool D8S scan tool, which cleared the codes and messages.
• YouTube user Dustin T (2014 Silverado High Country) — Headlights and dash lights flickering, park assist disabled, power steering disabled, and vehicle stalling when turning at low speeds.
  ❌ Tried (didn't work) Having the battery and alternator tested, which both checked out fine.
  ✅ What actually fixed it The problem was resolved by fixing the G218 ground. The user removed the driver's side A-pillar and dash trim, located the ground stud, and found that sound-deadening foam was trapped under the ground terminal. Cleaning the connection and ensuring the foam was out of the way permanently solved the electrical issues.

OEM Part Supersession History

• 13590209 → N/A (Still current as of early 2026) — N/A
  Heads up: This part requires programming and/or special setup procedures after installation. It is often sold as part of the entire steering column assembly but is available separately.

Model Year Variations Within This Range

• 2014-2018: While the G218 ground and chafed harness issues apply to the entire 2014-2018 range, the 2016 model year saw a mid-cycle refresh with updated infotainment and some interior changes. However, the fundamental location of the G218 ground stud and the steering column components related to C0544 remained consistent.
