C0561 on 2007-2013 Cadillac Escalade EXT: Service Stability System Causes and Fixes

What's Unique About the 2007-2013 Cadillac ESCALADE EXT

On the GMT900 platform, which includes the 2007-2013 Escalade, the StabiliTrak system is highly integrated with the engine and transmission controllers. Any fault that affects engine performance—such as a rich fuel condition, a misfire, or a faulty throttle position sensor—can cause the Engine Control Module (ECM) to send data that the EBCM flags as invalid. This makes C0561 a common 'symptom' code on these trucks, rather than a problem with the brake module itself. TSB PIT4169F was issued specifically for this, instructing technicians not to replace the EBCM but to find and fix other DTCs first.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Stability Message" or "Service StabiliTrak" on the Driver Information Center (DIC)
• Traction Control indicator light is illuminated
• ABS warning light may be illuminated
• "Reduced Engine Power" message may appear on the DIC
• Check Engine Light (Malfunction Indicator Lamp) is often on due to the primary fault

Most Likely Causes

1. Fault Code in Another Module (ECM, TCM, BCM, etc.) 🔴 High Probability The EBCM relies on data like engine torque, wheel speed, and throttle position from other modules. If any of that data is compromised due to a fault in the sending module, the EBCM sets C0561. Common primary faults on these trucks include rich fuel conditions (P0172/P0175) from an incorrect fuel alcohol content reading, faulty throttle position sensors, and engine misfires.
   How to confirm: Use a full-featured scan tool to check for Diagnostic Trouble Codes (DTCs) in ALL modules. The presence of codes in the Engine (ECM), Transmission (TCM), or Body (BCM) is a strong indicator. TSB PIT4169F notes that even non-check-engine-light codes (Type 'B') can trigger C0561.
   Typical fix: Diagnose and repair the issue causing the other DTCs. For example, if you have engine codes P0172/P0175 (System Too Rich), resetting the fuel alcohol composition with a scan tool often resolves the issue instantly. If you have a throttle position sensor code (P2135), cleaning or replacing the throttle body is the fix.
   Est. part cost: $0-$500+

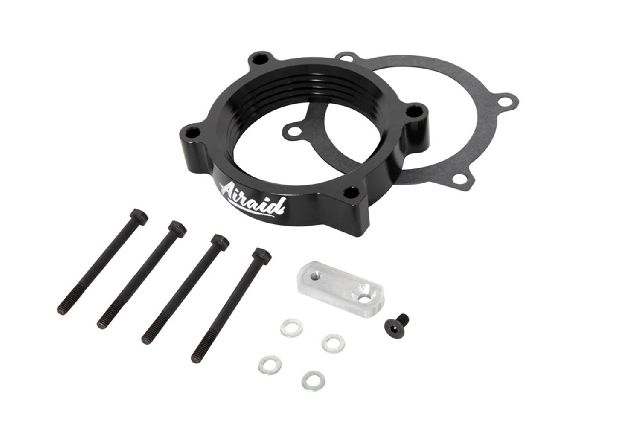

2. Faulty Throttle Body / Throttle Position Sensor (TPS) 🟡 Medium Probability → Shop Fuel Injection Throttle Body The electronic throttle body on the GMT900 platform is a known failure point. The internal position sensors can wear out or fail, sending erratic data to the ECM. The ECM then relays this invalid data to the EBCM, triggering C0561 and often a 'Reduced Engine Power' message.
   How to confirm: Scan for codes like P2135 (Throttle Position Sensor 1-2 Correlation). Monitor TPS data on a scan tool while pressing the accelerator; look for dropouts or non-linear response. A thorough cleaning of the throttle plate and bore is a good first step.
   Typical fix: In many cases, a thorough cleaning of the throttle body resolves the issue. If the sensor is internally faulty, the entire throttle body assembly must be replaced and a throttle relearn procedure performed. GM issued TSB 11-06-04-007C to address P2135 by installing a new TP sensor cover and reprogramming the ECM.
   Est. part cost: $150-$350

Rare But Worth Checking

• Failing Electronic Brake Control Module (EBCM): → Shop ABS Control Module This should only be considered after confirming there are absolutely no other DTCs in any other module and after checking wiring. Technicians and GM's own TSB PIT4169F warn specifically *not* to replace the EBCM for this code until all other possibilities are exhausted.
• Wiring or Connector Issue at the EBCM: Damaged wires, a loose connection, or corrosion on the EBCM harness can corrupt GMLAN data signals, leading to this code. A visual inspection of the harness and connector is a valid diagnostic step if no other codes are present. GM bulletin 08-07-30-021H addresses various GMLAN communication issues caused by chafed wiring or poor connections.
• Low System Voltage or Bad Ground: A weak or failing battery can cause widespread communication errors between modules. Owners on forums also report that checking and cleaning the main chassis grounds, particularly the one under the driver's door on the frame, can resolve intermittent electrical issues that lead to this code.

Diagnosis Steps

1. Connect a scan tool capable of reading codes from all vehicle modules (EBCM, ECM, TCM, BCM, etc.).
2. Record all DTCs found in any module. Pay special attention to codes in the Engine Control Module (ECM).
3. IGNORE the C0561 code for now. Prioritize diagnosis and repair for any other codes you found. This is the most critical step, as stated in TSB PIT4169F.
4. If P0172/P0175 are present, check the 'Fuel Alcohol Content' value in the ECM live data. If it's high (e.g., >15%) and you use regular gasoline, perform a 'Fuel Composition Reset' with the scan tool.
5. If throttle-related codes like P2135 are present, inspect and clean the throttle body. Check for related TSBs like 11-06-04-007C.
6. If misfire codes (P03xx) are present, diagnose the cause (spark plugs, ignition coils, etc.). A common fix is replacing worn spark plugs.
7. After repairing the primary fault, clear all codes from all modules.
8. Drive the vehicle to see if the 'Service Stability' message and the C0561 code return. In most cases, they will not.
9. If C0561 is the ONLY code present, inspect the wiring and connectors at the EBCM. Check main battery and chassis ground connections for corrosion or looseness.
10. If no other codes are present and the wiring is intact, the EBCM itself may be faulty, but this is the least likely scenario.

Parts You'll Likely Need

• Varies - Based on Other Codes Found — The most common 'fix' for C0561 is to repair another problem. This could be anything from a Mass Airflow Sensor causing rich codes to a wheel speed sensor. The part needed is for the primary code, not C0561 itself. Often, the fix is a procedure like a Fuel Composition Reset, costing $0 in parts.
  Trusted brands: ACDelco, Bosch, Denso
  OEM price range: $50-$400
  Aftermarket price range: $20-$250
• Throttle Body Assembly (OEM #ACDelco 217-3153 (GM 12605109)) — A common cause for C0561, often accompanied by code P2135. The internal throttle position sensors fail, requiring replacement of the entire assembly.
  Trusted brands: ACDelco
  OEM price range: $150-$250
  Aftermarket price range: $80-$180
• Electronic Brake Control Module (EBCM) (OEM #ACDelco 25812735 (example, verify by VIN)) — This is the part to replace ONLY as a last resort, if C0561 is the only code and all wiring has been verified as good. It is an uncommon failure for this specific code.
  Trusted brands: ACDelco
  OEM price range: $400-$700
  Aftermarket price range: $250-$500

Related Codes That Often Appear With This One

• P0172 / P0175 — These codes indicate the engine is running rich. This affects engine torque calculations sent to the EBCM. The EBCM sees this unexpected data and disables stability control, setting C0561. A very common cause on these FlexFuel trucks is an incorrect fuel alcohol percentage stored in the ECM, which can be reset with a scan tool.
• P2135 — This code indicates a correlation error between the two throttle position sensors inside the throttle body. This directly leads to invalid data being sent to the EBCM, causing the C0561 code and often a 'Reduced Engine Power' mode.
• Any engine misfire code (e.g., P0300-P0308) — An engine misfire creates erratic engine torque, which is a key input for the StabiliTrak system. The ECM reports this unstable condition, and the EBCM disables the system for safety, setting C0561.
• Any wheel speed sensor code (e.g., C0035, C0040) — If the EBCM receives an erratic signal from a wheel speed sensor, it may set a specific code for that sensor *and* set C0561 because the overall system data is now invalid.

Technical Service Bulletins (TSBs) & Recalls

• PIT4169F: Addresses a 'Service Stability Message' with DTC C0561, advising technicians to diagnose other DTCs first and not to replace the EBCM.
• 11-06-04-007C: Pertains to DTC P2135 (a common cause of C0561), providing a procedure to install a new TP sensor cover and reprogram the ECM to prevent recurrence.

Platform-Specific Known Issues

• A Technical Service Bulletin, #PIT4169F, was issued for this issue. It instructs technicians to address any other Diagnostic Trouble Codes that are set in the vehicle first before diagnosing C0561, and explicitly states NOT to replace the EBCM.
• TSB 11-06-04-007C addresses a common root cause: DTC P2135 from the throttle position sensor. The fix involves installing a new design TP sensor cover and reprogramming the ECM.
• TSB 08-07-30-021H is a comprehensive bulletin for GMLAN communication loss that can cause C0561. It points to potential issues like chafed wiring, backed-out terminals in the transmission connector, and corrosion in module connectors.
• TSB PIP4792D addresses P0172/P0175 codes on FlexFuel vehicles, a common trigger for C0561. It notes that incorrect fuel alcohol content can be learned by the ECM and advises reprogramming the ECM and resetting fuel alcohol content if the learned value is off by more than 17%.

Mechanic-Grade Diagnostic Values

• High-Speed GMLAN Bus Resistance — expected: Approximately 60 Ω (measured between Pin 6 and Pin 14 of the OBD-II port with the battery disconnected).. Failure: A reading of 120 Ω indicates an open circuit or a missing terminating resistor. A reading near 0 Ω indicates a short between the two CAN wires.
• EBCM Ground Circuit Resistance — expected: Less than 0.5 Ohms to a clean chassis ground point.. Failure: Resistance greater than 0.5-1.0 Ohms indicates a corroded or loose ground connection, which can cause intermittent module communication.
• System Voltage (at Battery) — expected: 13.8–14.4V with the engine running.. Failure: Low or unstable voltage can cause numerous data communication errors between modules, including C0561.

Hidden / Shadow Codes Worth Checking

• C0561-71: Invalid Serial Data Received. This is the most common variant and explicitly points to a data communication problem rather than an internal EBCM fault. (see via Most professional scan tools, including GM Tech2 or GDS2, will display this sub-code.)
• C0561-4B: Calibration Not Learned. This can set after replacing a module if the required setup or relearn procedure was not performed. (see via GM Tech2 or GDS2.)
• C0561-54: Solenoid Over Temperature. This can occur if the ABS/Traction Control system is activated continuously for an extended period (e.g., stuck in snow/mud for over 45 seconds). It does not necessarily indicate a part failure. (see via GM Tech2 or GDS2.)
• C0561-59: Component Protection Time Out (Pump Motor Run On). This indicates the ABS pump motor ran continuously for over 60 seconds, possibly due to a hydraulic leak, air in the system, or excessive brake pumping. (see via GM Tech2 or GDS2.)

Scan Tool Commands That Help

• GM Tech2 / GDS2 or equivalent professional scanner: Fuel Composition Reset — Use this function when DTCs P0172 or P0175 are present. On FlexFuel vehicles, the ECM can incorrectly learn a high alcohol percentage, causing a rich condition that triggers C0561. This function resets the learned value.
• GM Tech2 / GDS2 or equivalent professional scanner: EBCM Relearn — This procedure is required after replacing or reprogramming the EBCM. It involves accessing the module setup screen and pressing the 'RESET' soft key.
• GM Tech2 / GDS2 or equivalent professional scanner: Automated Bleed — After replacing the EBCM or any hydraulic brake components, this function cycles the ABS pump and solenoids to purge any trapped air from the system.

Wiring & Ground Locations

• EBCM Main Ground — On the frame rail, typically under the driver's side door area. This is a large ground connection for multiple systems.. Corrosion or looseness at this primary ground point is a well-documented cause of intermittent StabiliTrak/ABS warnings and communication codes like C0561. Cleaning this connection is a common, high-success-rate fix.
• G103 & G104 — G103 is on the front of the right cylinder head. G104 is on the front of the left cylinder head.. These are primary engine grounds. A poor connection here can affect sensor readings and ECM operation, leading to invalid data being sent to the EBCM.
• GMLAN Data Link Resistor — For 2008 and newer Escalade models, this 120-ohm resistor is part of the vehicle's data bus network. Its location can vary but is a key part of the GMLAN circuit.. A failed (open or shorted) terminating resistor will change the total bus resistance from 60 ohms to 120 ohms or 0 ohms, causing widespread communication failures, including C0561.

Real Owner Repair Stories

• Tahoe Yukon Forum (2007 Silverado 1500 LTZ 5.3L) — C0561 was the only code present.
  ❌ Tried (didn't work) Initial research was inconclusive as most cases involved other codes.
  ✅ What actually fixed it The owner related the code to a rough idle caused by the Active Fuel Management (AFM) system. After disabling AFM with a plug-in device and replacing the spark plugs (especially #1 and #7, which showed unusual wear), the C0561 code did not return.
• YouTube - AutoTechMike (2008 GMC Acadia (similar GMT900-based platform)) — C0561 was the only code, but after extended driving, a 'wheel speed sensor frequency error' was logged.
  ❌ Tried (didn't work) Visual inspection of three wheel speed sensor tone rings showed no issues.
  ✅ What actually fixed it A very subtle, hard-to-see crack was found in the driver's rear wheel bearing tone ring. The crack was not large enough to set a specific wheel speed sensor code immediately but was enough to corrupt the data stream and trigger C0561. Replacing the wheel bearing/hub assembly (which includes the tone ring) resolved the issue.
• Tahoe Yukon Forum (2007-2014 GM Truck/SUV) — Service StabiliTrak and Traction Control lights.
  ❌ Tried (didn't work) Replacing other parts like the accelerator pedal sensor.
  ✅ What actually fixed it The owner replaced a faulty brake light switch with a new OEM part, which resolved the StabiliTrak and Traction Control lights. Aftermarket switches can sometimes fail to provide the correct signal.

OEM Part Supersession History

• GM 12605109 → GM 19420707 (also sold as ACDelco 217-3153) — Standard part update and revision by GM.
  Heads up: This is a 90mm 'gold blade' throttle body. While often listed as a replacement, it was primarily for performance engines like the LS3/LS7. Ensure it matches the vehicle's original throttle body size before installing, as it may require intake manifold changes or tuning.
