C0561 on 2007-2013 Chevrolet Avalanche: 'Service Stability' Causes and Fixes

What's Unique About the 2007-2013 Chevrolet AVALANCHE

The Chevrolet Avalanche from this era is built on the GMT900 platform, shared with the Silverado, Tahoe, and Suburban. On these trucks, the C0561 code is notorious for being a 'symptom code,' not a root cause. The vehicle's network architecture is designed to disable stability control whenever a fault occurs that could impact vehicle dynamics. This includes not just obvious faults like a bad wheel speed sensor, but also engine performance issues (misfires, vacuum leaks, throttle body faults), or bad data from the steering angle or brake pedal sensors. As GM's own Technical Service Bulletin PIT4169F states, the correct procedure is always to diagnose and fix any other stored trouble codes *before* investigating C0561, and explicitly warns "Do NOT replace the EBCM to resolve this concern".

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Stability Message" on the Driver Information Center (DIC)
• "Service StabiliTrak" or "Service Traction Control" message on the DIC.
• StabiliTrak/Traction Control warning light illuminated on the dash.
• ABS warning light may be illuminated.
• The vehicle may enter a 'Reduced Engine Power' mode depending on the primary fault.
• Cruise control may be disabled.

Most Likely Causes

1. A Trouble Code is Stored in Another Module (ECM, TCM, BCM) 🔴 High Probability The EBCM is programmed to shut down stability functions when it receives data indicating a fault in a related system. Common triggers on the GMT900 platform include engine misfires (P0300), lean/rich conditions from vacuum leaks or incorrect fuel alcohol content (P0171/P0174/P0172/P0175), or throttle body performance codes (P2135).
   How to confirm: Use a full-system scan tool to check for any 'P' (powertrain), 'U' (network), or 'B' (body) codes. The presence of any other code makes it the primary suspect. TSB PIT4169F notes that even 🎬 Watch: Diagnosing rich codes and C0561 on a GMT900 truck non-check-engine-light codes can be the trigger.
   Typical fix: Diagnose and repair the issue causing the other trouble code. This could be replacing spark plugs for a misfire, fixing a cracked PCV hose for a lean code, or resetting the fuel alcohol content for a rich code.
   Est. part cost: $10-$500
2. Faulty Wheel Speed Sensor or Wiring 🔴 High Probability → Shop ABS Wheel Speed Sensor Wheel speed sensors and their wiring harnesses are exposed to weather, road debris, and heat, making them susceptible to corrosion and damage. A sensor sending erratic or no data is a direct source of the 'invalid data' that triggers C0561.
   How to confirm: Use a scan tool to monitor the live data from all four wheel speed sensors while driving. A sensor that drops out, reads erratically, or doesn't match the others is faulty. Visually inspect the wiring harness for chafing or corrosion, especially at the connector.
   Typical fix: Replace the faulty wheel speed sensor/hub assembly and/or repair the damaged wiring or connector. The front sensors are often sold as a hub assembly.
   Est. part cost: $30-$150
3. Faulty Brake Pedal Position (BPP) Sensor 🟡 Medium Probability → Shop Brake Pedal The BPP sensor tells the EBCM the exact position of the brake pedal, which is a critical input for the stability system. If this sensor fails or sends irrational data, the EBCM disables StabiliTrak as it cannot trust the driver's braking input. This is a common failure point on GMT900 trucks and replacement requires a calibration procedure. 🎬 See how to perform the brake pedal position sensor relearn
   How to confirm: Use a scan tool to monitor the BPP sensor's live data while pressing and releasing the brake pedal. The output should be smooth and correspond to pedal movement. Any jumps, dropouts, or lack of signal indicates a failure.

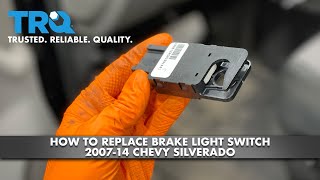

   Typical fix: Replace the Brake Pedal Position sensor, which is typically located on the brake pedal support bracket under the dashboard, and perform the BPP sensor relearn procedure in both the BCM and ECM.
   Est. part cost: $25-$75
4. Failing or Low-Voltage Battery ⚪ Low Probability Complex electronic modules like the EBCM are sensitive to voltage and require a minimum of ~9.6 volts to operate correctly. A weak battery can cause communication glitches and data corruption between modules during startup or under high electrical load, triggering C0561.
   How to confirm: Test the battery's voltage and load capacity. A resting voltage below 12.4V or a failure during a load test indicates a weak battery. Check for corroded or loose battery terminals.
   Typical fix: Replace the vehicle's battery and clean the terminals.
   Est. part cost: $150-$300

Rare But Worth Checking

• Faulty Steering Angle Sensor (SAS): → Shop Steering Angle Sensor The SAS tells the EBCM the driver's intended direction. A failure can cause C0561, sometimes accompanied by code C0710 or C0455. Replacement often requires calibration with a capable scan tool.
• Poor Ground Connection: A corroded or loose ground strap for the EBCM or ECM can cause intermittent and difficult-to-diagnose data errors. On GMT900 trucks, a key ground to inspect is G303, located on the frame rail directly below the driver's door. Corrosion at this point is a known issue.
• Faulty Electronic Brake Control Module (EBCM): → Shop ABS Control Module This should only be considered after all other possibilities, especially other DTCs and sensor inputs, have been completely ruled out. Unnecessary EBCM replacement is a common misdiagnosis for C0561.
• Active Fuel Management (AFM) System Issues: Some owners have reported that rough idling or engine vibrations caused by the AFM system engaging or disengaging can trigger a C0561 code. In some forum cases, disabling the AFM system with a tuner resolved the issue.

Diagnosis Steps

1. Connect a professional scan tool capable of reading codes from ALL modules (EBCM, ECM, TCM, BCM).
2. Record all stored Diagnostic Trouble Codes. Pay special attention to any codes other than C0561.
3. Follow the GM Technical Service Bulletin #PIT4169F: Diagnose and repair any other DTCs FIRST.
4. If engine codes like P0172/P0175 (rich) are present on a FlexFuel model, use a scan tool to check the 'Fuel Alcohol Content' value. If it's abnormally high (e.g., >15%) and you use regular gasoline, perform the 'Fuel Composition Reset' procedure.
5. If engine codes like P0300 (misfire) or P0171/P0174 (lean) are present, diagnose the cause (e.g., tune-up, vacuum leak). A common source of vacuum leaks is a cracked PCV valve hose.
6. If throttle body codes (P2135) are present, inspect and clean the throttle body. A relearn procedure may be necessary after cleaning or replacement.
7. If a wheel speed sensor code is present, use the scan tool's live data function to monitor all four sensors while driving to identify the faulty one.
8. If no other codes are present, use the scan tool's live data to monitor inputs from the Brake Pedal Position Sensor and Steering Angle Sensor for erratic or non-responsive behavior.
9. After repairing the primary fault, clear all codes from all modules.
10. Perform a test drive to confirm the 'Service Stability' message and the C0561 code do not return. Some repairs, like a BPP sensor replacement, require a specific calibration procedure in both the BCM and ECM.
11. If C0561 is the ONLY code present (which is rare), inspect the wiring and connectors for the EBCM and check the main EBCM ground (G303) on the driver's side frame rail for damage or corrosion before considering EBCM failure.

Parts You'll Likely Need

• Wheel Speed Sensor / Hub Assembly (OEM #ACDelco 23144527 (example, verify by VIN)) — A faulty wheel speed sensor is a frequent cause of invalid data being sent to the EBCM.
• Brake Pedal Position Sensor (OEM #ACDelco D1539J (GM 15861245)) — A common failure point on GMT900 trucks that sends irrational data to the EBCM, triggering C0561. Requires calibration after replacement.
• Throttle Body Assembly (OEM #ACDelco 217-3153 (GM 12605109)) — Often replaced for code P2135, which is a very common primary trigger for C0561 on this platform.

Related Codes That Often Appear With This One

• P0300-P0308 — An engine misfire sends a torque reduction signal to the EBCM that is inconsistent with sensor data, causing the EBCM to disable stability control.
• C0035-C0050 — These codes relate directly to wheel speed sensor circuits. A fault in one of these sensors will provide the 'invalid data' that triggers C0561.
• P0121, P2135 — Throttle position sensor codes indicate the engine isn't responding as expected. This conflicts with what the EBCM expects, so it disables stability control as a precaution. This is a very common trigger on the GMT900 platform.
• P0171, P0174, P0172, P0175 — These 'System Too Lean' or 'System Too Rich' codes, often caused by a vacuum leak (like a cracked PCV hose) or incorrect fuel alcohol content data, create invalid engine performance data that leads the EBCM to set a C0561.
• C0710, C0455 — These codes point to a fault with the Steering Angle Sensor, a direct input to the StabiliTrak system.

Technical Service Bulletins (TSBs) & Recalls

• PIT4169F: Instructs technicians to diagnose other DTCs before C0561 when a 'Service Stability Message' is present. Explicitly states not to replace the EBCM for this code alone.
• 11273A / 14582A: A Special Coverage Adjustment (extended warranty) for failing throttle position sensors on 2008-2011 models, which is a primary cause of C0561. While expired, it confirms the high failure rate of the part.

Platform-Specific Known Issues

• Per TSB #PIT4169F, a 'Service Stability Message' accompanied by code C0561 requires the technician to address any other DTCs in the vehicle first before diagnosing the EBCM.
• Throttle body failure is extremely common on this platform, often presenting as 'Reduced Engine Power' and 'Service StabiliTrak' simultaneously. GM issued special coverage bulletin 11273A for this issue on some model years.
• Vacuum leaks from cracked PCV hoses or intake manifold gaskets are a frequent cause of lean codes (P0171/P0174) that, in turn, trigger C0561.

Mechanic-Grade Diagnostic Values

• EBCM Operating Voltage — expected: Greater than 9.5 - 9.6 volts.. Failure: If system voltage drops below this threshold, the EBCM may set communication codes or shut down.
• Fuel Alcohol Content Percentage (FlexFuel models) — expected: 0-15% for vehicles consistently using regular gasoline.. Failure: A value significantly higher than expected (e.g., 61% as seen in one case study) will cause the ECM to command a rich fuel mixture, setting P0172/P0175 and triggering C0561.

Hidden / Shadow Codes Worth Checking

• C0561-71: System Disabled Information Stored, Invalid Serial Data Received. This is the most common sub-code and means the EBCM received a data message from another module (like the ECM or BCM) that it deemed invalid or illogical. (see via GM Tech2, GDS2, or other professional-grade scan tool capable of reading manufacturer-specific symptom bytes.)
• C0561-72: System Disabled Information Stored, Alive Counter Incorrect or not Updated. This suggests a communication timing or data packet counting issue on the GMLAN network. (see via GM Tech2, GDS2, or other professional-grade scan tool.)
• C0561-77: ECU Disabled (Invalid Data Received from another module). Similar to -71, this explicitly points to another module sending bad data, causing the EBCM to disable stability functions as a safety measure. (see via Professional-grade scan tool.)

Scan Tool Commands That Help

• GM Tech2 / GDS2 or equivalent: Brake Pedal Position (BPP) Sensor Learn/Calibration — This procedure is required after replacing the BPP sensor. It must be performed in BOTH the Body Control Module (BCM) and the Engine Control Module (ECM) to ensure all systems recognize the new sensor's home position.
• GM Tech2 / GDS2 or equivalent: Fuel Composition Reset — On FlexFuel (LMG, LC9) engines, if codes P0172/P0175 are present and the fuel alcohol percentage is incorrectly learned high, this function resets the value. This is often the direct fix for the rich condition that triggers C0561.
• GM Tech2 / GDS2 or equivalent: Special Functions > Output Controls — Allows for bi-directional control to test individual components like ABS solenoids or view module status, which can help verify EBCM functionality after other DTCs are resolved.

Wiring & Ground Locations

• G303 — Bolted to the outside of the driver's side frame rail, directly below the driver's door area.. This is a primary ground for the Electronic Brake Control Module (EBCM). Its exposed location makes it extremely vulnerable to corrosion from road salt and moisture, which can cause high resistance, intermittent power loss to the EBCM, and trigger communication codes like C0561.
• EBCM Connector (X1) — On the Electronic Brake Control Module, which is mounted to the ABS hydraulic unit on the driver's side frame rail.. This is the main 38-pin connector for the EBCM. Checking for power (Pins 1 & 38), ground (Pins 19 & 20), and GMLAN communication lines (e.g., Pin 12 & 13) at this connector is a key step if C0561 is the only code present.

Real Owner Repair Stories

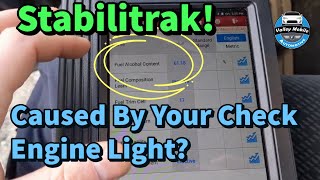

• Valley Mobile Automotive YouTube Channel (2007 Chevrolet Tahoe) — Service StabiliTrak message on DIC.
  ❌ Tried (didn't work) Initially focusing on the C0561 code in the EBCM.
  ✅ What actually fixed it The vehicle also had stored codes P0172 and P0175 (System Rich). The technician found the ECM had incorrectly learned a fuel alcohol content of 61%. Using a scan tool to perform a 'Fuel Composition Reset' corrected the fuel trims, which resolved the rich condition. After clearing codes, the C0561 did not return.
• Chevrolet Forum user (2007 Silverado 1500 LTZ 5.3L with Active Fuel Management (AFM)) — Intermittent C0561 code with no other codes present.
  ❌ Tried (didn't work) Standard diagnostic procedures looking for other codes.
  ✅ What actually fixed it The owner traced the issue to a rough idle caused by the AFM system. After installing a Range Technology AFM Disabler device and replacing the spark plugs (noting plugs #1 and #7 looked poor), the C0561 code did not return.
• CorvetteForum user (Corvette (similar GM electronics)) — C0561-71 and P0300 (Random Misfire).
  ❌ Tried (didn't work) Resetting codes repeatedly.
  ✅ What actually fixed it Upon physical inspection, the user found the #6 spark plug wire was completely disconnected. Reconnecting the plug wire resolved the P0300 misfire, which was the primary fault causing the EBCM to set the C0561 code.

"I Checked Everything" — The Actual Cause

• A common trigger for C0561 is a rich condition (P0172/P0175). While a technician might suspect a leaking injector, the actual cause on these FlexFuel trucks can be an incorrectly learned fuel alcohol percentage in the ECM. A smoke test would find no faults, but using a scan tool to perform a 'Fuel Composition Reset' can immediately fix the problem, as it corrects the data the ECM is sending to the EBCM.

OEM Part Supersession History

• 20910871 → 19418403 — Part update/revision by GM for the Steering Wheel Position Sensor.
  Heads up: The newer sensor is an 8-pin design and may require a corresponding 6-wire harness adapter to function correctly if replacing the older part.
• 15861245 → ACDelco D1539J (current replacement) — Standard part lifecycle replacement for the Brake Pedal Position Sensor.

Model Year Variations Within This Range

• 2007-2008: These years primarily used the 4-speed 4L60-E automatic transmission. A fault within this transmission could trigger C0561.
• 2009-2013: These later years used the 6-speed 6L80 automatic transmission. While considered tougher, it has its own set of potential faults that could send invalid data to the EBCM.
• 2007-2013 (4.8L V8 only): The 4.8L V8 engine (LY2) did not come equipped with the Active Fuel Management (AFM) system. Therefore, vehicles with this engine are not susceptible to the rare C0561 trigger related to AFM system vibrations.
