OBD-II Code C0604: Active Air Dam Control Circuit Performance

What Does C0604 Mean?

Code C0604 means the Powertrain Control Module (PCM) detected a fault in the active air dam system. The air dam is a movable panel under the front bumper that lowers at high speeds (typically over 40 mph) to improve aerodynamics and fuel economy. This code triggers when the control circuit fails due to a software glitch, physical damage, or an electrical fault.

Technical definition: The official SAE/OBD-II definition is Active Air Dam Control Circuit Performance. The PCM logs this code when the air dam fails to move when commanded, moves too slowly, or stops in an unexpected position.

Can I Drive With C0604?

✅Yes. Driving with this fault is safe. The active air dam improves aerodynamics and fuel efficiency but does not affect driving, braking, or steering. However, if the dam is stuck deployed (down), it is highly vulnerable to physical damage from curbs and road debris, which causes costly repairs.

Common Causes

• Powertrain Control Module (PCM) Software Glitch (Very Common) — A software error in the PCM is the most frequent cause, particularly on 2021-2024 Ford F-150s. Ford TSB 25-2236 addresses this directly with a dealer software update.
• Physical Damage or Obstruction (Common) — Hitting curbs, road debris, snow, or ice cracks the plastic dam, breaks the actuator motors, or physically blocks movement.
• Faulty Active Air Dam Actuator(s) (Common) — The motors that move the air dam fail due to internal electronic faults, corrupted firmware (Ford SSM 51718), or water intrusion causing corrosion (common on Ram 1500s).
• Wiring Harness or Connector Issues (Less Common) — Wiring that powers the actuators chafes, breaks, or corrodes. Connectors fill with water, causing a loss of signal or a short circuit.
• Low Battery Voltage or Charging System Issues (Rare) — A weak battery or failing alternator causes unpredictable behavior in electronic modules, logging a performance code during startup self-tests.
• Faulty Ambient Air Temperature Sensor (Rare) — A faulty sensor sends incorrect data to the PCM, causing erratic air dam behavior.
• Faulty Control Module (Rare) — An internal component like a driver transistor burns out, preventing correct voltage delivery to the actuators.

Symptoms

• "Active Air Dam System Fault See Manual" Message — A specific warning message appears on the instrument panel display.
• Air Dam is Visibly Stuck — The air dam is stuck in the down (deployed) or up (retracted) position, or hangs crookedly under the front bumper.
• Check Engine Light or Wrench Light On — A general warning light, such as the check engine light or a wrench symbol, illuminates on the dashboard.
• Grinding or Clicking Noises — Unusual sounds emit from the front bumper as actuators struggle with stripped internal gears.
• Auto Start/Stop Disabled — The vehicle disables non-essential features like auto start/stop to protect the electrical system.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Reprogram Powertrain Control Module (PCM) — Parts: $0, Labor: $100-$250, ~1.0 hr book time (Professional)

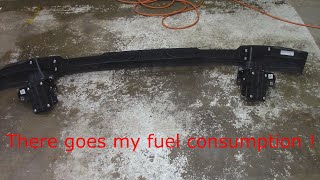

• Remove the Active Air Dam Assembly — Parts: $0, Labor: $0-$100, ~0.5 hr book time (DIY)
• Replace Active Air Dam Actuator(s) — Parts: $170-$450, Labor: $100-$300, ~1.5 hr book time (Intermediate)
  Ford F-150 (2021-2024): OEM ML3Z-17626-Q (Full Assembly) (Alt: Dorman 601-387)
  Chevrolet/GMC 1500 (2019-2024): OEM 84942203 (Alt: Duralast MSAA31)
• Replace Entire Active Air Dam Assembly — Parts: $300-$700, Labor: $200-$500, ~2.5 hr book time (Intermediate)
  Ford F-150 (2021-2024): OEM ML3Z-17626-Q (Alt: Various non-OEM assemblies)
  Ram 1500 (2019-2024): OEM 68274406AJ (Alt: JDMSPEED Assembly)
• Repair Damaged Wiring or Connectors — Parts: $10-$50, Labor: $100-$250, ~1.5 hr book time (DIY)

DIY vs Professional

• Reprogram Powertrain Control Module (PCM) 🟢 Beginner
  Tools: Manufacturer-specific diagnostic software (e.g., Ford FDRS), subscription, and compatible VCM interface.
• Remove the Active Air Dam Assembly 🟢 Beginner
  Tools: Basic hand tools (socket set, wrenches), electrical tape or weatherproof caps.
• Replace Active Air Dam Assembly/Actuators 🟢 Beginner
  Tools: Basic hand tools (socket set, wrenches), flashlight, ramps or jack stands.
• Repair Damaged Wiring or Connectors 🟢 Beginner
  Tools: Multimeter, wire strippers, wire cutters, soldering iron, heat shrink tubing.

Used vs. New Parts: Buying Guide

When a used part is worth it: Buying a used air dam assembly is cost-effective if the failure is purely physical damage to the plastic blade. Source from a low-mileage vehicle without front-end collision damage.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle's VIN to ensure part compatibility.
• Inspect the part for cracks, stress marks, or signs of previous repair.
• Avoid parts from flood-damaged or rust-belt vehicles to prevent actuator corrosion.

Decision logic:

• If The failure is a software glitch or a wiring issue → Do not buy any parts; seek a software update or wiring repair first.
• If The actuator motor failed electronically or due to water intrusion → Buy a new OEM or high-quality aftermarket actuator. Used actuators carry a high risk of premature failure.
• If The plastic air dam blade is physically broken but the actuators are good → A used blade or full assembly from a reputable salvage yard is a reasonable choice.

Warranty tradeoff: Used parts typically come with a 30-90 day warranty. New aftermarket parts offer 1-year to limited lifetime warranties. New OEM parts carry the manufacturer's warranty.

Worst-case if a used part fails: $200-$500 if a used actuator fails after the warranty period, requiring repeat labor costs.

What Happens If You Wait — Timeline

1. 0-1 month: Code C0604 is logged. An 'Active Air Dam Fault' message appears. The dam operates intermittently. No physical damage has occurred. (MPG impact: 0-4%% · Added cost: $0)
2. 1-6 months: If stuck deployed (down), the risk of physical damage increases significantly. The plastic blade is vulnerable to road debris and parking curbs. (MPG impact: 0%% · Added cost: $0)
3. 6-12 months: A minor impact occurs. The deployed air dam hits a curb, causing the plastic blade to crack. The system is physically broken. (MPG impact: 0%% · Added cost: $400-$700)
4. 12+ months: A major impact rips the entire assembly from the truck, damaging the blade, actuators, and wiring harness. (MPG impact: 0-4%% · Added cost: $1100-$1500)

Cost of Not Fixing It

• 0-3 months: An annoying warning message on the dashboard and a 1-2% decrease in highway fuel economy. (Added cost: $0)
• 3-12 months: If stuck deployed (down), the risk of the plastic blade shattering against road debris or curbs increases significantly. (Added cost: $0)
• 12+ months: A minor impact on a deployed air dam rips the assembly off, turning a simple software fix into a full assembly replacement. (Added cost: $400 - $1300)

Diagnosis Steps

1. Check for Technical Service Bulletins (TSBs)
   Before doing any physical work, check for TSBs related to code C0604. For 2021-2024 Ford F-150s, TSB 25-2236 points to a required software update.
   Tools: Internet access or call to a dealership (Beginner)
2. Visually Inspect the Active Air Dam
   Look under the front bumper at the air dam assembly. Check for physical damage like cracks, missing pieces, or uneven hanging. Look for dirt, mud, ice, or road debris preventing movement.
   Tools: Flashlight (Beginner)
3. Scan for Other Codes
   Use an OBD-II scanner to check for related codes. Codes like C0630 (Stuck), U0645 (Lost Communication), and U11E9 (Ram) often appear with C0604 and pinpoint the specific failure.
   Tools: OBD-II Scanner (Beginner)
4. Inspect Wiring and Connectors
   Examine the wiring harness leading to the air dam actuators for chafing, breaks, or corrosion. Unplug connectors and check for water intrusion. On Ram trucks, use a UV light to distinguish glowing dielectric grease (normal) from non-glowing water contamination.
   Tools: Flashlight, UV light (optional) (Intermediate)
5. Test Actuator Function with a Bi-Directional Scanner
   Command the air dam to deploy and retract using an advanced scan tool. If the dam fails to move, the issue is the actuators or wiring, not the control module software.
   Tools: Bi-directional OBD-II Scan Tool (Advanced)
6. Test for Power and Ground at the Actuators
   Check for battery voltage (~12V) and ground at the actuator connectors when the system is commanded to move. If power and ground are present but the motor fails, the actuator is faulty.
   Tools: Multimeter, vehicle-specific wiring diagram (Advanced)
7. Check Actuator Motor Resistance
   With the actuator unplugged, measure the resistance between the two motor pins. A healthy actuator reads between 2 and 6 ohms. Infinite resistance indicates a failed motor winding.
   Tools: Multimeter (Advanced)
8. Analyze LIN Bus Communication with a Multimeter
   Set a multimeter to DC Volts and Peak Min/Max mode. Probe the LIN bus wire. A healthy signal toggles rapidly between ~12V and ~1V. A steady voltage indicates a communication failure.
   Tools: Multimeter with Peak Min/Max function (Advanced)
9. Analyze LIN Bus Communication with an Oscilloscope
   Connect an oscilloscope to the LIN bus wire. A healthy signal shows a clean square wave. A flat line or distorted waveform indicates a shorted actuator or broken wiring.
   Tools: Oscilloscope, vehicle-specific wiring diagram (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 40-55 mph (The code sets when the vehicle speed crosses the threshold for the dam to deploy (40-45 mph) or retract (35-40 mph).)
• Engine Coolant Temp: 180-210°F (The fault occurs when the engine is at normal operating temperature during a drive cycle.)
• Engine RPM: 1500-2500 RPM (Consistent with steady-state highway cruising speed when the air dam is commanded to change position.)
• Engine Load: 25-60% (The code triggers under normal, light-to-moderate engine load during highway driving.)

Related Codes

• C0630 — Active Air Dam Stuck. Confirms the dam is physically not moving. Frequently appears with C0604.
• U0645 — Lost Communication. The PCM cannot get any signal from the module. Often appears when owners intentionally unplug the air dam.
• U11E9 — Lost Communication with AGS. On Ram 1500s, a shorted air dam actuator disrupts the shared LIN bus, taking down the grille shutters.
• P059F / U0284 — Active Grille Air Shutter 1 Performance. The GM-equivalent code for their Active Aero Shutter system.

Climate & Environmental Factors

• Cold Weather / Ice & Snow: Ice and snow physically block the air dam's movement, jamming it and logging a performance code. Increased strain on motors in freezing temperatures causes mechanical failure.
• Humidity / Water Exposure: High humidity and water exposure (rain, car washes) cause water intrusion into the actuator motor housing, leading to corrosion and short circuits (common on Ram 1500s).
• Road Debris / Off-Road Use: The low-slung position makes the air dam highly susceptible to impacts from road debris and curbs, causing physical damage across all makes.

How to Talk to a Mechanic About This Code

Say this: "I have a C0604 code on my [Make, Model, Year]. Please check for physical damage and any software updates related to TSBs before replacing parts. For my Ford F-150, check TSB 25-2236; for my Ram 1500, check for water intrusion and warranty extension X96."

This directs the shop to perform the cheapest and most common fixes first (visual inspection, software update) and references specific TSBs, preventing an immediate quote for an expensive full assembly replacement.

Avoid saying:

• 'My 'Active Air Dam' light is on, can you fix it?'
• 'Just replace the broken air dam.'
• 'Do whatever you think is best.'

Questions to ask before authorizing the repair:

• Did you find any physical damage to the air dam, actuators, or wiring?
• Did you check if my vehicle has a pending software update per the TSB? What is the cost for the software flash?
• If you are recommending replacement, what specific part failed (blade, actuator, wiring)?
• If I choose to remove the system instead of repair it, what is the labor charge?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Required for TSB-related software updates and specific warranty claims. For out-of-warranty physical damage, get a second opinion from an independent shop.
  Best for: Ford owners (2021-2024) where a software update (TSB 25-2236) is the most likely fix., Ram 1500 owners (2019) seeking warranty coverage under the X96 extension., Any vehicle still under its new vehicle limited warranty.
  Downsides: Highest labor rates., Quick to quote a full assembly replacement for over $1,300 if they see any physical damage. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for out-of-warranty physical repairs or system removal due to lower labor costs.
  Best for: Out-of-warranty vehicles with physical damage (broken blade or actuators)., Owners who decided to remove the system rather than repair it., Diagnosing wiring or connector issues.
  Downsides: May lack manufacturer-specific software (like Ford's FDRS) to perform a TSB software flash., Quality varies; choose a shop with ASE-certified technicians. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. This repair requires specific diagnostic paths (software vs. hardware) not suited to chain shops.
  Best for: Not recommended for this repair.
  Downsides: Technicians lack experience with manufacturer-specific systems., High pressure to upsell leads to unnecessary part replacements., Lacks tools or authorization for software-level TSB fixes. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the repair cost exceeds $400, consider permanently removing the active air dam assembly instead.

• Car worth $45000, fix is $1300: Walk away from the repair. The fuel savings (1-2 MPG) never justify this cost. Pay a shop ~$100 to remove the assembly.
• Car worth $45000, fix is $200: Fix it. This is likely a software update at a dealership, which is a reasonable cost to restore full function.
• Car worth $45000, fix is $500: Borderline. This is likely one or two new actuators. If you frequently drive on the highway, you recoup the cost in fuel over time. If not, removal is more economical.

What Scan Tool You Need for This Code

Minimum: A basic code reader pulls the C0604 code but cannot diagnose the root cause. A scanner with bi-directional control is essential for effective DIY diagnosis.

A basic code reader cannot command the air dam to open or close. Without this 'active test' function, you cannot determine if the failure is in the motor, wiring, or control module.

Budget: BlueDriver Pro (~$100) — Reads and clears C0604 but lacks bi-directional control to command the actuators.

Mid-range: Foxwell NT510 Elite (~$160) — Provides bi-directional 'Active Test' capabilities to command the air dam to deploy and retract, directly testing the motors before buying parts.

Professional: Autel MaxiCOM MK808 (~$500) — Offers comprehensive bi-directional control and advanced functions like system initializations after parts are replaced.

Rent vs buy: Buying a mid-range tool like the Foxwell NT510 Elite is a smart investment, as it is required for proper diagnosis and can be used for countless other advanced repairs.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear diagnostic trouble codes.
2. Perform a complete drive cycle to allow the system to self-test.
3. Verify the air dam deploys and retracts correctly at highway speeds.

Drive cycle (~30 minutes): A generic drive cycle includes: 1) A cold start after sitting for 8+ hours. 2) 2-3 minutes of idling. 3) 10-15 minutes of steady highway driving between 50-60 mph. 4) 10-15 minutes of stop-and-go city driving.

Readiness monitors affected: This fault does not affect primary emissions-related readiness monitors like Catalyst, O2 Sensor, or EVAP.

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code with a scanner does not fix the underlying problem; the code returns if the fault exists.
• Disconnecting the battery clears the code but resets all emissions readiness monitors, causing an automatic emissions test failure.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• General: Code C0604 is a Chassis code and does not illuminate the Check Engine Light. It will not cause an OBD-II emissions failure.
• California: The test will not fail due to code C0604. However, if a warning light is on, the technician may refuse to test the vehicle.
• New York: NYS inspection checks for illuminated warning lamps. An 'Active Air Dam System Fault' message causes a safety inspection failure, though not an emissions failure.
• Texas: A persistent warning on the dash is grounds for failing the safety portion of the inspection in applicable counties.

Most Commonly Affected Vehicles

• Ford F-150 (2021-2024) — Extremely common. Usually a software glitch fixed by TSB 25-2236. If the update fails, replace both actuators per SSM 51718.
• Ford F-150 Lightning (2022-2024) — Shares the same system and software issues. TSB 23-2126 addresses this fault.
• Ram 1500 (2019-2024) — Failures stem from water entering the actuator motor. Warranty extension X96 covers some 2019 models for 8 years/unlimited miles.
• Chevrolet Silverado 1500 (2019-2024) — Uses an 'Active Aero Shutter' system. Wiring harnesses chafe against shutter vanes (Service Update N222365750).
• GMC Sierra 1500 (2019-2024) — Mechanically identical to the Silverado. Subject to the same wiring harness chafing issues.
• Ford Expedition / Lincoln Navigator (2022-2024) — Shares platform components with the F-150 and requires similar module programming.
• Ford Explorer / Lincoln Aviator (2020-2024) — Included in Ford TSBs for control module software updates.
• Ford Transit (2020-2024) — Included in Ford TSBs for module reprogramming.

Manufacturer-Specific Notes

• Ford: For 2021-2024 F-150s, reprogram the PCM per TSB 25-2236 first. If the code returns, replace both actuators per SSM 51718.
• Ram (Stellantis): Water intrusion is common. Technicians use a UV black light to differentiate glowing dielectric grease from non-glowing water contamination.
• General Motors (Chevrolet/GMC): Wiring harnesses chafe on shutter vanes. Service Update N222365750 adds a zip tie to secure the harness.
• General (All Makes): Verify battery health and check main power/ground connections before replacing modules. Low voltage during startup causes self-test failures.

Real Owner Stories

2021 Ford F-150 Platinum with C0604 & C0630

The check engine light came on, and the dealer found codes C0604 and C0630. The truck operated normally otherwise.

What they tried:

1. Took the truck to the Ford dealership for diagnosis.

Outcome: The dealer quoted over $1,300 to replace both air dams, classifying it as damage not covered by warranty. The owner declined the repair and paid $100 to remove the lower air dam.

Lesson: On a 2021+ F-150, check for a software update per TSB 25-2236 first. Dealers deny warranty coverage if there is any sign of physical impact, leading to very high repair quotes.

2019 Ram 1500 with C0604, U0645, and U11E9

The active air dam was stuck down, logging codes C0604, U0645, and U11E9 (active grille shutters).

What they tried:

1. Reset the codes and disconnected the Active Air Dam (AAD) motor.
2. Reconnected the AAD, and the warning light returned at highway speeds.

Outcome: The AAD assembly was the source of the problem due to water intrusion, which disrupted the entire communication bus. Ram issued warranty extension X96 for this exact issue.

Lesson: If a Ram 1500 has C0604 and communication codes, the air dam is the likely culprit due to water intrusion. Check if your vehicle is covered by warranty extension X96.

2022 Chevrolet Silverado with Active Aero Shutter codes

A warning light appeared with codes related to the active aero shutters (P059F).

What they tried:

1. Visual inspection of the shutter area.

Outcome: The wiring harness rubbed against the shutter vanes, causing a short. GM issued Service Update N222365750 to add a zip tie to secure the harness.

Lesson: On GM trucks, shutter-related codes are often caused by wiring harness placement. Inspect the harness for chafing before replacing parts.

How to Prevent This Code From Triggering

• Be Mindful of Parking Curbs and Steep Driveways (Daily habit) — Parking further back from curbs and approaching steep inclines at an angle prevents impacts to the low-hanging air dam.
• Temporarily Disable or Remove in Heavy Snow/Ice Conditions (Seasonally) — Ice and packed snow physically block the dam's movement, straining and burning out the motors. Unplugging the actuators prevents this failure.
• Periodically Inspect and Clean the Assembly (Every oil change) — Clearing accumulated mud, dirt, or debris prevents obstructions that cause the system to jam.
• Apply Dielectric Grease to Connectors (During any underbody service) — Ensuring electrical connector seals are in good condition and applying dielectric grease prevents moisture corrosion.
• Keep Vehicle Software Updated (Annually or when notified) — For Ford F-150s, the primary cause of C0604 is a software bug. PCM updates prevent the fault from occurring.

Frequently Asked Questions

Can I just remove or unplug the active air dam?

Yes, many owners remove the active air dam assembly. Unplugging the motor stores a 'soft code' (U0645) visible only with a scan tool, but does not trigger a check engine light.

Will a broken air dam affect my gas mileage?

The system improves highway fuel economy by roughly 1-4%. While a failed system technically reduces efficiency, most owners report the difference is unnoticeable in real-world driving.

Is this repair covered under warranty?

Software glitches are typically covered under the new vehicle limited warranty. Physical damage from impacts is classified as road damage and is not covered. Ram offers a specific warranty extension (X96) for 2019 models with water intrusion.

What are common misdiagnosis mistakes for C0604?

A common mistake is replacing expensive actuators before checking for software TSBs. On Ram trucks, mistaking normal dielectric grease for water damage is another frequent error; use a UV light to confirm.

My air dam cycles at startup but still logs a code. Why?

The system performs a self-test at startup. If an internal position sensor sends a signal slightly out of range or too slowly, the PCM logs C0604 even if the dam physically moves.

How much does it cost to fix code C0604?

A dealer software update costs $100-$250. Replacing a physically broken assembly costs $500-$1,300+. Many owners opt to remove the assembly entirely for under $100 in labor.

Will a removed air dam cause my truck to fail a state inspection?

Removing the active air dam does not cause a vehicle to fail safety or emissions inspections in most states. It does not illuminate the Check Engine Light, which is the primary trigger for OBD-II emissions failures.

Key Takeaways

• Code C0604 indicates a fault in the active air dam system and is safe to drive with, as it only affects aerodynamics at speeds over 40 mph.
• On 2021-2024 Ford F-150s, a PCM software glitch is the primary cause; request a dealer software update per TSB 25-2236 before replacing any parts.
• Physical damage from curbs or ice is the second most common cause, often requiring a $500 to $1,300 full assembly replacement.
• Ram 1500 owners should check for water intrusion in the actuator connector, which is covered up to 8 years under Warranty Extension X96 for 2019 models.
• Because dealer replacement costs can exceed $1,300, many owners permanently remove the air dam assembly for under $100 in labor.
