GMC Yukon C0711: Service Suspension System Light Causes & Fixes (2001-2008)

What's Unique About the 2001-2008 Gmc YUKON

The GMC Yukon, particularly across the GMT800 (2000-2006) and GMT900 (2007-2014) generations, features an automatic load-leveling rear suspension system known as Autoride (RPO Z55). This system is shared with its platform mates: the Chevrolet Tahoe/Suburban, Cadillac Escalade, and Hummer H2. The air compressor for this system is mounted to the frame rail, typically on the driver's side, where it is exposed to road spray, salt, and debris. This location makes the wiring harness and its connectors highly susceptible to corrosion, chafing, and physical damage, a fact highlighted in GM's own Technical Service Bulletins which explicitly show diagrams of the wiring getting pinched.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This guide covers the GMT800 (2001-2006) and the early GMT900 (2007-2008) generations of the GMC Yukon. The air suspension system (Autoride Z55) is similar in principle across these years, and the common causes, particularly wiring issues near the compressor, are relevant to both generations as noted in TSBs covering a wide range of model years (2001-2014).

Symptoms You May Notice

• "Service Suspension System" or "Service Leveling System" message on the Driver Information Center (DIC).
• Rear of the vehicle sags or sits lower than normal.
• Harsh or bouncy ride quality.
• Air suspension compressor does not turn on or activate at startup.
• A visible, deflated air bladder on the rear shocks.

Most Likely Causes

1. Damaged Wiring or Connector for Air Pressure Sensor 🔴 High Probability The wiring harness is routed near the frame and compressor assembly, making it extremely vulnerable to being pinched between the compressor bracket and the frame, or chafing against sharp edges. This exposure to the elements also leads to corrosion at the connector pins.
   How to confirm: Visually inspect the entire wiring harness leading to the air compressor assembly. The most common failure point is where the harness can be pinched between the compressor and the frame. Look for green corrosion, broken wires, or flattened/pinched sections. The TSB suggests the compressor may need to be unbolted or removed for a full inspection of the harness behind it.
   Typical fix: Repair the damaged section of the wire or replace the connector pigtail. Ensure the repaired harness is re-routed or protected with additional loom to prevent future damage. GM explicitly states in TSBs to repair the wiring and NOT replace the entire compressor for this condition.
   Est. part cost: $5-$50
2. Failed Air Suspension Compressor Assembly 🟡 Medium Probability → Shop Suspension Self-Leveling Pump The pressure sensor is integrated into the compressor's filter/dryer assembly. An internal fault in the sensor, often caused by moisture intrusion, will trigger C0711. Additionally, a compressor that has been overworked due to air spring leaks can fail. Aftermarket replacements like Dorman have introduced designs with better thermal protection and moisture membranes to address these failures.
   How to confirm: If the wiring is confirmed to be intact and has proper voltage/ground at the connector, but the code persists, the sensor within the compressor assembly is likely faulty. You can also test the compressor motor directly by jumping the relay in the underhood fuse box. If the motor runs but no pressure builds or the code remains, the internal sensor is the likely culprit.
   Typical fix: Replace the air compressor and dryer assembly. While the sensor was once serviced separately, current GM recommendations involve replacing the complete filter, dryer, and sensor assembly (Part #22964558 for pre-May 2012 vehicles) for a more robust repair. This updated part may require a jumper harness, which is typically included.
   Est. part cost: $200-$600
3. Failed Air Suspension Relay ⚪ Low Probability → Shop Wiring Relay Relays are a common failure point in any automotive electrical system. The ALC (Automatic Level Control) relay is located in the underhood fuse block.
   How to confirm: Swap the air suspension relay with a known good relay of the same type (e.g., the horn relay) from the fuse box. If the system begins to work, the relay is bad. Alternatively, you can test the relay terminals with a multimeter.
   Typical fix: Replace the relay.
   Est. part cost: $10-$30
4. Blown Fuse ⚪ Low Probability
   How to confirm: Check the fuses related to the Electronic Suspension Control (ESC) and Automatic Level Control (ALC) in the underhood fuse block. For 2007-2014 models, these are typically fuses #2 (ESC) and #54 (ALC). For earlier GMT800 models, check the fuse labeled 'STUD 1' (40A) and 'IGN 3' (10A).
   Typical fix: Replace the blown fuse. If it blows again, there is a short circuit that must be diagnosed.
   Est. part cost: $1-$5

Rare But Worth Checking

• Failed Electronic Suspension Control (ESC) Module: This is rare, but if all wiring, the compressor, and relays test good, the module itself could be the source of the problem. It's located above the spare tire and can be susceptible to moisture and corrosion. A user on Tahoe Yukon Forum reported having to replace a dead module before they could even begin diagnosing a C0711 code. Replacement often requires professional diagnosis and programming.

Diagnosis Steps

1. Verify the "Service Suspension System" message is active on the DIC.
2. Check the ALC/ESC fuses in the underhood fuse block. For GMT900 (2007+), check fuses #2 and #54. For GMT800 (pre-2007), check STUD 1 and IGN 3.
3. Lift and safely support the vehicle.

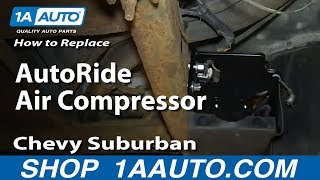

4. Locate the air suspension compressor, mounted on the driver's side frame rail, near the rear wheel.
5. Thoroughly inspect the wiring harness and electrical connector going to the compressor. Unbolt the compressor (typically three bolts) to get a clear view of the harness section between the compressor bracket and the frame, as this is the most common chafe point.
6. If wiring damage is found, repair it. Use heat-shrink butt connectors for a durable, weather-resistant repair. Clear codes and re-test.
7. If wiring appears intact, disconnect the sensor connector. With the ignition ON, use a multimeter to check for a 5V reference on the specified pin (often a gray wire) and a good ground on its corresponding pin (often black/white). Refer to a service manual for the exact pinout for your year.
8. If the 5V reference or ground is missing, trace the circuit back to the ESC module to find the open or short.
9. If the circuit has good power and ground, the pressure sensor (part of the compressor assembly) has likely failed internally.

Parts You'll Likely Need

• Air Suspension Compressor Assembly (OEM #15254590, 19299545 (ACDelco)) — The pressure sensor that causes code C0711 is integrated into this assembly. An internal sensor failure or moisture damage requires replacement of the unit. A common aftermarket replacement is the Dorman 949-000.
  Trusted brands: ACDelco, Dorman, Arnott
  OEM price range: $350-$600
  Aftermarket price range: $180-$400
• Air Filter, Dryer, and Sensor Assembly (OEM #22964558) — For cases where only the sensor has failed internally due to moisture, GM offers this assembly as a more robust repair than replacing the sensor alone. It includes an improved sensor design and a jumper harness for vehicles built before May 2012.
  Trusted brands: ACDelco
  OEM price range: $150-$250
• Air Suspension Relay — A failed relay can prevent the compressor from receiving power. While less likely to cause a sensor circuit code directly, it's a common, inexpensive part to check as part of the overall system diagnosis.
  Trusted brands: ACDelco, Standard Motor Products
  OEM price range: $10-$30
  Aftermarket price range: $8-$20

Related Codes That Often Appear With This One

• C0696 — This code for 'Level Control Air Pressure Sensor Circuit High' is mentioned in the same TSB as C0711 and points to the exact same wiring and sensor issues. They often appear together or interchangeably for the same root cause.

Technical Service Bulletins (TSBs) & Recalls

• PIT4954D: Addresses DTC C0711 or C0696 with a 'Service Suspension System' message. It specifically advises inspecting for damaged or shorted wiring to the air pressure sensor before replacing the entire compressor assembly. It covers model years 2001-2014.
• PIT4954C: The predecessor to PIT4954D, this TSB also details the wiring chafe issue and internal sensor failure due to moisture. It introduced the updated filter/dryer/sensor assembly (PN 22964558) and jumper harness for pre-2012 vehicles.

Platform-Specific Known Issues

• A GM Technical Service Bulletin (PIT4954D and its predecessors) directly addresses C0711, pointing technicians to inspect for wiring pinched between the compressor assembly and the vehicle frame or wiring shorted to ground.
• Moisture can get into the pressure sensor, causing an internal fault that also triggers C0711. GM later released an improved sensor design to combat this.
• A user on Tahoe Yukon Forum shared their experience of replacing the ESC module, rear shocks, and two separate new Dorman compressors, only to still have the C0711 code, highlighting the importance of checking the wiring harness for continuity and shorts between the module and sensor connectors before replacing expensive parts.

Mechanic-Grade Diagnostic Values

• Air Pressure Sensor Signal Voltage — expected: 0.15V - 4.85V. Failure: Voltage below 0.15V or above 4.85V will set the DTC.
• 5-Volt Reference at Sensor Connector — expected: 4.75V - 5.25V (measured between terminal H and ground). Failure: Voltage outside this range indicates a fault in the reference circuit or the ESC module.
• Low Reference (Ground) Circuit Resistance — expected: Less than 2.0 Ohms (measured between terminal F and a known good ground). Failure: Resistance greater than 2.0 Ohms indicates an open or high resistance in the ground circuit.

Scan Tool Commands That Help

• GM Tech 2: Read/Clear DTCs — To read the C0711 code and clear it after repairs. A history DTC will clear on its own after 50-100 ignition cycles without the fault recurring.
• GM Tech 2: Live Data Streaming — To monitor real-time data from the suspension system, including the air pressure sensor voltage and individual ride height sensor positions, to confirm sensor functionality.
• GM Tech 2: Active Tests / Bi-Directional Control — To command the air compressor and exhaust solenoid ON and OFF manually. This helps determine if the compressor motor, relay, and solenoid are functional, separating a control issue from a component failure.

Wiring & Ground Locations

• Electronic Suspension Control Module (ESCM) — Located on the frame cross-brace, above the spare tire.. This module provides the 5V reference to the pressure sensor and interprets its signal. A poor connection at the large multi-pin connector on the module can cause the C0711 code.
• Air Compressor Connector — Connects directly to the air compressor assembly on the driver's side frame rail.. This is the primary location for wiring damage. Specific pins to test are Terminal H (5V reference) and Terminal F (low reference/ground) on later models. Wire colors and pin positions can vary by year, so a model-specific diagram is recommended.
• G400 — A chassis ground point located on the left rear body mount.. A wiring diagram for a 2007 Yukon Denali lists G400 as a relevant ground for the electronic suspension system. A corroded or loose ground here can cause various electrical faults in the system.

Real Owner Repair Stories

• Tahoe Yukon Forum user 'tahoeltz2011' and 'ReaperHWK' (2011 Tahoe/Yukon platform) — Code C0711-00 present after replacing a dead suspension module, rear shocks, and the compressor.
  ❌ Tried (didn't work) Replacing the suspension control module and having it reprogrammed., Replacing the rear shock absorbers., Replacing the air suspension compressor (twice, assuming the first replacement was faulty).
  ✅ What actually fixed it The suggested fix was that the massive multi-pin connector on the Suspension Control Module (SCM) was not fully seated. Due to its size and weather-pack seal, it can be difficult to lock down completely, leading to poor pin contact. The recommendation was to remove and reseat the connector, ensuring the locking lever is fully engaged, which often resolves communication and sensor circuit codes after module replacement.

OEM Part Supersession History

• 22197161, 20982305 → 22964558 — This is the Air Filter, Dryer, and Sensor Assembly. The updated part provides a more robust repair for internal sensor failure, often caused by moisture.
  Heads up: Vehicles built before May 2012 require a jumper harness to use the updated sensor assembly (PN 22964558), which is typically included with the part. Vehicles built in May 2012 and later use a different part number (22941807) and do not need the jumper harness.

Model Year Variations Within This Range

• 2001-2006 (GMT800): These models are generally considered simpler mechanically. They use a 4-speed transmission (4L60/65E) and do not have Active Fuel Management (AFM). The interior and electronics are more basic compared to the GMT900. The steering uses a traditional recirculating ball system.
• 2007-2008 (GMT900): Introduced a more refined interior, improved ride quality, and more modern electronics. These model years feature rack-and-pinion steering for better handling. The 5.3L V8 engine in this generation introduced Active Fuel Management (AFM), which can be a point of failure. The 2007-2008 models still used a 4-speed transmission, with the 6-speed (6L80) becoming more common from 2009 onwards.
