C0711 on 2011-2013 GMC Yukon Denali: Service Suspension System Causes & Fixes

What's Unique About the 2011-2013 Gmc YUKON DENALI

The GMC Yukon Denali of this era uses the 'Autoride' (RPO Z55) air suspension system for automatic load leveling. A significant, well-documented weakness on this GMT900 platform is the routing of the air compressor's wiring harness. The harness is mounted on the driver's side frame rail and is highly susceptible to being pinched or chafed between the compressor's metal bracket and the vehicle frame, causing the exact short-circuit condition that triggers code C0711. This failure point is so common that GM issued a service bulletin specifically warning technicians to check the wiring before replacing any parts.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Suspension System" message on the Driver Information Center (DIC)
• Rear of the vehicle sags and does not raise when started or loaded
• Harsh, bouncy, or rough ride quality
• Air suspension compressor does not turn on or only runs for a second at startup

Most Likely Causes

1. Damaged Wiring to Air Compressor / Pressure Sensor 🔴 High Probability As documented in GM Technical Service Bulletin #PIT4954D, the wiring harness is frequently pinched between the compressor assembly and the vehicle's frame, causing a short to ground or an open circuit. This is the number one cause of C0711.
   How to confirm: Visually inspect the wiring harness leading to the compressor on the driver's side frame rail. It is often necessary to unbolt the compressor (typically 3 bolts, 13mm) to get a clear view of the harness section between the bracket and the frame. 🎬 See how to remove the compressor to inspect the wiring harness. Look for chafed insulation, green corrosion, or broken wires. Wires can also break internally with no visible damage to the insulation.
   Typical fix: Repair the damaged section of wire using weatherproof butt connectors and heat shrink tubing. Reroute or add protective loom to the harness and secure it with zip ties to prevent future damage.
   Est. part cost: $5-$25
2. Failed Air Pressure Sensor 🟡 Medium Probability The sensor can fail internally, sometimes due to moisture getting into the compressor's air dryer assembly, which is another known issue on these vehicles. TSB PIT4954D notes this as a secondary cause.
   How to confirm: If the wiring is confirmed to be intact and has proper 5V reference and ground, but the code persists, the sensor is the next likely culprit. The sensor provides a voltage signal that should change with pressure.
   Typical fix: The sensor is not serviced as a separate part from GM. It must be replaced as part of the air filter, dryer, and sensor assembly. For vehicles built before May 2012, a jumper harness is required when installing the updated sensor assembly.
   Est. part cost: $100-$200
3. Failed Air Suspension Compressor Assembly ⚪ Low Probability → Shop Suspension Self-Leveling Pump While the compressor can fail from age or being overworked due to air leaks, it is less likely to be the primary cause of an electrical fault code like C0711 unless the pressure sensor integrated within it has failed. It is often replaced unnecessarily when the real issue is wiring.
   How to confirm: After confirming wiring and the relay are good, you can test the compressor by jumping the relay terminals (typically 30 and 87) to send power directly to it. A scan tool like a GM Tech 2 can also command the compressor relay on and off to test its function.

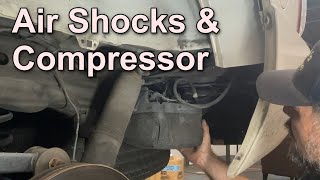

   Typical fix: Replace the entire air compressor assembly. Aftermarket units from brands like Dorman 🎬 Watch this walkthrough on how to replace the air compressor assembly. are a popular choice.
   Est. part cost: $200-$500

Rare But Worth Checking

• Faulty ALC Relay or Fuse: A simple and inexpensive check. The Automatic Level Control (ALC) relay and fuse (often labeled RTD or ALC) are located in the underhood fuse block. Swapping the relay with a known good one is an easy diagnostic step.
• Damaged Pigtail Connector: Sometimes the wiring damage or corrosion is right at the electrical connector for the pressure sensor. If the terminals are corroded or the wires are broken at the connector body, the pigtail itself will need to be replaced. Aftermarket pigtails are available.
• Faulty Electronic Suspension Control Module (ESCM): This is rare. The module itself can fail, but all other potential causes, especially wiring, should be exhaustively ruled out before condemning the ESCM. One owner on a forum replaced the module only to find the C0711 code remained, pointing back to a different root cause. A poor connection at the main ESCM connector can also mimic a failed module.

Diagnosis Steps

1. Verify the 'Service Suspension System' message is displayed on the dash.
2. Scan for chassis DTCs with a capable OBD-II scanner to confirm C0711 is present.
3. Check the 'ALC' or 'RTD' fuse (typically 30A) and the ALC relay in the underhood fuse block. Swap the relay with an identical one from a non-critical system to test.
4. Safely lift and support the rear of the vehicle.
5. Locate the air suspension compressor mounted to the driver's side frame rail, near the rear wheel.
6. Carefully unbolt the compressor assembly (usually three 13mm bolts) to gain full access to the wiring harness behind and above it.
7. Thoroughly inspect the entire wiring harness for signs of chafing, pinching, corrosion, or broken wires, paying close attention to the area where the harness passes the metal bracket and frame.
8. If damage is found, perform a durable, weatherproof repair on the affected wires. Clear codes and re-test.
9. If the wiring is intact, use a multimeter to check the sensor connector: Test for 5V reference, a good ground (less than 2.0 ohms to chassis ground on terminal F), and a signal voltage between 0.5V and 4.75V.
10. If power and ground are good but the signal is out of range, the pressure sensor (part of the dryer assembly) is the likely failure point.

Parts You'll Likely Need

• Weatherproof Wiring Repair Supplies — This is needed to fix the most common cause of C0711: a damaged wiring harness.
  Trusted brands: 3M, Dorman
  OEM price range: $10-$25
  Aftermarket price range: $5-$15
• Air Suspension Compressor Assembly (OEM #19300045 (supercedes 19299545, 25913289)) — Replaced if the internal pressure sensor has failed or the compressor motor is burned out. The pressure sensor is integrated into this assembly. Note: This is for GMT900 vehicles with the square electrical connector.
  Trusted brands: ACDelco, Dorman (949-001)
  OEM price range: $400-$550
  Aftermarket price range: $180-$300
• Air Filter, Dryer, and Sensor Assembly (OEM #22964558) — This is the correct service part if diagnostics confirm the pressure sensor has failed internally, often due to moisture. For vehicles built before May 2012, this kit includes a required jumper harness.
  Trusted brands: ACDelco
  OEM price range: $100-$200

Related Codes That Often Appear With This One

• C0696 — This code is also related to the Electronic Suspension Control module and is mentioned alongside C0711 in TSB #PIT4954D as having the same root cause of damaged wiring.

Technical Service Bulletins (TSBs) & Recalls

• PIT4954D: States that DTC C0711 (and C0696) can be caused by the wiring to the automatic level control (ALC) pressure sensor being shorted to ground, and instructs technicians to inspect for pinched wiring before replacing parts. It also covers sensor failure due to moisture and a loose compressor inlet hose. This TSB covers model years 2001-2014 for the Yukon/Tahoe/Suburban/Escalade family.

Platform-Specific Known Issues

• A GM Technical Service Bulletin (PIT4954D) directly addresses code C0711 on this vehicle. It explicitly states that damaged wiring pinched between the compressor and the frame is a primary cause and that the wiring should be repaired, not the entire compressor replaced for this condition. It also notes sensor failure from moisture as a secondary cause.

Mechanic-Grade Diagnostic Values

• 5-Volt Reference Circuit at Sensor Connector — expected: 4.75 - 5.25 Volts. Failure: Voltage outside this range indicates a short, open, or fault in the ESCM.
• Low Reference (Ground) Circuit Resistance — expected: < 2.0 Ohms. Failure: Resistance higher than 2.0 Ohms indicates an open or high resistance in the ground circuit.
• Air Pressure Sensor Signal Voltage — expected: 0.5 - 4.75 Volts. Failure: Voltage below 0.5V or above 4.75V will set the DTC.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Data Display: ALC Air Pressure Sensor Voltage — Used to monitor the live voltage signal from the pressure sensor to see if it is within the expected 0.5V-4.75V range and if it responds to pressure changes. A static reading near 0V or 5V points to a circuit fault.
• GM Tech 2 / GDS2: ALC Compressor Relay ON/OFF — This bidirectional command manually activates the compressor relay to test the relay itself and the compressor motor's power circuit, bypassing sensor inputs. This helps confirm if the compressor motor is functional after the wiring and sensor circuits have been verified.

Wiring & Ground Locations

• Air Pressure Sensor Connector — On the air compressor assembly, which is mounted to the driver's side frame rail near the rear wheel.. This is the primary location for testing. For GMT900, Terminal H is the 5V reference, and Terminal F is the low reference/ground. These are the specific pins to probe when checking for correct voltage and resistance.
• Electronic Suspension Control Module (ESCM) — Mounted on a frame cross-brace, located above the spare tire at the rear of the vehicle.. This module powers and reads the pressure sensor. A poor connection at its main multi-pin connector can cause C0711, mimicking a sensor or wiring failure.
• G303 / G305 — G303 is on the left side B-pillar behind the trim panel. G305 is under the vehicle to the rear of the left B-pillar at the third body mount on the frame.. These are chassis grounds for components in the rear half of the vehicle. While not directly for the sensor, a poor ground in this area can introduce electrical noise or resistance issues affecting various modules, including the ESCM.
• G400 — A chassis ground point located on the rear frame area.. This is a critical ground point for rear-mounted components. High resistance at this ground could potentially affect the ESCM or its related circuits.

Real Owner Repair Stories

• TahoeYukonForum user 'tahoeltz2011' (2011 Chevrolet Tahoe LTZ (GMT900 platform)) — Persistent C0711-00 code, service suspension message.
  ❌ Tried (didn't work) Replaced the Electronic Suspension Control Module (ESCM) and had it reprogrammed., Replaced the rear shock absorbers., Replaced the air compressor assembly., Replaced the new air compressor assembly a second time, assuming the first replacement was defective.
  ✅ What actually fixed it The main electrical connector at the newly installed ESCM was not fully seated. A forum member suggested removing the rubber gasket from the connector to allow it to click into place properly, which resolved the code. This indicates a poor pin connection at the module was the root cause.
• Various forum reports (2007-2013 GM SUVs with Autoride) — C0711 code, compressor not running.
  ❌ Tried (didn't work) Visual inspection of the wiring harness showed no obvious damage.
  ✅ What actually fixed it The wires in the harness near the compressor connector were broken *inside* the insulation. A continuity or 'pull' test on the individual wires revealed the break, which was not visible from the outside.

OEM Part Supersession History

• 20982305, 22197161 → 22964558 — Improved design for the air pressure sensor, filter, and dryer assembly, likely to address moisture intrusion issues.
  Heads up: Vehicles built BEFORE May 2012 require this part (22964558), which includes a necessary jumper harness adapter. Vehicles built May 2012 and LATER use a different part (22941807) and do not need the jumper.

Model Year Variations Within This Range

• 2011 - Early 2012: When replacing the air filter/dryer/sensor assembly, vehicles built before May 2012 require part number 22964558, which comes with a jumper harness to adapt the new sensor to the old vehicle harness.
• Late 2012 - 2013: Vehicles built in May 2012 or later use a different sensor/dryer assembly (part number 22941807) that connects directly without a jumper harness.
