C0765 on 2007-2014 GMC Savana 1500: TPMS Fault or a Deeper Electrical Problem?

What's Unique About the 2007-2014 Gmc SAVANA 1500

On many GM vehicles from this era, including the Savana and Express, functions like the Tire Pressure Monitoring System (TPMS), keyless entry, and the Passlock vehicle anti-theft immobilizer are all managed by the Body Control Module (BCM). The BCM acts as a gateway and communicates with other modules over a single wire network called the Class 2 Serial Data line. When the BCM begins to fail, or another module on the network shorts the data line, it can generate a cascade of seemingly unrelated trouble codes. Therefore, a chassis code for a tire sensor (C0765) can appear alongside body codes (B-codes) and major drivability symptoms like a crank-no-start, which is a known issue documented by GM. [Bulletin #PIC5650M]

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Security light flashing or staying on solid on the dashboard
• Engine cranks but will not start
🎬 Watch: Troubleshooting a crank-no-start with a flashing security light.
• Engine starts and immediately stalls
• TPMS warning light is illuminated
• Tire pressure reading for the right rear tire shows dashes (--) on the Driver Information Center (DIC)
• Key fob may work intermittently or not at all
• Power locks, windows, or interior lights behaving erratically.
• Instrument cluster gauges stop working or behave erratically.

Most Likely Causes

1. Failing Body Control Module (BCM) 🔴 High Probability → Shop Body Control Module The BCM is the central hub for security, TPMS, and other body functions. Internal failures or communication errors on the Class 2 serial data line can trigger a mix of codes, including C0765, along with the no-start condition. This is the scenario described in TSB PIC5650M. The BCM is a high-failure item on these vans.
   How to confirm: A professional-grade scan tool is needed to check for communication with the BCM and to view live data. The presence of other codes like B3055, B3060, or various U-codes (network communication codes) strongly points to the BCM or its network. The BCM is located under the dashboard, often near the driver's side kick panel or center console area.
   Typical fix: Replace the Body Control Module. The new BCM must be programmed to the vehicle's specific VIN and options using dealer-level software. After installation, procedures like 'Setup SDM Primary Key in BCM' are needed to sync with the airbag system and prevent the airbag light from staying on.
   Est. part cost: $250-$450
2. Dead or Faulty TPMS Sensor 🟡 Medium Probability → Shop Tire Pressure Monitoring System (TPMS) Sensor TPMS sensor batteries have a finite lifespan, typically 7-10 years. Vehicles in this year range are at an age where battery failure is common.
   How to confirm: This is the likely cause if C0765 is the ONLY code present and there are NO starting, security, or key fob issues. A tire shop can use a TPMS activation tool to check if the sensor is transmitting a signal. If it doesn't respond, it has failed.
   Typical fix: Replace the right rear TPMS sensor and perform the TPMS relearn procedure.
   Est. part cost: $25-$75
3. Wiring Harness or Connector Issue ⚪ Low Probability The Savana is a work vehicle, and wiring can be subject to damage or corrosion. Key areas to check are the grounds for the BCM (often G201 under the driver's dash), the main engine-to-chassis ground, and the Class 2 data line wiring at the BCM connectors or at Splice Pack JX201. A single module with a shorted wire can bring down the entire communication network.
   How to confirm: Visually inspect the wiring harnesses for damage. Check for power, ground, and data signals at the BCM connector using a multimeter and wiring diagram. A healthy Class 2 data line should show a fluctuating voltage signal that toggles between 0V and 7V when active. 🎬 See how to diagnose and repair GM Class 2 data lines.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector or ground point.
   Est. part cost: $10-$100

Rare But Worth Checking

• Faulty Ignition Switch or Passlock Sensor:

Diagnosis Steps

1. Scan for all DTCs in all modules. Pay close attention to any B-codes (Body) or U-codes (Network) in addition to the C0765.
2. Analyze the symptoms. If you have a no-start/stalling condition with a security light, the BCM and its network are the primary suspects. Proceed to step 4.
3. If C0765 is the only code and the only symptom is the TPMS light, use a TPMS tool to test the right rear sensor. If the sensor is dead, replace it, perform the relearn procedure, and clear the code.
4. If multiple codes (especially B3055/B3060/U-codes) are present with security symptoms, focus on the BCM.
5. Using a wiring diagram, check for proper battery voltage, ground, and ignition voltage at the BCM connectors. Poor grounds are a common issue. Check ground G201, typically located under the driver's side dash near the A-pillar.
6. Check the Class 2 Serial Data line (often a purple wire at the DLC pin 2). With the key on, you should see a fluctuating voltage signal toggling between 0 and 7 volts with a multimeter or, more accurately, a square wave on an oscilloscope. If the voltage is stuck high, low, or at 0, a module is likely shorting the network or there is a break in the wire.
7. To isolate a faulty module, technicians may use a splice pack (like JX201, often behind the driver's kick panel) to disconnect individual modules from the Class 2 network one by one until communication is restored.
8. If the BCM has good power and ground, and the data line is not shorted by another module, but the BCM still won't communicate, the BCM has likely failed internally and requires replacement and programming.

Parts You'll Likely Need

• Body Control Module (BCM) (OEM #84922494 (This is a common service replacement number that supersedes many previous part numbers like 25847588, 22860591, etc. Always verify with VIN.)) — This module is the most common point of failure when C0765 is accompanied by security/no-start issues, as documented in GM TSBs and extensive owner experiences.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $300-$450
  Aftermarket price range: $200-$350 (Often sold pre-programmed to VIN)
• Tire Pressure Monitoring System (TPMS) Sensor (OEM #13586335) — This is the correct part to fix the code IF AND ONLY IF there are no other symptoms and the sensor itself has failed (usually a dead battery).
  Trusted brands: ACDelco, Schrader, Standard Motor Products
  OEM price range: $40-$60
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• B3055 — Relates to the vehicle immobilizer system (Passlock), which is controlled by the BCM. Its presence alongside C0765 strongly indicates a BCM failure. [Bulletin #PIC5650M]
• B3060 — Another immobilizer system code pointing to a failure in the security system circuit, processed by the BCM. [Bulletin #PIC5650M]
• C0750, C0755, C0760 — These are the corresponding TPMS fault codes for the other three wheels (Left Front, Right Front, Left Rear). If multiple TPMS codes are stored, a fault with the receiving module (BCM/RCDLR) is more likely than all sensors failing simultaneously.
• U1000-U1255 — These are general network communication failure codes. A code like U1064 (Loss of Communication with BCM) is a definitive sign that other modules cannot 'hear' the BCM on the Class 2 data line, pointing directly to a BCM or network wiring problem.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #PIC5650M: Mentions a potential no-start or start/stall concern with the security light on, where technicians may find DTCs including C0765, B3055, and B3060, pointing towards a BCM or network issue.

Platform-Specific Known Issues

• A known issue documented in TSB #PIC5650M where a no-start or start/stall condition with the security light is caused by an issue that also sets TPMS codes like C0765.

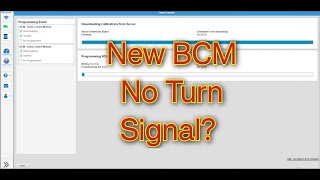

• The BCM on these vans is a high-failure item, with symptoms often including turn signal failure in addition to the no-start condition.
• After replacing the BCM, the airbag (SIR) warning light will illuminate until a 'Setup SDM Primary Key in BCM' procedure is performed with a professional scan tool.

Mechanic-Grade Diagnostic Values

• Class 2 Serial Data Line Voltage — expected: Toggling square wave between 0V (inactive) and ~7.0V (active). A multimeter may show a fluctuating average voltage.. Failure: Voltage stuck at 0V (short to ground), stuck high (e.g., 10V+ indicates a short to voltage from a faulty module), or no activity.

Scan Tool Commands That Help

• Tech2 / GDS2 / Professional Scan Tool: Setup SDM Primary Key in BCM — This is a mandatory step after replacing the Body Control Module (BCM). It synchronizes the new BCM with the existing Sensing and Diagnostic Module (airbag controller). Failure to perform this step will result in a persistent airbag warning light and DTC B1001.
• Tech2 / GDS2 / Professional Scan Tool: New BCM Setup — This general function is used to program the vehicle's VIN and specific RPO codes (options) into a new BCM, ensuring all vehicle features work correctly.
• Tech2 / GDS2 / Professional Scan Tool: BCM Bi-Directional Controls — Used for diagnosis. Allows the technician to command outputs like door locks, lights, and wipers directly from the scan tool to confirm if the BCM is capable of controlling those circuits, helping to isolate BCM vs. wiring/component faults.

Wiring & Ground Locations

• G201 — Inside the vehicle, under the driver's side of the instrument panel, near the A-pillar.. This is a major interior ground point for multiple modules, including the BCM and the Data Link Connector (DLC). A poor connection here can cause a wide range of bizarre electrical issues, including communication loss and no-start problems.
• JX201 (or I/P Splice Pack #1) — Typically located behind the driver's side kick panel or under the dash near the BCM. It looks like a black or gray comb connector where multiple wires of the same color terminate.. This is the central junction for the Class 2 Serial Data line. All modules on the network connect here. It's a critical diagnostic point to isolate a module that may be shorting the data line. By removing the 'comb', a technician can test the data line from each module individually.
• BCM Connector X1 — The light green 27-way connector on the Body Control Module.. This connector contains several critical circuits for this fault, including the Passlock key resistor signal (Pin 4, WH wire) and ignition voltage inputs (Pin 14, PK wire and Pin 21, BN wire), which are relevant to the no-start condition.

Real Owner Repair Stories

• Chevrolet Forum user (2006 Chevrolet Express 1500 AWD) — Engine will not start, flashing security light on the dashboard.
  ❌ Tried (didn't work) Performing the 30-minute key relearn procedure would temporarily allow the van to start, but the problem would always return, indicating a hardware failure rather than just a loss of synchronization.
  ✅ What actually fixed it The ultimate fix for this common pattern (temporary success with relearn, but recurring no-start) is replacing the Body Control Module (BCM) and having it programmed to the vehicle.

OEM Part Supersession History

• Multiple, including 15872388, 25847588 → 22860591, which is then superseded by service numbers like 84922494 — GM regularly updates part designs to integrate new materials, fix known failure points, and consolidate inventory.
  Heads up: While many part numbers are physically interchangeable, they must be programmed with the correct software and RPO codes for the specific vehicle's VIN. Using a BCM from a vehicle with different options (e.g., with vs. without factory towing) without proper programming can cause features to malfunction.

Model Year Variations Within This Range

• 2007-2014: While the fundamental BCM/Class 2 architecture is consistent, specific BCM part numbers may vary slightly by year and installed options. However, the diagnostic process for a C0765 code accompanied by a no-start condition remains the same across this entire range. There were no major electrical system redesigns that would alter the root cause of this specific issue.
