C0800 on 2015-2017 Cadillac Escalade: Understanding and Fixing Control Module Power Circuit Faults

What's Unique About the 2015-2017 Cadillac ESCALADE

The 2015-2017 Escalade and its GM truck/SUV siblings (Tahoe, Yukon, Silverado, Sierra) are known for a specific manufacturing flaw that triggers C0800 and a host 🎬 See a short explanation of the C0800 fault code of other electrical codes. During assembly, the dash insulator mat can get pinched under the main Body Control Module (BCM) ground terminal (G218) 🎬 Watch: Locating and inspecting the G218 ground terminal, leading to a poor ground connection. This creates intermittent and widespread electrical chaos, often triggered by high-load situations like turning the steering wheel at low speeds, which puts a heavy demand on the electrical system and exposes the weak ground.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Service StabiliTrak message
• Reduced or total loss of power steering assist
• Steering wheel jerks or kicks back when turning
• Instrument panel cluster (IPC) goes blank
• Radio and HVAC controls go blank or are inoperative
• Engine may stall, especially at low speeds
• No-start condition or click-no-start
• Alarm sounds randomly when locking doors
• Door locks cycle on their own
• Wipers continue to run after being turned off
• Service 4WD, Service Hill Start Assist, Service Traction Control messages
• Heated seats not warming
• HUD (Heads-Up Display) dimming
• Horn operation without activation

Most Likely Causes

1. Poor Body Control Module (BCM) Ground at G218 🔴 High Probability → Shop Body Control Module A known manufacturing defect where the dash insulator mat gets trapped between the ground terminal and the chassis stud, preventing a solid connection. This is the primary cause documented in GM Technical Service Bulletin #PIT5405C and its successors.
   How to confirm: Visually inspect the G218 ground stud, located under the driver's side dash near the A-pillar speaker. Check if the dash insulation mat is underneath the ground eyelet. Also, check if the 10mm nut is loose or cross-threaded.
   Typical fix: Remove the 10mm nut, pull the ground terminal eyelet off the stud, trim away the interfering insulation mat with a utility knife, clean the contact surfaces, and reinstall the terminal and nut, ensuring it is tight.
   Est. part cost: $0-$5
2. Loose or Corroded Battery Cables 🟡 Medium Probability → Shop Vehicle Battery The factory negative battery cable can develop high internal resistance over time, causing voltage drops under load. All connections are sensitive to looseness or corrosion, which can trigger widespread voltage issues.
   How to confirm: Physically grasp the battery terminals to ensure they do not move after being tightened to spec (7 Nm / 62 lb-in). Inspect the main engine and chassis ground connections for looseness or corrosion. Perform a loaded voltage drop test on the main positive and negative cables; a drop above 200mV on the negative cable or 100mV on the positive cable indicates a bad cable.
   Typical fix: Clean the battery posts and cable terminals with a wire brush. Tighten all connections to the specified torque. If a cable fails a voltage drop test, it must be replaced. The negative battery cable is a common failure point.
   Est. part cost: $0-$100
3. Failing Battery or Alternator ⚪ Low Probability → Shop Alternator If the battery cannot supply adequate voltage or the alternator isn't charging correctly, modules will detect low system voltage and set this code. These vehicles use an AGM battery (Group H7/94R) which can fail without obvious signs.
   How to confirm: Have the battery professionally load-tested using a tool like a GR8 battery tester, as specified by GM. With the engine running, check the alternator output voltage at the battery terminals; it should be roughly 13.5-14.8 volts.
   Typical fix: Replace the weak or faulty battery. Replace the alternator if its output is out of specification.
   Est. part cost: $250-$700

Rare But Worth Checking

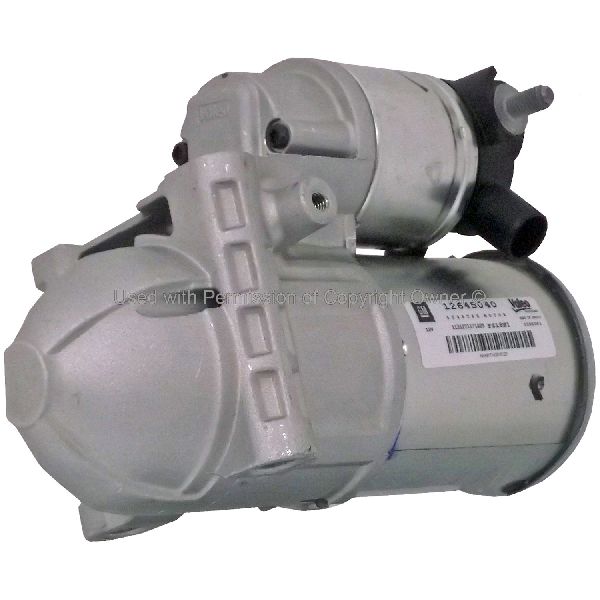

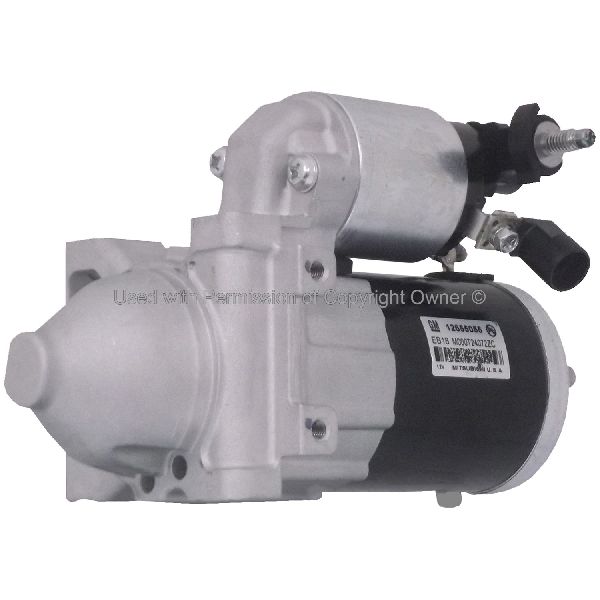

• B+ Battery Cable Shorting on Starter Heat Shield: → Shop Vehicle Battery TSB #PIT5405C and #18-NA-161 point to this as a possible cause. The main battery cable can rub against the starter heat shield, or the shield can come loose and contact the terminal, causing an intermittent short to ground that creates massive voltage fluctuations. Requires visual inspection of the starter area.
• Loose Connection at Power Steering Rack Connector (X183/X133): The electric power steering system is a high-current draw component. A loose connection at its main power feed can cause a significant voltage drop when the wheel is turned, triggering C0800 in other modules. This is also mentioned in TSB #PIT5405C.

Diagnosis Steps

1. Scan for all DTCs in all modules. Note that C0800 will likely be present with a long list of other communication (U-prefix) and chassis (C-prefix) codes.
2. Check battery state of health. Perform a load test on the battery and verify the charging system is operating correctly (13.5-14.8V).
3. Inspect the G218 ground location. This is the most critical step. Remove the driver's side A-pillar and lower dash trim to access the ground stud located on the body, just below the dash speaker. A helpful video guide can be found on YouTube by searching for 'G218 Ground Issue Fix Silverado'.
4. Verify the dash insulator mat is not trapped under the ground terminal eyelet. If it is, remove the 10mm nut, trim the mat away, clean the contact surfaces, and securely retighten the nut.
5. Inspect all main battery and starter connections. Check for tightness and corrosion. Battery terminal nuts should be torqued to 7 Nm (62 lb-in). The negative cable-to-engine block nut should be torqued to 45 Nm (33 ft-lb).
6. If grounds are good, perform a loaded voltage drop test. Per TSB 18-NA-161, a voltage drop above 200 mV on the negative cable or 100mV on the positive cable (between battery and fuse block) indicates the cable needs replacement.
7. Inspect the B+ cable at the starter for any signs of arcing or contact with the starter heat shield.
8. Inspect connector X183/X133 for the electric power steering rack for any loose or backed-out terminals.

Parts You'll Likely Need

• Battery (OEM #ACDelco Gold BCI Group H7/94R AGM) — If the battery fails a load test, it can be the source of the low voltage condition. These vehicles require an AGM (Absorbent Glass Mat) battery.
  Trusted brands: ACDelco, DieHard, Odyssey, NAPA The Legend
  OEM price range: $250-$350
  Aftermarket price range: $220-$320
• Negative Battery Cable (OEM #84634109) — This cable is a known failure point and can develop high internal resistance, causing voltage drop issues that can't be fixed by cleaning the terminals. It is often replaced as a preventative measure.
  Trusted brands: ACDelco (GM Genuine), Standard Motor Products
  OEM price range: $70-$100
  Aftermarket price range: $30-$70
• Starter Heat Shield — If the B+ cable shorts to the starter heat shield, both the cable and the shield may need to be replaced to ensure proper clearance.
  Trusted brands: ACDelco (GM Genuine), Dorman
  OEM price range: $20-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• U0073 — Control Module Communication Bus A Off. This and many other U-codes (communication codes) are set because the poor ground at G218 disrupts the entire vehicle communication network.
• C0544 — Steering Wheel Angle Sensor. This code is often a symptom of the power steering module losing power or receiving erratic voltage, which is caused by the underlying ground issue.
• U0140 — Lost Communication With Body Control Module. This code points directly to the BCM being offline, which is a direct consequence of its primary ground (G218) being compromised.
• P0513 — Incorrect Immobilizer Key. Communication issues between the BCM and other modules can disrupt the anti-theft system, causing this code to appear.

Technical Service Bulletins (TSBs) & Recalls

• PIT5405C: Details multiple electrical issues (including C0800) caused by the poor G218 ground, a shorted starter cable, or loose battery connections. This is the most frequently cited bulletin.
• 18-NA-034: A later, more comprehensive bulletin that incorporates the information from the PIT5405 series and adds more diagnostic procedures, including specific voltage drop test parameters and an expanded list of symptoms and DTCs.
• PIT5405B: An earlier version of the same bulletin, also pointing to the G218 ground as the primary culprit.

Platform-Specific Known Issues

• G218 Ground Manufacturing Flaw: The primary vehicle-specific issue is the manufacturing flaw where the dash insulator mat interferes with the G218 ground connection, as detailed in TSB #PIT5405C. This is the root cause for the vast majority of C0800 complaints on this platform.
• Owner Repair Story: On tahoeyukonforum.com, a user with a 2015 model experiencing a dashboard full of warnings ('Service Stabilitrak', etc.) and power steering loss was advised by another user to check the G218 ground. The advice included a link to a YouTube video showing the fix on a pickup, highlighting how common this issue is across the GM truck/SUV platform.

Mechanic-Grade Diagnostic Values

• System Voltage (DTC Trigger Threshold) — expected: 9.0 - 18.0 Volts. Failure: A voltage reading below 9V or above 18V for approximately 5 seconds will set the C0800 code.
• Negative Battery Cable Voltage Drop (Loaded) — expected: Less than 200 mV. Failure: A voltage drop greater than 200 mV between the negative battery post and the engine block under load indicates a faulty cable.
• Positive Battery Cable Voltage Drop (Loaded) — expected: Less than 100 mV. Failure: A voltage drop greater than 100 mV between the positive battery post and the main fuse block indicates a faulty cable.
• Battery Cable Clamp Nut Torque — expected: 7 Nm (62 lb-in). Failure: Loose connections can cause intermittent voltage drops.
• Negative Battery Cable to Engine Block Nut Torque — expected: 45 Nm (33 ft-lb). Failure: A loose main ground connection can cause widespread electrical issues.

Hidden / Shadow Codes Worth Checking

• C0800-03: Device Power 1 Circuit Voltage Below Threshold. This is a common symptom byte that specifies the fault is a low voltage condition. (see via A professional scan tool like the GM GDS2 can read symptom bytes.)
• C0800-07: Device Power 1 Circuit Voltage Above Threshold. This symptom byte indicates a high voltage (overcharging) condition. (see via A professional scan tool like the GM GDS2 can read symptom bytes.)

Scan Tool Commands That Help

• GDS2 (GM Dealer Software): Data Display > BCM > Voltage Data — To monitor the BCM's reported voltage in real-time. This can help identify if the voltage drops occur during specific events, like turning the steering wheel, which points towards a load-related ground issue.
• GDS2 (GM Dealer Software): Clear All DTCs — After performing a repair, such as cleaning the G218 ground or replacing a battery cable, all codes in all modules must be cleared. Some codes may not clear with a generic scanner if they are stored in multiple modules.
• GDS2 (GM Dealer Software): Power Steering Control Module Setup — If the Power Steering Control Module (PSCM) is replaced, it must be configured and programmed to the vehicle using this service function. This is not typically required for a C0800 diagnosis unless the module itself is proven to be faulty.

Wiring & Ground Locations

• G218 — Under the driver's side dashboard, on the A-pillar, just below and to the outside of the dash speaker.. This is the primary ground for the Body Control Module (BCM). A manufacturing flaw often leaves dash insulation trapped under this ground, causing a poor connection and leading to C0800 and numerous other electrical faults.
• X133 / X183 — The main 2-way power and ground connector for the electric power steering rack, located on the rack itself.. TSB PIT5405C notes that a loose connection at this high-current connector can cause a significant voltage drop when the steering wheel is turned, triggering C0800 in the BCM and other modules.
• BCM Connectors (X1-X7) — The Body Control Module is located behind the driver's side of the dashboard.. These are the main interface connectors for the BCM. Advanced diagnostics may require back-probing pins at these connectors to verify power and ground integrity directly at the module.

Real Owner Repair Stories

• YouTube user 'Dustin T' (2014 Chevrolet Silverado (Same K2XX Platform)) — Headlights and dash lights flickering, truck completely shutting off when turning the wheel at low speeds, power steering disabled message, park assist disabled message.
  ❌ Tried (didn't work) Had battery and alternator tested, both were confirmed to be good.
  ✅ What actually fixed it The user found that sound-deadening insulation material was trapped under the G218 ground terminal. He trimmed the material away, re-secured the ground nut, and reported that all electrical issues were resolved.
• Reddit user in r/Silverado (2015 Silverado 1500 with 30k miles) — 'Service Stabilitrak' message flashing on the dash, radio and instrument cluster screens would flash simultaneously. Seemed to happen more often when it rained and when turning to the right.
  ❌ Tried (didn't work) Initially suspected water in wheel bearing sensors.
  ✅ What actually fixed it Another user immediately identified the symptoms as classic for the G218 ground issue. The original poster later confirmed that fixing the G218 ground resolved the problem.

OEM Part Supersession History

• 23235511, 23286906, 23421539, 23438331, 84109461, 84354711 → 84634109 — Multiple revisions to the negative battery cable assembly to address internal resistance and durability issues.

Model Year Variations Within This Range

• 2015: Early 2015 models were equipped with a 6-speed (6L80) automatic transmission. A mid-year update, sometimes called '2015i', introduced the 8-speed (8L90) automatic transmission, Surround View camera, 4G LTE Wi-Fi, and the updated Cadillac crest emblem.
• 2016: For 2016, Lane Keep Assist was added and the Cadillac CUE system received software improvements. The SD card slot was removed.
• 2017: Minor changes for 2017 included a 'Rear Seat Reminder' feature and the availability of a rear-camera mirror.
