C1047 on 2017-2019 Lincoln Continental: Front Right Wheel Speed Sensor Fault Causes & Fixes

What's Unique About the 2017-2019 Lincoln CONTINENTAL

While there are no major platform-specific design flaws, there is a common point of confusion regarding a Technical Service Bulletin. TSB #SSM 47791 mentions a connector named 'C1047' in the context of F-150 trucks. The same TSB also applies to the Continental, but for an entirely different issue (Engine Coolant Temperature sensor wiring) and references different connectors (C1016 and C1168). This TSB is completely irrelevant to diagnosing the C1047 trouble code on a Lincoln Continental; it's a coincidental name similarity that should be ignored.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light illuminated on the dashboard
• Traction control or stability control warning light on
• Cruise control is disabled or does not function
• A 'Service AdvanceTrac' message may appear

Most Likely Causes

1. Faulty Front Right Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor
   How to confirm: Use a diagnostic scanner that can read ABS live data. Observe the wheel speed readings for all four wheels while driving. The front right sensor will likely show 0 MPH or an erratic reading compared to the others.
   Typical fix: Replace the front right wheel speed sensor. The sensor is held into the steering knuckle by a single 8mm bolt. The electrical 🎬 See this walkthrough for replacing the wheel speed sensor. connector has a red locking tab that must be disengaged before unplugging.
   Est. part cost: $32-$43
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness is exposed to the elements and constant flexing from steering and suspension travel, which can lead to breaks or corrosion over time. Wires can break internally even if the insulation looks intact, especially near the connector or where the harness bends.
   How to confirm: Visually inspect the entire length of the wiring from the sensor to the main harness. Check the connector for green or white corrosion, bent pins, or a loose connection. Perform a continuity test on the wires with a multimeter. Wiggle the harness during testing to expose intermittent breaks.
   Typical fix: Repair the broken wire or replace the damaged connector pigtail. In some cases, the entire sensor and harness assembly is replaced. On some Ford platform vehicles, the harness pigtail is available as a separate repair part.
   Est. part cost: $15-$50
3. Damaged or Contaminated Hub Encoder Ring ⚪ Low Probability
   How to confirm: Remove the wheel speed sensor and visually inspect the magnetic encoder ring on the wheel hub assembly. Look for cracks, missing sections, or an accumulation of metallic debris (often from brake wear) that could interfere with the sensor's reading.
   Typical fix: The encoder ring is integrated into the wheel hub/bearing assembly. The entire hub assembly must be replaced.
   Est. part cost: $150-$250

Rare But Worth Checking

• Failed ABS Control Module: → Shop ABS Control Module This is extremely rare and should only be considered after all other possibilities (sensor, wiring, hub) have been definitively ruled out. This would likely be accompanied by other communication or sensor codes and is not a common failure point.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading Chassis (C-codes) to the vehicle.
2. Confirm C1047 is the active or stored code.
3. Use the scanner's live data function to monitor the speed of all four wheels. Drive the vehicle slowly (if safe) and verify that the front right wheel speed sensor reading is absent or erratic compared to the other three.
4. Raise and safely support the front of the vehicle. Remove the front right wheel.
5. Visually inspect the wheel speed sensor and its wiring harness for any obvious signs of damage, such as cuts, chafing, or melting. Pay close attention to the area where the harness flexes with steering.
6. Unplug the sensor connector. This often involves sliding a red locking tab back before depressing the release. Inspect the connector pins for corrosion or damage.
7. If the wiring and sensor appear intact, the next step is to test the sensor itself. This can be done by checking its resistance with a multimeter (if specs are available) or by swapping it with the known-good sensor from the other side of the vehicle to see if the code follows.
8. If the sensor and wiring are confirmed to be good, inspect the wheel hub for excessive play, which could indicate a bad bearing and an incorrect air gap for the sensor. Also inspect the hub's magnetic encoder ring for damage or debris.
9. If the sensor has been seized in the steering knuckle due to corrosion, it may need to be carefully broken apart for removal. The mounting hole in the knuckle should be cleaned with a small wire brush or sandpaper before installing the new sensor to ensure it seats properly.

Parts You'll Likely Need

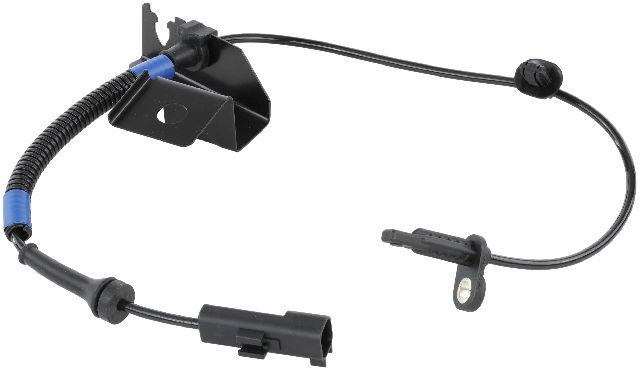

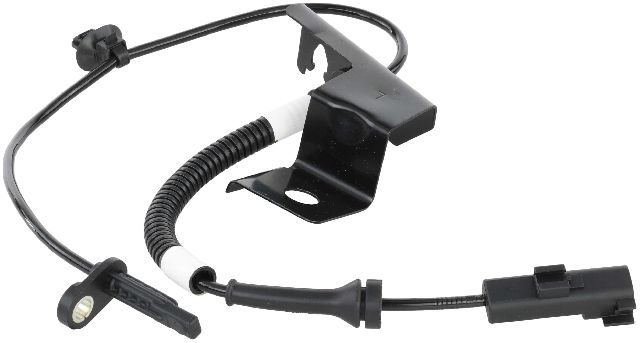

• Front Right ABS Wheel Speed Sensor (OEM #DG9Z-2C204-B) — This is the most frequent failure point for this specific code. The sensor is exposed to harsh conditions within the wheel well.
  Trusted brands: Motorcraft, Delphi, Duralast, Dorman
  OEM price range: $50-$70
  Aftermarket price range: $30-$45

Technical Service Bulletins (TSBs) & Recalls

• TSB SSM 47791: This TSB is often a source of confusion. It addresses an Engine Coolant Temperature (ECT) sensor wiring issue. For the F-150, it references a connector named C1047. For the Continental, it references connectors C1016 and C1168. It has no diagnostic relevance to the ABS fault code C1047.

Platform-Specific Known Issues

• The Technical Service Bulletin SSM 47791, which mentions a connector named C1047, is not relevant to this diagnostic trouble code on the Lincoln Continental. It applies to a different component (ECT sensor) on a different vehicle (Ford F-150) and should be disregarded during diagnosis.
• Corrosion can cause the sensor to become seized in the steering knuckle, making removal difficult. It may be necessary to destroy the old sensor to remove it. The mounting hole must be thoroughly cleaned before installing the new part to ensure correct fit and air gap.

Mechanic-Grade Diagnostic Values

• Sensor Type and Testability — expected: The sensor is an active (magneto-resistive) type. It requires a power supply from the ABS module to generate a signal.. Failure: Unlike older passive sensors, these cannot be reliably tested for resistance (ohms) with a multimeter. A resistance test will yield an open circuit or misleading values. Diagnosis requires observing the sensor's output signal (a square wave) with an oscilloscope or monitoring live data on a capable 🎬 Watch: How to easily check wheel speed sensor signals. scan tool while spinning the wheel.
• Voltage at Sensor Connector (Key On, Engine Off) — expected: With the sensor unplugged, one pin at the harness-side connector should show battery voltage (approx. 12V) and the other should show a reference voltage or ground, depending on the specific module design.. Failure: Absence of voltage on the supply pin points to a wiring issue between the connector and the ABS module or a problem with the module itself.

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): Self-Test (All CMDTCs) — This is the initial step to retrieve all Diagnostic Trouble Codes from all modules on the network. It will confirm the C1047 code and show any other related communication or sensor codes.
• Ford IDS (Integrated Diagnostic System): Live Data / Datalogger — Used to monitor the wheel speed sensor PIDs (Parameter IDs) in real-time. Graphing the output of all four sensors while driving is the primary method to confirm that the front right sensor is providing no signal, an erratic signal, or a signal that doesn't match the others.
• Ford IDS (Integrated Diagnostic System): Module Programming > Programmable Module Installation (PMI) — This function is required if the ABS control module itself is replaced. It downloads the as-built data from the old module (or from Ford's servers) and programs it into the new module to ensure it has the correct VIN and vehicle configuration.
• Ford IDS (Integrated Diagnostic System): Chassis > Braking > IVD Initialization Sequence — This service function may be required after replacing the ABS module or certain sensors to calibrate the system's sensors, such as the yaw rate and steering angle sensors, which are part of the Integrated Vehicle Dynamics (IVD) system.

Wiring & Ground Locations

• ABS Control Module — On older Lincoln Continental models (pre-2002), the ABS module was often located in the lower left (driver's side) front of the engine compartment, sometimes requiring removal of the air intake or inner fender liner for access. While the exact location for the 2017-2019 model is not specified in the search results, it is typically part of the hydraulic control unit (HCU), found in a similar area of the engine bay.. A technician needs to access the module's main electrical connector to perform continuity and voltage drop tests on the wiring harness running to the front right wheel speed sensor if a wiring fault is suspected.

OEM Part Supersession History

• DG9Z-2C204-B → JG9Z-2C204-A — Part has been updated or replaced by a newer version. The specific reason for the supersession is not documented in the search results.
  Heads up: JG9Z-2C204-A is the direct replacement for DG9Z-2C204-B, so it should be compatible.
• DU9Z-2C204-B → DU9Z-2C204-C — Part revision or update.
  Heads up: This part number appears to be for a different application but shows a similar supersession pattern. It's important to verify the correct base part number for the specific vehicle VIN.
