C1114 on 2019 GMC Yukon Denali: 'Service Trailer Brake System' Causes and Fixes

What's Unique About the 2019-2019 Gmc YUKON DENALI

For this generation of Yukon (part of the K2XX platform), GM designed a highly sensitive trailer detection system. The Chassis Control Module's process for identifying the trailer's brake type via test pulses can be easily disrupted by minor electrical imperfections. As noted in TSB PIT5509K, this sensitivity means that poor trailer-side wiring, incompatible aftermarket accessories (like some LED lights or sway control devices), or even a specific software logic issue can trigger the C1114 code, making it crucial to rule out both the trailer and potential software updates before replacing vehicle components.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Trailer Brake System" message on the Driver Information Center (DIC).
• "Check Trailer Wiring" message on the DIC.
• Trailer brakes do not engage or function intermittently.
• No output from the integrated trailer brake controller; manual slider does not activate brakes.
• Message on DIC may appear after the third or fourth brake application.

Most Likely Causes

1. Trailer Wiring or Connector Issues 🔴 High Probability The GM system is very sensitive to electrical imperfections. Many trailers use lower-quality wiring, connectors, or splices that can cause faults (shorts, poor grounds) when monitored by the truck's sophisticated system. The issue is frequently a bad ground (white wire) or a short on the brake output circuit (blue wire).
   How to confirm: Test with a known-good trailer or a dedicated trailer circuit tester (like GM tool EL-52641). If the code does not appear with the good trailer/tester, the fault is on the original trailer. Visually inspect the trailer's 7-way plug and wiring for corrosion, damage, or loose connections, especially the ground (white wire) and brake output (blue wire).

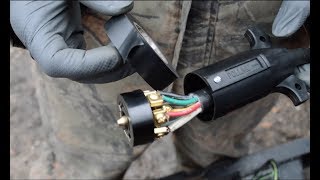

   Typical fix: Repair or replace the trailer-side 7-way plug, preferably with a high-quality unit like a Pollak HD. Repair any damaged wiring on the trailer using soldered and heat-shrunk connections. Ensure the trailer has a clean, solid ground connection to its frame.
   Est. part cost: $15-$50
2. Poor Connection at Vehicle's 7-Way Connector 🟡 Medium Probability The vehicle's 7-way connector is exposed to the elements, leading to corrosion. Repeated use can also cause wear and deformation of the terminals. TSB PIT5311D recommends replacing worn connectors with an updated part that has a stronger door spring to ensure a tighter connection.
   How to confirm: Thoroughly inspect the terminals inside the truck's 7-way connector for corrosion (green or white powder), bent pins, or signs of arcing. Apply dielectric grease to prevent future corrosion. Wiggle the connected plug to see if the error message can be triggered, indicating a loose fit.
   Typical fix: Clean the terminals with a wire brush and electrical contact cleaner. If terminals are severely damaged or corroded, the 7-way connector assembly needs to be replaced with the updated OEM part (ACDelco 23404450).
   Est. part cost: $25-$150
3. Chassis Control Module Software Issue 🟡 Medium Probability → Shop Body Control Module As identified in TSB PIT5509K, the logic in the Chassis Control Module for determining the trailer brake type can be overly sensitive, leading to a false fault detection. This can sometimes be exacerbated by trailers with their own battery systems (e.g., with solar or generators) that can backfeed voltage. 🎬 See a technician diagnose C1114 and C056D codes.
   How to confirm: A GM dealership can check the vehicle's software calibration against the latest available updates using the VIN. If the TSB applies and the software is outdated, this is the likely cause.
   Typical fix: The dealership will reprogram the Chassis Control Module (CCM) with updated software.
   Est. part cost: $0
4. Incompatible Trailer Equipment ⚪ Low Probability Certain aftermarket trailer systems, like some electric-over-hydraulic (EOH) brake actuators or electronic sway control devices, can interfere with the GM ITBC system's diagnostic pulses. Some all-LED trailer light systems have also been reported to cause issues due to their low current draw.
   How to confirm: Check the trailer manufacturer's documentation for compatibility with GM's integrated trailer brake controller. Some, like specific Dexter EOH systems, are known to require an adapter module (e.g., Dexter P/N K58-036-00).
   Typical fix: Install a compatibility adapter module on the trailer, as recommended by the trailer or brake system manufacturer.
   Est. part cost: $50-$250

Rare But Worth Checking

• Faulty Trailer Brake Control Module: → Shop Trailer Brake Control Module This module, also known as the Chassis Control Module, is a reliable part. It should only be considered for replacement after all wiring, connections, software, and trailer-related issues have been definitively ruled out. Note that this is a separate component from the dash-mounted switch assembly.
• Blown Fuse: A blown fuse related to the trailer brake system can cause a loss of function and trigger a DIC message. Check the under-hood fuse box for fuses labeled 'STUD 2' or 'Trailer Brakes', which are often 30A fuses.

Diagnosis Steps

1. Connect a scan tool and confirm C1114 is present in the Chassis Control Module. Note the exact DIC message.
2. Per TSB PIT5509K, a 'Service Trailer Brake System' message with C1114 typically indicates a short to power or a poor trailer ground on Circuit 47.
3. Per TSB PIT5509K, a 'Check Trailer Wiring' message with C1114 typically indicates a short to ground on the brake output circuit (Circuit 47).
4. If possible, connect the vehicle to a different, known-good trailer. If the code and message do not return, the fault is with the original trailer. This is the most crucial first step.
5. Thoroughly inspect and clean the 7-way connectors on both the truck and the trailer. Look for corrosion, bent pins, or loose wires. Apply dielectric grease.
6. Inspect the trailer's wiring harness for damage, poor splices, or a faulty ground connection (white wire).
7. With a multimeter, check the resistance between the brake pin and ground pin on the trailer's plug. For a single axle (2 brakes), expect ~1.5-1.9 Ohms. For a tandem axle (4 brakes), expect ~0.8-1.5 Ohms. A reading near zero indicates a short, and a very high or open reading (O.L.) indicates a break in the circuit or a bad magnet.
8. If the issue persists with multiple trailers, inspect the vehicle's wiring harness leading from the 7-way connector to the control module for any chafing or damage, particularly near the spare tire.
9. Consult a GM dealer to check for applicable TSBs, like PIT5509K, and see if a software update for the Chassis Control Module is available.
10. If all wiring and software are confirmed to be good, use a scan tool to monitor live data from the Chassis Control Module while testing circuits. As a last resort, the module itself may be at fault.

Parts You'll Likely Need

• 7-Way Trailer Connector Socket (OEM #23404450) — The vehicle-side connector is a common failure point due to weather exposure and wear. TSBs have mentioned this updated part, which has a stronger door spring to ensure a better connection and replaces the older part number 22799842.
  Trusted brands: ACDelco (Genuine GM), Pollak, Hopkins
  OEM price range: $45-$70
  Aftermarket price range: $25-$60
• Trailer Brake Control Module (OEM #84109434) — This part number refers to the dash-mounted *switch assembly* and is often misdiagnosed as the fix. The actual control *module* is a different component. The switch is the least likely cause and is only replaced after all other diagnostic steps, including wiring and software checks, have been exhausted. This part requires programming by a dealer or qualified shop.
  Trusted brands: ACDelco (Genuine GM)
  OEM price range: $150-$250
  Aftermarket price range: $100-$180

Technical Service Bulletins (TSBs) & Recalls

• PIT5509K: Addresses the 'Service Trailer Brake System' message and DTC C1114, noting that the Chassis Control Module can be sensitive to trailer wiring issues and that diagnosis should focus on determining if the fault is with the vehicle or the trailer. It provides specific diagnostic paths based on the DIC message.

Platform-Specific Known Issues

• Per TSB PIT5509K, the Chassis Control Module on this vehicle can be overly sensitive to trailer wiring issues, causing it to set DTC C1114. The fix may be a software update or require careful diagnosis of the trailer itself.

Mechanic-Grade Diagnostic Values

• Resistance of a single 10-inch or 12-inch trailer brake magnet — expected: 3.0 - 3.8 Ohms. Failure: A reading of 0 indicates a shorted magnet. A very high or open (O.L.) reading indicates a broken wire inside the magnet. Readings outside the expected range suggest a failing magnet.
• Resistance of a single 7-inch trailer brake magnet — expected: 3.8 - 4.0 Ohms. Failure: Readings outside this range indicate a faulty magnet.
• Total resistance of all trailer brakes, measured at the trailer plug (brake pin to ground pin) — expected: For four 3-Ohm magnets: ~0.75 Ohms. For four 4-Ohm magnets: ~1.0 Ohms. The total resistance will be the resistance of one magnet divided by the number of magnets.. Failure: A higher-than-expected reading indicates an open circuit in one or more brake magnets. A reading near zero indicates a short to ground in the trailer wiring.

Hidden / Shadow Codes Worth Checking

• C1114 with 'Check Trailer Wiring' message: Indicates a short to ground on the trailer brake output circuit (Circuit 47). (see via This is a specific condition noted in GM TSB PIT5509J, linking the DTC to a specific DIC message.)
• C1114 with 'Service Trailer Brake System' message: Indicates a short to power on the trailer brake output circuit (Circuit 47) or a poor trailer ground. (see via This is a specific condition noted in GM TSB PIT5509J, linking the DTC to a specific DIC message.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Data Display > Trailer Brake Type — Use this to verify if the Chassis Control Module (CCM/BSCM) is correctly identifying the connected trailer as 'Electro-magnetic' or 'Electro-over hydraulic'. If it shows 'Undefined' with a trailer connected, it points to a connection or trailer wiring fault.
• GDS2 (GM Global Diagnostic System 2): Data Display > Trailer Brake Control Output Circuit — This parameter will display the specific fault the module has detected on Circuit 47. It will read 'Okay', 'Short to Ground', 'Short to Power', or 'Unknown'. This is critical for narrowing down the electrical fault without manual testing.

Wiring & Ground Locations

• K133 Trailer Brake Power Control Module — Mounted to the driver's side frame rail, near the rear axle and typically above the spare tire.. This module sends the test pulse and power down Circuit 47 to the 7-way connector. Its location makes it susceptible to moisture and corrosion, and its wiring harness is a key area to inspect for damage.
• Circuit 47 (Dark Blue wire) — Runs from the Trailer Brake Power Control Module (K133) to the 7-pin trailer connector at the bumper.. This is the primary trailer brake control output circuit. TSBs state that virtually all C1114 faults are due to a short-to-ground, short-to-power, or open circuit on this specific wire.
• Frame Grounds (G300-series, G400-series) — There are multiple grounds on the frame. Key locations are behind both front wheels and on body mounts under the driver/passenger doors. G401 and G402 are located on the rear frame section.. A poor chassis ground for the trailer brake system can cause a 'Service Trailer Brake System' message with C1114. The grounds located behind the front wheels are in a terrible location and are frequently corroded from tire splash.

Real Owner Repair Stories

• Tahoe Yukon Forum user (2018 GMC Yukon Denali with 40k miles) — Intermittent 'Service Trailer Brake System' message, occurring 30-50 times in a row and then stopping. More prevalent in cold weather.
  ❌ Tried (didn't work) Dealer diagnosis (no fix was paid for), Cleaning the 7-way plug
  ✅ What actually fixed it The user noted that after moving the vehicle from a cold climate (Minnesota) to a warm climate (Texas), the issue became much less frequent, suggesting moisture in a connection was the likely culprit. Another user with a 2015 model fixed the same issue by replacing the 7-way connector housing at the hitch, which was holding water. A third user fixed it by replacing a weak alternator that was failing under load.

OEM Part Supersession History

• 22799842 → 23404450 — The updated part (23404450) features a stronger door/cover spring to ensure a more secure and weather-tight connection with the trailer plug, reducing intermittent connection faults.
