C1252 on 2011-2015 Lexus RX HYBRID: Brake Booster Pump Failure Causes and Fixes

What's Unique About the 2011-2015 Lexus RX HYBRID

Unlike conventional cars that use engine vacuum to power the brake booster, the Lexus RX Hybrid uses a sophisticated electro-hydraulic brake system (ECB). This system incorporates a pump, motor, and accumulator to provide braking power and support the regenerative braking function. While efficient, this complex assembly is a known failure point across many Toyota and Lexus hybrid models. Lexus has acknowledged this issue by issuing Technical Service Bulletins (TSBs) and Customer Support Programs that directly link code C1252 to an internal brake fluid leak inside the brake booster assembly.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Brake warning light is on
• ABS warning light is on
• TRAC or VSC (Vehicle Stability Control) warning light is on
• "Check VSC" message on the dashboard

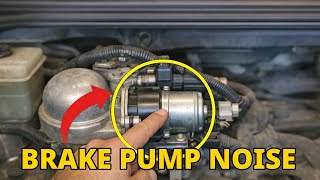

• A buzzing or humming noise from the engine bay that cycles on and off every few seconds, even when the car is at rest. 🎬 Watch: Hear the specific buzzing sound of a failing pump. This is the sound of the pump trying to repressurize the system.
• Hard brake pedal feel, requiring much more effort to stop
• A beeping or alarm sound from the dashboard when the brake is applied or when the car is started
• A 'squawk' or 'knock' noise when pressing or releasing the brake pedal.

Most Likely Causes

1. Failing Brake Booster Assembly with Internal Leak 🔴 High Probability → Shop Power Brake Booster Lexus Technical Service Bulletins (#L-SB-0033-20) and Customer Support Programs (#23LE04) explicitly state that codes C1252, C1391, C1256, and C1253 are caused by a small internal brake fluid leak inside the brake booster assembly with master cylinder. This is a well-documented design flaw.
   How to confirm: A technician will confirm the presence of codes C1252, C1391, C1256, or C1253 using a diagnostic scan tool like Toyota's Techstream. Listening for a frequently cycling pump motor (every 5-30 seconds) is also a definitive indicator of the internal leak.
   Typical fix: The entire brake booster assembly, which includes the pump, motor, and master cylinder, must be replaced. The system must then be professionally bled using a scan tool. This is the only permanent solution recommended by the manufacturer.
   Est. part cost: $1400-$2500

Rare But Worth Checking

• Failing ABS Motor Relay: The service manual lists checking the motor relays as a diagnostic step. While a relay failure is possible, it is far less common than the actuator assembly failure. If the relay is bad, the pump motor won't run at all, which can also lead to pressure-related codes. A user on a YouTube repair video for a Highlander Hybrid noted C1253 (pump motor relay) alongside the other codes.
• Wiring Harness or Connector Issue: An open or short in the wiring to the brake booster pump or its relays could prevent the pump from operating correctly. This should be ruled out with a visual inspection and multimeter tests before replacing expensive components, though it is an uncommon cause for this specific set of codes.

Diagnosis Steps

1. Connect a professional scan tool (like Techstream) to the DLC3 port.
2. Read and confirm the presence of C1252 and any accompanying codes (C1256, C1391, C1253). The presence of this group of codes is highly indicative of the known failure.
3. Listen for the brake booster pump motor with the car on but the engine off. A motor that runs for a few seconds every 10-30 seconds at rest is a classic sign of an internal pressure leak.
4. Inspect the brake fluid level. While the TSB mentions an *internal* leak, any visible external leaks should be noted.
5. Inspect the wiring harness and connectors going to the brake booster assembly for any visible damage, corrosion, or looseness.
6. Follow the diagnostic procedure in the factory service manual or relevant TSB. This will confirm power and ground to the pump motor before condemning the actuator.
7. Given the high probability based on TSBs and CSPs, if codes C1252/C1256/C1391 are present and the pump is cycling frequently, the brake booster assembly is almost certainly the cause.

Parts You'll Likely Need

• Brake Booster with Master Cylinder Assembly (OEM #47050-48160) — This is the complete assembly that fails internally, causing the pressure leak and triggering the code, as documented in Lexus TSBs. It is typically replaced as a complete unit 🎬 See this walkthrough of the brake actuator replacement process. to ensure a lasting repair.
  Trusted brands: Lexus (OEM), Aisin
  OEM price range: $1800-$2500
  Aftermarket price range: $1400-$2000
• Brake Booster Pump Assembly (OEM #47070-48060) — In some cases, the pump may be available separately from the main booster/actuator. However, TSBs and Customer Support Programs often involve replacing both the actuator and pump assemblies to ensure a complete repair.
  Trusted brands: Lexus (OEM)
  OEM price range: $450-$700
  Aftermarket price range: $350-$550

Related Codes That Often Appear With This One

• C1256 — This code means 'Accumulator Low Pressure'. It almost always appears with C1252 because the pump running too long (C1252) is the direct result of the system being unable to maintain pressure in the accumulator (C1256) due to the internal leak.
• C1391 — This code indicates an 'Abnormal Leak in Accumulator'. It is frequently stored alongside C1252 as it points directly to the same root cause: an internal leak within the brake booster/actuator assembly.
• C1253 — This code points to a 'Brake Booster Pump Motor Relay Malfunction'. It can be triggered with C1252 because the control module may detect an electrical fault or abnormal current draw in the relay circuit that controls the overworked pump motor.

Technical Service Bulletins (TSBs) & Recalls

• 20LE03: Mentions C1252 is related to certain internal malfunctions of the Brake Booster Assembly and that repair will be with a new part. [pass 1]
• L-SB-0033-20: States that for 2010-2012 RX450h models, codes C1391, C1252, C1256, or C1253 may be stored due to a small internal brake fluid leak inside the brake booster assembly.
• T-SB-0009-24: A Toyota TSB for the 2014-2016 Highlander Hybrid that describes the exact same condition, codes, and cause (internal brake actuator leak), showing it's a platform-wide issue.

Platform-Specific Known Issues

• Lexus issued Technical Service Bulletin L-SB-0033-20 for 2010-2012 RX450h models, specifically identifying an internal brake fluid leak in the brake booster assembly as the cause for codes C1252, C1391, C1256, or C1253.
• Lexus launched Customer Support Program 23LE04, which extended the warranty for this specific failure on certain 2016-2019 RX450h models, among others. The coverage includes a Primary phase (until March 31, 2024) and a Secondary phase (10 years or 150,000 miles from first use). Owners of affected vehicles, even those in the 2011-2015 range, should contact a Lexus dealer with their VIN to inquire about any applicable coverage, as goodwill assistance is sometimes offered outside of official programs.

Mechanic-Grade Diagnostic Values

• Resistance of Brake Booster Pump — expected: A specific resistance value is not provided in the manual, but a continuity check is required. The procedure involves checking for an open or short circuit.. Failure: No continuity (infinite resistance) or a short to ground would indicate a failed pump motor.
• Skid Control ECU Ground Terminals to Body Ground — expected: Below 1 Ω. Failure: Resistance higher than 1 Ω indicates a poor ground connection, which can cause various malfunctions.
• Skid Control ECU IG1 Power Source Voltage — expected: 10 to 14 V (with Ignition switch ON). Failure: Voltage outside this range indicates a power supply issue to the ECU.

Hidden / Shadow Codes Worth Checking

• INF 130: This is a detailed sub-code for C1252, specifically indicating that the 'Motor relay was detected as being ON for at least 5 minutes'. It provides more granular detail than the main DTC. (see via Visible in Toyota Techstream software under the ABS/VSC/TRAC module diagnostics, often in the freeze frame data.)

Scan Tool Commands That Help

• Techstream: Active Test: ABS MOTOR RELAY / MOTOR RELAY 1 / MOTOR RELAY 2 — This command allows a technician to manually turn the ABS motor and its relays on and off. It is used to verify if the motor and relay circuit are functional before condemning the entire actuator assembly. Hearing the motor operate confirms the electrical circuit is likely intact.
• Techstream: Data List: Accumulator Pressure Sensor — This allows for real-time monitoring of the hydraulic pressure in the accumulator. A healthy system should build pressure and hold it steady. If the pressure drops rapidly with the pump off, it confirms an internal leak, which is the root cause of C1252.
• Techstream: Utility: ECB Utility - Brake Bleed — This is a mandatory service function required *after* replacing the brake booster/actuator assembly. It electronically cycles the valves and pump in a specific sequence to ensure all air is purged from the complex hydraulic system. A standard manual bleed is insufficient.

Wiring & Ground Locations

• Skid Control ECU (Brake Actuator Assembly) — Located under the hood, under the brake fluid tank/reservoir. It is an integrated unit containing the ECU, pump, and valve body.. This is the central component that fails. All related wiring, including power, ground, and sensor inputs, connects here. The main power and ground connections are critical for the pump motor's operation.
• Skid Control ECU Ground Points (GND1, GND2) — The ground wires run from the main harness connector (A19 on some diagrams) of the Skid Control ECU to a chassis ground point.. A poor ground connection can cause a voltage drop, leading to insufficient power for the pump motor and potentially triggering false codes or erratic operation. The service manual specifies checking for resistance below 1 Ω from these pins to the body ground.
• ABS-1 and ABS-2 Fuses — Located in the engine room relay block (R/B).. These are the main high-amperage fuses that supply power to the brake booster pump motor. A blown fuse will prevent the pump from running at all, leading to a loss of pressure and triggering codes.

Real Owner Repair Stories

• PriusChat user Larry9876 (2008 Toyota Prius (similar hybrid system)) — ABS, VSC, and brake lights on with a constant beeping noise. Codes C1252 and C1256 present.
  ❌ Tried (didn't work) The user had previously replaced the ABS actuator with a salvage part a year prior.
  ✅ What actually fixed it The story highlights that the salvage (used) actuator failed suddenly, unlike the original part which showed a gradual increase in pump noise before failure. The final fix is implied to be another replacement, but the key takeaway is the unreliability of used parts for this critical component.
• YouTube video by Михаил Семёнов (Lexus RX450h) — Error codes C1252, C1253, C1256.
  ❌ Tried (didn't work) The technician replaced the brake pump, but code C1252 remained.
  ✅ What actually fixed it The technician discovered a faulty multi-use/combination fuse in the engine bay fuse block. Instead of replacing the entire block, he bypassed the fuse with a wire *for testing purposes only* to confirm the diagnosis before ordering the correct fuse assembly (Part # 82620-48160). This identified a rare electrical failure point instead of the common mechanical one.
• YouTube video by a mechanic (in Hindi) (Lexus RX Hybrid) — Beeping alarm, 'Anti-lock Brake System Malfunction' and 'Brake Power Low' messages, with codes C1252, C1256, and others.
  ❌ Tried (didn't work) N/A - went straight to diagnosis.
  ✅ What actually fixed it The mechanic noted that the brake booster pump motor for the RX Hybrid is very expensive. He discovered and demonstrated that the motor from a Lexus LS460 is physically identical (mounting points, connectors, pipe fittings) and can be used as a direct replacement at a lower cost. After swapping the motor, all codes were cleared and the system functioned normally.

OEM Part Supersession History

• 44050-48320 (Brake Actuator Assembly) → 04008-26448 (Brake Actuator Assembly Kit) — Per TSB L-SB-0033-20, the original actuator is replaced by a kit with a new part number. This often indicates a design revision to address the original failure mode.
• 47070-48020 (Brake Booster Pump - for 2010 models) → 04008-51148 (Pump Kit, Brake Booster) — Per TSB L-SB-0033-20, the original pump is replaced by a kit. This suggests the repair should include associated components provided in the kit.
• 47070-48060 (Brake Booster Pump - for 2011-2012 models) → 04008-51248 (Pump Kit, Brake Booster) — Per TSB L-SB-0033-20, the original pump is replaced by a kit, similar to the 2010 model update.
