C1253 on 2011-2015 Lexus CT HYBRID: Brake Actuator Failure Explained

What's Unique About the 2011-2015 Lexus CT HYBRID

The Lexus CT Hybrid, like many Toyota/Lexus hybrids of its era, uses a sophisticated electronically controlled brake (ECB) system. The brake booster, master cylinder, and ABS actuator are integrated into a single, complex, and expensive unit. This design means that a failure in one sub-component, like the pump motor or an internal seal, requires the replacement of the entire assembly. This specific failure is so common that Lexus issued Technical Service Bulletin L-SB-0009-21 and a Customer Support Program (21LE01) which extended the warranty for this part on 2011-2013 models.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• Brake warning light is on (often flashing)
• VSC (Vehicle Stability Control) warning light is on
• A persistent, loud beeping or buzzing alarm from the dashboard
• "Check VSC" message on the dashboard
• A high-pitched, continuous or intermittent buzzing/whirring noise from the engine bay (the pump motor running every 5-30 seconds, even when not braking).
• A change in brake pedal feel, becoming mushy, stiff, or unresponsive.
• A hissing noise from the brake pedal area when applying or releasing the brake.

Most Likely Causes

1. Internal Failure of the Brake Actuator / Booster Assembly 🔴 High Probability As documented in multiple Lexus Technical Service Bulletins (TSBs), a small internal brake fluid leak inside the actuator assembly is the primary cause. The internal seals degrade over time, leading to a loss of stored hydraulic pressure that the pump motor constantly tries to overcome, eventually triggering the fault codes.
   How to confirm: A technician will confirm by reading the C1253 code, often alongside C1252, C1256, or C1391. Using a scan tool like Techstream, they can monitor the 'Accumulator Pressure Sensor' voltage in the Data List. A healthy system holds pressure between 3.2V and 4.0V. If the voltage drops steadily (a change greater than 0.2V over 30 seconds) with the pump off and the brake pedal not depressed, it confirms an internal leak.

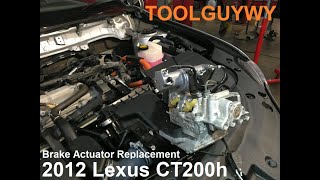

   Typical fix: Replace the entire brake booster and actuator assembly with a new, updated OEM part. 🎬 Watch: This step-by-step walkthrough shows the full actuator replacement process. This is followed by a complex, scan tool-guided brake bleeding procedure which includes zero point calibration and linear solenoid valve calibration.
   Est. part cost: $1500-$2500

Rare But Worth Checking

• Faulty ABS Motor Relay / Junction Box: In some cases, the relay that controls the pump motor can fail. On this vehicle, the relay may be integrated into the engine room junction box (fuse box), requiring the entire box to be replaced. This is much less common than the actuator failure and should be investigated only if a new actuator does not solve the problem, as detailed by some owners who replaced the actuator multiple times before finding a relay/wiring issue.
• Air in the Brake Lines: Improperly bled brakes after service can introduce air into the actuator, potentially causing similar codes. While a full bleed is part of the actuator replacement, performing the specific 'Actuator has been removed' bleed procedure with a scan tool could be attempted as a diagnostic step, though it is unlikely to be a permanent fix if the actuator is leaking internally.
• Low 12V Auxiliary Battery Voltage: While not a direct cause of the internal leak, a weak 12V battery can cause a variety of spurious electronic fault codes in Toyota/Lexus hybrids. A dealership may require the battery to be in good health before proceeding with warranty work on the brake actuator. It's a good practice to test and verify the 12V battery is healthy before condemning the expensive actuator assembly.

Diagnosis Steps

1. Verify the presence of C1253 and any accompanying codes (C1252, C1256, C1391) using a professional scan tool like Toyota Techstream.
2. Check for any applicable warranty extensions or Customer Support Programs from Lexus, such as 21LE01 for 2011-2013 models, which covered this exact issue. Note that the primary coverage period ended on November 30, 2022, but secondary coverage may apply for 10 years/150,000 miles.
3. Listen for the electric brake pump motor in the engine bay with the car in 'Ready' mode. If it runs continuously or for long periods (e.g., every 10-30 seconds) without brake application, it strongly suggests a pressure leak.

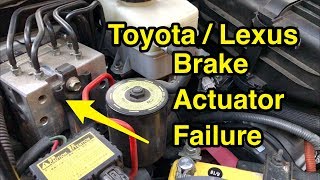

🎬 Listen: Here is the specific buzzing sound of a failing pump.
4. Using a scan tool's data list, monitor the accumulator pressure sensor voltage. If the pressure drops steadily, it confirms an internal leak. A voltage change of more than 0.2 V in 30 seconds with the pump off is a definitive sign of failure.
5. As a preliminary check, inspect the 'ABS MTR', 'ABS-1', and 'ABS-2' fuses in the engine bay fuse block.
6. If the actuator is confirmed to be leaking, replace the entire brake actuator and booster pump assembly.
7. Perform the mandatory, multi-step brake bleeding and linear solenoid valve calibration procedures using a compatible scan tool like Toyota Techstream.

Parts You'll Likely Need

• Brake Actuator and Booster Pump Assembly (OEM #47210-76121, 47050-76121) — This is the complete unit that fails due to an internal leak, causing code C1253. The entire assembly must be replaced. The part is also referred to as 'Brake Booster Assy, W/Master Cylinder'.
  Trusted brands: Lexus (OEM), Aisin
  OEM price range: $1700-$2500
  Aftermarket price range: $800-$1500

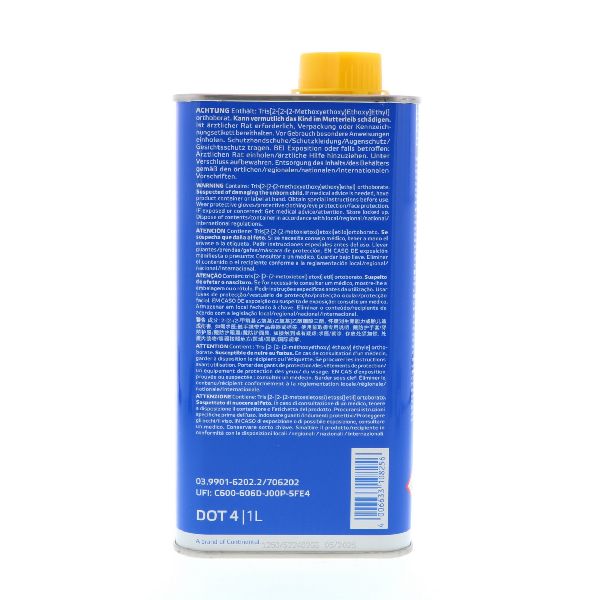

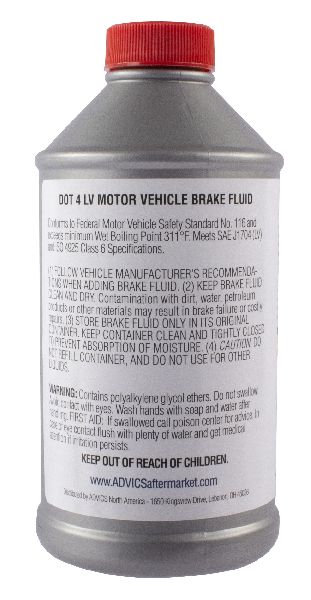

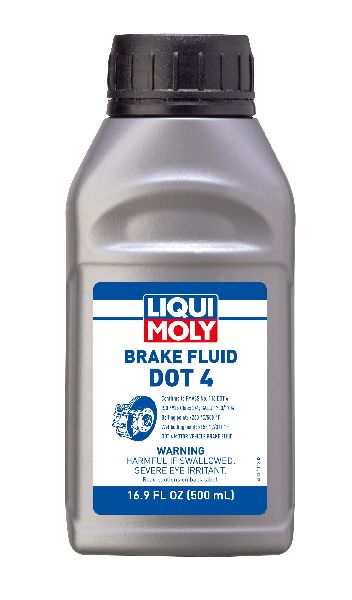

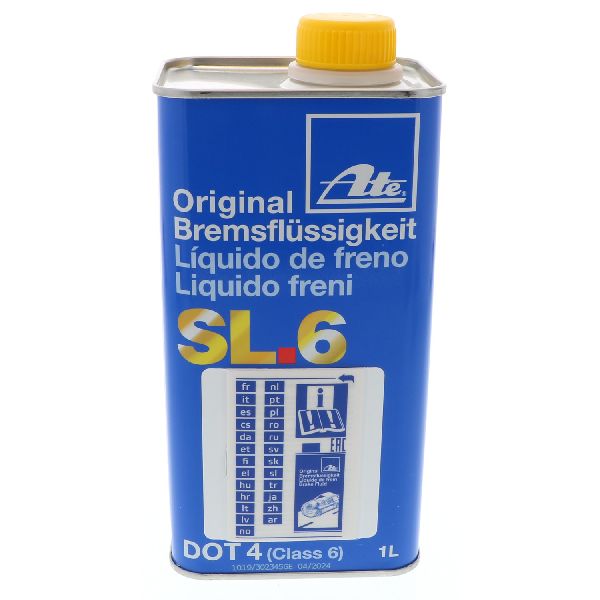

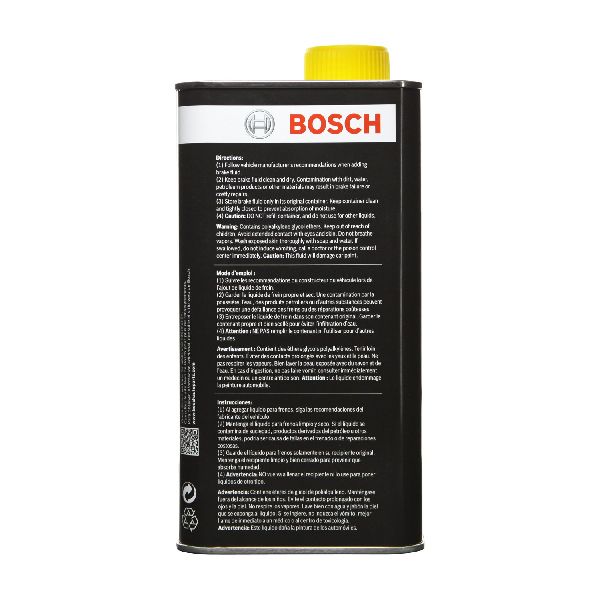

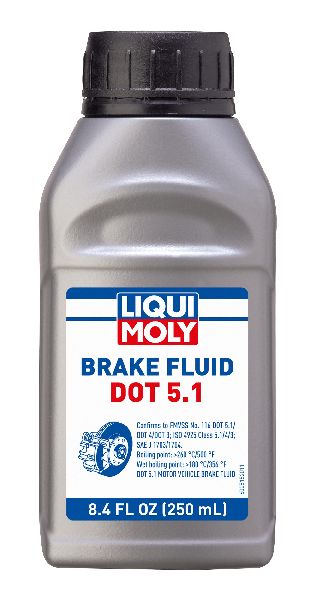

• Brake Fluid (OEM #00475-1BF03 (DOT 3)) — The system must be completely flushed and bled with fresh fluid as part of the actuator replacement procedure.
  Trusted brands: Toyota/Lexus OEM, Bosch, ATE
  OEM price range: $10-$20
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• C1252 — This code for 'Brake Booster Pump Motor on Time Abnormally Long' is a direct companion to C1253 and points to the same failure.
• C1256 — This code indicates 'Accumulator Low Pressure', which is the direct result of the internal leak in the brake actuator assembly that prevents the system from holding pressure.
• C1391 — This code for 'Abnormal Leak in Accumulator' is another direct indicator of the same internal brake actuator failure.

Technical Service Bulletins (TSBs) & Recalls

• LSB000824: Mentions C1253 as a code resulting from a small internal brake fluid leak in the brake actuator.
• L-SB-0009-21: Explicitly links C1253 with an internal brake fluid leak in the brake booster assembly on the CT Hybrid and recommends replacement. This TSB contains the technical instructions for the repair.
• L-SB-0016-16: A similar TSB for other Lexus models that cites C1253 as being caused by an internal brake actuator leak.
• 21LE01: This is the Customer Support Program document that details the extended warranty coverage for the brake booster and pump assembly for 2011-2013 models.

Platform-Specific Known Issues

• Lexus acknowledged this widespread problem by issuing Technical Service Bulletin L-SB-0009-21, which states that codes C1391, C1252, C1256, and/or C1253 may be caused by a small internal brake fluid leak inside the brake booster assembly with master cylinder.
• Lexus also initiated Customer Support Program 21LE01 for certain 2011-2013 CT200h models, providing extended warranty coverage for this specific failure. The primary coverage ended November 30, 2022, but a secondary coverage for 10 years or 150,000 miles from the date of first use may still apply. Owners have reported mixed success getting this covered post-expiration, sometimes requiring escalation to Lexus corporate.

Mechanic-Grade Diagnostic Values

• Accumulator Pressure Sensor Voltage Drop — expected: Voltage change should be within 0.2V over a 30-second period with the pump motor stopped and brake pedal not applied.. Failure: A voltage drop greater than 0.2V in 30 seconds indicates an internal leak in the actuator assembly.
• Brake Booster Pump Motor Circuit Resistance — expected: 33 ± 3 Ω. Failure: Resistance outside this range indicates a fault in the pump motor or wiring.

Hidden / Shadow Codes Worth Checking

• INF 132, 133, 134, 136, 137, 138, 140: These are detailed sub-codes for the main C1253 fault, which help pinpoint the exact nature of the motor relay circuit malfunction. For example, INF 138 indicates the Skid Control ECU detected an input voltage of 3.5V or more for at least 2 seconds when both motor relays were commanded off, suggesting a short or stuck relay. (see via These codes are visible in the Freeze Frame Data (FFD) using a dealership-level scan tool like Toyota Techstream.)

Scan Tool Commands That Help

• Toyota Techstream: Active Test: ABS Motor Relay — This command allows the technician to manually operate the ABS pump motor relay to listen for an audible click and the motor running. It's used to verify if the relay and motor are capable of activating before condemning the entire actuator or chasing wiring faults.
• Toyota Techstream: Utility: Air Bleeding (Actuator has been removed) — This is a mandatory, guided procedure after replacing the brake actuator assembly. It sequences the bleeding of individual calipers and the stroke simulator to ensure all air is purged from the complex hydraulic circuits, which cannot be done with a manual bleed.
• Toyota Techstream: Utility: Linear Valve Offset Calibration — This procedure must be performed after replacing the brake actuator assembly to initialize and calibrate the new solenoid valves within the unit, ensuring proper brake control.

Wiring & Ground Locations

• Engine Room R/B (Relay Block) — Located on the left side of the engine compartment.. This junction box/fuse block contains the critical 'ABS MTR', 'ABS-1', and 'ABS-2' fuses and relays that power the brake actuator pump motor. A failure of a relay within this box can mimic an actuator failure and is a key diagnostic location.
• Skid Control ECU Connector (A60) — This connector is on the brake actuator assembly itself, as the ECU is integrated into the unit.. Technicians must check for continuity and correct voltage at the pins of this connector when diagnosing a persistent C1253, as a wiring harness issue between the main vehicle harness and the actuator can cause the code.

Real Owner Repair Stories

• ClubLexus forum user (2007 Lexus LS460 (different model, but same ECB system and codes)) — Check VSC, ABS, brake system lights with code C1253.
  ❌ Tried (didn't work) A replacement ABS actuator (part #44050-50110) was installed, but the code returned after one week.
  ✅ What actually fixed it The problem was resolved by replacing the actuator again, this time with the latest superseded part number (44050-50170). This highlights the critical importance of using the most current OEM part number, as earlier versions may have known defects. The user also replaced the ABS pump assembly (#47070-50040) as a preventative measure.
• PriusChat forum user (2008 Toyota Prius (mechanically similar)) — ABS, VSC, and BRAKE lights with code C1253 that would not clear.
  ❌ Tried (didn't work) Replacing the ABS actuator with a salvage part., Swapping the three ABS relays from a known-good vehicle.
  ✅ What actually fixed it The user had replaced the actuator and relays, but the code persisted. A responding expert noted that with those components eliminated, the next steps in the diagnostic tree were to perform detailed continuity and resistance checks on the wiring harness between the Skid Control ECU and the actuator. If the wiring was good, the final step would be to replace the Skid Control ECU itself. The story highlights that when a new actuator doesn't fix C1253, the fault is almost certainly in the wiring or the ECU.

When the Usual Fixes Don't Work

• While the vast majority of C1253 codes are fixed by replacing the brake actuator assembly, there are documented cases where this expensive repair does not solve the problem. In these instances, the root cause was found to be electrical. One owner reported the final fix was replacing the entire 'Engine room no. 2 Junction box' because an integrated, non-serviceable relay inside it had failed. Another owner, after swapping multiple actuators, was advised the next logical step was a detailed inspection of the wiring harness for continuity, followed by replacing the Skid Control ECU. These cases are rare but serve as a critical reminder to test the motor relay control circuit thoroughly before assuming the actuator is the only possible point of failure.

OEM Part Supersession History

• Varies by model year → Varies, check with dealer — Internal design improvements to prevent seal failure and leaks.
  Heads up: While not for the CT200h specifically, a documented case on a Lexus LS460 showed a superseded actuator (44050-50110) failing within a week, while the newest version (44050-50170) provided a permanent fix. This demonstrates a critical pattern: installing a physically compatible but outdated part can lead to repeat failure. Always confirm you are purchasing the latest available part number from an authorized dealer.

Model Year Variations Within This Range

• 2011-2013: These model years are specifically covered by Lexus Customer Support Program 21LE01, which extended the warranty for the brake booster and pump assembly. Vehicles from 2014-2015 are not included in this program, even though they can suffer the same failure.
