C1256 on 2016-2019 Lexus RX HYBRID: Accumulator Low Pressure Causes and Fixes

What's Unique About the 2016-2019 Lexus RX HYBRID

The Lexus RX Hybrid uses a sophisticated electro-hydraulic braking (EHB) system, which differs significantly from conventional vacuum-assisted brakes. This system's heart is the brake actuator assembly, an integrated unit containing the pump, accumulator, and control valves. While highly effective for regenerative braking, this complex assembly is a known failure point across many Toyota and Lexus hybrid models. For the 2016-2019 RX Hybrid, Lexus issued Technical Service Bulletin L-SB-0011-23 and later Customer Support Program 23LE04, specifically linking code C1256 to an internal brake fluid leak within this assembly.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Multiple dashboard warning lights: Brake, ABS, TRAC, and/or a "Check VSC" mes 🎬 Watch: See how these warning lights appear on the RX450h dashboard.sage.
• A buzzing or humming sound from the brake pump motor running excessively (e.g., every 10-20 seconds, even without applying the brakes).
🎬 Listen: Hear the specific buzzing sound of a failing pump motor.
• A long, persistent high-pitched alarm or buzzer sound from the dashboard, indicating immediate need to stop.
• A change in brake pedal feel, which may feel soft, spongy, or require more effort.
• A 'squawk' or 'knock' noise from the engine bay when pressing or releasing the brake pedal.
• Complete loss of regenerative braking, which can affect hybrid battery charging.

Most Likely Causes

1. Failing Brake Actuator Assembly 🔴 High Probability → Shop ABS Control Module Lexus TSB L-SB-0011-23 and Customer Support Program 23LE04 directly identify a 'small internal brake fluid leak' within the brake booster/actuator assembly as the cause for this code on this specific vehicle. This is a well-documented failure pattern on many Toyota/Lexus hybrid models due to internal component wear or seal failure.
   How to confirm: Listen for the pump motor running frequently (every 15-30 seconds) when the car is in 'Ready' mode but the brakes are not being pressed. A technician can use a scan tool like Techstream to monitor the accumulator pressure; a rapid pressure drop after the pump shuts off confirms an internal leak. The presence of codes C1252, C1253, or C1391 alongside C1256 is another strong indicator.
   Typical fix: The entire brake actuator and booster pump assemblies must be replaced with the updated parts specified by Lexus. This is not a component that can be repaired; it is replaced as a single unit. The system must then be bled and calibrated using a compatible diagnostic scan tool like Techstream.
   Est. part cost: $1800-$2800

Diagnosis Steps

1. Confirm the presence of C1256 and any other codes (like C1252, C1391) using a high-quality OBD-II scanner that can read ABS/chassis codes.
2. Turn the vehicle to the 'Ready' state without pressing the brake pedal.
3. Listen for the sound of the brake actuator pump under the hood. If it runs for more than 30 seconds, or cycles on and off every 10-20 seconds, this indicates it is working excessively to build pressure that is being lost to a leak.
4. If available, use a diagnostic tool like Techstream. Navigate to Chassis -> ABS/VSC/TRAC -> Data List and monitor the 'Accumulator Pressure' sensor value. Observe the pressure reading. It should build up and then hold steady. If it drops quickly after the pump shuts off, this confirms an internal leak.
5. Within Techstream, an active test of the solenoid valves can also be performed. If wheel cylinder pressure increases without brake application, it can indicate an internal leak.
6. Visually inspect the brake actuator and surrounding lines for any signs of external fluid leaks, although the most common cause is an internal leak as noted in the TSB.
7. Given the existence of Customer Support Program 23LE04, if the symptoms and codes match, the diagnosis is confirmed and the vehicle should be taken to a Lexus dealer for the specified repair.

Parts You'll Likely Need

• Brake Booster Kit (Actuator) (OEM #04008-26448) — This is the updated kit containing the main actuator assembly. TSB L-SB-0011-23 and CSP 23LE04 identify an internal leak in this component as the root cause and mandate its replacement.
  Trusted brands: Lexus (OEM)
  OEM price range: $1800-$2500
  Aftermarket price range: Not Recommended

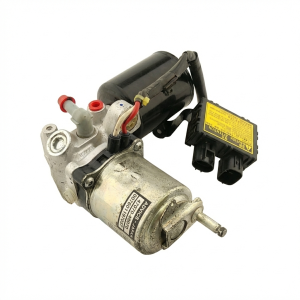

• Brake Booster Pump Kit (OEM #04002-07348) — Lexus CSP 23LE04 specifies that for the RX450h, the repair requires replacing BOTH the brake booster kit and the brake booster pump kit to ensure the entire system is updated.
  Trusted brands: Lexus (OEM)
  OEM price range: $700-$900
  Aftermarket price range: Not Recommended
• DOT 3 Brake Fluid (OEM #00475-1BF03) — The system must be completely refilled and bled with 1-2 liters of fresh fluid after the actuator and pump are replaced.
  Trusted brands: Lexus (OEM), Bosch, Pentosin
  OEM price range: $15-$30
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• C1252 — Indicates 'Hydro-Booster Pump Motor Malfunction'. This is a direct result of the pump running for an abnormally long time to compensate for the pressure loss indicated by C1256.
• C1391 — This code specifically means 'Abnormal Leak in Accumulator,' directly pointing to the same internal failure as C1256. They are very frequently stored together and are both listed in the TSB and Customer Support Program.
• C1253 — Indicates a 'Hydro-Booster Pump Motor Relay Malfunction', which can be triggered by the pump's excessive operation and high current draw caused by the leak.

Technical Service Bulletins (TSBs) & Recalls

• L-SB-0011-23: States that for 2016-2019 RX Hybrid models, warning lights with DTCs C1391, C1252, C1256, or C1253 may be caused by a small internal brake fluid leak inside the brake actuator assembly.
• Customer Support Program 23LE04: Supersedes the TSB by creating a warranty extension for the failure. It covers the Brake Booster and Brake Booster Pump Assemblies for this issue, confirmed by the same DTCs. Secondary coverage lasts 10 years / 150,000 miles.
• L-SB-0035-21: Addresses a 'squawk/knock noise' from the actuator, which can be a symptom of air in the system or impending failure. It details the actuator replacement and Techstream bleeding procedure.

Platform-Specific Known Issues

• Lexus Customer Support Program (CSP) 23LE04 was issued specifically for this problem on 2016-2019 RX450h models (among others). It extends the warranty for this specific failure. Primary coverage ended March 31, 2024, but Secondary Coverage is for 10 years or 150,000 miles from the date of first use. This repair must be done at a Lexus dealer to be covered.
• TSB L-SB-0011-23 was the initial technical bulletin from Lexus for the 2016-2019 RX Hybrid, addressing C1256 and related codes caused by an internal brake fluid leak in the brake actuator assembly. This has been largely superseded by the CSP.
• A separate Safety Recall (16V-198 / GLC) was issued for some 2016 RX350 (non-hybrid) models for a potentially damaged O-ring in the actuator from the supplier, Advics. While it also involves the brake actuator, it is a different issue from the internal leak causing C1256 on the hybrids.

Mechanic-Grade Diagnostic Values

• Accumulator Pressure Sensor Voltage (Techstream Data List) — expected: 3.2V to 4.0V after the pump has pressurized the system.. Failure: A voltage drop of more than 0.55V within 30 seconds of the pump shutting off (with the brake pedal not pressed) indicates a significant internal leak.
• DTC C1256 Trigger Pressure Threshold (Techstream Data List) — expected: Pressure should remain above 14.62 MPa (2121 psi).. Failure: Code C1256 can be set if the pressure is detected below 14.62 MPa for an extended period (e.g., 120 seconds) or if braking is attempted when pressure is below 12.45 MPa (1806 psi).
• Auxiliary (12V) Battery Voltage — expected: 11V to 14V.. Failure: Consistent voltage below 9.5V can cause the Skid Control ECU to malfunction and may set C1256 along with voltage-specific codes like C1241.

Hidden / Shadow Codes Worth Checking

• C1256 / INF 141: Indicates accumulator pressure was less than 14.62 MPa for 120 seconds after system start, or braking was attempted when pressure was below 12.45 MPa. This points directly to a failure to build or hold pressure. (see via Toyota Techstream software can read these detailed sub-codes, also known as information or detail codes.)
• C1256 / INF 143: Indicates a wheel cylinder pressure sensor value was lower than the target value for at least 0.5 seconds while the accumulator pressure was already low. This suggests the system tried to apply brakes but lacked the necessary pressure. (see via Toyota Techstream software.)
• C1256 / INF 341: A general code indicating that a significant drop in accumulator pressure is continuing. (see via Toyota Techstream software.)

Scan Tool Commands That Help

• Techstream: Utility -> ECB (Electronically Controlled Brake System) Utility -> Zero Down — This command must be used BEFORE replacing the brake actuator. It safely releases all high pressure from the accumulator back to the reservoir, which is a critical safety step before disconnecting any hydraulic lines.
• Techstream: Utility -> Air Bleeding — This function is MANDATORY after installing a new brake actuator. It provides step-by-step instructions to electronically cycle the pump and valves to purge all air from the complex system. Conventional bleeding methods will not work and can make the problem worse.
• Techstream: Active Test -> Perform Actuator Pattern — This is a final step after the 'Air Bleeding' utility. It forcefully moves all the valves in the actuator to ensure any remaining trapped air is dislodged and bled out completely.
• Techstream: Utility -> Reset Memory / Linear Valve Offset Calibration — After replacing the actuator, the ECU's learned values for the old, failing unit must be cleared and the new unit must be calibrated. This ensures the ECU operates the new solenoids correctly.

Wiring & Ground Locations

• Skid Control ECU — The Skid Control ECU is integrated within the brake actuator assembly itself on this model. The entire unit is located in the engine compartment on the driver's side.. Since the ECU is part of the actuator, a failure of one necessitates the replacement of the entire assembly. There is no separate ECU to replace. Checking the main connector (A43/A44 in some diagrams) for corrosion or damage is a valid, though unlikely, diagnostic step.
• Ground Points (GND1, GND2) — The primary ground connections for the brake actuator motor and ECU are part of the main actuator connector. A wiring diagram shows these as specific pins (e.g., pin 1 and 6, or 31 and 32 depending on the diagram) that ground to the chassis nearby.. A poor ground connection could theoretically cause erratic pump motor operation or sensor readings, but it is a very rare cause for C1256 compared to the internal actuator failure.

Real Owner Repair Stories

• ClubLexus Forum User (2013 Lexus RX450h, 110,000 miles) — Check ABS warning light came on, code C1391 (Abnormal Leak in Accumulator) was stored.
  ❌ Tried (didn't work) The user cleared the codes, and the lights stayed off temporarily, leading to diagnostic confusion. They considered waiting to see if the problem returned.
  ✅ What actually fixed it The dealership diagnosis confirmed a failing actuator and recommended replacement of the actuator/accumulator assembly for a quoted price of $4,300. This is the standard and correct repair for this code.

OEM Part Supersession History

• Multiple older part numbers, including 47070-48060 → 04008-26448 (Brake Actuator Assembly Kit) — The original brake actuator assemblies were prone to internal leaks. The superseding part numbers represent updated versions with countermeasures to address the failure pattern.
  Heads up: TSB L-SB-0033-20 for older models shows that 04008-26448 itself was superseded by 44050-48320 for the 2010-2012 RX450h. It is absolutely critical to verify the latest correct part number with the vehicle's VIN at a Lexus parts counter, as multiple revisions exist.
