C1494 on 2011-2018 Ram 1500: Service 4WD Light Causes and Fixes

What's Unique About the 2011-2018 Ram 1500

What's unique about this code on the 4th generation Ram 1500 is the existence of a specific Technical Service Bulletin (TSB #68090604A). This TSB highlights a scenario where the code C1494-92 sets intermittently, particularly under heavy acceleration. Crucially, the bulletin advises technicians *not* to replace the entire Power Transfer Unit (PTU) if this specific condition is met, but instead to contact FCA engineering for further instruction. This suggests a known calibration or software-related issue rather than a guaranteed mechanical failure, making proper diagnosis essential to avoid a costly and unnecessary repair. The issue is most common on trucks equipped with the BorgWarner 44-44 transfer case which features the '4WD Auto' setting.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" warning light illuminated on the instrument cluster.
• Four-wheel drive system is inoperative.
• Inability to switch between 2WD, 4WD High, and 4WD Low.
• Flashing indicator lights for the 4WD system.
• Light may appear intermittently, especially after driving at steady highway speeds or under heavy throttle, and may disappear after stopping or slowing down.

Most Likely Causes

1. Intermittent PTU Clutch Performance Issue (Software/Calibration) 🔴 High Probability A specific TSB (#68090604A) was issued for this exact problem, indicating it's a known issue for the manufacturer, particularly on trucks with the BW 44-44 transfer case.
   How to confirm: Confirm if the 'Service 4WD' light and code C1494-92 appear specifically during or after heavy throttle application. This requires a scan tool that can read manufacturer-specific DTCs. One owner reported the dealer charged them for diagnostics only to say the truck isn't 'designed to be driven like that' when the light appeared at full throttle over 60mph.
   Typical fix: Do NOT replace the PTU. Follow the TSB instructions, which require a call to FCA (now Stellantis) engineering for guidance. The TSB provides specific phone numbers for the engineering team. The fix is likely a software reflash or a specific diagnostic procedure provided by the engineering team.
   Est. part cost: $0

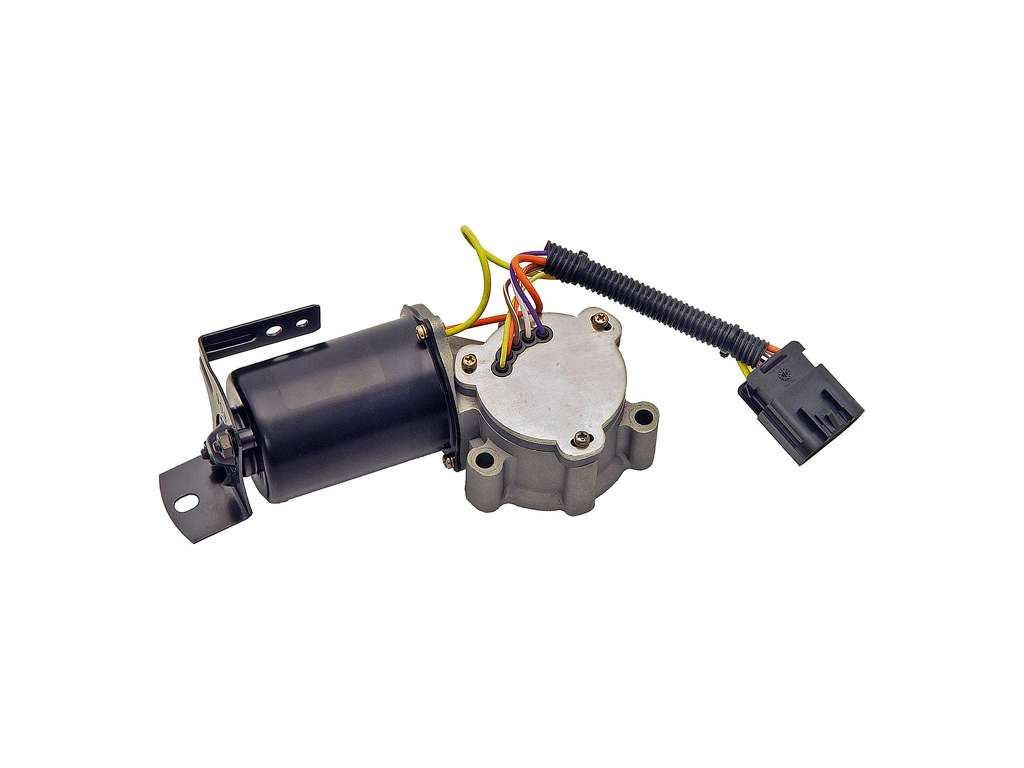

2. Faulty Transfer Case Control Module (TCCM) or wiring 🟡 Medium Probability → Shop Transfer Case Motor Wiring to drivetrain components is exposed to the elements, and control modules can fail over time. The TCCM is located under the driver's side dash and can be susceptible to moisture or damage. Wiring harnesses running along the frame rail behind the left front tire are a known weak point for looseness and corrosion, which can cause intermittent communication issues.
   How to confirm: Inspect the wiring harness and connectors going to the transfer case and TCCM for any signs of damage, corrosion, or looseness. A professional would use a multimeter to test for continuity and proper voltage at the TCCM and PTU connectors. A scan tool can also check for communication errors with the TCCM.
   Typical fix: Repairing the damaged section of the wiring harness or replacing the faulty connector. If the module is confirmed to be faulty, it will need to be replaced. Some TCCMs may require programming by the dealer.
   Est. part cost: $50-$500
3. Internal Power Transfer Unit (PTU) Mechanical Failure ⚪ Low Probability → Shop Transfer Case Assembly While less common than the TSB-related issue, internal components like clutch packs or the shift motor can wear out or fail, especially on higher-mileage vehicles or those used for heavy-duty applications like snow plowing. The BW 44-44 transfer case uses a clutch pack that can wear down over time.
   How to confirm: This is typically a diagnosis of last resort after software, wiring, and sensors have been ruled out. It may involve draining the transfer case fluid to check for excessive metal shavings or using a high-end scan tool to monitor clutch command vs. actual engagement. The transfer case shift motor can be tested with a multimeter; a normal resistance reading is between 2.0 and 3.0 ohms.
   Typical fix: Replacement of the entire Power Transfer Unit assembly or, in some cases, the internal shift motor. Some owners opt to swap the problematic BW 44-44 for the more robust, mechanically-locking BW 44-45 transfer case.
   Est. part cost: $1500-$2500

Rare But Worth Checking

• Low or Incorrect Transfer Case Fluid: → Shop Transfer Case Motor
• Faulty Front Axle Disconnect (FAD) Actuator or Wiring:

Diagnosis Steps

1. Use an OBD-II scanner capable of reading chassis codes to confirm the presence of C1494. Note if there is a '-92' suffix, as this is important for the TSB.
2. Document the conditions under which the 'Service 4WD' light illuminates. Try to replicate the condition described in the TSB by driving under heavy throttle (where safe and legal to do so).
3. If the code is C1494-92 and appears under heavy throttle, refer to TSB #68090604A. The next step is for a dealer or qualified technician to contact Stellantis/FCA engineering for specific instructions. Do not proceed with parts replacement.
4. If the conditions of the TSB are not met, proceed with a standard diagnosis.
5. Check the transfer case fluid level and condition. Ensure the correct fluid type is being used.
6. Visually inspect the wiring harness and connectors at the Power Transfer Unit (transfer case), the Transfer Case Control Module (TCCM), and the Front Axle Disconnect (FAD) for any obvious signs of damage, corrosion, or loose connections. Pay close attention to the large harness connector on the frame rail behind the driver's side front wheel well.
7. Check for any related TSBs or software updates for the TCCM or PCM. A dealer can perform this check using the vehicle's VIN.
8. If wiring and software are ruled out, further diagnosis of the PTU's internal components and clutch pack may be necessary, which typically requires a professional technician. This may lead to a diagnosis of a failed shift motor or internal clutch pack.

Parts You'll Likely Need

• Power Transfer Unit (Transfer Case) — This is the part that gets replaced when the issue is misdiagnosed or when there is a confirmed internal mechanical failure. However, it should only be replaced after all other diagnostic paths, especially the one outlined in TSB #68090604A, have been exhausted.
  Trusted brands: Mopar
  OEM price range: $1800-$2500
  Aftermarket price range: $1200-$2000
• Transfer Case Control Module (TCCM) (OEM #56029590AD (for 2013-14 models, check VIN for exact fit)) — The TCCM controls the transfer case motor and can fail, causing communication and performance issues. It is a common point of failure for various 'Service 4WD' issues.
  Trusted brands: Mopar, Dorman, Cardone
  OEM price range: $250-$400
  Aftermarket price range: $200-$300

Related Codes That Often Appear With This One

• C1494-92: The specific variant of the code mentioned in TSB #68090604A, indicating a performance or incorrect operation of the PTU fork position.
• C147B: A code related to the front axle disconnect sensor circuit, which can also illuminate the 'Service 4WD' light.
• U0102: Lost Communication With Transfer Case Control Module.

Technical Service Bulletins (TSBs) & Recalls

• 68090604A: Warns that an intermittent C1494-92 DTC can be produced under heavy throttle and advises against replacing the PTU, instructing technicians to call FCA axle engineering instead.
• 21-017-16: A TSB for 2016 models with the 5.7L engine and 8-speed transmission to reprogram the TCM for various shift quality enhancements. While not directly for C1494, it shows that software updates are common for drivetrain issues.

Platform-Specific Known Issues

• A known issue documented in TSB #68090604A describes an intermittent C1494-92 code setting under heavy throttle. The official manufacturer procedure is to call FCA engineering and explicitly not to replace the Power Transfer Unit in this scenario.
• The BorgWarner 44-44 transfer case, identified

Mechanic-Grade Diagnostic Values

• Transfer Case Shift Motor Resistance — expected: 2.0 - 3.0 Ohms. Failure: A reading significantly higher or lower than the specified range indicates a faulty motor.
• CAN C Bus Termination Resistance — expected: Approximately 60 Ohms (measured between CAN C Bus + and - circuits with battery disconnected). Failure: A reading of 120 Ohms indicates one of the two terminating resistors is offline. A reading near 0 Ohms indicates a short between the two bus lines.
• T-Case Position Sensor 5-Volt Supply — expected: 4.5 - 5.5 Volts. Failure: Voltage below 4.5V or above 5.5V indicates a circuit issue (open, high resistance, or short) between the DTCM and the sensor.

Scan Tool Commands That Help

• wiTECH: Reset Adaptive Values — After a transmission or transfer case repair, this function can be used to clear learned clutch fill times. This should be followed by the 'Quick Learn' procedure.
• wiTECH: Quick Learn — Used after replacing a transmission, valve body, or clearing adaptive values to have the TCM learn new clutch adaptive values. This is a key step to resolve shift quality complaints.
• wiTECH: Reprogram TCM/DTCM — Used to flash the control module with updated software to address known issues, such as those described in service bulletins for shift quality or false diagnostic codes.

Wiring & Ground Locations

• Transfer Case Control Module (TCCM/DTCM) — Located on the passenger side, high on the floorboard underneath the heater box/dashboard. It is often behind a plastic protective cover.. This is the brain of the 4WD system. Any damage to the module or its connectors (blue and white plugs) from moisture or physical impact can cause this code and a loss of 4WD functionality.
• Main Frame Harness Connector — A large multi-pin connector located on the frame rail behind the driver's side front wheel well liner.. This connector is a major junction between the engine bay and cabin components. It is highly susceptible to water intrusion and corrosion, which can cause intermittent 'Lost Communication' codes (like U0101/U0102) along with performance codes like C1494.
• Engine/Body Ground — A primary ground connection is located on the frame in the driver's side wheel well, forward of the upper control arm. Another body ground connects from the negative battery terminal to the body above the driver's side headlight.. A poor ground connection can cause a wide range of intermittent electrical issues, including module communication errors and false sensor readings that could potentially trigger a C1494 code.

Real Owner Repair Stories

• Reddit user on r/ram_trucks (2018 Ram 1500 EcoDiesel, 48k miles) — While driving and hitting a bump, the dash would display 'Do Not Shift To P...'. The 'Service 4WD' light would come on, accompanied by codes U0101 (Lost Communication with TCM) and P1DD2 (Torque Request Signal Denied).
  ❌ Tried (didn't work) The previous owner had zip-tied the problematic connector together. The user could temporarily fix it by getting under the truck and squeezing the connection.
  ✅ What actually fixed it The dealer identified a loose main wiring harness connector on the frame under the body. The final fix was the replacement of the wiring harness.

OEM Part Supersession History

• 56029590AC, 56029590AD, 56029590AE → 56029590AF — Standard part revision and update by the manufacturer.
  Heads up: Always verify the correct part number for your specific vehicle's VIN, as module programming is often required and compatibility can be strict.

Model Year Variations Within This Range

• 2013-2018: A significant refresh occurred in 2013, introducing considerable mechanical and electrical changes, including a new interior, updated Uconnect systems, and powertrain revisions like the Pentastar V6 and 8-speed automatic transmission. Parts, especially electronic modules and wiring, may not be interchangeable with 2011-2012 models.
• 2013+: The BorgWarner 44-44 transfer case with the '4-Auto' setting became an available option, alongside the standard part-time system. Trucks with the '4-Auto' feature are more prone to the C1494 code, as it relies on a clutch pack for engagement, which is what this code monitors.
