C1494 on 2014-2018 Ram 3500: Service 4WD Light Causes and Fixes

What's Unique About the 2014-2018 Ram 3500

What's unique to this platform is the explicit manufacturer warning against premature parts replacement. Ram issued Technical Service Bulletin (TSB) #68090604A specifically for the C1494-92 code when it appears intermittently under heavy throttle. The bulletin instructs technicians *not* to replace the Power Transfer Unit but to contact FCA (Ram's parent company) engineering directly. This strongly suggests a known software or calibration sensitivity that can mimic a major mechanical failure. This issue is most common on trucks equipped with BorgWarner transfer cases (e.g., BW44-44, BW44-45, BW44-46) that feature a '4WD Auto' setting. Awareness of this TSB is essential to avoid a very expensive and unnecessary repair.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" light illuminated on the dashboard.

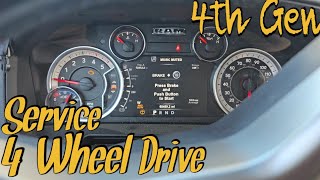

🎬 Watch: Diagnosing the Service 4WD light on a 4th Gen Ram.
• 4WD system is inoperative or disabled.
• Code C1494-92 appears specifically after heavy acceleration.
• Failure to shift between 2WD and 4WD modes.
• Grinding or clicking noises from under the truck when attempting to shift the 4WD system.

Most Likely Causes

1. Drivetrain Control Module (DTCM) Software/Calibration Issue 🔴 High Probability Manufacturer TSB #68090604A specifically identifies a condition where the code is set under heavy throttle without an actual mechanical failure, pointing to a calibration sensitivity. This is often related to throttle lag or unexpected sensor readings during rapid acceleration.
   How to confirm: Confirm with a scan tool that the code is C1494-92 and that it sets intermittently during heavy acceleration. A dealer can check the vehicle's VIN for applicable software updates like TSB 08-094-20, which was released to fix various transfer case DTCs and improve shift performance.
   Typical fix: Reprogramming the Drivetrain Control Module (DTCM) with the latest software. This must be performed by a dealership or a qualified shop with a wiTECH scan tool. The process involves flashing the module and then clearing any resulting DTCs.
   Est. part cost: $0
2. Wiring Harness or Connector Fault 🟡 Medium Probability The wiring harnesses for the 4WD system are located under the truck, exposed to moisture, corrosion, and road debris. A large, primary connector located on the inside of the driver's side frame rail, usually behind the front wheel, is a known trouble spot for corrosion and moisture intrusion.
   How to confirm: Visually inspect the wiring harness and connectors going to the transfer case motor and the DTCM. Pay close attention to the main connector on the driver's side frame rail for corrosion (green crust), pushed-out pins, or physical damage. A push-pull test on the connector can sometimes reveal a poor connection. Use a multimeter to test for continuity and proper voltage at the connectors.

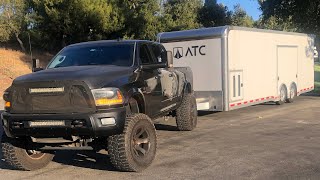

   Typical fix: Repairing the damaged section of the wiring harness or cleaning/replacing the faulty connector. This often involves disconnecting the connector, cleaning the pins thoroughly, applying dielectric grease to prevent 🎬 See how to fix common connector corrosion for just a few dollars. future moisture intrusion, and ensuring it is fully seated.
   Est. part cost: $20-$150
3. Failed Transfer Case Shift Motor/Actuator ⚪ Low Probability → Shop Transfer Case Motor The electric motor that shifts the transfer case can fail internally from wear, or more commonly, from moisture intrusion past its seals, causing corrosion and seizure.
   How to confirm: Using a capable scan tool, attempt to command the transfer case to shift ranges. If the motor does not respond or makes grinding noises, and the wiring has been confirmed to be good, the motor is likely faulty. The motor can also be tested with direct power, but this should be done carefully.
   Typical fix: Replacement of the transfer case shift motor. The new motor must be correctly aligned with the transfer case position upon installation. This is a DIY-friendly repair for many owners. 🎬 Watch this step-by-step walkthrough for replacing the transfer case shift motor.
   Est. part cost: $150-$400

Rare But Worth Checking

• Internal Power Transfer Unit (PTU) Failure: → Shop Transfer Case Assembly While this is the most expensive repair, it is often misdiagnosed. According to TSB #68090604A, this should be the last consideration, not the first, especially if the code is C1494-92 and appears intermittently under heavy throttle. TSB 21-008-16 for other FCA vehicles notes that an *active* C1494-92 code (not intermittent) is a valid reason to replace the PTU, but only after ruling out other causes.

Diagnosis Steps

1. Connect a professional scan tool capable of reading manufacturer-specific chassis codes.
2. Confirm the exact code is C1494 and check for a failure type suffix, such as '-92'. Note if the code is active (currently present) or stored (intermittent).
3. Scan all other vehicle modules for related codes, especially U-codes (communication) or other C-codes in the DTCM like C147B or C140E.
4. Attempt to replicate the fault condition described in TSB #68090604A: drive the vehicle under heavy throttle and see if the 'Service 4WD' light and code C1494-92 appear.
5. If the TSB conditions are met, the primary diagnosis is a software issue. Consult a dealer to check for and apply any available DTCM software updates, such as TSB 08-094-20.
6. If the code is active and not intermittent, perform a thorough visual inspection of the wiring harness and connectors between the DTCM and the transfer case shift motor. Pay close attention to the large connector on the inside of the driver's side frame rail, behind the front wheel, for corrosion or damage.
7. If wiring is confirmed good, use the scan tool to monitor live data from the transfer case position sensors while commanding shifts. Incorrect or missing data may point to a faulty shift motor.
8. Only after ruling out software and electrical issues should a mechanical failure of the Power Transfer Unit be considered.

Parts You'll Likely Need

• Drivetrain Control Module (DTCM) Reprogramming — This is the most likely fix when C1494-92 is set intermittently under heavy throttle, as per TSB #68090604A.
  OEM price range: $150-$250 (Labor for flash)
  Aftermarket price range: N/A
• Transfer Case Shift Motor (OEM #68259922AB (Verify by VIN, for BorgWarner cases)) — If the motor is confirmed to be unresponsive or failed after ruling out wiring and software issues, it will need replacement. This is a common failure point due to its exposure to the elements.
  Trusted brands: Dorman (e.g., 600-910), Cardone, New Venture
  OEM price range: $300-$500
  Aftermarket price range: $150-$400

Related Codes That Often Appear With This One

• C147B — This code relates to the front axle disconnect sensor circuit. Problems in the 4WD wiring harness, particularly the main connector on the frame rail, can affect both the PTU and the front axle disconnect, causing both codes to appear.
• U0102 — Indicates 'Lost Communication With Transfer Case Control Module'. This points towards a wiring, connector, or module power/ground issue rather than a mechanical PTU problem. Forum users report seeing this code along with a cluster of other U-codes when the main frame rail connector is compromised.
• C140E — This code for 'Transfer Case Motor Blocked' is another common fault addressed by the DTCM software update in TSB 08-094-20. Its presence further suggests a software or control issue rather than a primary mechanical failure.

Technical Service Bulletins (TSBs) & Recalls

• 68090604A: Warns against replacing the PTU for an intermittent C1494-92 code set under heavy throttle and advises contacting FCA engineering.
• 08-094-20: Involves reprogramming the Drivetrain Control Module (DTCM) with updated software to address various transfer case DTCs (like C140E) and performance issues on 2016-2020 models.

Platform-Specific Known Issues

• Heavy Throttle Fault Condition (TSB #68090604A): A known issue documented in TSB #68090604A where code C1494-92 is triggered by heavy throttle application, leading to a false diagnosis of PTU failure. The bulletin explicitly advises against replacing the PTU and to contact FCA engineering instead, pointing to a software calibration sensitivity.
• DTCM Software Update (TSB 08-094-20): TSB 08-094-20 was released for 2016-2020 Ram 2500/3500 trucks to update the DTCM software. It addresses issues like a 'Service 4WD' message, noisy shifts, and DTC C140E ('Transfer Case Motor Blocked'), and is intended to reduce premature transfer case failure.
• Owner Repair Experience: A YouTube video shows an owner of a 2016 Ram experiencing a recurring 'Service 4WD' light. After a warranty replacement of the 4WD actuator failed after 40,000 miles, he replaced it himself a second time. The repair involved jacking up the front right corner to minimize fluid loss, removing four bolts and one electrical connector. The aftermarket part cost $83 on eBay, and the total repair with help was around $130, compared to a dealer quote of over $400.
