C2008 on 2017-2018 Land Rover Discovery: Left EPB Motor 'Actuator Stuck Open' Fixes

What's Unique About the 2017-2018 Land Rover DISCOVERY

The 2017-2018 Discovery (L462 generation) is built on the JLR D7u platform and features an Electronic Parking Brake where the actuator motor is integrated directly into the rear brake caliper assembly. Unlike older systems with a central actuator and cables (like on the Discovery 3/4), a motor failure on this platform necessitates the replacement of the entire caliper. Land Rover has issued multiple Technical Service Bulletins (TSBs) acknowledging that this fault can be triggered by both software errors and hardware failure, making proper diagnosis crucial to avoid unnecessary parts replacement.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• 'Park Brake needs Calibration' message displayed on the instrument cluster.
• Red or yellow 'BRAKE' or parking brake warning light is illuminated.
• Electronic Parking Brake (EPB) will not release, potentially stranding the vehicle.
• Electronic Parking Brake (EPB) will not engage, allowing the vehicle to roll when in Park.
• Audible grinding, whirring, or clicking from the left rear wheel when attempting to use the EPB, or no sound at all.
• A 'Parking Brake Fault' message may appear on the dash.

Most Likely Causes

1. ABS Control Module Software Error 🔴 High Probability Land Rover TSB LTB01248NAS1 explicitly states that an ABS control module software error can cause this code and the associated symptoms. TSB SSM74004 also describes a software corruption issue that can be resolved with a calibration procedure, sometimes triggered by specific driver actions like opening a door while the EPB is disengaging.
   How to confirm: Use a JLR-compatible scan tool to attempt the EPB calibration or 'un-jam' procedure. If the procedure completes successfully and the code clears and stays cleared, the issue was software-related. The manual reset procedure in TSB SSM74004 can also be attempted first.
   Typical fix: Perform the EPB calibration procedure using a diagnostic tool or the manual process. In some cases, the ABS module may need a software update at a dealership using JLR Pathfinder software.
   Est. part cost: $0
2. Failed Left Rear EPB Actuator/Motor 🟡 Medium Probability The actuator motor is a mechanical component with plastic internal gears that can fail over time. On this platform, it is integrated into the brake caliper, making it a single point of failure for both components and exposed to the elements.
   How to confirm: If the software calibration fails, use a scan tool to command the left EPB motor. If there is no sound, or a grinding/straining noise without movement, and voltage is confirmed at the connector, the motor has failed. This is a common failure point discussed by owners.

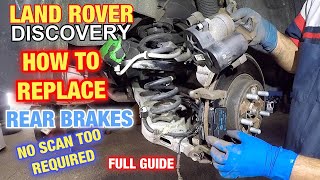

   Typical fix: Replace the entire left rear brake caliper assembly, which includes the new EPB motor. The system must be bled and 🎬 See this walkthrough for replacing rear electric brakes. then calibrated after installation.
   Est. part cost: $250-$600
3. Wiring or Connector Damage ⚪ Low Probability The wiring harness to the rear caliper is exposed to road debris, moisture, and suspension movement, which can lead to chafing, corrosion, or broken wires at the 2-pin connector. The plastic locking tab on the connector is known to become brittle and break, leading to 🎬 Watch: A mechanic explains why these EPB systems often fail. a loose connection.
   How to confirm: Visually inspect the wiring harness and the electrical connector at the left rear caliper for green corrosion, chafed insulation, or bent pins. Use a multimeter to check for ~12V power and good ground at the connector when the EPB switch is operated.
   Typical fix: Repair the damaged section of wiring or clean/replace the electrical connector and pigtail.
   Est. part cost: $20-$60

Rare But Worth Checking

• Faulty ABS Control Module: This is very rare and should only be considered if all other causes, including wiring and the actuator itself, have been definitively ruled out. It is an expensive component and is seldom the root cause.

Diagnosis Steps

1. Connect a Land Rover-compatible diagnostic scan tool (e.g., JLR Pathfinder, Autel, iCarsoft LR) to the OBD-II port.
2. Read the codes from the Anti-lock Brake System (ABS) module and confirm C2008-72 is present.
3. First, attempt the manual EPB calibration procedure as outlined in TSB SSM74004: Switch off and lock the vehicle, wait ten minutes, unlock, start the engine, press the footbrake, press the EPB switch down for 2 seconds to release, then pull it up for 2 seconds to apply. Check if the message clears.
4. If the manual calibration fails, use the scan tool's service function to perform the 'EPB Calibration' or 'Un-jam Procedure'. This is a specific routine in the service menu.
5. If calibration fails and the code returns, safely raise and support the vehicle.
6. Visually inspect the 2-pin electrical connector and wiring harness leading to the left rear brake caliper for any signs of corrosion, chafing, or physical damage.
7. If the wiring appears intact, disconnect the connector. Use a multimeter to check for ~12V and ground at the harness-side connector pins while an assistant operates the EPB switch. No voltage points to a wiring or module issue.
8. If voltage is present at the connector but the motor does not operate correctly (or at all), the motor/caliper assembly has failed.
9. Replace the left rear brake caliper assembly.
10. After replacement, bleed the brake system according to the manufacturer's procedure.
11. Use the scan tool to perform the 'New Actuator Installation' or 'EPB Calibration' procedure to teach the module the new actuator's limits.
12. Clear all fault codes and verify the EPB operates correctly multiple times via the console switch.

Parts You'll Likely Need

• Left Rear Brake Caliper with EPB Motor (OEM #LR094240 (superseded by LR140188)) — This is the most common hardware failure. The EPB motor is integrated into the caliper, so the entire assembly must be replaced if the motor fails.
  Trusted brands: Land Rover (Genuine), TRW (OEM)
  OEM price range: $450-$600
  Aftermarket price range: $250-$400

Related Codes That Often Appear With This One

• C2007-72 — This is the corresponding code for the right side ('Right Motor – Actuator Stuck open'). If both appear together, a software glitch or calibration issue is highly likely, as noted in TSB LTB01248NAS1.
• C2006-71 — This code for 'Left actuator – Actuator Stuck' is a more general fault that can be logged alongside C2008-72, as noted in TSB SSM73905.
• U3001-77 — This code for 'Control Module Improper Shutdown' is mentioned in TSBs SSM73905 and SSM73818 as a potential companion code to the EPB faults, often related to the software corruption issue.

Technical Service Bulletins (TSBs) & Recalls

• LTB01248NAS1: Addresses a 'Park Brake needs Calibration' message and EPB release failure, linking it to DTC C2008-72 and a potential ABS module software error.
• SSM73905: Defines C2008-72 as 'Left Motor – Actuator Stuck open' in the ABS module.
• SSM73818: Also defines C2008-72 as 'Left Motor – Actuator Stuck open'.
• SSM74004: Describes a software corruption issue causing EPB calibration messages and provides a manual reset procedure. It explicitly states 'Do not replace any parts' until a software update is available.

Platform-Specific Known Issues

• Land Rover has issued multiple TSBs for this issue. LTB01248NAS1 and SSM74004 both detail scenarios where a software glitch causes a 'Park Brake needs Calibration' message and logs codes C2007-72 and C2008-72, often fixable with a simple calibration procedure.
• TSBs SSM73905 and SSM73818 directly define C2008-72 as 'Left Motor – Actuator Stuck open', confirming the manufacturer's definition for this fault.
• Owner forums confirm that the first diagnostic step is always to attempt the calibration/reset procedure, as it frequently resolves the issue without replacing parts.

Mechanic-Grade Diagnostic Values

• Voltage at EPB motor 2-pin connector — expected: ~12V DC when the EPB switch is operated (one direction for apply, reverse polarity for release).. Failure: 0V indicates a wiring or module issue. Voltage present but no motor action points to a failed motor.
• EPB Brake Force via JLR Diagnostics — expected: Greater than 1000 N. Failure: A brake force lower than 1000 N when the motor is heard running indicates a failed EPB module or internal caliper mechanism.

Hidden / Shadow Codes Worth Checking

• C2008-72: Left Motor – Actuator Stuck open. This is the most common and specific sub-code, indicating the ABS module commanded the motor but detected it remained in the released position. (see via JLR-compatible scan tools like Pathfinder, Autel, or iCarsoft.)
• C2008-71: Left actuator – Actuator Stuck. A more general 'stuck' fault that can appear alongside the -72 variant. (see via JLR-compatible scan tools like Pathfinder, Autel, or iCarsoft.)

Scan Tool Commands That Help

• JLR Pathfinder / Autel / iCarsoft LR: Parking Brake Release To Service Position / Maintenance Mode — This command fully retracts the EPB piston to allow for removal and replacement of the rear brake pads and caliper. It must be used before any physical work is done on the rear brakes.
• JLR Pathfinder / Autel / iCarsoft LR: EPB Calibration / Un-jam Procedure — This is the first diagnostic step after reading the code. It attempts to re-learn the motor's end stops and can resolve software-induced faults without part replacement. It is also required after installing a new caliper.
• JLR Pathfinder / Autel / iCarsoft LR: Apply And Release Electric Park Brake — A bidirectional control to test the function of the EPB motor on command, confirming if the motor is receiving the signal and is mechanically capable of operating.

Wiring & Ground Locations

• Rear Junction Box Fuse — The fuse box located in the rear luggage compartment. Fuse F8 (30A) is listed for the EPB module on similar L462 platform vehicles.. While a blown fuse is unlikely to cause a single-side fault, it's a primary check for total EPB system failure. Power issues can sometimes manifest as module communication errors.
• EPB Actuator Connector — A 2-pin electrical connector directly on the EPB motor, which is integrated into the rear brake caliper.. This is the primary point of failure for wiring issues. It is exposed to water, road salt, and debris. The plastic locking tab can break, causing a poor connection, water ingress, and corrosion on the pins, leading directly to code C2008.
• Chassis Ground Points — There are multiple chassis ground points in the rear of the vehicle. On the similar Discovery 4 (L319), a key ground stud is located in the right rear wheel well (C2934l). While the exact L462 location may differ, inspecting the main ground studs in the rear cargo area and behind wheel arch liners is critical.. A corroded or loose ground point for the ABS or EPB system can cause high resistance, leading to insufficient voltage for the motor and triggering actuator faults.

Real Owner Repair Stories

• landroverforums.com user (2017 Land Rover Discovery 5) — 'Parking Brake Fault' and 'Park Brake Needs Calibration' messages on the dash, with the yellow brake warning light on. The EPB would not engage.
  ❌ Tried (didn't work) Multiple attempts at the manual calibration procedure (locking car, waiting, cycling switch)., Disconnecting the battery for an extended period to reset modules.
  ✅ What actually fixed it The owner took the vehicle to a dealer. The dealer confirmed code C2008-72 was active. After their software calibration attempt also failed, they diagnosed a failed actuator. Replacement of the left rear brake caliper assembly (which includes the motor) and subsequent calibration solved the problem permanently.

OEM Part Supersession History

• LR094240 → LR140188 — Likely an internal revision to the integrated EPB motor or caliper seals to improve durability and prevent premature failure. Part supersessions on components with known failure patterns are common.
