OBD-II Code C2225: Air Suspension Vent Solenoid Circuit Failure

What Does C2225 Mean?

C2225 means the Air Suspension Control Module detects an electrical fault in the vent solenoid circuit. This electro-mechanical valve releases air to lower the vehicle. An open or shorted circuit prevents the computer from controlling the valve, leaving the suspension stuck at its current height.

Technical definition: The SAE/OBD-II definition is "Air Suspension Vent Solenoid Circuit Malfunction". The Air Suspension Control Module (ASCM) sets this fault code when it detects voltage or resistance in the vent solenoid circuit that falls outside the manufacturer's specified range, indicating an open circuit, short to ground, or short to power.

Can I Drive With C2225?

⚠️Yes, But With Caution. You can drive, but extended use is unsafe. The suspension often gets stuck in a low position, causing a harsh ride that negatively affects handling and braking. Continuing to drive forces the air compressor to burn out from overwork (an additional $700-$2,000+ repair) and damages tires and suspension joints.

Common Causes

• Blown Air Suspension Fuse (Common) — A short circuit or seized compressor motor instantly blows the dedicated 30A or 40A air suspension fuse. This $5 fix is the most overlooked cause of C2225.
• Failed Air Suspension Relay (Common) — The high-current relay powering the compressor assembly fails from age or compressor overdraw. A dead relay cuts power to the entire unit, including the vent solenoid.
• Corroded Wiring or Connector (Very Common) — Located underneath the vehicle, the compressor's electrical connector is highly exposed to water and road salt. This rots the wires, creating an open or short circuit (especially common on Ram and GM trucks).
🎬 See how to fix common Ram 1500 air suspension problems
• Failed Air Suspension Compressor Assembly (Very Common) — The vent solenoid is integrated into the air compressor assembly. Saturated air dryer desiccant allows moisture into the system, corroding and seizing the solenoid from the inside out. Replacing the entire assembly is usually required.
🎬 Watch: Step-by-step guide to replacing an air suspension compressor
• Leaking Air Lines (Less Common) — A cracked air line causes the system to lose pressure. The resulting compressor over-activity overheats and melts the internal electrical circuits, triggering the code.
• Faulty Air Suspension Control Module (Rare) — The computer module controlling the system fails internally. Consider this only after thoroughly ruling out wiring, fuses, and relays.

Symptoms

• Air Suspension Warning Light is On — The dashboard displays 'Service Air Suspension' or a vehicle icon with an up/down arrow.
• Vehicle Will Not Lower — The system cannot release air. The vehicle remains stuck at its current height and ignores 'easy-entry' or lower ride height commands.
• Harsh or Bouncy Ride — If the system loses pressure, the vehicle drops onto its hard rubber bump stops, eliminating all suspension cushioning.
🎬 Watch: How to diagnose a sagging air suspension system
• Compressor is Silent or Runs Constantly — A blown fuse or bad relay prevents the compressor from running. Conversely, a leak causes it to run constantly until it burns out.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Blown Fuse — Parts: $1-$10, Labor: $0-$20, ~0.1 hr book time (Beginner)
• Replace Air Suspension Relay — Parts: $15-$75, Labor: $10-$50, ~0.2 hr book time (Beginner)
• Repair Wiring or Replace Connector Pigtail — Parts: $20-$70, Labor: $150-$300, ~2 hr book time (Intermediate)
• Replace Air Suspension Compressor Assembly — Parts: $250-$1800, Labor: $200-$500, ~2.5 hr book time (Intermediate)

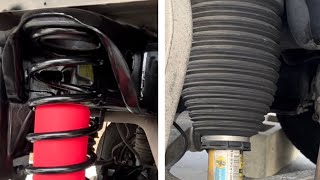

• Convert to Conventional Suspension — Parts: $500-$1500, Labor: $400-$800, ~6 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: A used OEM compressor from a low-mileage vehicle is only viable for vehicles over 10 years old where new parts exceed the car's value.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify donor mileage and ensure no prior suspension issues.
• Inspect for corrosion at the electrical connector and air line fittings.
• Match the part number exactly.
• Avoid parts from heavy road salt regions.

Decision logic:

• If Vehicle is less than 8 years old or has under 100K miles → Buy a new OEM or high-quality aftermarket part (Arnott, Dorman) for reliability and warranty.
• If Vehicle is over 10 years old AND budget is extremely limited → A used part is a gamble but acceptable. Expect a shorter lifespan.
• If You plan to keep the vehicle for several more years → Always buy new. Repeat labor costs negate used part savings.

Warranty tradeoff: Used salvage parts offer 30-90 day warranties excluding labor. New aftermarket parts offer 1-year to lifetime warranties.

Worst-case if a used part fails: $400-$800 if a used part fails, representing repeat labor and a second part purchase.

What Happens If You Wait — Timeline

1. 0-1 month: Code C2225 sets. 'Service Air Suspension' light turns on. Vehicle will not lower. Ride quality remains normal if no leaks exist. (MPG impact: 0%% · Added cost: $0)
2. 1-4 months: Uncompensated air leaks cause the suspension to sag onto bump stops. The ride becomes extremely harsh. (MPG impact: 0-2%% · Added cost: $50-$150 (Increased tire wear))
3. 4-9 months: Continuous jarring damages ball joints, control arm bushings, and wheel bearings. Tires show severe abnormal wear. (MPG impact: 2-5%% · Added cost: $400-$1,200 (Tire replacement, bushing repairs))
4. 9+ months: Catastrophic suspension failure occurs. Worn ball joints separate, causing loss of steering control. (MPG impact: 5-10%% · Added cost: $1,500-$4,000+ (Full suspension overhaul))

Cost of Not Fixing It

• Immediate: Unsafe handling due to improper ride height and lack of suspension damping. The ride becomes extremely harsh. (Added cost: Negligible)
• 0-3 months: The air compressor overworks to compensate for faults and burns out entirely. (Added cost: $700-$2000)
• 3-12 months: Driving on bump stops causes premature wear to tires, shocks, ball joints, and control arm bushings. (Added cost: $500-$2500+)

Diagnosis Steps

1. Scan for Codes
   Use a professional-grade OBD-II scanner capable of reading Chassis (C-prefix) codes. Confirm C2225 is active and note related codes (like C1A27 or C1A20) as critical clues.
   Tools: OBD-II Scanner (Chassis capable) (Beginner)
2. Check Fuses and Relays
   Locate the air suspension fuse and relay. Visually inspect the fuse. Swap the relay with an identical one from a non-critical system (like the horn) to quickly test for a faulty relay.
   Tools: Owner's Manual, Fuse Puller (Beginner)
3. Visually Inspect the System
   Locate the air compressor under the vehicle. Inspect the main electrical connector for green/white corrosion, bent pins, or melted plastic. Follow the wiring harness looking for chafing or breaks.
   Tools: Flashlight, Safety Glasses (Beginner)
4. Check for Power and Ground
   Disconnect the compressor connector. With the ignition on, check for battery voltage (~12.6V) on the power feed pin and less than 0.1V on the ground pin. No power points to upstream wiring or relays; good power suggests the compressor assembly failed.
   Tools: Multimeter, Wiring Diagram (Intermediate)
5. Test Solenoid Resistance
   Measure the resistance (in Ohms) across the two pins for the vent solenoid on the compressor. Compare to the manufacturer's spec (typically 4-20 ohms). An infinite reading (OL) means an open circuit; near-zero indicates a short.
   Tools: Multimeter, Wiring Diagram (Intermediate)
6. Activate Solenoid with Scan Tool
   Command the vent solenoid to open using a bidirectional scan tool. Listen for a distinct 'click'. Good power but no click means electrical failure. A click but no venting means mechanical blockage.
   Tools: Bidirectional Scan Tool (Advanced)
7. Bench Test the Solenoid
   Briefly apply 12V power and ground directly to the solenoid's terminals using fused jumper wires. A solid click confirms actuation. No click confirms a dead coil, requiring assembly replacement.
   Tools: Fused Jumper Wires, 12V Power Source (Advanced)
8. Check for Air Leaks
   Spray soapy water on air lines, fittings, and the compressor body. Bubbles indicate leaks, which overwork the compressor and lead to electrical failures.
   Tools: Soapy Water Spray Bottle (Beginner)
9. Monitor Live Data & Driver Voltage
   Monitor 'Vent Solenoid Commanded State' and 'System Pressure' PIDs. Command the solenoid ON; pressure should drop. Back-probe the control wire at the ASCM with a multimeter to verify the module pulls the circuit to ground (near 0V) when activated.
   Tools: Advanced Scan Tool, Multimeter, Wiring Diagram (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• System Voltage: 11.5-14.5V (During self-test at startup or while driving.)
• Vent Solenoid Commanded State: ON (Sets when the module commands the vent solenoid to open but detects out-of-range voltage or resistance.)
• Vehicle Speed: 0 mph or 55+ mph (Detected at a standstill during entry/exit height changes, or at highway speeds when automatically lowering for aerodynamics.)
• Time Since Ignition On: 1-10 seconds (The module performs a circuit integrity check immediately after startup.)

Related Codes

• C1A27 — Means 'Compressor Circuit Failure.' Seeing this alongside C2225 strongly points to a failed compressor unit or its main connector, as they share the same assembly.
• C1A20 — Means 'Pressure Increases Too Slow When Venting.' This performance code indicates the vent solenoid circuit works electrically, but the valve is mechanically stuck or blocked.
• C1A36 — Used on Land Rover vehicles instead of C2225. It signifies the exact same fault with the air release solenoid circuit.
• C1A30 — Means 'Suspension Compressor Relay Circuit Failure.' Often appears with C2225, reinforcing that the relay or power supply wiring is the root cause.

Climate & Environmental Factors

• High Humidity / Rain: Accelerates saturation of the air dryer's desiccant. Saturated moisture pumps through the system, causing internal corrosion of solenoids and valves.
• Cold Weather / Freezing Temperatures: Trapped moisture freezes, blocking air lines or seizing the vent solenoid. Rubber air springs become brittle, increasing leak risks.
• Road Salt (Winter Climates): Highly corrosive salt spray eats away at copper wires and connector pins under the vehicle, directly causing open or short circuits.

How to Talk to a Mechanic About This Code

Say this: "I have an air suspension warning light and my scanner shows code C2225. I'd like to book a diagnostic appointment. Can you please have the technician check the fuse, relay, and the compressor's wiring connector for power, ground, and corrosion before quoting a full compressor replacement?"

Directs the technician to perform a proper diagnosis rather than jumping to the most expensive conclusion, saving you from misdiagnosis.

Avoid saying:

• 'My air suspension is broken, how much to fix it?'
• 'My car is bouncy, can you look at it?'
• 'Just replace the compressor.'

Questions to ask before authorizing the repair:

• Did you find power and ground at the compressor connector?
• Was there any corrosion on the connector pins or in the wiring harness?
• Did you test the air suspension relay? Does the estimate include a new relay?
• What is the warranty on the proposed parts and labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: A safe but very expensive option. Recommended for in-warranty or complex luxury vehicles.
  Best for: Vehicles under warranty, Complex systems on German brands (Mercedes Airmatic, Audi), When you want a guaranteed OEM parts solution
  Downsides: Highest labor rates and parts costs., Defaults to replacing the entire expensive compressor assembly when a simpler wiring repair suffices. (Typical cost: +50% vs. baseline)
• Independent Shop: Best overall fit. Reputable independent shops correctly diagnose common wiring or relay issues and offer the best value.
  Best for: Most out-of-warranty vehicles, especially common trucks and SUVs., Getting a thorough diagnosis that considers cost-effective wiring repairs.
  Downsides: Quality varies; you must find a shop with strong electrical diagnostic skills. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. The risk of misdiagnosis and being sold unnecessary parts is very high.
  Best for: Simple services like tires and oil changes.
  Downsides: Technicians lack specialized diagnostic experience for complex electrical faults., High pressure to sell unnecessary parts., Not equipped for air suspension work. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, seriously consider not fixing it.

• Car worth $8000, fix is $450: Fix it. A wiring or relay repair is well below the threshold.
• Car worth $8000, fix is $2200: Fix it, but consider alternatives. A new compressor is a significant cost but remains below the 40% threshold.
• Car worth $4000, fix is $2200: Walk away. The repair cost is over 50% of the vehicle's value.

What Scan Tool You Need for This Code

Minimum: A scanner that reads Chassis (C-prefix) codes. Basic sub-$50 code readers only read Powertrain (P) codes and will not see C2225.

A cheap scanner shows 'No Codes Found', leading you to believe the scanner is broken. You need a tool that communicates with the Air Suspension Control Module (ASCM).

Budget: BlueDriver Pro (~$90) — Reads and clears Chassis codes and displays freeze-frame data, which is the essential first step.

Mid-range: Foxwell NT510 Elite (~$180) — Provides bidirectional control to command the vent solenoid directly, differentiating mechanical vs. electrical failures.

Professional: Autel MaxiCOM MK808 / XTOOL D8S (~$500-900) — Offers full bidirectional control and access to live data PIDs to monitor solenoid states and system pressure in real-time.

How to Clear the Code After You Fix It

1. Ensure all connectors are secure and the battery is reconnected.
2. Use an OBD-II scan tool to erase the Chassis fault codes. Disconnecting the battery rarely clears ASCM codes.
3. Start the vehicle and allow the compressor to pressurize the system.
4. Cycle through all ride height settings to confirm operation.

Drive cycle (~20 minutes): Clear the code, idle for 2 minutes, then drive for 15 minutes in mixed conditions. Park, cycle the ignition off and on, and check if the warning light returns.

Readiness monitors affected: This Chassis code does not affect powertrain emissions readiness monitors.

Watch out for:

• Forgetting to replace the compressor relay. The old relay damages the new compressor.
• Not clearing the code with a scanner. The warning light stays on until manually cleared.
• The code returning immediately indicates the root cause (wiring short or bad relay) was ignored.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: This Chassis code will not fail the OBD-II smog check. However, an inspector fails the vehicle visually if the suspension is collapsed and unsafe.
• New York: NYS safety inspections check suspension components. An illuminated air suspension warning light or improper ride height guarantees failure.
• Texas: While emissions testing ignores this code, law enforcement cites vehicles with obviously collapsed suspensions for safety violations.

Most Commonly Affected Vehicles

• Ford Expedition (2003-2017) — Highly prone to compressor failure from moisture saturation of the air dryer.
• Lincoln Navigator (2003-2017) — Shares the Expedition's failure-prone system. Leaking air springs frequently cause compressor burnout.
• Ram 1500 (2013-2019) — Frequently suffers from wiring corrosion at the compressor connector due to poor weather sealing.
• Cadillac Escalade (2015-2024) — The 'Air Ride Adaptive Suspension' compressor fails frequently. Ensure unrelated engine misfire codes aren't masking electrical issues.
• Chevrolet Suburban, Tahoe (2015-2024) — Shares the Escalade's air suspension system and is prone to identical C2225 wiring and compressor faults.
• Jeep Grand Cherokee (WK2) (2011-2021) — The closed-loop 'Quadra-Lift' system is sensitive to leaks. Debris in rear air spring folds causes ruptures and compressor failure.
• Mercedes-Benz GL-Class, ML-Class, S-Class (2007-2016) — Airmatic suspension repairs are notoriously expensive. Compressor replacements routinely exceed $1,100.
• Audi Q5, Q7, A8 (2011-2018) — Adaptive air suspension experiences costly compressor failures with some of the highest dealer repair quotes in the industry.

Manufacturer-Specific Notes

• Ford / Lincoln: The air dryer desiccant saturates with moisture, contaminating the system and rusting the vent solenoid. Replacing the complete compressor/dryer assembly is standard procedure.
• Dodge / Ram / Chrysler: C2225 can mistakenly define as 'Speed Control Switch 1 or 2 Stuck' on basic scanners. Use a scanner that correctly identifies the Chassis module to avoid misdiagnosis.
• Jeep: C2225 can mean 'Engine Oil Pressure Control Circuit' if read from the PCM. Verifying the code is stored in the ASCM is the crucial first step.
• General Motors (Cadillac/Chevrolet): The main wiring harness connector at the compressor is a frequent failure point due to road spray exposure, leading to heavy corrosion.

Real Owner Stories

2013 Ram 1500 at 110K miles - The Easy Fix

Owner reported a 'Service Air Suspension' light after a cold snap. The truck would not lower and the compressor was silent.

What they tried:

1. Feared a $1,500 compressor replacement.
2. Located the 40A cartridge fuse for the air suspension.
3. Found the fuse visibly blown.

Outcome: Replaced the $5 fuse and the system worked immediately. The code did not return.

Lesson: Always check the cheapest parts first. A five-dollar fuse saves massive unnecessary repair bills.

2008 Ford Expedition at 145K miles - A Misdiagnosis Story

C2225 code appeared, vehicle stuck at normal height.

What they tried:

1. Replaced the entire compressor/dryer assembly ($450 part).
2. The code immediately returned and the new compressor would not run.

Outcome: Found the air suspension relay was the actual culprit. A new $30 relay fixed the problem.

Lesson: A failing compressor damages the relay. Always replace the relay ($15-$75) when replacing the compressor.

2015 Jeep Grand Cherokee - The Unusual Root Cause

Intermittent C2225 codes after driving on gravel roads. Suspension failed to adjust.

What they tried:

1. Shop A cleared codes.
2. Shop B suspected a faulty compressor.
3. Owner noticed issues worsened off-road.

Outcome: Found pebbles lodged in the rear air spring folds, causing tiny leaks that overworked the system and triggered electrical faults. Cleaning the springs resolved the issue.

Lesson: Physical interference or debris causes performance issues that manifest as electrical codes.

2016 Ram 1500 in a winter climate - The Wiring Nightmare

Vehicle showed C2225 and C1A27 codes. Suspension completely inoperative.

What they tried:

1. Visual inspection showed the main compressor connector heavily corroded with green powder.
2. Wiring inside the insulation was brittle and black.

Outcome: Spliced in a new connector pigtail (Mopar 68149472AA) using weatherproof butt connectors for $250.

Lesson: Road salt kills wiring. Heavy corrosion on the connector means the wiring is the problem, not the compressor.

How to Prevent This Code From Triggering

• Wash the underbody monthly during winter. (Monthly during winter, or after driving on salted roads.) — Removes corrosive road salt that destroys the compressor's electrical connector and wiring.
• Apply dielectric grease to the compressor connector. (Once per year, before winter.) — Creates a waterproof barrier preventing moisture and salt from corroding pins and wires.
• Listen for leaks and check ride height. (Weekly.) — Fixing small air leaks prevents the compressor from overworking and burning out.
• Replace the air suspension relay preventively. (Every 5 years or 60,000 miles.) — Proactively replacing this $15-$75 wear item prevents sudden failures and misdiagnoses.
• Inspect and clean air spring bellows. (Annually or when changing tires.) — Removes debris trapped in rubber folds that rub holes and cause leaks.

Frequently Asked Questions

I replaced the air compressor, but code C2225 came back. What now?

Immediately check the air suspension relay and fuse. A failing compressor often draws excess current, damaging the relay or blowing the fuse as it dies. These cheap parts are the most likely cause if the code returns instantly.

Can I just ignore code C2225 and keep driving?

Ignoring it is unsafe and leads to more expensive repairs. The compromised handling and braking ability is a severe safety risk. You will eventually burn out the air compressor and damage other suspension components from the harsh ride.

The new compressor is installed, but it won't turn on. Is it defective?

Not necessarily. First, re-check all fuses and the main relay. Ensure the battery was disconnected during the install to allow the module to reset, as some systems require a short drive to re-initialize.

Is it better to replace the whole compressor or just the solenoid?

Always replace the entire compressor and dryer assembly. The root cause is typically moisture and age, which affects all internal components. Replacing just the solenoid guarantees the old compressor motor or saturated air dryer will fail soon.

Can I convert my air suspension to regular shocks and struts?

Yes, aftermarket companies sell conversion kits to replace the air suspension with traditional coil springs and struts. For older, high-mileage vehicles, this is a permanent and cost-effective solution to avoid recurring air suspension repairs.

What happens if I keep driving on a bad air suspension?

Continued driving causes a cascade of failures starting with a burned-out air compressor. Riding on the bump stops damages wheels, tires, and suspension joints. The vehicle will also handle poorly in emergency maneuvers.

Can I replace just one leaking air spring?

It is highly discouraged. Air springs are made of rubber and wear out at the same rate based on age and mileage. Replacing them piecemeal leads to a frustrating cycle of repeated failures and labor costs.

Key Takeaways

• Code C2225 indicates an electrical failure in the air suspension vent solenoid circuit, preventing the vehicle from lowering.
• Always test the 30A or 40A air suspension fuse and relay before replacing parts, as these $15-$30 components frequently cause this code.
• Inspect the compressor's external wiring connector for green corrosion, which is the root cause in over 40% of C2225 cases on trucks and SUVs.
• Driving with a collapsed suspension for more than a few days destroys tires and overworks the compressor, adding $700 to $2,000+ in secondary repair costs.
• Verify the code originates from the Chassis module (ASCM), as Dodge and Jeep vehicles sometimes mistakenly display C2225 for unrelated powertrain issues.
