C2502 on 2016-2018 Fiat 500X: Electronic Throttle Control Fault Causes and Fixes

What's Unique About the 2016-2018 Fiat 500X

The Fiat 500X and its platform-mate, the Jeep Renegade (equipped with the 2.4L engine), are known for this specific issue. Fiat Chrysler Automobiles (FCA) released multiple Technical Service Bulletins (TSBs 08-110-17 and 08-027-21) for these vehicles, acknowledging that C2502-64, along with codes for the ETM Hall Sensor (C2210-92) and calibration (C2220-54), is a common problem. This indicates a potential weakness in the original electronic throttle body component (OEM P/N superseded multiple times) used across this platform, making it a more frequent failure point than on other vehicles.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp, MIL) is on
• "Service Electronic Throttle Controller" message on the dash
• "Drive Mode Unavailable" message
• Vehicle enters 'limp mode' (reduced engine power)
• Engine stalling unexpectedly, sometimes after a turn or during deceleration
• Rough or unstable idle, may idle very high (2k-3k RPM) or very low (500 RPM)
• Poor, hesitant, or surging acceleration
• Unresponsive accelerator pedal

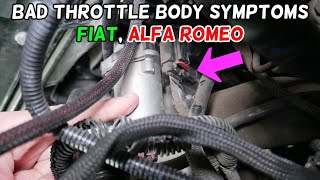

🎬 Watch: A breakdown of bad throttle body symptoms on Fiat vehicles.

Most Likely Causes

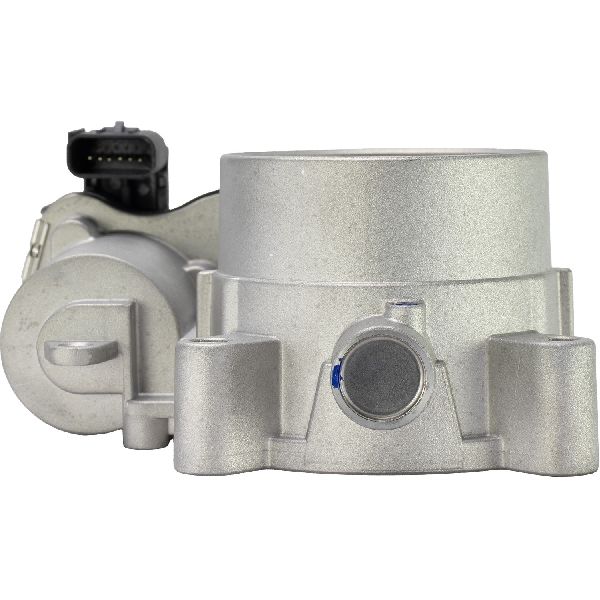

1. Failing Electronic Throttle Body 🔴 High Probability → Shop Fuel Injection Throttle Body This is a well-documented issue for this platform, as confirmed by multiple manufacturer TSBs (08-027-21 and 08-110-17) that specifically mention internal ETM (Electronic Throttle Module) faults leading to C2502-64. The part number has been superseded multiple times (from 4891970AB/AC to 04891970AD), suggesting revisions to fix an original design flaw.
   How to confirm: Scan for codes C2502-64, C2210-92, and C2220-54. If these codes are present together, it strongly indicates a faulty throttle body. A mechanic can also monitor throttle position sensor data with a scan tool to look for erratic readings or dropouts when the pedal is pressed.
   Typical fix: Replace the entire electronic throttle body assembly. The Mopar OEM part is #04891970AD. After replacement, a 'throttle relearn' or calibration procedure is required. This can be done with a compatible scan tool or sometimes with a manual pedal procedure.
   Est. part cost: $80 - $230
2. Drivetrain Control Module (DTCM) Software Issue 🟡 Medium Probability TSBs 08-110-17 and 08-027-21 state that the fix for these codes may be to reprogram the DTCM with updated software. This suggests the original software may have been overly sensitive to minor signal deviations from the throttle body or had logic errors that could falsely trigger the code.
   How to confirm: A Fiat dealership or a qualified shop with a wiTECH scan tool can check the current software version of the DTCM and determine if an update is available per the TSBs. This is often the first step before replacing hardware.
   Typical fix: Flash the Drivetrain Control Module (DTCM) with the latest software version. This must be done by a dealer or a properly equipped independent shop. In many cases, this is done first, and if the code returns, the throttle body is then replaced.
   Est. part cost: $0
3. Wiring Harness or Connector Issue ⚪ Low Probability While less common than the throttle body itself for this code, FCA vehicles of this era can be prone to electrical issues. Wires can chafe or break, and pins in connectors can become loose or corroded, leading to intermittent signal loss that mimics a component failure.
   How to confirm: Visually inspect the wiring harness and connector going to the throttle body for any signs of damage, corrosion, chafing, or loose pins. Perform a 'wiggle test' on the connector and harness with the engine running to see if it triggers the fault. A multimeter can be used to check for continuity and resistance on the wires.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail. In some cases, applying dielectric grease to the connector can improve contact and prevent future corrosion.
   Est. part cost: $20 - $50

Rare But Worth Checking

• Poor Main Ground or Power Connection:

Diagnosis Steps

1. Scan the vehicle's computer systems for Diagnostic Trouble Codes (DTCs). Confirm the presence of C2502-64 and note any other codes, especially C2210-92 and C2220-54.
2. Check for available software updates. Have a dealership or qualified shop use a wiTECH tool to check if the Drivetrain Control Module (DTCM) has the latest software per TSBs 08-110-17 and 08-027-21. If not, update the software first as this may resolve the issue.
3. Inspect the throttle body electrical connector and wiring harness. Look for any signs of corrosion, damage, or loose connections. Perform a wiggle test on the harness while monitoring live data.
4. Using an advanced scan tool, monitor the live data for the throttle position sensors (TPS1 and TPS2) while slowly pressing and releasing the accelerator pedal. The voltage readings should be smooth and mirror each other (one ascending, one descending). Any jumps, dropouts, or erratic behavior indicates a failing throttle body.
5. If the software is up to date, the wiring is intact, and the sensor data is erratic, replace the electronic throttle body assembly.
6. After replacement, perform the throttle body relearn/calibration procedure. This is most reliably done with a professional scan tool which initiates a self-learn test. 🎬 See this quick tip on performing the Fiat throttle body relearn. Some sources suggest a manual 'pedal dance' procedure may work, which involves a sequence of key-on, pedal presses, and waiting periods, but the scan tool method is preferred.

Parts You'll Likely Need

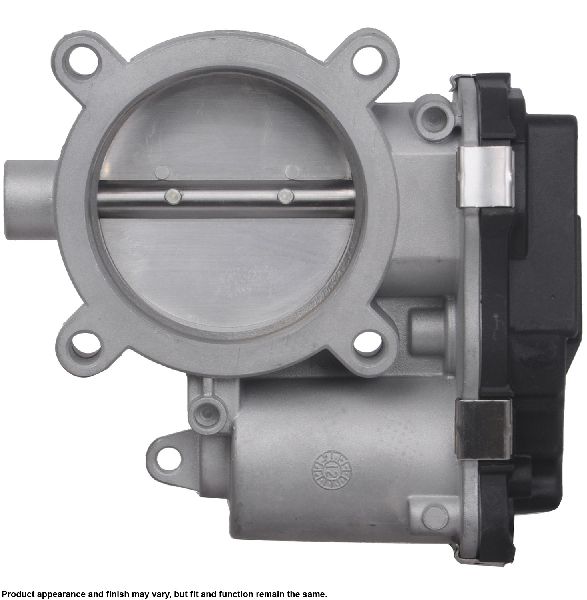

• Electronic Throttle Body Assembly (OEM #04891970AD (supersedes 4891970AB, 4891970AC)) — This is the most common cause of code C2502 and its related faults on this vehicle, as documented in manufacturer TSBs. The internal sensors and electronics fail.
  Trusted brands: Mopar, Standard Motor Products, Dorman, Cardone, Spectra Premium
  OEM price range: $437
  Aftermarket price range: $80-$230

Related Codes That Often Appear With This One

• C2210-92 — This code means 'ETM Hall Sensor Performance Or Incorrect Operation' and directly points to a fault with the sensor inside the electronic throttle body. It is explicitly listed alongside C2502-64 in the relevant TSBs.
• C2220-54 — This code means 'ETM Calibration Error Missing Calibration' and indicates the throttle body has lost its calibration or cannot be calibrated, a common consequence of an internal failure. It is also listed in the TSBs for this issue.

Technical Service Bulletins (TSBs) & Recalls

• 08-027-21: Supersedes the earlier TSB and expands the model years to 2018. Recommends a DTCM software update for C2502-64, C2210-92, and C2220-54. Also notes the software enhances other functions, like reducing rear drive module noise.
• 08-110-17: An earlier TSB for model years up to 2017 also addressing the same set of DTCs with a recommendation to reprogram the DTCM.

Platform-Specific Known Issues

• Shared TSBs with Jeep Renegade: Fiat Chrysler Automobiles (FCA) issued TSB #08-110-17 and later superseded it with TSB #08-027-21, which both address C2502-64 by reprogramming the Drivetrain Control Module (DTCM). Crucially, these bulletins apply to both the Fiat 500X and the Jeep Renegade, confirming a shared platform-level defect. The software update is intended to improve diagnostic logic and system performance related to the throttle module.

Mechanic-Grade Diagnostic Values

• Throttle Position Sensor (TPS) Signal Voltage — expected: Approximately 0.5V - 0.7V at idle (throttle closed) and smoothly increasing to ~4.5V at wide-open throttle (WOT).. Failure: Voltage readings that are jumpy, inconsistent, outside the expected range, or show sudden drops indicate a faulty sensor.
• TPS Power Wire Voltage — expected: Approximately 5 volts with the key in the ON position (engine off).. Failure: No voltage or significantly lower voltage points to a wiring or PCM issue.
• DTCM Flash Voltage Requirement — expected: Stable voltage between 13.2 and 13.5 volts must be maintained during the software update.. Failure: Voltage dropping below 13.2V or climbing above 13.5V can cause the flash process to fail or be interrupted.

Scan Tool Commands That Help

• wiTECH (or equivalent professional scan tool): Throttle Body Self-Learn — This function is required after replacing the electronic throttle body to calibrate the new part's closed, open, and intermediate positions with the ECU. Failure to perform this may result in a no-start condition or erratic idling.
• wiTECH: Restore Configuration and Align Proxi — This procedure is required after reprogramming the DTCM per TSBs 08-110-17 and 08-027-21. It ensures that all vehicle modules recognize the updated software and communicate correctly on the CAN bus network.

Wiring & Ground Locations

• Main Battery/Engine Ground — The main ground strap from the battery negative terminal attaches to a stud on the vehicle's frame, located directly underneath the battery and its tray. A secondary strap typically connects the engine block to the chassis.. A corroded or loose main ground can cause unstable voltage and electrical noise throughout the vehicle's systems. This can lead to implausible signals and communication errors between modules, potentially triggering a C2502 code and being misdiagnosed as a failed component.
• Throttle Body Connector — The 6-pin electrical connector plugged directly into the electronic throttle body assembly on the 2.4L engine.. The pins within the original connector can lose tension over time, causing a poor connection with the throttle body pins. This intermittent connection can mimic the symptoms of a failed throttle body, leading to unnecessary replacement of the part.

Real Owner Repair Stories

• Reddit user @raz-0 (2015 Jeep Renegade Trailhawk (shared platform/drivetrain)) — Intermittent Check Engine Light with codes U0402 and C2502-64. Vehicle would sometimes enter limp mode.
  ❌ Tried (didn't work) Replacing the battery.
  ✅ What actually fixed it A Drivetrain Control Module (DTCM) firmware update performed by the dealership. The user noted this was a known issue on early models where the module would flood the CAN bus with garbage data, causing the implausible signal code.
• YouTube - Fiat 500 channel (2013 Fiat 500 (similar connector issue)) — No throttle response.
  ❌ Tried (didn't work) Initial diagnosis pointed to a bad throttle body.
  ✅ What actually fixed it The problem was a faulty throttle body connector pigtail where the internal pins had lost tension. Replacing the pigtail with an aftermarket version (noted as being for a Ford Mustang but physically identical) restored the connection and throttle response.

OEM Part Supersession History

• 4891970AB, 4891970AC → 04891970AD — The multiple supersessions suggest that FCA made internal revisions to the electronic throttle body to improve reliability and address the failures leading to codes like C2502-64.

Model Year Variations Within This Range

• 2016-2017: TSB 08-110-17 was initially released for vehicles built on or before October 05, 2017, to address the C2502-64 code with a software update.
• 2016-2018: The superseding TSB, 08-027-21, expanded the model year range to include 2018 vehicles, indicating the software issue persisted and a newer software version was required for the expanded range.
