P0011 on 2015-2020 Cadillac Escalade: Causes and Fixes for Over-Advanced Cam Timing

What's Unique About the 2015-2020 Cadillac ESCALADE

For the 2015-2020 Escalade with the 6.2L L86 engine, a P0011 code is more complex than just a generic VVT issue. General Motors has issued multiple Technical Service Bulletins (TSBs) that point to specific, documented failure points beyond the usual suspects. These include a sticking camshaft actuator solenoid and, most notably, a wiring jumper harness that is prone to being pinched or chafed near the X154 connector bracket on the front engine cover. This specific wiring issue can cause a host of seemingly unrelated electrical DTCs alongside P0011, making a thorough visual inspection of this exact location a critical first diagnostic step for this vehicle.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (SES lamp) is on
• Service Stabilitrak warning light may illuminate
• Engine stalling, especially at low speeds or idle
• Engine cranks but does not start
• Rough idle
• Poor or surging acceleration
• Reduced fuel economy
• Engine knock noise

Most Likely Causes

1. Sticking/Binding Camshaft Position Actuator Solenoid 🔴 High Probability → Shop Engine Camshaft GM Technical Service Bulletin #PIP5130K specifically calls out that the Camshaft Position Actuator Solenoid Valve may be sticking or binding, causing this code and related starting issues. These solenoids are sensitive to oil quality and can become clogged with sludge or varnish over time, preventing the internal plunger from moving freely.
   How to confirm: Swap the Bank 1 intake solenoid with the Bank 2 intake solenoid (passenger side). They are identical parts. Clear the codes and drive the vehicle. If the code returns as P0021 (the Bank 2 equivalent), the solenoid is confirmed faulty. You can also test the solenoid's resistance; a good valve should measure between 6.9 and 7.9 ohms. A scan tool can also command the actuator to move, testing its response.

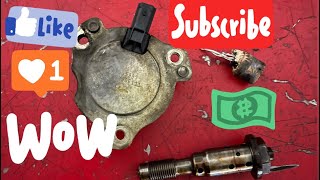

   Typical fix: Replace the Bank 1 intake camshaft position actuator solenoid. It is held in by a single 10mm bolt.
   Est. part cost: $40-$100
2. Pinched or Chafed Wiring Jumper Harness 🔴 High Probability TSBs #PIP5724 and #PIP5553A identify a specific issue where a wiring harness can be pinched or chafed at the bolt for the X154 connector bracket, located on the lower-left side of the engine's front cover. This design flaw can cause shorts in multiple circuits, triggering various DTCs, including P0011.
   How to confirm: Visually inspect the wiring harness at and around the X154 connector bracket for signs of damage, pinching, or chafing against bolts or the sharp edge of the bracket. The TSB includes images showing a 'good' vs 'suspect' harness routing to check against. Also, unplug the connector and inspect for corrosion inside the pins, as noted in TSB #PIP5335C.
   Typical fix: Repair the damaged wiring (splicing, heat shrink) and secure the harness away from the sharp edge or pinch point. This may involve using Tesa tape, zip ties, and re-routing the harness to prevent future contact. In severe cases, the jumper harness may need replacement.
   Est. part cost: $5-$150 (for repair materials or a new jumper harness pigtail)
3. Low or Dirty Engine Oil 🟡 Medium Probability The VVT system is hydraulically operated, using engine oil pressure to actuate the camshaft phasers. The L86 engine specifies 0W-20 dexos1 Gen 2 synthetic oil. Using the wrong viscosity or extending oil change intervals can lead to sludge buildup that clogs the fine mesh screens on the VVT solenoids, impeding their function.
   How to confirm: Check the engine oil level on the dipstick and inspect the oil's condition. If it is below the minimum level or appears dark, thick, or sludgy, this is a likely contributor. Ensure the correct oil viscosity is being used, as a P0011 code appearing immediately after an oil change strongly suggests the wrong oil was installed.
   Typical fix: Perform an engine oil and filter change using the manufacturer-specified oil (ACDelco dexos1 Gen 2 0W-20) and a quality filter (e.g., ACDelco PF63E).
   Est. part cost: $60-$130

Rare But Worth Checking

• Faulty Camshaft Position Sensor: → Shop Engine Camshaft Position Sensor While less common than a faulty solenoid for this code, the sensor that reads the camshaft's position can fail and send incorrect data to the ECM. This is more likely if you also have codes like P0340 or P0341. Forum users have reported extreme difficulty removing this sensor as it can break off in the timing cover, requiring significant effort to extract the broken pieces.
• Worn Timing Chain or Failed Phaser: → Shop Engine Timing Chain In higher-mileage engines (>150,000 miles), a stretched timing chain or a mechanically failed camshaft phaser can cause the actual cam timing to be out of sync with what the ECM commands, triggering the code. This is a more involved mechanical repair that involves removing the front engine cover. One owner of a high-mileage Escalade fixed their P0011 and low oil pressure by replacing the timing chain, tensioner, and phaser.
• Failed Oil Pump or Pickup Tube O-Ring: → Shop Engine Oil Pump On some GM V8s, the O-ring on the oil pump pickup tube can harden and fail, allowing the pump to suck in air. This aerates the oil, causing a drop in oil pressure that starves the VVT system and can trigger P0011, often accompanied by a low oil pressure warning at idle. A full timing component and oil pump replacement has been confirmed to fix the issue.

Diagnosis Steps

1. Check the engine oil level and condition. Ensure it's full, clean, and the correct viscosity (0W-20). Top off or change the oil and filter if necessary. Clear the code and see if it returns.
2. Scan for other DTCs. The presence of codes like P0010, P0340, or P06DA strongly points towards the known wiring harness issue.
3. Carefully inspect the wiring jumper harness near the X154 connector bracket on the lower driver's side of the front engine cover. Look for any signs of pinching, chafing, or bare wires as described in TSBs #PIP5724 and #PIP5553A. Unplug the connector to inspect for corrosion.
4. If no wiring issue is found, test the VVT solenoid. A common DIY method is to swap the Bank 1 intake solenoid with the Bank 2 intake solenoid. They are located on the front of each cylinder head. Clear the codes and run the engine. If P0011 is gone and P0021 appears, the solenoid you moved is faulty.
5. Using a professional scan tool (like GM's GDS2), command the Camshaft Position Actuator from 0 to 20 degrees. If it doesn't respond, the solenoid or its circuit is faulty. Note that this test may be disabled if other sensor codes are present.
6. If the solenoid is not the issue, test the camshaft position sensor's circuit and operation. Be aware the sensor can be difficult to remove without breaking.
7. If all electronic and hydraulic checks pass, the issue may be mechanical. This would involve checking oil pressure with a mechanical gauge (healthy idle pressure should be ~30 PSI, not 10-15 PSI) and potentially inspecting the timing chain for slack and the camshaft phaser for damage. This is an advanced step and may require professional help.

Parts You'll Likely Need

• Camshaft Position Actuator Solenoid (VVT Solenoid) (OEM #12681018 (Supersedes 12655420, 12679099, 12699413, 12633123, 12734067)) — This part is explicitly called out in TSB #PIP5130K as a likely cause due to sticking or binding. It is a common failure item in VVT systems and the most frequent fix reported by owners.
  Trusted brands: ACDelco (Genuine GM), Delphi
  OEM price range: $45-$85
  Aftermarket price range: $30-$60
• Engine Oil and Filter (OEM #ACDelco dexos1 0W-20 Full Synthetic, ACDelco PF63E Filter) — Correct oil level, cleanliness, and viscosity are critical for the VVT system's operation. An oil change is a fundamental first step in troubleshooting.
  Trusted brands: ACDelco, Mobil 1
  OEM price range: $70-$120
  Aftermarket price range: $50-$90

Related Codes That Often Appear With This One

• P0010 — This code indicates a circuit malfunction for the same VVT solenoid, often pointing directly to the wiring harness issue mentioned in TSBs #PIP5724 and #PIP5553A.
• P0300 — A random misfire code that can be triggered by incorrect cam timing affecting engine stability. Also listed in the TSBs for the chafed wiring harness.
• P0335, P0336, P0340, P0341 — These are crankshaft and camshaft position sensor codes that are listed in the same TSBs (#PIP5724, #PIP5553A) as being related to the common wiring harness issue, indicating a shared electrical fault.
• P06DA, P06DB, P06DC — These codes relate to the engine oil pressure control circuit and are also mentioned in the TSBs regarding the chafed wiring harness, indicating a shared electrical fault.

Technical Service Bulletins (TSBs) & Recalls

• PIP5724: Notes P0011 with other codes due to a pinched wiring harness.
• PIP5553A: Mentions P0011 with other codes due to a chafed wiring harness at the X154 connector.
• PIE0359A: Confirms P0011 is associated with crank-no-start or stalling conditions.
• PIP5130K: Directly links P0011 and crank-no-start to a sticking/binding Camshaft Position Actuator Solenoid Valve.
• PIP5553: An earlier version of PIP5553A, also citing the chafed wiring harness issue.

Platform-Specific Known Issues

• TSB #PIP5724 and #PIP5553A document a recurring issue where a wiring jumper harness can be pinched or chafed at the X154 connector bracket, causing P0011 and numerous other electrical DTCs. The location is the lower-left (driver's side) of the front engine cover.
• TSB #PIP5335C notes that in addition to chafing, the X154 connector (and X159 on 2015 models) should be inspected for internal corrosion.

Mechanic-Grade Diagnostic Values

• Camshaft Position Actuator Solenoid Resistance — expected: 6.9 - 7.9 Ω (at 68°F / 20°C). Failure: No reading (open circuit) or a reading outside the specified range.
• Engine Oil Pressure at Hot Idle — expected: ~30 PSI or higher. Failure: Pressure dropping to 10-15 PSI, often triggering the P0011 code.
• Camshaft Position Actuator Solenoid Circuit Resistance — expected: Less than 2 Ω. Failure: 2 Ω or greater indicates an open or high resistance in the wiring.
• Camshaft Position Actuator Solenoid Circuit Voltage — expected: Less than 1 V. Failure: 1 V or greater indicates a short to voltage in the wiring.

Scan Tool Commands That Help

• GDS2 (or equivalent professional scan tool): Camshaft Position Actuator Control — Use this bidirectional control to command the Bank 1 intake solenoid from 0° to 20° and back to 0°. This directly tests the solenoid's mechanical and electrical response. A lack of response or change in engine sound points to a faulty solenoid or circuit.
• GDS2 (or equivalent professional scan tool): Freeze Frame / Failure Records — Always review this data first. It shows the exact engine conditions (RPM, load, temp, etc.) when the P0011 code was set, which helps in recreating the fault during a test drive.

Wiring & Ground Locations

• X154 — A wiring harness connector located on the lower-left (driver's) side of the engine's front cover, next to the vacuum pump.. This is the primary location for wiring harness chafing or pinching against its bracket, as documented in multiple TSBs. It can cause a short or open in the VVT solenoid circuit, triggering P0011 and other codes.
• X159 — Also located on the front engine cover near the vacuum pump.. A TSB specifies this connector, in addition to X154, should be inspected for corrosion on 2015 models only.
• G104 — On the left rear of the engine block.. This is a primary engine block ground. While not directly cited for P0011, a poor engine ground can cause erratic behavior in various sensors and actuators, including the VVT system.

Real Owner Repair Stories

• YouTube user 'B St' (2007 Cadillac Escalade (similar 6.2L V8) with 308,000 miles) — P0011 code with very low oil pressure at idle (10-12 PSI).
  ❌ Tried (didn't work) Not specified, but the repair performed was extensive, suggesting simpler fixes were not the solution.
  ✅ What actually fixed it A complete 'timing refresh' including a new Melling oil pump, oil pickup tube, GM cam sprocket (phaser), timing chain, tensioner, and oil pan pressure relief valve. After the repair, idle oil pressure was restored to a healthy ~30 PSI and the code was resolved.
• YouTube user 'Garage Gringo' (Cadillac Escalade with 6.2L V8) — P0011 code and a 'Service Stabilitrak' warning light.
  ❌ Tried (didn't work) The user went straight to replacing parts, but noted the old VVT solenoid (phaser magnet) moved freely, suggesting it might not have been the sole cause.
  ✅ What actually fixed it Replaced both the Bank 1 intake VVT solenoid ('cam phaser magnet') and the camshaft position sensor. The user noted the cam position sensor was extremely difficult to remove and broke during extraction. The code did not return after several days of driving.
• Tahoe Yukon Forum user (2013 Chevy Suburban (similar L86 platform/VVT system)) — P0011 code, low oil pressure at hot idle, stumbling, and limp mode.
  ❌ Tried (didn't work) Replaced camshaft position sensor (which broke during removal), multiple oil changes with different oil types, and replaced the VVT solenoid. None of these actions resolved the issue. The problem started immediately after an oil change at a quick lube shop.
  ✅ What actually fixed it The story is unresolved but serves as a cautionary tale. The user was considering a full engine replacement. The strong implication is that either the quick lube shop used drastically incorrect oil which caused damage, or there was an underlying mechanical issue like a failing oil pump that was coincidentally timed with the oil change.

OEM Part Supersession History

• 12655420, 12633123, 12734067 → 12681018 (current common replacement), which itself is superseded by 12699413. — GM regularly updates part designs to integrate new materials, improve durability, and resolve known failure modes like sticking.

Model Year Variations Within This Range

• 2015 only: In addition to connector X154, TSBs also list connector X159 on the front engine cover as a potential site for corrosion that can cause this code.
• 2018-2020: The transmission was updated from the 8-speed (8L90) to the 10-speed (10L90) automatic. While this does not directly affect the P0011 code, it is a significant powertrain difference within the generation.
