P0011 on 2017-2019 Cadillac XT5: Causes, Fixes, and Official TSBs

What's Unique About the 2017-2019 Cadillac XT5

For this specific generation of Cadillac XT5 with the 3.6L LGX engine, a primary cause for P0011 is a documented software anomaly. Manufacturer Technical Service Bulletins (TSBs) confirm that issues with the auto start/stop system can cause rough running or stalling and trigger this code, along with others like P0014, P0021, and P0024. The official fix in this scenario is not a part replacement, but an ECM reprogram performed by a dealer. This issue is so specific that GM issued a service update (N192266190) to address it on the XT5 and its platform mates.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine runs rough, especially during or after an auto-stop event
• Reduced engine power or 'limp mode'
• Engine may stall in rare cases, particularly when the vehicle is stopped
• Poor fuel economy
• Hesitation or stumbling on acceleration
• Rattling noise from the engine on startup or during operation.

Most Likely Causes

1. Engine Control Module (ECM) Software Anomaly 🔴 High Probability Multiple TSBs (N192266190, PIP5568E) specifically identify a software issue related to the auto start/stop system that causes this code to set. The TSB explicitly states this can cause rough running, reduced power, or stalling and may set DTCs P0011, P0021, P0014, and P0024.
   How to confirm: A GM dealer can check the vehicle's service history in the Global Warranty Management system to see if the reprogram specified in Service Update N192266190 has been performed. This is the first step if the code is present with P0014, P0021, and P0024.
   Typical fix: Reprogram the Engine Control Module (ECM) with updated software. This is a dealer-only procedure.
   Est. part cost: $0-$200
2. Low or Dirty Engine Oil 🔴 High Probability The VVT system is entirely dependent on oil pressure to function. The 3.6L LGX engine, like all modern engines with VVT, is sensitive to oil level, quality, and viscosity. Using oil that does not meet the GM dexos1 Gen 2 specification or is the wrong weight can trigger this code, especially right after an oil change.
   How to confirm: Check the engine oil level on the dipstick and examine its condition. Oil that is 🎬 See how an oil change can fix VVT timing codes very dark, thick, below the 'add' mark, or was recently changed by a non-dealer shop can be a primary suspect.
   Typical fix: Perform an oil and filter change using a full synthetic oil that meets the GM dexos1 specification (e.g., SAE 5W-30) and a quality oil filter.
   Est. part cost: $50-$100
3. Faulty Intake Camshaft Position Actuator Solenoid (Bank 1) 🟡 Medium Probability → Shop Engine Camshaft These solenoids control oil flow to the cam phasers and can become clogged with sludge from infrequent oil changes or fail electrically over time. Their filter screens can get blocked, impeding oil flow. TSB PIP5730B also points to issues with related park lock solenoid valves on this engine, which can be misdiagnosed.
   How to confirm: Swap the Bank 1 intake solenoid with the Bank 1 exhaust solenoid (as they are the same part number). If the code changes to P0014 (Exhaust Camshaft Position System Performance), the solenoid is faulty. A scan tool can also command the solenoid to check for response. Visually inspect the solenoid's screens for debris upon removal.

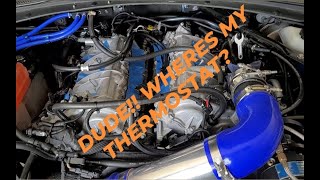

   Typical fix: Replace the Bank 1 intake camshaft position actuator solenoid. 🎬 Watch: How to replace the VVT solenoid on the LGX engine All four solenoids on the LGX engine are identical.
   Est. part cost: $40-$90

Rare But Worth Checking

• Stretched Timing Chain: → Shop Engine Timing Chain While less common on the newer LGX engine compared to its LFX predecessor, a stretched timing chain can cause cam/crank correlation issues. This is a more significant mechanical repair and is usually accompanied by rattling noises on startup.
• Failed Camshaft Phaser: → Shop Engine Camshaft The mechanical phaser itself can fail, getting stuck in an advanced position. This is more complex to diagnose and replace than the solenoid and may require special tools to hold the timing chain.
• Leaking Oil Pick-up Tube O-Ring: A compromised O-ring on the oil pump's pick-up tube in the oil pan can cause a loss of oil pressure, starving the VVT system. This can set P0011 even if the oil level is full. This was confirmed as a fix in a forum post for a similar GM vehicle.

Diagnosis Steps

1. Check for Technical Service Bulletins (TSBs). A GM dealer should verify if the N192266190 reprogram has been performed, as this is a known, documented fix.
2. Check the engine oil level and condition. If low, dirty, or of unknown viscosity, perform an oil and filter change with the correct dexos1-approved oil and clear the code.
3. Scan for other DTCs. The presence of P0014, P0021, and P0024 simultaneously is a key indicator of the software issue.
4. Inspect the wiring and connector for the Bank 1 intake camshaft position actuator solenoid for any damage or corrosion.
5. If possible, use a scan tool to command the solenoid on and off to check for an audible click and response.
6. Swap the intake and exhaust solenoids on Bank 1 (they are the same part). Clear the codes and drive the vehicle. If the code changes to P0014, the original intake solenoid is confirmed to be faulty and should be replaced.
7. If the solenoid and oil are good, further mechanical diagnosis is needed. This could involve checking oil pressure with a mechanical gauge to rule out issues like a bad oil pump or pick-up tube O-ring, before inspecting for a faulty cam phaser or timing chain issues. This may require a professional mechanic.

Parts You'll Likely Need

• Intake Camshaft Position Actuator Solenoid (OEM #12687167 (superseded by 12732244)) — This solenoid is a common failure point that gets stuck or clogged, preventing proper control of camshaft timing. All four solenoids on the LGX V6 are identical.
  Trusted brands: ACDelco, Delphi, TRQ
  OEM price range: $60-$110
  Aftermarket price range: $40-$80
• Engine Oil and Filter — The VVT system requires clean oil at the proper pressure. An oil change with the correct dexos1 Gen 2 5W-30 oil is the simplest and often most effective first step.
  Trusted brands: ACDelco, Mobil 1, Pennzoil
  OEM price range: $60-$100
  Aftermarket price range: $50-$80

Related Codes That Often Appear With This One

• P0021 — This is the same 'over-advanced' code but for Bank 2. When P0011 and P0021 appear together, it points to a systemic issue like low oil pressure, incorrect oil type, or the ECM software glitch mentioned in TSBs.
• P0014 — This is the 'over-advanced' code for the exhaust camshaft on Bank 1. It can appear with P0011 if there's an oil delivery problem to the entire cylinder head or as part of the software issue.
• P0024 — This is the 'over-advanced' code for the exhaust camshaft on Bank 2. Seeing all four codes (P0011, P0014, P0021, P0024) together is a strong indicator of the software anomaly described in TSB PIP5568E and addressed by TSB N192266190.

Technical Service Bulletins (TSBs) & Recalls

• N192266190 / N192266190 02: A 'Service Update' that addresses drivability concerns like rough running or stalling after a stop/start event, which can set P0011, P0014, P0021, and P0024. The fix is to reprogram the ECM. This update expired at the end of the vehicle's New Vehicle Limited Warranty period.
• PIP5568E: A preliminary investigation into the cause of P0011, P0014, P0021, and P0024 setting together, often with drivability concerns after an auto stop/restart.
• PIP5730B: Provides diagnostic assistance for timing codes like P0011 on the 3.6L LGX engine, pointing to potentially sticking Intake Camshaft Position Actuator Park Lock Solenoid Valves, which are separate from the main VVT solenoids.

Platform-Specific Known Issues

• A known software issue can cause the engine to run rough, have reduced power, or stall during an auto start/stop event, setting DTCs P0011, P0021, P0014, and/or P0024. The fix is an ECM reprogram per TSB N192266190.
• GM initiated an investigation (PIP5568E) into these four camshaft codes setting together or in pairs, which was later addressed by the software update.
• The 3.6L LGX engine uses a separate 'Intake Camshaft Position Actuator Park Lock Solenoid Valve' (OEM #12681275) which can stick or fail, causing timing codes per TSB PIP5730B. This is a distinct part from the main VVT solenoid.

Mechanic-Grade Diagnostic Values

• Camshaft Position Actuator Solenoid (VVT Solenoid) Resistance — expected: 7 to 13 Ohms. (Note: Various service sources cite slightly different ranges, such as 6.9-7.9 Ω or 8-13 Ω, but values should fall within this general range).. Failure: A reading of 0 Ω (short), infinite/OL (open), or a value significantly outside the expected range indicates a faulty solenoid.

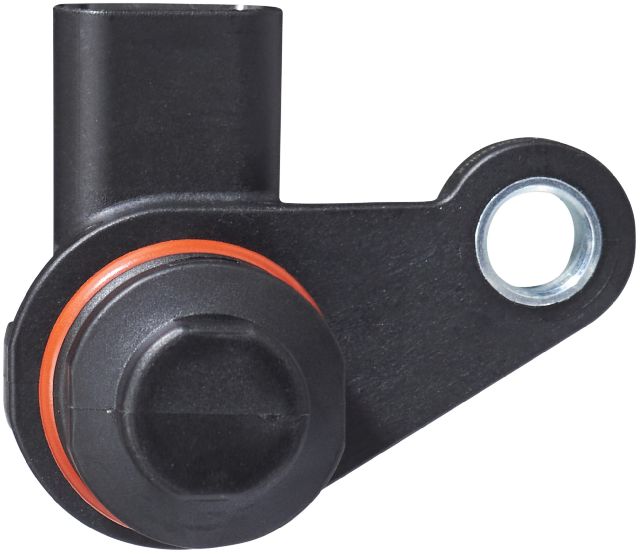

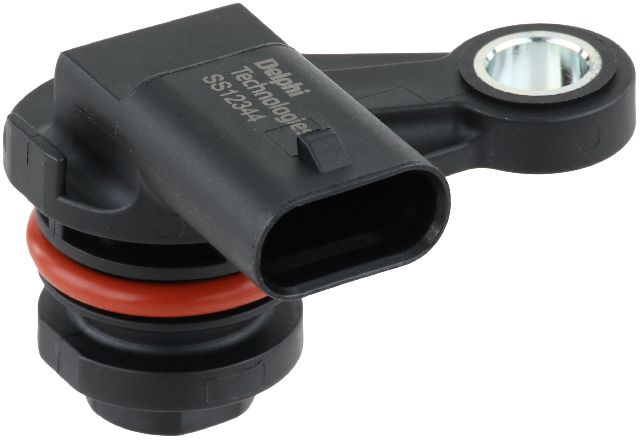

• Camshaft Position Sensor (CMP) 5V Reference Circuit Voltage — expected: 4.8 to 5.2 Volts (with ignition ON, engine OFF). Failure: Voltage below this range suggests a short to ground or an open/high resistance in the reference circuit from the ECM.
• Camshaft Position Sensor (CMP) Low Reference Circuit Resistance — expected: Less than 5.0 Ohms (between the low reference circuit terminal at the sensor connector and a good chassis ground). Failure: Resistance greater than 5.0 Ohms indicates a poor ground connection, which can cause incorrect sensor readings.

Scan Tool Commands That Help

• GDS2 (or professional equivalent): Camshaft Position Actuator Test / VVT Solenoid Control — This bidirectional command allows a technician to manually command the solenoid ON and OFF while the engine is running. This helps verify if the solenoid is mechanically responding to electrical commands from the ECM, which can be observed by a change in engine sound or by monitoring camshaft angle variance on the scan tool's live data.

Wiring & Ground Locations

• Engine Block Grounds (General) — The 3.6L LGX engine typically has multiple small ground wires bolted directly to the cylinder heads, often one on the rear of each head.. A loose or corroded ground on the cylinder head can cause erratic behavior from sensors and actuators located on that head, including the VVT solenoids and camshaft position sensors.
• G106 (Example from related platform) — On the related Cadillac CTS platform, a major engine and chassis ground point (G106) is located on the right rear of the engine compartment, near the right hood hinge.. A compromised main ground can cause a host of unpredictable electrical issues, including incorrect sensor readings that could trigger timing correlation codes like P0011.

"I Checked Everything" — The Actual Cause

• In cases where oil pressure is good, the VVT solenoids test correctly, and wiring appears intact, the root cause may be a sticking 'Intake Camshaft Position Actuator Park Lock Solenoid Valve'. GM TSB PIP5730B was issued specifically because normal diagnostics for P0011 would not lead a technician to inspect this separate component. The failure of this park lock solenoid can cause the timing to be incorrect without any other obvious symptoms.

OEM Part Supersession History

• 12687167 → 12732244 — Standard part evolution for improved reliability or manufacturing process.
  Heads up: Part number 12732244 is the current direct replacement for a long list of previous part numbers, including 12647900, 12671336, 12680964, 12687167, 12690515, and 12707054. No known incompatibilities when using the newest part number.

Model Year Variations Within This Range

• 2017-2019: The 3.6L LGX V6 engine used in this vehicle range includes 'Intake Camshaft Position Actuator Park Lock Solenoid Valves'. This component, which can fail and cause P0011, was part of the Gen 2 HFV6 redesign and is not present on earlier generations of the GM 3.6L V6. Its failure is specifically addressed in TSB PIP5730B.
