P0011 on 2010-2012 Chevrolet Equinox: Causes and Fixes for Camshaft Timing

What's Unique About the 2010-2012 Chevrolet EQUINOX

The 2010-2012 Equinox, particularly with the 2.4L Ecotec engine, is highly prone to this code. The issue is so common that General Motors issued Technical Service Bulletin #17-NA-098 specifically addressing P0011 (and related codes) caused by camshaft position actuator solenoid valve failure. Furthermore, these engines are known for issues with excessive oil consumption due to piston ring problems, which can lead to low oil levels that starve the VVT system and cause these solenoids to fail or stick. An owner complaint to the NHTSA even notes repeated failures of these solenoids. [ODI #10893021] Forum discussions are filled with owners experiencing this exact sequence of events: oil consumption leading to low oil, which in turn triggers P0011.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or erratic idle.
• Engine hesitation or stumbling during acceleration.
• Engine stalling, especially at low speeds or when shifting from Park to Drive.
🎬 Watch: See how a faulty VVT actuator causes engine stalling.
• Reduced engine power.
• Decreased fuel economy.
• Rattling noise from the engine on startup. [Bulletin #PIP4716F]
• Engine runs loud or makes a ticking/chattering noise.

Most Likely Causes

1. Faulty Intake Camshaft Position Actuator Solenoid 🔴 High Probability → Shop Engine Camshaft This is a very common failure point on the 2.4L Ecotec engine, as documented in GM TSB #17-NA-098 and recall #11195A for 2011 models. The fine mesh screens on the solenoids can get clogged with debris from dirty or low oil, or the solenoid can fail electronically.

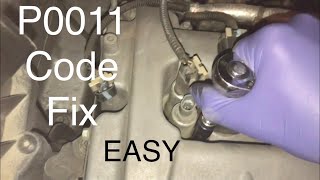

   How to confirm: Swap the intake and exhaust solenoids (they are often identical for testing purposes). The intake is the front-most solenoid. If the code changes to P0014 (Exhaust Camshaft Position Performance), the solenoid is bad. You can also test the solenoid's resistance with a multimeter (a good one should read between 8-13 ohms), or apply 12V to see if the internal plunger actuates with a click.
   Typical fix: Replace the intake camshaft position actuator solenoid. It is highly recommended to replace both the intake and exhaust solenoids at the same time, as they are subjected to the same conditions. The repair involves removing the plastic engine cover, disconnecting a wiring harness, and removing a single 10mm bolt. 🎬 Watch: A quick walkthrough of the solenoid replacement process.
   Est. part cost: $20-$60 per solenoid
2. Low or Dirty Engine Oil 🔴 High Probability The VVT system is hydraulic and relies on clean oil at the correct pressure to function. The 2.4L engine in these vehicles is notorious for excessive oil consumption, making low oil levels a frequent problem. An NHTSA complaint directly links P0011 to a low oil level, and owner forums are filled with similar stories. [ODI #10522004]
   How to confirm: Check the engine oil level on the dipstick and inspect its condition. If the level is low or the oil is dark, gritty, or sludgy, this is a likely contributor. A collapsed or clogged oil filter is another strong indicator of neglected oil changes.
   Typical fix: Perform an oil and filter change using a full synthetic 5W-30 oil that meets dexos1 specifications. Ensure the oil level is at the full mark. This simple step resolves the code for many owners.
   Est. part cost: $40-$80
3. Stretched Timing Chain or Worn Timing Components 🟡 Medium Probability → Shop Engine Timing Chain The 2.4L Ecotec engine can suffer from premature timing chain stretch. This creates slack in the chain, causing the camshaft timing to deviate from the crankshaft timing, which can trigger P0011, often along with P0014 and P0016. 🎬 Watch: How to diagnose and fix timing chain related codes.
   How to confirm: A sharp rattling noise from the front of the engine at startup is a key indicator. [Bulletin #PIP4716F] Diagnosis requires removing the valve cover to inspect the chain for slack and verifying timing marks. A mechanic can also observe the requested vs. actual camshaft angle with a scan tool; a large deviation points to a mechanical timing issue.
   Typical fix: Replace the timing chain, tensioners, and guides. This is a significant repair, often costing over $1,200-$2,000 at a shop.
   Est. part cost: $250-$500 for a quality kit

Rare But Worth Checking

• Failed Camshaft Phaser (Actuator): → Shop Engine Camshaft The gear on the end of the camshaft, which is controlled by the solenoid, can fail internally. This is less common than a solenoid failure but can happen, especially if the engine was run with a startup rattle for a long time. In some cases, even with new solenoids, the P0011 code persists until the phaser itself is replaced.
• Clogged Oil Passages: Sludge from infrequent oil changes can block the small oil passages leading to the VVT solenoids and cam phasers, preventing them from operating correctly even if the solenoids are new.
• Failing Engine Control Module (ECM): In some 2010-2011 Equinox models, the internal drivers in the ECM for the VVT solenoids can burn out, causing persistent P0010/P0011 codes even with good solenoids. Diagnosis involves checking for a command signal from the ECM to the solenoid.
• Using incorrect aftermarket parts: Some owners have reported on forums that after replacing the solenoids with cheap, non-OEM parts, the code returned quickly. The issue was only resolved after installing genuine ACDelco parts, suggesting a quality or calibration difference in some aftermarket brands.

Diagnosis Steps

1. Check the engine oil level and condition. Top off or change the oil and filter if necessary, using 5W-30 full synthetic oil. This is the simplest and most common fix.
2. Scan for any other trouble codes. Codes like P0010, P0013, or P0014 can help pinpoint the issue.
3. Inspect the wiring and connector for the intake camshaft position actuator solenoid (front-most solenoid, often with a gray connector) for any damage or oil contamination.
4. To test the solenoid, swap the intake solenoid with the exhaust solenoid (rear-most solenoid). Clear the codes and run the engine. If the code changes to P0014, the solenoid you moved is faulty.
5. If the code does not change, test the solenoid's resistance with a multimeter. A reading outside of the 8-13 ohm range indicates a bad solenoid.
6. If solenoids and oil are good, the issue may be with oil pressure, the cam phaser, or the timing chain.
7. If a startup rattle is present, suspect a timing chain issue. This requires a more in-depth mechanical inspection, likely by a professional.

Parts You'll Likely Need

• Intake Camshaft Position Actuator Solenoid (OEM #12655420, superseded by 12679099) — This is the most common part to fail, causing P0011. It controls oil flow to the intake cam phaser. Part number 12655420 was updated to 12679099.
  Trusted brands: ACDelco (GM Original Equipment), Delphi
  OEM price range: $40-$60
  Aftermarket price range: $20-$40
• Exhaust Camshaft Position Actuator Solenoid (OEM #12655421, superseded by 12679100) — It is highly recommended to replace both solenoids at the same time, as they are subjected to the same conditions and the other is likely to fail soon.
  Trusted brands: ACDelco (GM Original Equipment), Delphi
  OEM price range: $40-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0010 — This code indicates a circuit malfunction for the intake camshaft position actuator solenoid. It often appears with P0011 if the solenoid has an electrical failure or if there's a wiring issue.
• P0014 — This is the equivalent code for the exhaust camshaft ('B' camshaft). It's common to see both P0011 and P0014 if both solenoids are failing or if there is a systemic oil pressure/quality issue affecting the whole VVT system.
• P0016 — This code indicates a correlation problem between the crankshaft and camshaft position. It can appear with P0011 if the timing chain has stretched or jumped a tooth, representing a more serious mechanical timing failure. [Bulletin #PIP4716F, 40]

Technical Service Bulletins (TSBs) & Recalls

• 17-NA-098: Addresses rough running, hesitation, and stalling due to camshaft position actuator solenoid valve failure, which can set codes P0010, P0011, P0013, and P0014.
• PIP4716F: Notes that a short, sharp rattle from the engine at startup may accompany P0011 and points towards inspecting timing components.
• Recall 11195A: Voluntary emissions recall for 2011 models to replace sticking camshaft position actuator solenoids.

Platform-Specific Known Issues

• GM Recall 11195A: For some 2011 models with the 2.4L engine, GM issued a voluntary emissions recall because the camshaft position actuator solenoid could stick, causing the check engine light, rough idle, and poor driveability. The fix involved replacing both solenoids.

Mechanic-Grade Diagnostic Values

• Camshaft Position Actuator Solenoid Resistance — expected: 8-13 Ohms. Failure: A reading outside this range, an open circuit (OL), a reading in the kΩ/MΩ range, or a wildly fluctuating reading indicates a faulty solenoid.
• Scan Tool: Desired vs. Actual Camshaft Position Angle — expected: Near 0° variance at idle. The 'Actual' value should closely track the 'Desired' value as RPMs change.. Failure: A persistent variance greater than 5° will set the code. A large, fixed variance (e.g., Desired: 23°, Actual: 0°) confirms a non-responsive VVT system.
• Engine Oil Pressure (Hot Idle) — expected: At least 18.85 PSI (130 kPa) with oil at 80°C. Some sources suggest a healthier range of 20-30 PSI.. Failure: Pressure below the minimum specification can starve the VVT system and cause P0011.

Scan Tool Commands That Help

• GM GDS2 / High-End Scan Tools (Autel, Snap-on): Camshaft Position Actuator Solenoid Control / Cam Solenoid Test — This bidirectional command manually turns the VVT solenoid on and off. It is used to verify the integrity of the wiring and the ECM driver circuit. A test light connected to the solenoid harness should flash, and a healthy solenoid should make an audible click.

Wiring & Ground Locations

• Intake/Exhaust Solenoid Connectors — On top of the valve cover. The intake solenoid (front) typically has a gray connector, and the exhaust solenoid (rear) has a black connector.. These are the primary connection points for testing and replacement. Oil contamination in the connectors can cause poor contact and circuit codes.
• G109 (2.4L Engine) — Located on the top rear of the engine.. This is an engine ground point. A poor connection here can cause erratic behavior from sensors and actuators controlled by the ECM.
• G112 (2.4L Engine) — Located at the lower left front of the engine.. This is a key ground for the Engine Control Module (ECM). A loose or corroded ground here can cause a wide range of drivability issues and fault codes, including P0011.

Real Owner Repair Stories

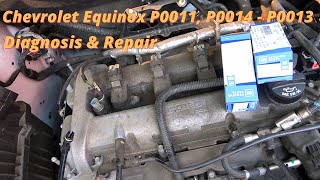

• YouTube channel 'Motor City Mechanic' (Chevrolet Equinox 2.4L (year unspecified, 2nd Gen)) — Engine stalls, Check Engine Light with code P0011.
  ✅ What actually fixed it Diagnosis with a scan tool showed the desired intake cam position was ~23° while the actual position remained at 0°. A resistance test on the intake solenoid showed 5 kOhms, far outside the 8-13 Ohm spec. The exhaust solenoid tested good at 12 Ohms. Replacing the faulty intake VVT solenoid resolved the issue.
• YouTube channel 'T-Bird's Garage' (2013 Chevrolet Equinox 2.4L Ecotec) — Check Engine Light with code P0011.
  ❌ Tried (didn't work) The owner had already performed regular oil changes, ruling out dirty oil as the primary cause.
  ✅ What actually fixed it The owner inspected the wiring and found no issues. Based on the high probability of failure for this part, they replaced the intake camshaft actuator solenoid (the one with the gray connector). This cleared the code.

When the Usual Fixes Don't Work

• While replacing the VVT solenoids is the most common fix, it is not always the final solution. If the P0011 code returns after replacing the solenoids, it strongly indicates a more systemic underlying problem. The most likely culprits are either severe oil sludging that is clogging the oil passages to the cam phasers (requiring an engine flush) or a stretched timing chain and/or failed tensioners. The NHTSA complaint detailing repeated solenoid failures points to a root cause that is not being addressed, such as the engine's known tendency for high oil consumption, which degrades oil quality and destroys the new solenoids. [ODI #10893021, 31]

OEM Part Supersession History

• 12655420 (Intake) → 12679099 — Updated design for improved durability and performance.
  Heads up: Part number 12679099 also replaces older numbers 12578517, 12628347, and 12646783.
• 12655421 (Exhaust) → 12679100 — Updated design for improved durability and performance.
  Heads up: Part number 12679100 also replaces older number 12628348 and 12646784.

Model Year Variations Within This Range

• 2012: Starting in 2012, the 2.4L engine was updated from the LAF to the LEA code. The LEA engine is E85/FlexFuel capable. While many timing components are interchangeable, swapping engines between these years may require using the original intake camshaft and VVT solenoids to ensure compatibility with the vehicle's ECM.
• 2010-2012: GM issued Customer Satisfaction Program #12312 to reprogram the Engine Control Module (ECM) with an updated oil life monitoring system. The new software recommends more frequent oil changes to combat the oil degradation and sludging issues that directly contribute to VVT system failures and code P0011.
