P0011 on 2007-2011 Chevrolet Express: Causes for Over-Advanced Camshaft Timing

What's Unique About the 2007-2011 Chevrolet EXPRESS

The V8 engines in this generation of Chevrolet Express (and its platform mates like the Silverado and Tahoe) are known to be sensitive to engine oil quality and pressure. The entire Variable Valve Timing (VVT) system is hydraulic, meaning any issue with oil viscosity, level, or pressure directly impacts the system's ability to adjust cam timing correctly. Manufacturer service bulletins for this exact vehicle confirm that unresolved P0011 codes often trace back to underlying oil pressure problems, not just a single failed component. A known issue on these engines is a failing oil pump pickup tube O-ring, which can cause aeration in the oil and lead to low pressure, triggering a P0011 code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough, erratic, or surging idle
• Engine stalling, especially at low speeds or when stopping
• Reduced engine power and poor acceleration
• Worse-than-normal fuel economy
• Engine rattling noise, especially on cold starts
• Difficulty starting the engine

Most Likely Causes

1. Low, Dirty, or Incorrect Viscosity Engine Oil 🔴 High Probability The VVT system uses oil pressure to phase the camshafts. Sludge from old oil or the wrong oil type can clog the small passages in the actuator solenoids and phasers. Some of these engines are also known for oil consumption issues (per TSB 10-06-01-008H), making low oil level a frequent problem.
   How to confirm: Check the engine oil dipstick for level and inspect the oil's color and consistency. If it's dark, gritty, or below the 'add' line, this is your likely starting point.
   Typical fix: Perform an oil and filter change using the manufacturer-recommended oil weight (typically 5W-30). Clear the code and see if it returns.
   Est. part cost: $30-$70
2. Faulty Camshaft Position Actuator Solenoid 🔴 High Probability → Shop Engine Camshaft This solenoid is the most common component to fail. It has fine mesh screens that easily clog with debris from engine oil, causing it to stick open or closed. It can also fail electrically, which may set a companion P0010 code.
   How to confirm: Unplug the solenoid and check for resistance with a multimeter (typically 8-13 Ohms). A common diagnostic step is to swap the Bank 1 (intake) solenoid with the Bank 2 solenoid to see if the trouble code follows 🎬 Watch: How to diagnose and test your VVT solenoids (e.g., changes to P0021). The solenoid is located on the front of the driver's side cylinder head, held by a single 10mm bolt.
   Typical fix: Replace the Bank 1 intake camshaft position actuator solenoid. Many owners choose to replace both intake and exhaust solenoids at the same time as preventative maintenance.
   Est. part cost: $25-$60
3. Faulty Camshaft Position Sensor ⚪ Low Probability → Shop Engine Camshaft Position Sensor While less common than the solenoid, the sensor that reads the camshaft's position can fail and send incorrect data to the ECM. However, this is often misdiagnosed when the solenoid is the real issue.
   How to confirm: Inspect the sensor and its wiring for damage. A scan tool can monitor the sensor's output data for erratic signals. It is located near the front of the engine.
   Typical fix: Replace the Bank 1 camshaft position sensor.
   Est. part cost: $20-$50

Rare But Worth Checking

• Low Engine Oil Pressure (Internal): As cited in GM Technical Service Bulletins PIP-5258 and PIP5258A, if other diagnostics fail, a mechanical oil pressure test is required. A common cause for low pressure on these V8s is a hardened or damaged oil pump pickup tube O-ring, which allows air to be sucked into the oil system. This requires removing the oil pan to replace.
🎬 Watch: How to fix low oil pressure on Chevy trucks
• Stretched Timing Chain or Failed Tensioner: → Shop Engine Timing Chain On higher mileage engines (typically over 100,000 miles), the timing chain can stretch, or the tensioner can weaken, causing slack that leads to inaccurate cam timing. This may be accompanied by a rattling noise from the front of the engine.
• Failed Camshaft Phaser/Actuator: → Shop Engine Camshaft This is the mechanical gear on the end of the camshaft. It can fail internally, getting stuck in an advanced position, but this is much less common than a solenoid failure. Replacement is a significant job requiring removal of the timing cover. The OEM part number is around 12602699 or 12606358 and costs over $200.

Diagnosis Steps

1. Verify the Check Engine Light is on and code P0011 is present using an OBD-II scanner.
2. Check the engine oil level and condition. Top off or perform an oil and filter change if necessary. Use the correct viscosity (5W-30). Clear the code and see if it returns.
3. Inspect the wiring harness and connector for the Bank 1 intake camshaft position actuator solenoid and the camshaft position sensor for any visible damage, corrosion, or loose connections.
4. Using a scan tool, monitor the desired vs. actual camshaft position angles for Bank 1. If there is a large discrepancy, the problem is active.
5. Swap the Bank 1 intake actuator solenoid with the Bank 2 intake actuator solenoid (they are identical parts). Clear the codes and drive the vehicle. If the code changes to P0021, the solenoid you moved is faulty and needs replacement.
6. If the code does not change, test the original solenoid by applying 12V to see if it actuates (you should hear a click). Check resistance with a multimeter; it should be between 8-13 ohms.
7. If the solenoid and wiring are good, perform a mechanical oil pressure test with a gauge to ensure it meets manufacturer specifications. This step is critical per TSBs PIP-5258 and PIP5258A. Low pressure could point to a bad oil pump pickup O-ring.
8. If oil pressure is good, the final steps would involve a more in-depth inspection of the timing chain, tensioners, and the camshaft phaser itself, which may require significant engine disassembly.

Parts You'll Likely Need

• Camshaft Position Actuator Solenoid (OEM #12655420) — This is the most frequent point of failure for code P0011 on these engines, typically due to clogging from oil contaminants or electrical failure.
  Trusted brands: ACDelco (OEM), Delphi, Dorman (P/N: 917-215)
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• Engine Oil and Filter — Correcting low or dirty oil is the first step and often the complete fix for this code. These engines are sensitive to oil condition.
  Trusted brands: ACDelco, Mobil 1, Pennzoil
  OEM price range: $50-$80
  Aftermarket price range: $30-$70

Related Codes That Often Appear With This One

• P0010 — This code indicates a circuit malfunction for the Bank 1 intake camshaft position actuator solenoid. It points directly to an electrical issue with the solenoid or its wiring, and often appears with P0011.
• P0340 / P0341 — These codes relate to the camshaft position sensor circuit, suggesting the sensor itself or its wiring may be the problem.
• P0021 — This is the equivalent code for Bank 2. If both P0011 and P0021 appear together, it strongly suggests a systemic problem like low/dirty oil or low oil pressure affecting both sides of the engine.

Technical Service Bulletins (TSBs) & Recalls

• PIP-5258: Advises checking oil pressure if the root cause for P0011 is not found through normal diagnostics.
• PIP5258A: A revised version of the bulletin, reiterating the need to check oil pressure when P0011 diagnostics are inconclusive.
• 10-06-01-008H: Addresses excessive oil consumption which can lead to low oil levels, a primary trigger for P0011.

Platform-Specific Known Issues

• GM issued Technical Service Bulletins #PIP-5258 and #PIP5258A regarding code P0011 on 2007 models. They advise that if standard diagnostic procedures do not reveal the cause, the technician should perform a mechanical oil pressure test, as low oil pressure can be the underlying root cause.
• A known weak point that can cause low oil pressure and trigger P0011 is the oil pump pickup tube O-ring. A forum user on TahoeYukonForum.com reported that replacing this O-ring, along with the oil pan gasket, resolved their persistent P0011 code.
• TSB 10-06-01-008H (and its previous versions) addresses excessive oil consumption on these engines, which can lead to a low oil level, a primary cause of P0011. The TSB outlines fixes like a redesigned valve cover and an AFM oil deflector.

Mechanic-Grade Diagnostic Values

• Camshaft Position Actuator Solenoid Resistance — expected: 8 to 13 Ohms. Failure: A reading of infinite resistance (Open Loop) or a very high reading (e.g., Mega-ohms) indicates a failed coil. A reading outside the 8-13 Ohm range also indicates a fault.
• VVT Solenoid Short to Ground Test — expected: No continuity (Open Loop / infinite resistance). Failure: Any continuity reading between one of the solenoid's electrical pins and its metal housing indicates an internal short to ground, requiring replacement.
• VVT Solenoid Harness Voltage — expected: Battery voltage (approx. 12V) with key on, engine off.. Failure: Significantly less than 12V or no voltage indicates a wiring or ECM issue upstream of the solenoid.

Scan Tool Commands That Help

• GDS2 / Tech2: Camshaft Position Actuator Output Control — This bidirectional command allows a technician to manually command the VVT solenoid on and off to verify its mechanical operation and check the system's response on the scan tool's live data, confirming if the solenoid is stuck or responding slowly. Note: This function may be disabled if other camshaft or crankshaft sensor DTCs are active.

Wiring & Ground Locations

• G103 — Located at the rear of the left-hand (driver's side) cylinder head.. This is a primary engine ground point. A poor or corroded connection at G103 can cause erratic behavior and fault codes for various engine sensors and actuators, including the VVT system. A GM TSB mentions ensuring this ground is clean and tight when diagnosing certain electrical issues.

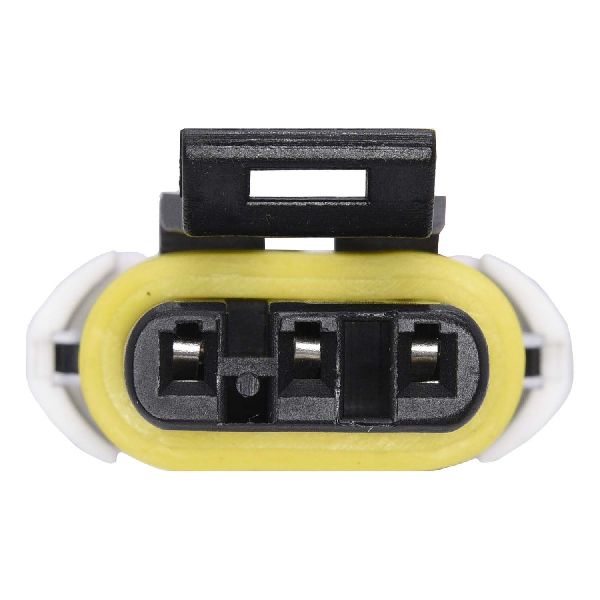

• Camshaft Position Sensor Connector — On the front of the engine, connecting to the camshaft position sensor. For the V8 engines, it is a 3-terminal female connector, often black and purple.. A damaged or corroded connector or wiring pigtail for the camshaft position sensor can cause codes P0340/P0341 and may be misdiagnosed as a P0011 issue. The pigtail harness is a commonly replaced service part.

Real Owner Repair Stories

• YouTube Commenter on '6.2L GM Escalade Yukon Silverado P0011 Code Easy Fix VVT Repair' (GM Truck/SUV with 6.2L V8) — Persistent P0011 code.
  ❌ Tried (didn't work) Replacing oil pump, Replacing oil pressure bleed off switch, Replacing timing chain, Replacing cam sensor, Replacing crankshaft sensor, Replacing VVT sprocket (phaser), Replacing VVT solenoid
  ✅ What actually fixed it The final root cause was low oil pressure due to leaking O-rings on the valley pan gasket. Replacing the valley pan gasket resolved the low oil pressure and cleared the P0011 code.

OEM Part Supersession History

• 12628347 → 12655420, and subsequently 12679099 — Standard design evolution for improved reliability and performance.
  Heads up: The listed part numbers are generally interchangeable for this application. 12655420 is for the intake solenoid. The exhaust solenoid is a different part number (e.g., 12655421).
