P0011 on 2007-2013 Chevrolet Silverado 1500: Causes and Fixes for Camshaft Timing

What's Unique About the 2007-2013 Chevrolet Silverado 1500

On the Gen IV V8 engines in these GMT900 trucks, the VVT system is highly dependent on clean oil and stable oil pressure. While the primary cause is often a simple solenoid failure, these engines can also suffer from oil pressure issues related to a hardened oil pump pickup tube O-ring on higher mileage examples. This can starve the VVT system and trigger a P0011 code even when the VVT components themselves are not at fault. It's important to note that the 4.8L V8 (RPO codes LY2/L20) in this generation did not have VVT, so this code would not appear on trucks with that specific engine. However, some 4.8L engines in later models did have VVT.

Generation note: The 2007-2013 year range primarily covers the GMT900 generation of the Silverado 1500. A 'Classic' model based on the previous GMT800 generation was sold in 2007, but the V8 engines listed are characteristic of the main GMT900 platform. The causes and fixes are generally consistent across this generation for the 5.3L and 6.2L VVT-equipped engines.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle
• Engine stalling, especially at low speeds
• Reduced engine power and acceleration
• Difficulty starting the engine
• Poor fuel economy
• "Service StabiliTrak" message may appear on the dash.
• Engine may sound like it's cranking faster than usual.
• Hard shifting into gear after stopping or hard shifts into second gear, as noted in owner reports NHTSA ODI #11091993 and #10980328.

Most Likely Causes

1. Low or Dirty Engine Oil 🔴 High Probability The VVT system is entirely hydraulic and uses pressurized engine oil to operate the cam phasers. If the oil is low, dirty, or the wrong viscosity, it cannot operate the system correctly. This is the most common cause for P0011.
   How to confirm: Check the engine oil dipstick. Verify the oil level is full and the oil's condition is clean and not past its service interval. This should always be the first step before purchasing any parts.
   Typical fix: Perform an engine oil and filter change using the manufacturer-recommended 5W-30 oil.
   Est. part cost: $40-$80
2. Faulty Camshaft Position Actuator Solenoid (VVT Solenoid) 🔴 High Probability → Shop Engine Camshaft This solenoid is a common failure point. It can become clogged with sludge from dirty oil or fail electronically, causing it to stick in one position and not properly regulate oil flow to the cam phaser. GM has issued multiple TSBs regarding these solenoids sticking.
   How to confirm: After verifying oil is good, swap the Bank 1 (driver's side) and Bank 2 (passenger's side) intake solenoids. Clear the codes. If the code returns as P0021 (the code for Bank 2), the solenoid is confirmed bad. You can also remove the solenoid and inspect its screens for sludge or debris. A healthy solenoid should have a resistance between 8 and 12 Ohms.
   Typical fix: Replace the Bank 1 camshaft position actuator solenoid. It is located on the front of the driver's side cylinder head and is held in by a single 10mm bolt.
   Est. part cost: $30-$60
3. Low Engine Oil Pressure (Mechanical Fault) 🟡 Medium Probability On higher-mileage engines, the oil pump pickup tube O-ring can become hard and brittle, allowing air to be sucked into the oil system. This aerates the oil, causing a drop in pressure that starves the VVT system and can trigger P0011 even with a good solenoid.
   How to confirm: If new oil and a new solenoid do not fix the code, verify engine oil pressure with a mechanical gauge. Low pressure at hot idle (e.g., below 20 PSI) is a key indicator. This is a more advanced diagnostic step recommended by GM TSBs like PIP5258A.
   Typical fix: Requires dropping the oil pan to replace the oil pump pickup tube O-ring. Many owners elect to replace the oil pump at the same time. This is a labor-intensive job, especially on 4WD models.
   Est. part cost: $5-$20 for the O-ring, $100-$200 for an oil pump

Rare But Worth Checking

• Stretched Timing Chain: → Shop Engine Timing Chain While less common than oil or solenoid issues, a timing chain can stretch on high-mileage engines (typically over 150,000 miles), causing timing to be off enough to set this code.
• Faulty Camshaft Phaser: → Shop Engine Camshaft The phaser unit itself, which is mechanically responsible for advancing/retarding the cam, can fail or become clogged with sludge, but this is less common than a solenoid failure.
• Wiring Harness Issue: Check the wiring and connector to the camshaft position actuator solenoid for damage, corrosion, or a loose connection. Oil can sometimes leak into the connector, causing a poor connection.

Diagnosis Steps

1. Check Engine Oil Level and Condition: This is the most critical first step. Ensure the oil is full, clean, and of the correct 5W-30 viscosity. If in doubt, change the oil and filter.
2. Inspect Solenoid Wiring: Visually inspect the electrical connector and wiring for the Bank 1 (driver's side) intake VVT solenoid. Look for damage, corrosion, or oil contamination.
3. Swap Solenoids (Diagnostic Test): Swap the Bank 1 (driver's side) intake solenoid with the Bank 2 (passenger's side) intake solenoid. They are identical parts. Clear the codes and drive the vehicle. If the code changes to P0021, the solenoid is faulty and must be replaced.
4. Replace the Solenoid: If the swap test confirms a bad solenoid, or if swapping is not feasible, replace the Bank 1 solenoid. It is held by one 10mm bolt and is easily accessible on the front of the driver's side cylinder head. Using an OEM ACDelco part is highly recommended.

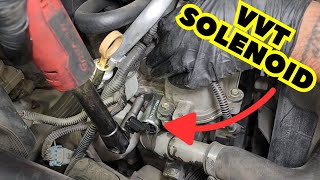

🎬 Watch: Step-by-step guide to replacing your VVT solenoid.
5. Check Mechanical Oil Pressure: If the problem persists after replacing the solenoid and confirming good oil, have the engine's oil pressure checked with a mechanical gauge. Low pressure points to more serious issues like a failing oil pump or a bad pickup tube O-ring. This step is advised by GM TSB PIP5258A.
6. Advanced Mechanical Diagnosis: If oil pressure is good, the issue may be a stretched timing chain or a faulty camshaft phaser, which requires professional diagnosis and is more invasive to repair.

Parts You'll Likely Need

• Camshaft Position Actuator Solenoid (VVT Solenoid) (OEM #12679099) — This is the most frequent cause of P0011 on these trucks. It gets clogged with debris or fails electronically, preventing correct camshaft timing adjustment.
  Trusted brands: ACDelco, Delphi, Dorman
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• Engine Oil and Filter — Clean oil of the correct viscosity is critical for the VVT system to function. This should always be the first step in addressing this code.
  Trusted brands: ACDelco, Mobil 1, Pennzoil
  OEM price range: $40-$80
  Aftermarket price range: $30-$60

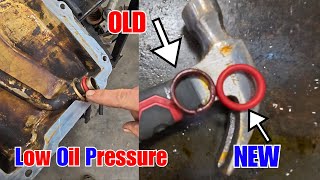

• Oil Pump Pickup Tube O-Ring (OEM #12557752) — On high-mileage engines, this O-ring hardens and cracks, causing low oil pressure that triggers VVT codes. This is a common underlying cause when a new solenoid doesn't fix the issue.
  Trusted brands: Fel-Pro, ACDelco
  OEM price range: $5-$15
  Aftermarket price range: $3-$10

Related Codes That Often Appear With This One

• P0021 — This is the equivalent code for Bank 2 (passenger side). If you swap solenoids for diagnosis and P0011 changes to P0021, you've confirmed a bad solenoid.
• P0010 — This code indicates an electrical circuit malfunction for the same Bank 1 intake actuator. Seeing them together points strongly toward a failed solenoid or a wiring issue.
• P0521 — This code for 'Engine Oil Pressure Sensor/Switch Range/Performance' often appears with P0011 because the VVT system is directly dependent on oil pressure. Seeing both codes reinforces the need to check oil pressure mechanically.
• P0138 — An owner reported seeing this O2 sensor code alongside P0011 in NHTSA ODI #11091993.

Technical Service Bulletins (TSBs) & Recalls

• PIE0295A: Notes that a stuck camshaft position actuator solenoid valve can cause a crank-no-start condition and set code P0011 on related GM V8 engines.
• PIP5258A: Guides technicians to check mechanical oil pressure and the #2 cam bearing if standard diagnostics for P0011 fail to find the root cause. It specifically notes that if all published service information diagnosis is followed without a conclusion, the oil pressure should be verified.
• Bulletin #PIP5258: Provides preliminary information to technicians regarding vehicles with a Service Engine Soon lamp and P0011, advising that if the root cause is not found, the oil pressure at the oil pressure sensor should be checked.

Platform-Specific Known Issues

• A GM Technical Service Bulletin (PIE0295A) was issued for some 2014+ models for a stuck camshaft position actuator solenoid valve causing a crank/no-start condition with P0011, indicating this part is a known issue for GM V8s.
• On high-mileage trucks, a hardened oil pump pickup tube O-ring is a known issue that leads to low oil pressure, which in turn causes VVT-related codes like P0011.
• GM TSB PIP5258A directly addresses P0011. It advises that if standard diagnostics fail, the next step is to check engine oil pressure with a mechanical gauge and inspect the oil pump pickup tube O-ring.

Mechanic-Grade Diagnostic Values

• Engine Oil Pressure at hot idle — expected: At least 20-25 PSI. Failure: Pressure below 20 PSI at hot idle indicates an oiling issue that can starve the VVT system and trigger P0011, even with a good solenoid.
• Engine Oil Pressure at 1,000 RPM — expected: Minimum of 24 PSI. Failure: Pressure below this specification points towards a mechanical oil pressure problem as outlined in GM TSB PIP5258A.
• VVT Solenoid Resistance — expected: 7-12 Ohms. Failure: A reading outside this range, or an open/short circuit, indicates a failed solenoid coil.
• VVT Solenoid Connector Voltage (Key On, Engine Off) — expected: Approximately 12 Volts (battery voltage). Failure: No voltage indicates a wiring or fuse issue upstream of the solenoid.
• Camshaft End Play — expected: Less than 0.40 mm (0.016 in). Failure: Excessive end play, as noted in some GM TSBs for V6 engines with similar issues, can cause timing correlation codes. While not the primary cause for V8s, it's a potential mechanical issue if other causes are ruled out.

Scan Tool Commands That Help

• GDS2 / Tech2: Camshaft Position Actuator Solenoid Test — This bidirectional command allows a technician to manually cycle the VVT solenoid while the engine is running. A functional solenoid and phaser will cause the engine to hesitate or stall. If there is no change in engine operation, it confirms a fault in the solenoid, its circuit, or the oil passages/phaser, helping to pinpoint the failure without swapping parts.

Wiring & Ground Locations

• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This ground serves the Engine Control Module (ECM), among other components. A poor ground at this location can cause erratic sensor readings and incorrect operation of electronically controlled devices like the VVT solenoid, potentially leading to false codes or improper diagnostics.
• ECM/PCM Ground on Engine Block — Part of the main negative battery cable harness, located at the left front of the engine block.. This is the primary ground for the powertrain control module and its sensors. Corrosion or a loose connection here can cause a wide range of engine performance issues and diagnostic codes, including P0011, by disrupting the sensor feedback loop to the computer.

Real Owner Repair Stories

• GM-Trucks.com forum user (2007 GMC Sierra Denali 6.2L with 190,000 miles) — Recurring P0011 code and "Service StabiliTrak" light.
  ❌ Tried (didn't work) Replaced camshaft position sensor, Replaced VVT actuator solenoid (non-OEM), Replaced VVT magnet, Dropped oil pan and replaced oil pickup tube O-ring, Replaced VVT actuator and magnet again with OEM parts, Replaced oil pressure sensor, Replaced brake pedal sensor, Replaced fuel pump
  ✅ What actually fixed it The user's final update indicated that after replacing nearly every related component, the issue persisted, highlighting a scenario where common fixes fail and the problem may be deeper within the wiring or the ECM itself. The user did not post a final confirmed fix after trying all the listed parts.
• NHTSA ODI #11091993 — An owner reported a P0011 code on a truck with 132,678 miles. The vehicle would shift hard into gear after stopping if driven for 2 or 3 miles.
• NHTSA ODI #10980328 — An owner described a P0011 code where the truck shifts hard into second gear. After driving for 2 or 3 miles, the light would go out and the symptoms would resolve.

OEM Part Supersession History

• 12628347, 12578517 → 12655420, then 12679099 — GM often updates parts to improve reliability. Revisions to the solenoid's internal valve and screen design are made to better resist sticking and contamination from oil debris.

Model Year Variations Within This Range

• 2007-2009 vs 2010-2013: The 6-speed 6L80 automatic transmission became more common behind the 5.3L V8 in later years of this generation, improving acceleration and fuel economy compared to the earlier 4-speed 4L60-E. While not directly causing P0011, the transmission type affects the overall powertrain behavior and diagnostic feel.
• 2007+: Variable Valve Timing (VVT) was introduced on Gen IV V8s like the 5.3L and 6.2L during this generation to improve performance and efficiency, making codes like P0011 possible. Earlier, non-VVT engines would not experience this specific fault.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Active Fuel Management (AFM) Lifter Failure 🔴 High — Common on 5.3L and 6.2L engines, especially over 100,000 miles. Can cause misfires, ticking noises, and lead to camshaft damage. (Ref: Multiple TSBs exist, but no widespread recall.)
• Cracked Dashboard 🟡 Low — Extremely common across all GMT900 trucks and SUVs, often cracking near the passenger airbag and instrument cluster surround. A class-action lawsuit was filed but dismissed. (Ref: No recall issued.)
• Excessive Oil Consumption 🟠 Medium — Common on AFM-equipped engines. Can be caused by PCV system issues or piston ring problems, leading to fouled spark plugs and low oil levels. (Ref: TSB 10-06-01-008G addresses oil consumption diagnosis.)
• Failing Oil Pressure Sending Unit 🟠 Medium — The sensor and the small filter screen below it are prone to failure or clogging, causing erratic or zero oil pressure readings on the gauge. This can cause unnecessary owner panic about the engine's health.
• 4L60-E / 6L80 Transmission Issues 🟠 Medium — The 4-speed (pre-2009) and 6-speed transmissions can develop issues like harsh shifting, torque converter shudder, or complete failure, particularly in higher mileage or heavily used trucks.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific code, using used parts is generally not recommended. The primary culprits (solenoid, O-rings, oil) are inexpensive consumable or high-failure items. A used engine assembly from a reputable wrecker could be a cost-effective solution only if the root cause is determined to be catastrophic internal engine failure (e.g., failed cam bearings, severe sludge).

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• When inspecting a potential donor engine, remove the oil fill cap and look inside with a flashlight. Avoid any engine with thick, black, tar-like sludge.
• Ask for the vehicle's history if available; evidence of regular oil changes is a positive sign.
• Check for external oil leaks around valve covers and seals, which can indicate poor maintenance.

OEM-only on this vehicle (don't cheap out):

• Camshaft Position Actuator Solenoid (VVT Solenoid)
• Camshaft Phaser

Aftermarket brands forum-validated for this vehicle:

• Fel-Pro (for gaskets and seals like the oil pump pickup tube O-ring)

Brands owners have reported issues with on this vehicle:

• Unnamed/white-box VVT solenoids from online marketplaces. While Dorman is a common aftermarket brand with mixed reviews, many forum users strongly advise sticking with ACDelco (OEM) for this specific part to avoid repeat failures.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0021 — The Bank 2 equivalent of P0011; often used in diagnostic 'swap tests' to confirm if a VVT solenoid is faulty.
• P0304 — A cylinder 4 misfire code that has been observed to appear alongside P0011, potentially linked to AFM lifter failure.
• P0010 — Relates to the electrical circuit of the same VVT solenoid system.
• P0521 — Often related to oil pressure sensor performance, which is relevant since low oil pressure from a bad pickup tube O-ring is a common cause for P0011.

Frequently Asked Questions
