P0011 on 2017-2020 Lincoln Continental: Camshaft Timing Over-Advanced Causes & Fixes

What's Unique About the 2017-2020 Lincoln CONTINENTAL

The V6 engines in the 2017-2020 Lincoln Continental use a Variable Camshaft Timing (VCT) system that is known to be sensitive to oil quality and cleanliness. The 2.7L and 3.0L EcoBoost variants, in particular, use turbochargers that increase heat and stress on the engine oil, potentially leading to faster breakdown and contamination. Ford and Lincoln have issued multiple Technical Service Bulletins (TSBs) acknowledging that P0011 and related timing codes are frequently caused by small debris in the engine oil, which causes the VCT solenoids to stick. This makes oil-related issues and solenoid failure the most prominent causes for this specific platform, often preceding more severe mechanical timing problems.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or erratic idle
• Poor acceleration and reduced engine power
• Engine hesitation or stalling
• Decreased fuel economy
• Rattling or ticking noise from the engine, especially on cold starts

Most Likely Causes

1. Low or Dirty Engine Oil 🔴 High Probability The VCT system is hydraulically operated and highly sensitive to oil pressure and contamination. Manufacturer TSBs point to debris in the oil as a primary cause for related component failure.
   How to confirm: Check the oil level on the dipstick and inspect its color and consistency. If the oil is low, dark, or past its recommended service interval, this is the first and most important step.
   Typical fix: Perform an engine oil and filter change using the manufacturer-specified full synthetic oil and a quality Motorcraft filter. Clear the codes and test drive to see if the P0011 code returns.
   Est. part cost: $50-$100
2. Sticking/Failing VCT Solenoid 🔴 High Probability Manufacturer TSBs #SSM 48423 and #SSM 47170 directly state that P0011 can be caused by 'small debris causing the VCT solenoid to stick.' The solenoids have fine mesh screens that are easily clogged by oil contaminants.
   How to confirm: After verifying oil condition, use a scan tool to monitor desired vs. actual cam timing and to command the solenoid on and off per TSB #SSM 48423. A lack of response indicates a problem. The solenoid can also be removed and inspected for debris or tested for resistance (typically 7-15 ohms).
   Typical fix: Replace the Bank 1 intake VCT solenoid. On the V6 engines, Bank 1 is the rear bank, which requires removing the intake manifold for access, significantly increasing labor time and cost compared to the front bank (Bank 2).
   Est. part cost: $40-$120
3. Worn Timing Components (Cam Phaser, Timing Chain) ⚪ Low Probability While less common than oil or solenoid issues on this specific platform, the EcoBoost engines can experience wear on cam phasers, which can cause a distinct rattling noise on startup and lead to timing codes.
   How to confirm: This is a more advanced diagnosis. A distinct rattling noise from the engine on cold starts that lasts for a few seconds is a strong indicator of phaser problems. A mechanic will need to perform a physical inspection of the timing components, which is labor-intensive.
   Typical fix: Replace the worn timing components, which may include the cam phasers, timing chain, guides, and tensioners.
   Est. part cost: $500-$1500
4. Faulty Camshaft Position Sensor ⚪ Low Probability → Shop Engine Camshaft Position Sensor
   How to confirm: A scan tool can be used to observe the data from the sensor. If the signal is erratic or absent, the sensor itself may be faulty. However, this is less common than a solenoid or oil issue and would often be accompanied by a specific sensor circuit code.
   Typical fix: Replace the Bank 1 intake camshaft position sensor.
   Est. part cost: $30-$80

Rare But Worth Checking

• Wiring Issues: Check the wiring harness and connector for the VCT solenoid and camshaft position sensor for any damage, corrosion, or loose connections before replacing parts.
• PCM Fault: A fault in the Powertrain Control Module is extremely rare but can be a cause if all other diagnostic steps have been exhausted.

Diagnosis Steps

1. Verify the engine oil level and condition. If low, dirty, or the wrong viscosity, perform an oil and filter change with the correct full synthetic oil and a Motorcraft filter.
2. Use an OBD-II scanner to check for any other pending or active trouble codes.
3. With a capable scan tool, follow the procedure in TSB #SSM 48423: use the bidirectional controls to cycle the Bank 1 intake VCT solenoid 10 times to attempt to clear any debris.
4. Monitor the live data for desired vs. actual camshaft position for Bank 1. A significant discrepancy that doesn't correct itself after cycling the solenoid points to a problem.
5. Inspect the wiring and connector for the Bank 1 intake VCT solenoid and camshaft position sensor for any signs of damage or corrosion.
6. If the solenoid is suspected and accessible, a good diagnostic step is to swap the Bank 1 intake solenoid with the Bank 1 exhaust solenoid (if identical). Clear the codes and see if the fault changes to a P0014 code. If it does, the solenoid is faulty. (Note: This is difficult for Bank 1 on this vehicle due to location).
7. If solenoids and sensors test good, listen for a cold-start rattle which could indicate worn cam phasers or a stretched timing chain.
8. If mechanical issues are suspected, a professional should inspect the timing components.

Parts You'll Likely Need

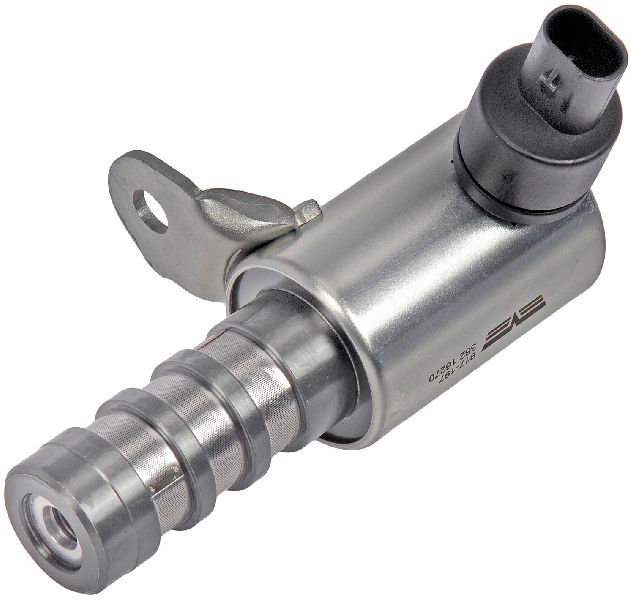

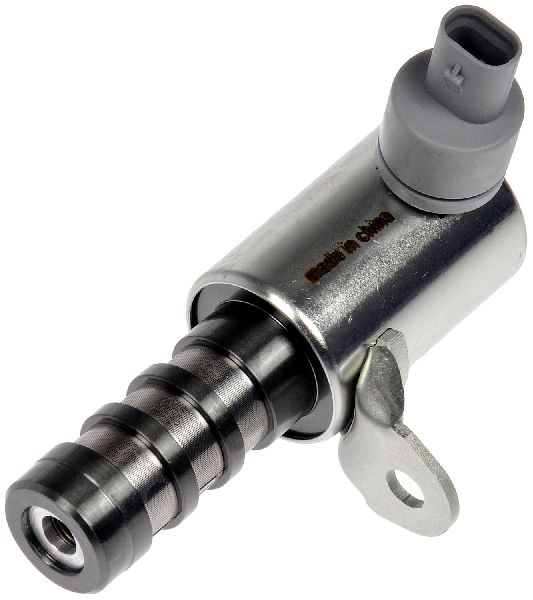

• Engine Variable Valve Timing (VVT) Solenoid (OEM #3.7L Ti-VCT: AT4Z-6M280-A or AT4Z-6M280-B | 2.7L/3.0L EcoBoost: FT4Z-6M280-D) — This is the most common point of failure, as confirmed by multiple manufacturer TSBs. It gets stuck due to debris in the oil, preventing proper camshaft timing adjustment.
  Trusted brands: Motorcraft, Standard Motor Products (SMP), Dorman
  OEM price range: $60-$120
  Aftermarket price range: $30-$70
• Engine Oil and Filter (OEM #XO-5W30-QFS (5W-30 Full Synthetic) & FL-500S (Filter)) — The VCT system is entirely dependent on clean oil at the correct pressure. An oil change is the first diagnostic step and a required part of preventative maintenance.
  Trusted brands: Motorcraft, Mobil 1, Valvoline
  OEM price range: $60-$100
  Aftermarket price range: $40-$80
• Intake Manifold Gaskets — Required when replacing the Bank 1 (rear) VCT solenoids, as the intake manifold must be removed to gain access.
  Trusted brands: Motorcraft, Fel-Pro, Mahle
  OEM price range: $40-$80
  Aftermarket price range: $20-$50

Related Codes That Often Appear With This One

• P0012 — This code is for 'A' Camshaft Position - Timing Over-Retarded (Bank 1), indicating the opposite problem but related to the same VCT system components.
• P0021 — This is the same 'Timing Over-Advanced' code but for Bank 2. Seeing both codes together could point to a systemic issue like low oil pressure or widespread contamination.
• P0016 — This code indicates a Crankshaft/Camshaft Position Correlation error. When seen with P0011, it can point more strongly toward a mechanical timing issue like a stretched timing chain.

Technical Service Bulletins (TSBs) & Recalls

• SSM 54366
• SSM 48423
• SSM 47170
• SSM 49821

Platform-Specific Known Issues

• TSB SSM 48423 and SSM 47170: Both bulletins state that for some 2015-2020 Ford and Lincoln vehicles, DTCs including P0011 may be present due to 'small debris causing the VCT solenoid to stick…'.
• TSB SSM 54366: A later bulletin covering 2015-2021 models also lists P0011 and refers to a specific pinpoint test in the workshop manual, indicating this is a persistent and well-documented issue.

Mechanic-Grade Diagnostic Values

• VCT Solenoid Internal Resistance — expected: 7 to 15 Ohms. Failure: A reading outside this range (open circuit or shorted) indicates a faulty solenoid coil.
• VCT Solenoid Connector Voltage (Key On, Engine Off) — expected: One pin should show battery voltage (approx. 12V).. Failure: No voltage suggests a wiring or fuse issue upstream of the solenoid.
• Scan Tool PID: VCTADV_ERR (VCT Advance Error) — expected: Should hover around 0 degrees at idle and during steady-state driving.. Failure: A consistent, large value (e.g., more than +/- 5 degrees) indicates the PCM's commanded position does not match the actual position, which is the definition of this fault.
• Scan Tool PID: VCTDC (VCT Duty Cycle) — expected: The PCM will vary the duty cycle to control oil flow. The value itself is less important than seeing if it changes with engine RPM and load.. Failure: A static duty cycle percentage when the PCM is trying to command changes, or a duty cycle that is maxed out (e.g., 99%) without a corresponding change in cam angle, can indicate a stuck solenoid or mechanical issue.

Hidden / Shadow Codes Worth Checking

• Mode 6, TID $83, CID $01-$04: Mode 6 data can reveal the raw test results from the PCM's last VCT system monitor. It may show a test value that is close to the failure threshold, even if a DTC has not been set yet. This is for advanced diagnosis. (see via A professional scan tool with Mode 6 capabilities is required. The specific Test ID (TID) and Component ID (CID) can vary by year and software calibration.)

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): VCT Solenoid Bidirectional Control / Output State Control — This is the dealer-level tool function mentioned in TSBs. It allows a technician to command the VCT solenoid on and off (or to a specific duty cycle) while the engine is running to see if it responds. A change in idle quality or stalling when commanded confirms the solenoid is mechanically working. This can help differentiate a wiring/PCM issue from a stuck solenoid.
• Ford IDS (Integrated Diagnostic System): Datalogger with Histogram — When diagnosing an intermittent P0011, a technician can use the datalogger to record VCT PIDs (like VCTADV_ERR) during a test drive. The histogram function can then graphically display any anomalies or spikes in timing error that occurred, helping to pinpoint the exact conditions under which the fault happens.

Wiring & Ground Locations

• VCT Solenoid Connector — The connector plugs directly into the top of the VCT solenoid, which is inserted through the valve cover. For Bank 1 (rear bank), this is under the intake manifold.. This 2-pin connector provides power and the PCM-controlled ground to the solenoid. Check for corrosion, pushed-out pins, or damage to the harness where it may rub against other components.
• Engine Block Ground — There are multiple ground straps from the engine block/cylinder head to the chassis. A common location is a braided strap from the back of a cylinder head to the firewall.. The PCM and its sensors rely on a clean and solid ground reference. A poor engine ground can introduce electrical noise and voltage offsets, potentially causing the PCM to misinterpret sensor readings and trigger false codes.

OEM Part Supersession History

• FT4Z-6M280-A → FT4Z-6M280-B, FT4Z-6M280-D — Part revision and improvement by the manufacturer. Newer versions often have improvements to address known failure modes like sticking or screen durability.
  Heads up: FT4Z-6M280-D is the latest revision for the 2.7L/3.0L EcoBoost. While older versions may fit, it is always recommended to use the latest superseded part number for the most updated design.
• AT4Z-6M280-A → AT4Z-6M280-B — Part revision for the 3.7L Ti-VCT engine.
