P0011 on 2015-2016 Volkswagen Beetle: Causes, Symptoms, and Fixes

What's Unique About the 2015-2016 Volkswagen BEETLE

The EA888 engine in your Beetle relies heavily on clean engine oil and correct oil pressure for its hydraulic variable valve timing system. These engines are known for the Camshaft Adjuster Magnet (solenoid) and its internal control valve becoming clogged with oil sludge or debris. This issue is often attributed to extended 10,000-mile oil change intervals, which can lead to oil degradation. While timing chain tensioner issues were a major problem on prior VW engines (Gen 1/2 EA888), for the 2015-2016 models with the Gen 3 engine, this less-expensive solenoid is a more common culprit for P0011. A known issue on these engines is the potential for a small oil screen in the camshaft bearing bridge to break apart, which can send debris into oil passages and clog the VVT solenoids.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough, surging, or erratic idle, especially when warm or coming to a stop
• Engine hesitation or stalling
• Reduced engine power and poor acceleration
• Noticeably worse fuel economy
• Rattling noise from the passenger side of the engine on startup, which could indicate a timing chain tensioner or guide issue

Most Likely Causes

1. Faulty Camshaft Adjuster Magnet (N205) or Clogged Oil Control Valve 🔴 High Probability → Shop Engine Camshaft The VVT system's external magnet and internal spool valve are highly sensitive to oil contamination. Sludge or debris can cause the internal pin on the magnet to stick or the spool valve to bind, preventing correct camshaft adjustment.
   How to confirm: A common and effective diagnostic trick is to unplug the electrical connector on the magnet while the engine is idling roughly. 🎬 Watch: See this diagnostic trick in action to confirm the fault. If the idle immediately smooths out, the solenoid/valve assembly is almost certainly the problem, as unplugging it forces the cam timing to a default, non-advanced position.
   Typical fix: Replace the Camshaft Adjuster Magnet and clean or replace the internal Oil Control Valve. The internal valve is reverse-threaded (lefty-tighty, righty-loosey) and requires a special splined tool for removal.
   Est. part cost: $40-$100
2. Low, Dirty, or Incorrect Viscosity Engine Oil 🔴 High Probability The entire VVT system is hydraulic and depends on proper oil pressure and cleanliness. Extended oil change intervals can lead to sludge that clogs the small passages and screens in the VVT solenoids and phasers.
   How to confirm: Check the oil level on the dipstick and review vehicle maintenance records. If the oil is dark, low, or the change interval is unknown, this should be your first step. Many owners report the P0011 code appearing immediately after an oil change, suggesting sensitivity to the process or oil type.
   Typical fix: Perform an engine oil and filter change using a high-quality full synthetic oil that meets VW 502 00 specification. Consider using an engine flush product like Liqui Moly before the oil change to help clear sludge.
   Est. part cost: $50-$90
3. Stretched Timing Chain or Failed Tensioner 🟡 Medium Probability → Shop Engine Timing Chain While the Gen 3 EA888 has an improved tensioner design, the timing chain can still stretch over time, causing the camshafts to go out of sync with the crankshaft. This is a more serious and expensive repair.
   How to confirm: Using a diagnostic scan tool like VCDS or OBDeleven, check the advanced measuring value for "Camshaft adaptation intake bank 1: phase position". A value between 0° and -4° is generally considered healthy. As the value approaches -5° or more, it indicates significant chain stretch requiring replacement. 🎬 Watch: How to check your timing chain stretch using a scan tool. A physical inspection of the tensioner extension through the inspection port on the lower timing cover is the definitive check; if seven or more teeth are visible, replacement is needed.
   Typical fix: Replacement of the timing chain, tensioner, and all related guides and rails. This is a labor-intensive job.
   Est. part cost: $400-$800

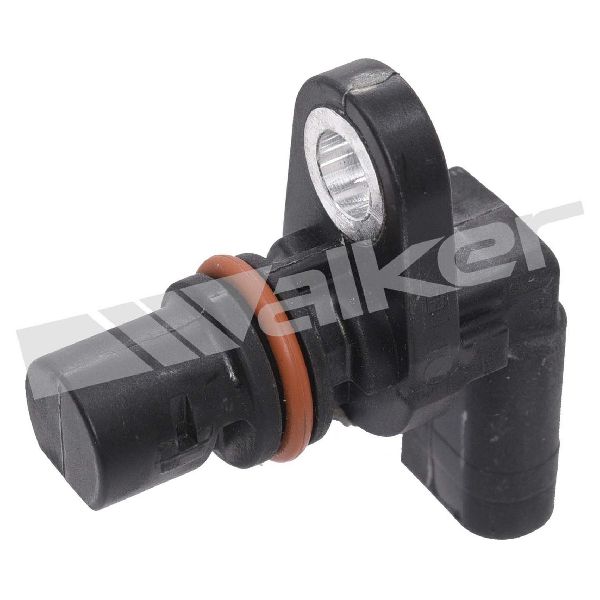

4. Faulty Camshaft Position Sensor (G40) ⚪ Low Probability → Shop Engine Camshaft Position Sensor
   How to confirm: This sensor can fail, but it will often be accompanied by a specific sensor circuit code like P0341. If only P0011 is present, the sensor is less likely to be the root cause, as the timing system itself is reporting a performance issue, not a sensor signal issue.
   Typical fix: Replace the camshaft position sensor.
   Est. part cost: $30-$70

Rare But Worth Checking

• Worn Camshaft Bearing Bridge: TSB 15-17-01 (which supersedes 15-16-03) notes that wear on the camshaft bearing bridge can cause axial movement of the camshaft, leading to P0011 and P0016 codes. A broken oil screen in the bridge can also send debris into the oil control valve.

Diagnosis Steps

1. Check the engine oil level and condition. If low, dirty, or overdue for a change, perform an engine oil and filter change using VW 502 00 specification synthetic oil. Clear the code and test drive.
2. If the code returns and the engine idles roughly, locate the Camshaft Adjuster Magnet (N205) on the upper timing cover on the passenger side of the engine. While the engine is running and idling poorly, unplug its two-pin electrical connector. If the idle immediately smooths out, the VVT magnet/valve is faulty.
3. Turn off the engine. Replace the Camshaft Adjuster Magnet (held by three T30 bolts).
🎬 See this walkthrough for replacing the magnet and solenoid.
4. Using a special splined tool (like CTA Tools 1095), remove the internal Oil Control Valve. Remember it is REVERSE-threaded (turn clockwise to loosen). Clean it thoroughly with brake cleaner or replace it.
5. Reassemble, clear the codes, and perform a test drive.
6. If the code persists, use a scan tool (VCDS, OBDeleven) to check 'Camshaft adaptation intake bank 1: phase position'. If the value is near or exceeds -5 degrees, the timing chain has likely stretched.
7. For definitive confirmation, have a professional physically inspect the timing chain tensioner's extension through the inspection port. If 7+ teeth are showing, the chain kit needs replacement.
8. As a final, less likely step, consider replacing the Camshaft Position Sensor, especially if code P0341 is also present.

Parts You'll Likely Need

• Camshaft Adjuster Magnet (OEM #06L109259D) — This is the most common failure point for P0011 on this engine. It gets clogged with sludge, and the internal pin sticks, failing to properly actuate the timing adjustment. Part number 06L109259D is a newer revision that supersedes older versions like 06L109259A and 06J109259A.
  Trusted brands: Volkswagen (OEM), INA (OEM Supplier), Bosch
  OEM price range: $60-$90
  Aftermarket price range: $30-$60
• Engine Oil and Filter — Clean, correct-viscosity oil is critical for the VVT system's operation. An oil change with VW 502 00 spec oil is the first and most important step in diagnosis and repair.
  Trusted brands: Liqui Moly, Motul 8100 X-cess, Castrol EDGE Euro Car
  OEM price range: $70-$100
  Aftermarket price range: $50-$80
• Camshaft Oil Control Valve (OEM #06H109257C) — This internal valve, actuated by the magnet, gets clogged with debris and sticks. It is often replaced along with the magnet. It requires a special reverse-thread tool to remove.
  Trusted brands: Volkswagen (OEM), INA
  OEM price range: $25-$40
  Aftermarket price range: $15-$30

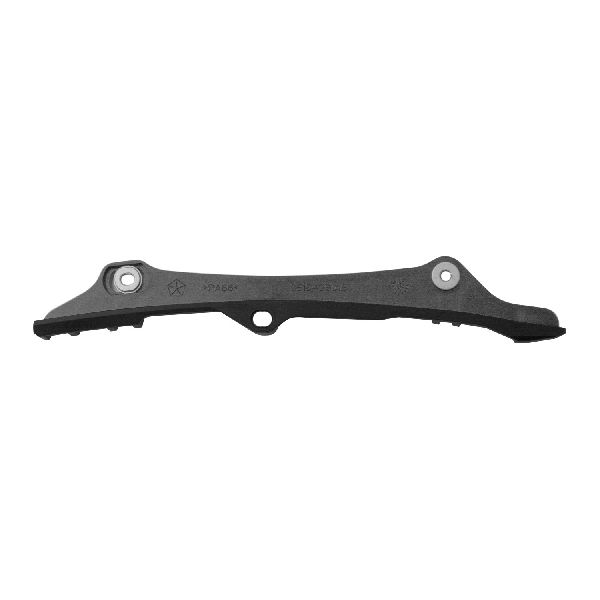

• Timing Chain Kit (OEM #06K109158BS (example kit)) — If the diagnostic value for camshaft adaptation exceeds -5 degrees, or the tensioner shows excessive extension, the chain has stretched and requires replacement along with its guides and tensioner to prevent catastrophic failure.

Related Codes That Often Appear With This One

• P0016 — This code indicates a Crankshaft/Camshaft Position Correlation error. It often appears with P0011 because if the cam is over-advanced, its position will not correlate correctly with the crankshaft's position. Both TSBs mention these codes appearing together.
• P0341 — This code points to an issue with the Camshaft Position Sensor 'A' Circuit Range/Performance. It can appear if the sensor itself is failing or if a mechanical timing issue (like a stretched chain) is causing erratic readings that the ECU flags as a sensor performance problem.
• P000A — This code for 'A' Camshaft Position Slow Response often points to a hydraulic issue like a clogged N205 solenoid, debris in the cam phaser, or low oil pressure, which are all root causes for P0011 as well.
• P0300, P0301, P0302, P0303, P0304 — Random or specific cylinder misfire codes can accompany P0011. The incorrect camshaft timing disrupts the air/fuel mixture and ignition timing, leading to incomplete combustion and misfires, particularly at idle.

Technical Service Bulletins (TSBs) & Recalls

• VIN-4-A-PIN APRI: Mentions MIL-ON with fault P0011 and/or P0016 in the ECM.
• TB011603 / V151603: Notes a MIL on with camshaft position faults P0011 and/or P0016 stored in memory. It was later superseded by TSB 15-17-01 (2045939).
• TSB 15-17-01 (2045939): Supersedes the earlier bulletin. Details a procedure to inspect for a worn camshaft bearing bridge as a cause for P0011/P0016, which can cause axial camshaft movement. Recommends replacing the bridge and intake cam if damage is found.

Platform-Specific Known Issues

• The NHTSA has documented Technical Service Bulletins (TSBs) for 2015-2016 VW models that explicitly mention P0011 and/or P0016. TSB 15-17-01 points to a potential issue with a worn camshaft bearing bridge causing these faults, requiring inspection and possible replacement of the bridge and intake camshaft.

Mechanic-Grade Diagnostic Values

• Camshaft Adjuster Magnet (N205) internal resistance — expected: 10 - 18 Ω. Failure: A reading outside of this range indicates a faulty solenoid.
• Camshaft Adjuster Magnet (N205) internal resistance (alternative source) — expected: 5 - 15 Ω. Failure: A reading outside of this range suggests the solenoid should be replaced.
• VCDS Measuring Block 093 - Camshaft Adjustment, Intake, Bank 1 — expected: Phase position should be between 0° and -4° at warm idle.. Failure: A value approaching or exceeding -5° (e.g., -5.2°, -6.0°) indicates significant timing chain stretch.
• Voltage supply to N205 solenoid connector — expected: Battery voltage should be present at the power supply pin with the ignition on.. Failure: No voltage indicates an open or short in the supply wire from the fuel pump relay (J17) or main relay.

Scan Tool Commands That Help

• VCDS (VAG-COM): Engine -> Basic Settings -> Group 094 (or dropdown menu 'Camshaft Adjustment Intake') — Use this test with the engine warm and idling to command the VVT system through its range of motion. The final field will display a result like 'Syst. OK' if the adjuster, solenoid, and oil pressure are able to achieve the specified positions. A failure here points to a mechanical or hydraulic issue.
• VCDS (VAG-COM): Engine -> Output Tests -> Camshaft Adjustment Valve 1 (N205) — This test directly actuates the N205 solenoid, causing it to click. It's used to confirm the solenoid's electrical circuit and electromagnet are functioning. If you hear it click but the P0011 code persists, the problem is likely hydraulic (clogged valve, oil pressure) or mechanical (phaser, chain).
• OBDeleven: Engine -> Output test -> Intake camshaft adjustment valve — Similar to the VCDS output test, this command will cycle the N205 solenoid. It is a quick way to verify if the solenoid is receiving the command from the ECU and is electrically functional.

Wiring & Ground Locations

• GND 15 (1.8L) — On top of the cylinder head, near the ignition coils.. A poor ground at this location can affect various engine sensors and actuators, potentially causing erratic signals or insufficient power for components like the N205 solenoid.
• GND 32 (ECM) — In the center plenum area, located below the Engine Control Module (ECM).. This is the primary ground for the ECM. A corroded or loose connection here can cause a wide range of unpredictable engine management faults, including timing control codes like P0011.
• GND 2 — On top of the transmission, near the engine block.. This is a main engine-to-body ground. A weak connection here can create grounding issues for the entire engine block and all components grounded to it.

Real Owner Repair Stories

• Golfmk6.com forum user (VW GTI with EA888 engine (shared architecture)) — P0011 code appeared immediately after a timing chain replacement.
  ❌ Tried (didn't work) Verifying mechanical timing was perfectly in spec., Replacing the N205 magnet., Replacing the internal N205 control valve.
  ✅ What actually fixed it The issue was related to the car having a Stage 2 ECU tune that was programmed when the old, stretched chain was installed. The ECU's adapted values were incorrect for the new, properly timed chain. Resetting the ECU via a capacitive discharge (disconnecting battery and touching terminals together) or reflashing the tune resolved the code.
• YouTube video by Onyx Performance (2018 Audi S3 (EA888 Gen 3 engine)) — Rough idle, juddering, felt like a misfire or about to stall, especially at traffic lights. Eventually threw code P0011.
  ❌ Tried (didn't work) Upgrading spark plugs., Replacing ignition coils., Removing ECU tune and returning to stock software.
  ✅ What actually fixed it Replacing both the intake and exhaust camshaft adjuster magnets (solenoids) finally solved the problem. The video emphasizes that this should be one of the first steps for these symptoms, before more expensive diagnostics.

OEM Part Supersession History

• 06L109259A, 06J109259A → 06L109259D — Updated design to improve reliability and resistance to sticking from oil contamination.
  Heads up: When replacing the older 06J109259A part number, the electrical connector may also need to be updated to the newer style, part number 4H0973702A.
