P0011 on 2015-2016 Volkswagen Golf: Causes and Fixes for Over-Advanced Camshaft Timing

What's Unique About the 2015-2016 Volkswagen GOLF

The 2015-2016 Golf models primarily use the EA888 Gen 3 engine (1.8T and 2.0T). This engine's variable valve timing system is hydraulically operated and known for being sensitive to oil quality and pressure. While the timing chain system was improved over previous generations, a common failure point that triggers a P0011 code is the Camshaft Adjuster Magnet (N205 solenoid), which controls oil flow to the camshaft phaser. A quick diagnostic trick shared by owners is to unplug the N205 solenoid while the engine is idling poorly; if the idle stabilizes, the solenoid is almost certainly the culprit.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough idle or engine shaking, sometimes described as a 'loping' or 'cammed' sound
• Poor acceleration and loss of power
• Engine stalling, especially when coming to a stop
• Increased fuel consumption
• Rattling or ticking noise from the engine, particularly on cold starts or deceleration

Most Likely Causes

1. Low, Dirty, or Incorrect Viscosity Engine Oil 🔴 High Probability The EA888's hydraulic VVT system is highly dependent on clean oil of the correct specification (VW 502 00) to function properly. Sludge or incorrect viscosity can restrict oil flow and cause the camshaft phasers to respond slowly or get stuck.
   How to confirm: Check the oil level on the dipstick and inspect its color and consistency. Verify the last oil change date and the type of oil used. Some owners report the P0011 code appearing immediately after an oil change, suggesting sensitivity to oil filter or level variations.
   Typical fix: Perform an engine oil and filter change using a VW-approved full-synthetic oil and a quality filter. Clear codes and test drive.
   Est. part cost: $50-$100
2. Failed Camshaft Adjuster Magnet (N205 Solenoid) 🔴 High Probability → Shop Engine Camshaft This solenoid is a well-documented failure point on the EA888 engine family. It can get clogged with debris, the internal pin can stick, or it can fail electrically, preventing proper oil flow to the cam phaser.
   How to confirm: Use a scan tool to monitor requested vs. actual cam position. A simple, effective field test is to unplug the solenoid's electrical connector while the engine is idling roughly. If the idle smooths out, the solenoid is faulty. Visually, the center pin should move freely; if it's sticky, it's bad.
   Typical fix: Replace the Camshaft Adjuster Magnet. It is held on by three T30 Torx bolts and is accessible on the passenger side of the engine.
   Est. part cost: $50-$150
3. Stretched Timing Chain or Failed Tensioner 🟡 Medium Probability → Shop Engine Timing Chain While the Gen 3 EA888 engine has an improved timing chain tensioner design over previous generations, chain stretch and tensioner failure are still possible, especially at higher mileage or with poor maintenance. A stretched chain causes a deviation between the camshaft and crankshaft, triggering P0011, often accompanied by P0016.
   How to confirm: A technician can use a scan tool (like VCDS) to check the camshaft adaptation phase value in measuring blocks. A value exceeding -5 degrees is a strong indicator of a stretched chain. Physical inspection of the tensioner's extension via the inspection port is the definitive method.
   Typical fix: Replace the timing chain, tensioner, and all related guides. This is a labor-intensive job requiring specialized tools.
   Est. part cost: $300-$700
4. Failed Camshaft Position Sensor (G40) ⚪ Low Probability → Shop Engine Camshaft Position Sensor Less common than a solenoid failure, but the sensor that reads the camshaft's position can fail and send incorrect data to the ECM. This can sometimes be the root cause, though it's often misdiagnosed.
   How to confirm: Monitor the sensor's output with a scan tool for erratic readings. Check for other codes like P0341. 🎬 See how to fix rough idle and stalling issues. Some owners have fixed the issue by replacing this sensor after a solenoid replacement didn't work.
   Typical fix: Replace the camshaft position sensor.
   Est. part cost: $30-$80

Rare But Worth Checking

• Worn Camshaft Bearing Bridge / Camshaft Bracket: → Shop Engine Camshaft VW Technical Service Bulletin 2045741/4 (which supersedes V151701/TB-15-17-01) addresses P0011 and P0016 codes caused by a worn camshaft bearing bridge (also called the camshaft bracket). Scoring on the bridge from debris can cause an oil pressure leak, starving the phaser. The fix involves replacing the camshaft bracket and, in some cases, the camshaft itself.
• Clogged or Sticking Camshaft Control Valve (Spool Valve): → Shop Engine Camshaft This valve sits inside the camshaft, behind the N205 solenoid. It can become clogged with sludge or debris, restricting oil flow. It can often be removed and cleaned with brake cleaner, but removal requires a special tool (like VW tool T10352/1A) and is reverse-threaded (turn right to loosen).

Diagnosis Steps

1. Verify engine oil level and condition. If low, dirty, or overdue for a change, replace the oil and filter with VW 502 00 specification products and clear the codes.
2. Scan the ECM for any other fault codes. Note if P0016 or P052A are present, as this provides important context.
3. If the engine is idling roughly, perform a quick field test: unplug the electrical connector for the Camshaft Adjuster Magnet (N205). If the idle stabilizes, the N205 solenoid is faulty and should be replaced.
4. Inspect the electrical connector and wiring for the N205 solenoid for any damage, corrosion, or oil contamination.
5. Using a capable scan tool (like VCDS), monitor the requested vs. actual camshaft position angles (e.g., Measuring Block 93). A significant, persistent deviation points to a mechanical or hydraulic issue.
6. Remove and inspect the N205 solenoid. Check that its internal pin moves freely and the screens are clean. Given its high failure rate, replacing it is a common and logical next step.
7. If the code returns, remove and inspect the spool valve located behind the N205 solenoid. This requires a special reverse-thread tool. 🎬 Watch: POV guide on replacing the camshaft control valves. Clean it thoroughly with brake cleaner or replace it.
8. If the problem persists, especially if P0016 is also present, investigate mechanical timing. Use a scan tool to check camshaft adaptation values for chain stretch. A value over -5 degrees suggests a new chain is needed.
9. As a final step for persistent issues, inspect the camshaft bearing bridge for scoring or wear as described in VW TSB 2045741/4.

Parts You'll Likely Need

• Camshaft Adjuster Magnet (VVT Solenoid) (OEM #06L109259D (supersedes 06L109259A, 06H109259A, 06H109259C)) — This solenoid controls oil flow for the VVT system and is the most common failure part for a P0011 code on the EA888 engine. It gets stuck or clogged.
  Trusted brands: Volkswagen (Genuine OEM), INA (OEM Supplier), Febi Bilstein
  OEM price range: $100-$150
  Aftermarket price range: $45-$90
• Engine Oil and Filter Kit — Incorrect or degraded oil is a primary cause of VVT system faults. Using the correct VW 502 00 spec oil is critical for proper hydraulic function.
  Trusted brands: Liqui Moly, Motul, Castrol EDGE
  OEM price range: $70-$100
  Aftermarket price range: $50-$80

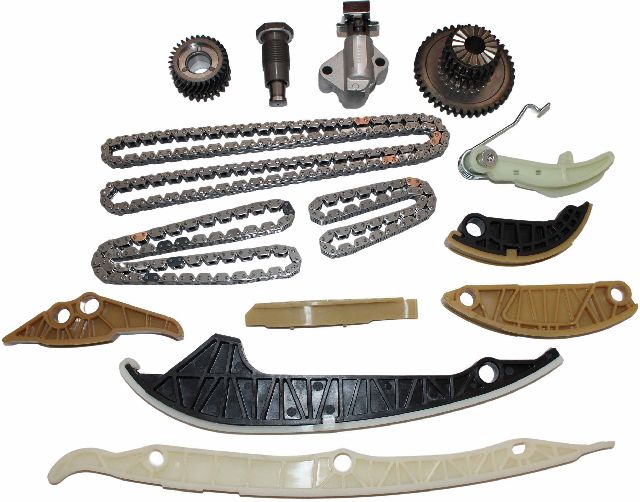

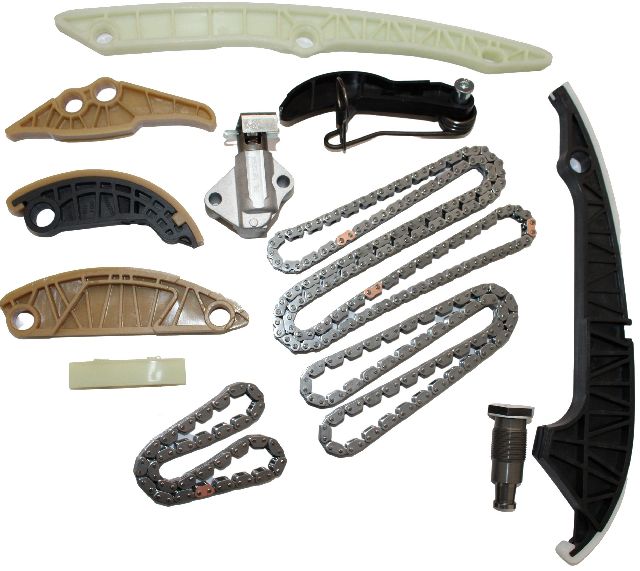

• Timing Chain Kit — If the timing chain has stretched or the tensioner has failed, a complete kit is required to restore correct engine timing. This is a more severe and less common cause than the solenoid.

Related Codes That Often Appear With This One

• P0016 — Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A). This code is frequently seen with P0011 because if the camshaft is over-advanced, its position will not correlate correctly with the crankshaft's position. This combination strongly points to a mechanical timing issue like a stretched chain or a problem with the camshaft bearing bridge.
• P0341 — Camshaft Position Sensor 'A' Circuit Range/Performance. This code can appear if the sensor itself is failing or if the timing is so far off that the sensor's readings are outside the expected range.
• P052A — Cold Start 'A' Camshaft Position Timing Over-Advanced. This is a more specific version of P0011 that indicates the fault is primarily happening during cold starts, which can point to oil viscosity issues or a sticky solenoid/spool valve before the engine warms up.

Technical Service Bulletins (TSBs) & Recalls

• VIN-4-A-PIN APRI: 'MIL-ON, FAULT P0011 AND/OR P0016 IN THE ECM'
• TB011603: 'MIL on camshaft position faults P0011 and/or P0016 stored in fault memory.'
• VW TSB 2045741/4: Addresses P0011/P0016 caused by a worn camshaft bearing bridge leading to oil pressure loss at the phaser. This is an updated version of older TSBs on the same topic.

Platform-Specific Known Issues

• The NHTSA-cited Technical Service Bulletin #VIN-4-A-PIN APRI notes that fault code P0011 can appear in conjunction with P0016 on these vehicles.
• The NHTSA-cited Technical Service Bulletin #TB011603 specifically calls out P0011 and/or P0016 as 'camshaft position faults'.
• A forum user on GOLFMK7.com with a 2019 Golf R experienced a 'loping' idle and threw P0011 and P0016 codes. The fix was replacing the camshaft adjuster magnet and cleaning the VVT oil control valve (spool valve) behind it.
• A Reddit user with a 2016 Golf TSI reported getting a P0011 code immediately after an oil change, with no other symptoms. The code did not return after being cleared, suggesting a temporary oil pressure fluctuation or sensor sensitivity.
• A user on the VWROC forum with a Golf R reported a P0011 code along with an 'ACC and Front Assist not available' message, showing how engine faults can sometimes impact other vehicle systems.

Mechanic-Grade Diagnostic Values

• Camshaft Adjuster Magnet (N205) Internal Resistance — expected: 10 - 18 Ω. Failure: A reading outside of this range indicates a faulty solenoid.
• VCDS Camshaft Adaptation Phase Value (Chain Stretch) — expected: Between 0° and -4.9°. Failure: A value exceeding -5° is a strong indicator of a stretched timing chain requiring replacement.
• VCDS Camshaft Adjustment; Actual vs. Specified Value — expected: Actual value should closely match the specified value at idle and under load.. Failure: A persistent deviation greater than +/- 5 degrees between the actual and specified values points to a hydraulic or mechanical fault (solenoid, spool valve, phaser, oil pressure).

Scan Tool Commands That Help

• VCDS (VAG-COM): Output Test: Camshaft Adjustment Valve (N205) — Use this function in the Engine (01) controller to manually activate the N205 solenoid. You should hear an audible click from the solenoid, confirming the electrical circuit and the solenoid's basic function. This helps isolate a wiring problem from a stuck mechanical component.
• VCDS (VAG-COM): Basic Settings: Camshaft Adjustment (Intake) — Found in Engine (01) controller, typically in Group 094. With the engine warm and idling, activating this test commands the system to perform a self-test of the cam phasing mechanism. The ECU will raise the RPM and attempt to adjust timing. A result of 'Syst. OK' indicates the hydraulic system is responding correctly. A failure points to a hydraulic issue (oil pressure, clogged passages, spool valve, phaser).

Wiring & Ground Locations

• Engine Block Ground — A primary ground strap connects the battery to the body, and another connects the engine/transmission to the chassis. On the Mk7 platform, a key ground point is on the cylinder head itself.. The Camshaft Position Sensor (G40) and the Camshaft Adjuster Magnet (N205) rely on a solid ground connection to function correctly. A corroded or loose engine ground can cause erratic sensor readings or improper solenoid operation, potentially triggering a P0011 code without any component being faulty.
• N205 Solenoid Connector — A 2-pin connector on the Camshaft Adjuster Magnet, located on the upper timing cover on the passenger side of the engine.. One pin receives a 12V supply from the fuel pump relay, while the other is a duty-cycled ground signal from the ECM. Checking for 12V with the key on (or during starter cranking) at one pin is a critical diagnostic step. The connector itself can become contaminated with oil, leading to a poor connection.

Real Owner Repair Stories

• Ross-Tech Forums user (2017 Golf Alltrack 1.8TSI (CXBB Engine) with aftermarket tune) — P0011 and P0016 codes stored. An odd noise during deceleration and low RPM acceleration, sounding like a diesel or lifter noise, which would disappear at higher RPM. VCDS logging showed a 30-degree deviation between commanded and actual cam angle.
  ❌ Tried (didn't work) Checked timing, which was in spec., Inspected cam bearing bridge (no screens present)., Performed a fresh oil and filter change., Cleaned and reinstalled the N205 solenoid and spool valve., Ran VCDS Basic Settings test for cam adjustment, which failed when oil temp was >50°C.
  ✅ What actually fixed it The user suspected an oil delivery issue. By disconnecting the N428 oil pressure regulator valve to force high oil pressure, the VCDS cam adjustment test passed. This indicated the root cause was related to the engine's self-regulating oil pump not providing sufficient pressure under certain conditions, even without a low oil pressure fault code being stored. The next diagnostic step was to verify oil pressure with a mechanical gauge.
• Reddit r/MechanicAdvice user (2016 VW Golf TSI, 115,000km) — Check engine light with pending P0011 code. No noticeable drivability issues other than cruise control occasionally deactivating.
  ❌ Tried (didn't work) An early oil change was performed, which made the light go away temporarily, but it returned as a pending code after 500km.
  ✅ What actually fixed it The user was advised by a mechanic friend that the issue was likely the cam adjuster solenoid (N205) or the spool valve behind it, as these are common failure points on the engine that are sensitive to oil condition but can fail on their own. The temporary fix from the oil change pointed towards a hydraulic control issue, with the solenoid being the prime suspect.

OEM Part Supersession History

• 06L109259A, 06H109259A, 06H109259C → 06L109259D, and later 06L109259E — Revisions to improve reliability and prevent sticking or electrical failure of the solenoid.
  Heads up: The latest part number (06L109259D or E) is the recommended replacement and is backward compatible with earlier versions. There are no known incompatibilities when replacing an older part number with the newest revision.
