P0011 on 2015-2016 Volkswagen Jetta: Causes and Fixes for Over-Advanced Camshaft Timing

What's Unique About the 2015-2016 Volkswagen JETTA

The 2015-2016 Jetta primarily uses the EA888 Gen 3 generation of TSI engines (e.g., 1.8T, 2.0T). While P0011 is often a simple fix related to the camshaft adjuster magnet or oil, these specific engines have two well-documented weak points. First, a small oil screen within the camshaft bearing bridge is known to tear, sending debris into oil passages and causing a blockage. Second, these engines have a history of timing chain tensioner issues. Therefore, unlike on many other vehicles, this code on a Jetta of this vintage must be taken seriously as it can indicate either a common VVT component failure or a more severe timing chain problem that could lead to catastrophic engine failure if ignored.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (MIL) is on
• Rough or unstable idle, sometimes described as a 'fish bite' shudder.
• Poor acceleration or sluggish performance
• Engine stalling, especially when coming to a stop
• Reduced fuel economy
• Rattling noise from the engine, especially on cold starts or when decelerating.

Most Likely Causes

1. Low, Incorrect, or Dirty Engine Oil 🔴 High Probability The VVT system is hydraulically operated by engine oil. VW TSI engines are sensitive to oil level and quality. Using oil that does not meet VW specifications (e.g., VW 502 00) or extending oil change intervals can lead to sludge and blocked passages that operate the cam phasers.
   How to confirm: Check the oil level on the dipstick and note its color and condition. If the level is low or the oil is dark and sludgy, this is the first suspect.
   Typical fix: Perform an engine oil and filter change using a full synthetic oil that meets the correct VW specification. Clear the code and drive to see if it returns.
   Est. part cost: $60-$100
2. Faulty Camshaft Adjuster Magnet (N205 Solenoid) 🔴 High Probability → Shop Engine Camshaft This electro-hydraulic solenoid is a very common failure point. It lives in a hot oil environment and can get clogged with debris or fail electrically, causing it to stick and send incorrect oil pressure to the phaser.
   How to confirm: While the engine is idling roughly, unplug the electrical connector to the magnet. If the engine idle smooths out, the magnet is faulty. You can also remove it (3x T30 bolts) and inspect its internal pin for movement; it should not be stuck. Resistance should be between 5-20 ohms.
   Typical fix: Replace the camshaft adjuster magnet. It is held by three T30 Torx bolts.
   Est. part cost: $40-$150

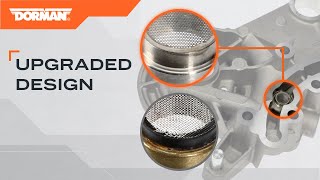

3. Torn Screen in Camshaft Bearing Bracket (Bridge) 🟡 Medium Probability → Shop Engine Camshaft A known weak point on EA888 engines is a small oil screen integrated into the camshaft bearing bracket. This screen can disintegrate, sending mesh fragments into the oil passages. These fragments can clog the spool valve or the camshaft phaser itself, leading to oil pressure issues and the P0011 code.
   How to confirm: This requires removing the N205 solenoid and the spool valve. Inspect the spool valve's screens for metallic debris. If debris is found, it likely came from the bridge screen. A borescope can sometimes be used to inspect the bridge through the spool valve opening. The definitive check is removing the camshaft bridge itself for inspection. VW TSB V151701_2045939 and Tech Tip 01-15-08TT directly address this failure.
   Typical fix: If the screen is confirmed to be damaged, the entire camshaft bearing bracket must be replaced. The screen is not sold as a separate part. While replacing the bracket, it is critical to clean all related oil passages and the spool valve.
   Est. part cost: $150-$250
4. Clogged or Faulty Camshaft Spool Valve (Control Valve) 🟡 Medium Probability → Shop Engine Camshaft Located inside the camshaft and actuated by the adjuster magnet, this valve's small oil passages and screen can become clogged with debris, often from a failing camshaft bridge screen or from sludgy oil.
   How to confirm: After removing the adjuster magnet, use a special tool (e.g., T10352/1A) to unscrew the spool valve. Note: it is reverse-threaded (righty-loosey). Inspect the screens for tears or clogging.
   Typical fix: Clean the valve thoroughly with brake cleaner and compressed air. If the screen is torn or it remains stuck, it must be replaced.
   Est. part cost: $25-$60
5. Stretched Timing Chain or Failed Tensioner ⚪ Low Probability → Shop Engine Timing Chain Early versions of the EA888 engine had tensioner designs that were prone to failure, leading to chain stretch. While improved by 2015, it's still a possibility, especially on higher-mileage vehicles or those with poor maintenance history.
   How to confirm: This requires a VW-specific scan tool (like VCDS or OBDeleven) to read the camshaft adaptation value in Measuring Block 93. A value greater than +/- 5 degrees at idle consistently indicates significant chain stretch. A physical inspection of the tensioner's extension through the inspection port on the lower timing cover is the definitive check; more than 6-7 'ribs' showing is a sign of excessive stretch.
   Typical fix: Replace the timing chain, tensioner, and all related guides. This is a labor-intensive job.
   Est. part cost: $400-$800

Rare But Worth Checking

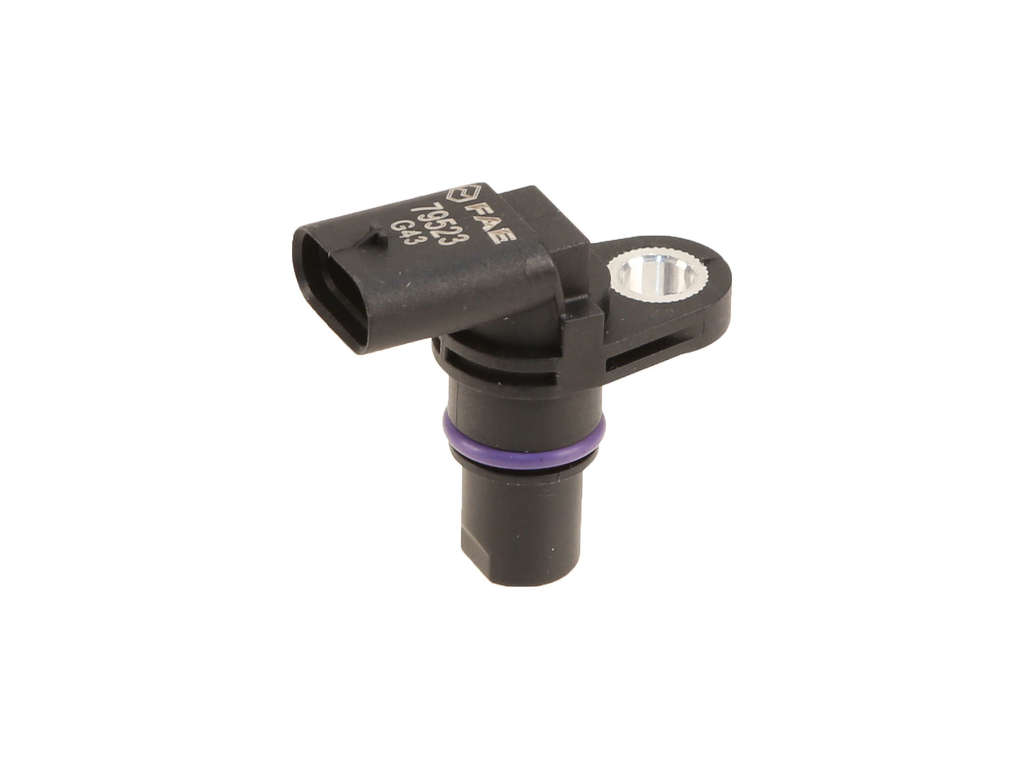

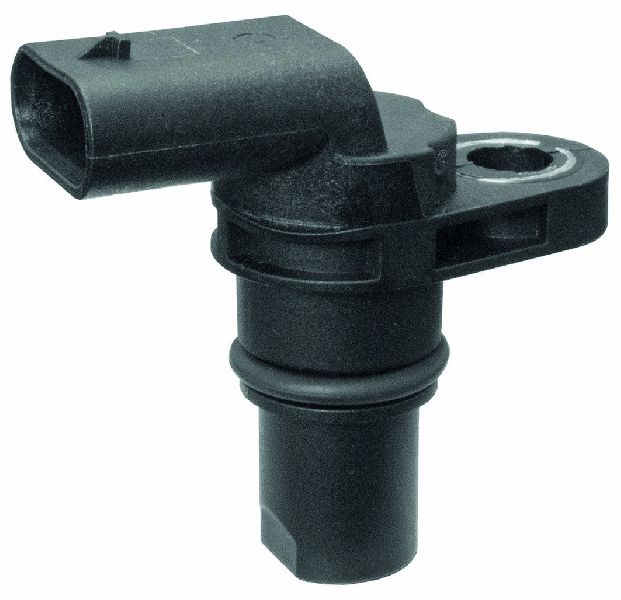

• Faulty Camshaft Position Sensor (G40): → Shop Engine Camshaft Position Sensor This is less common than the control components. Usually, a failing sensor will throw its own specific circuit fault code (like P0341), but it can sometimes contribute to a performance code like P0011.

Diagnosis Steps

1. Check the engine oil level and condition. If low, dirty, or the wrong type, perform an oil and filter change with VW-spec oil (VW 502 00). Clear the code and see if it returns.
2. Scan for other fault codes. Note if codes like P0016 or misfire codes are present, as this can point towards a more severe mechanical issue.
3. With the engine running at idle, unplug the electrical connector for the camshaft adjuster magnet (N205 solenoid). If the idle quality immediately improves, the magnet is the likely fault.
4. Turn off the engine. Remove the three T30 Torx bolts holding the adjuster magnet. Remove and inspect the magnet. The internal pin should move freely. Check its resistance (should be ~5-20 ohms).
5. If the magnet seems okay, inspect the spool valve it controls. Using the correct tool (like T10352/1A) and remembering it is REVERSE-THREADED, remove the valve. Inspect its screens for debris or tears. Clean with brake cleaner or replace as needed.
6. If debris was found on the spool valve, suspect the camshaft bearing bridge screen has failed. This is a known issue covered by TSBs. Inspect the bridge if possible.
7. If the code persists after addressing the oil and VVT control components, check for a stretched timing chain. Use a VW-specific scan tool to read Measuring Block 93 for camshaft phase deviation. A value greater than +/- 5° indicates stretch.
8. As a final, less likely step, inspect the camshaft position sensor (G40) and its wiring for damage.

Parts You'll Likely Need

• Camshaft Adjuster Magnet (N205 Solenoid) (OEM #06L109257F (supersedes 06L109257D, 06K109257A)) — This is the most common component to fail, either by getting clogged with debris or failing electrically. It directly controls the oil flow for cam phasing.
  Trusted brands: Volkswagen (OEM), Pierburg, Bosch
  OEM price range: $100-$150
  Aftermarket price range: $40-$90
• Camshaft Control Valve (Spool Valve) (OEM #06H109257C) — This valve's screens can get clogged with oil debris, often from a failing camshaft bridge screen or from general oil sludge. It is located behind the N205 magnet and requires a special reverse-thread tool to remove.
  Trusted brands: Volkswagen (OEM), INA
  OEM price range: $40-$60
  Aftermarket price range: $25-$45

Related Codes That Often Appear With This One

• P0016 — Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A). This code often appears with P0011, as both indicate a timing misalignment. Seeing them together strongly suggests a mechanical timing issue like a stretched chain or a piece of debris (from the bridge screen) intermittently blocking the phaser.
• P0300, P0301, P0302, P0303, P0304 — Random or specific cylinder misfire codes. Incorrect camshaft timing disrupts the air/fuel mixture and combustion process, leading to misfires, especially at idle.
• P052A — Cold Start 'A' Camshaft Position Timing Over-Advanced. This is a more specific version of P0011 that points to the problem occurring during the engine's cold start phase, often pointing to sludgy oil or a sticky VVT component.

Technical Service Bulletins (TSBs) & Recalls

• TB-01-16-03 (NHTSA #10079218): Mentions MIL on for P0011 and/or P0016.
• VIN-4-A-PIN APRI (NHTSA #10080963): Groups P0011 and P0016 with other potential faults.
• TSB 01-15-08TT (Also known as 2045353): Specifically addresses rough running with codes P0011, P0016, P000A. It directs technicians to check for a disintegrated screen in the camshaft adjuster bridge that can clog the spool valve.

Platform-Specific Known Issues

• The NHTSA lists Technical Service Bulletin #TB011603, which explicitly mentions 'MIL on camshaft position faults P0011 and/or P0016 stored in fault memory' for 2015 models.
• NHTSA TSB #VIN-4-A-PIN APRI also groups 'FAULT P0011 AND/OR P0016 IN THE ECM' with other potential issues for 2016 models.
• A critical TSB is 01-15-08TT (also known by VW internal number 2045353), which details diagnosing a failed camshaft bridge screen as the cause for P0011, P0016, and other codes. It instructs technicians to look for screen debris in the spool valve.

Mechanic-Grade Diagnostic Values

• N205 Camshaft Adjuster Magnet Resistance — expected: 5 to 20 Ohms. Failure: A reading outside this range, or an open circuit, indicates a failed solenoid coil.
• G40 Camshaft Position Sensor Supply Voltage — expected: ~5.0 Volts. Failure: Significantly lower voltage or no voltage points to a wiring issue or a problem with the ECM's 5V reference circuit.
• Engine Oil Pressure (EA888 1.8T/2.0T) — expected: 1.5 - 2.0 bar (22-29 PSI) at idle; 4.0 - 5.0 bar (58-72 PSI) while driving.. Failure: Pressure below 1.5 bar at idle, or pressure that does not rise with RPM, can starve the VVT system and trigger P0011.
• VCDS Camshaft Adaptation Phase Angle (MVB 93.3) — expected: Between -5.0° and +5.0° at idle.. Failure: A consistent reading greater than +/- 5° indicates a deviation likely caused by a stretched timing chain or jumped timing.

Scan Tool Commands That Help

• VCDS / OBDeleven: Live Data Monitoring (Measuring Blocks) — Use Measuring Value Block (MVB) 93, field 3, to monitor the 'Camshaft adaptation intake bank 1, phase position'. This is the most critical live data point to determine if the cause is timing chain stretch versus a component failure.

Wiring & Ground Locations

• N205 Connector (T2cg/T2ch/etc.) — On the front of the upper timing cover, passenger side of the engine. It is a 2-pin connector.. This is the electrical connection for the primary actuator. Checking for voltage here and testing continuity from this connector to the ECM is a key electrical diagnostic step. A partial wiring diagram shows wire colors may include violet/green (vi/gr) and others.

Real Owner Repair Stories

• YouTube channel 'Mr. B' (2015 Volkswagen Jetta, 75,000 miles) — P0011 code, rough 'galloping' idle, poor running condition.
  ❌ Tried (didn't work) Initial diagnosis pointed towards VVT system.
  ✅ What actually fixed it The technician removed the N205 magnet and then the spool valve (noting it is reverse-thread). The spool valve was cleaned with brake cleaner and compressed air. After reassembly and an oil change, the car ran perfectly and the code was resolved.
• YouTube channel 'Green Castle Garage' (2015 Volkswagen Passat 1.8T (same EA888 engine family)) — P0011, rough idle, stumbling and barely holding an idle after 30 seconds of running.
  ❌ Tried (didn't work) The presenter immediately suspected the VVT system based on experience.
  ✅ What actually fixed it The N205 camshaft adjuster magnet was replaced. The presenter noted this is a very high success rate repair for these symptoms on this engine.
• YouTube comment on 'HumbleMechanic' (2015 Audi A3 (same EA888 engine family)) — P0011 code.
  ✅ What actually fixed it The owner removed the camshaft adjuster magnet (N205) and blew compressed air into the small oil passages. Chunks of sludge came out, freeing the internal pin. This simple cleaning resolved the code without replacing any parts.

OEM Part Supersession History

• 06K109257A, 06L109257B, 06L109257D → 06L109257F — Design improvement to increase reliability and prevent sticking.
  Heads up: Some very early EA888 engines used a steel-bodied solenoid. Upgrading to the newer plastic-bodied version (like 06L109257F) may require a wiring harness adapter/pigtail.

Model Year Variations Within This Range

• 2015-2016: The 1.8T and 2.0T engines in this range are part of the EA888 Gen 3 family. While mechanically very similar, there can be minor variations in engine codes (e.g., CXCA, CXCB used in GTI) and low-power 'Gen 3B' Miller cycle versions in other VW group vehicles. For the Jetta, the primary cause of P0011 remains consistent across these years, focusing on the N205 solenoid, spool valve, bridge screen, and timing chain.
