P0016 on 2015-2021 Ford Edge: Crank/Cam Correlation Causes and Fixes

What's Unique About the 2015-2021 Ford EDGE

For this generation of Ford Edge, a recurring theme documented in multiple Ford Technical Service Bulletins (TSBs) is that P0016 and related codes can be triggered by small debris causing the Variable Camshaft Timing (VCT) solenoids to stick. This suggests a high sensitivity to oil quality. Specifically for the 3.5L V6 engine, a failing internal water pump is a well-documented and catastrophic failure mode that leaks coolant into the engine oil. This contaminated oil quickly ruins the timing chain, guides, and tensioners, leading directly to a P0016 code. TSB 16-0093 also notes that on some low-mileage 3.5L engines, this code can appear due to a faulty VCT solenoid from the factory.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine runs rough or has a noticeable vibration
• Difficulty starting the engine, or engine cranks but won't start
• Reduced engine power and poor acceleration
• Stalling, especially at idle
• Decreased fuel economy
• Rattling noise from the engine, particularly on cold startup, which may last a few seconds

Most Likely Causes

1. Sticking or Failed VCT Solenoid 🔴 High Probability → Shop Engine Variable Valve Timing (VVT) Solenoid Multiple TSBs (SSM 47170, SSM 48423) for 2015-2020 Ford vehicles explicitly state that debris can cause the VCT solenoid to stick, triggering this code. This is the most likely starting point for diagnosis, especially if no rattling noises are present.
   How to confirm: Use a scan tool to monitor desired vs. actual cam timing. TSB SSM 48423 advises using a scan tool (like Ford's IDS) to cycle the affected VCT solenoid 10 times to attempt to clear debris before replacement. You can also swap the intake and exhaust solenoids (if identical) to see if the code follows the part. 🎬 See this guide on testing your VVT solenoid
   Typical fix: First, attempt to clean the solenoid. If cleaning doesn't work or the solenoid fails electrical tests, it must be replaced. Always perform an oil change when replacing a VCT solenoid to remove contaminants.
   Est. part cost: $30-$80
2. Low or Dirty Engine Oil 🔴 High Probability The VCT system is entirely dependent on clean oil at the correct pressure and viscosity to function. The frequent mention of debris in TSBs highlights that oil quality and maintenance are critical on these engines to prevent sludge and blockages.
   How to confirm: Check the oil level on the dipstick and inspect the oil's condition. If it's low, overdue for a change, or appears milky (indicating coolant contamination), it must be addressed.
   Typical fix: Perform an oil and filter change using the manufacturer-specified oil viscosity (e.g., SAE 5W-30 for EcoBoost). This is a crucial first step before replacing any parts.
   Est. part cost: $40-$100
3. Stretched Timing Chain 🟡 Medium Probability → Shop Engine Timing Chain Timing chains on the EcoBoost and 3.5L V6 engines are known to stretch over time, particularly with extended oil change intervals. A stretched chain creates slack that the hydraulic tensioner cannot compensate for, leading to a permanent timing correlation error.
   How to confirm: This is a mechanical issue requiring physical inspection. A common method is to remove the valve cover to view the timing chain tensioner. If the tensioner piston is extended significantly, it indicates a stretched chain. This is an advanced diagnostic step.
   Typical fix: Replacement of the timing chain, tensioners, and guides as a complete kit. This is a labor-intensive job often costing over $2,000 at a shop.
   Est. part cost: $200-$500 for a kit
4. Failed Camshaft Phaser (VCT Actuator) 🟡 Medium Probability → Shop Engine Camshaft The phaser is the mechanical gear that adjusts the camshaft's timing. It can get stuck due to oil contamination or fail internally, preventing it from responding to the VCT solenoid's commands.
   How to confirm: Requires a capable scan tool to graph desired vs. actual cam angle. A phaser that is stuck will show no change when commanded by the scan tool, or it will be stuck in a non-default position at idle.
   Typical fix: Replacement of the faulty camshaft phaser. This is typically done during a timing chain service, as it requires similar labor.
   Est. part cost: $100-$250 per phaser

Rare But Worth Checking

• Failing Internal Water Pump (3.5L V6): → Shop Engine Water Pump On the 3.5L V6 engine, the water pump is located inside the engine and is driven by the timing chain. A common failure is for the pump's seal to leak coolant directly into the oil pan. This contaminated oil turns to sludge, destroying the plastic timing chain guides and tensioners, causing the chain to stretch or jump time, which triggers P0016. If you have a 3.5L with P0016, check for unexplained coolant loss immediately. 🎬 Watch: How to check for internal water pump failure A repair can cost over $2,000.
• Failed Camshaft or Crankshaft Position Sensor: → Shop Engine Crankshaft Position Sensor While possible, it's less common for a sensor to fail in a way that produces a correlation code without also setting a sensor-specific circuit code (like P0340 or P0335). Owners and mechanics often replace these first as a guess, but they are not the most frequent cause for P0016 alone.

Diagnosis Steps

1. Check the engine oil level and condition. If low, dirty, or milky, perform an oil and filter change. If milky, suspect a failed water pump on the 3.5L V6. Clear codes and see if P0016 returns.
2. Use an OBD-II scanner to check for any other related trouble codes.
3. With a capable scan tool, monitor the live data PIDs for desired vs. actual camshaft position for Bank 1 Intake. See if the PCM is commanding changes and if the camshaft is responding.
4. Follow the procedure in TSB SSM 48423: Use the scan tool's bidirectional controls to command the Bank 1 intake VCT solenoid on and off 10 times to dislodge any potential debris.
5. Inspect the wiring and connector for the Bank 1 intake VCT solenoid and the Bank 1 camshaft position sensor for any damage or corrosion.
6. If the solenoid is still suspect, remove it for inspection. Check the screens for sludge or debris. You can test its resistance with a multimeter or apply 12V to see if it actuates.
7. If the solenoid and wiring are good, the issue is likely mechanical. This points towards a stretched timing chain, a bad phaser, or a failed tensioner. This requires partial engine disassembly for a physical inspection of the timing components.

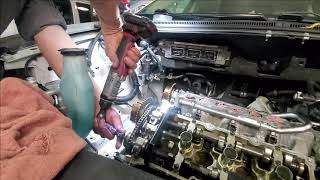

🎬 Watch: 3.5L timing chain and water pump removal process

Parts You'll Likely Need

• Variable Camshaft Timing (VCT) Solenoid (OEM #2.0L EcoBoost: CJ5Z-6M280-A; 3.5L V6 (Intake): AT4Z-6M280-B; 2.7L EcoBoost: FT4Z-6M280-A / FT4Z-6M280-B) — This is the most cited cause in Ford's own service bulletins for this code. It's prone to sticking from oil debris and is a logical first part to replace after an oil change.
  Trusted brands: Motorcraft, Dorman
  OEM price range: $50-$100
  Aftermarket price range: $30-$80
• Timing Chain Kit — If the timing chain has stretched, a full kit including the chain, guides, and tensioners is required to restore proper timing. This is a very common failure on the 3.5L engine family.
  Trusted brands: Motorcraft, Cloyes
  OEM price range: $300-$600
  Aftermarket price range: $200-$450
• Water Pump (3.5L V6) — On the 3.5L V6, the internal water pump should ALWAYS be replaced during a timing chain job. Its failure is a primary cause of timing system destruction and the P0016 code.

Related Codes That Often Appear With This One

• P0017, P0018, P0019 — These are correlation codes for the other camshafts (Bank 1 Exhaust, Bank 2 Intake, Bank 2 Exhaust). Seeing them together, especially P0016 and P0018, can indicate a more severe timing issue, like a jumped main timing chain, or a problem common to the whole engine, like severe oil contamination from a failed water pump.
• P0011, P0012, P0014, P0015 — These codes indicate over-advanced or over-retarded timing for a specific camshaft. They are often caused by the same VCT system faults (solenoids, phasers) that trigger P0016 and are mentioned together in Ford's TSBs.

Technical Service Bulletins (TSBs) & Recalls

• SSM 54366: General diagnostic procedure for a group of VCT codes on 2015-2021 models.
• SSM 47170: Notes that P0016 may be due to small debris causing the VCT solenoid to stick.
• TSB-16-0093: Mentions P0016 on low-mileage 2016 models.
• SSM 48423: Repeats the guidance from SSM 47170 for a wider range of model years, pointing to debris in the VCT solenoid.

Platform-Specific Known Issues

• TSB SSM 48423: Recommends cycling the VCT solenoid with a scan tool to clear debris before replacing it for codes like P0016.
• TSB 16-0093: Points to faulty VCT solenoids as a cause for P0016 on 3.5L engines with very low mileage (under 2,000 miles).
• 3.5L V6 Internal Water Pump: This is the most significant vehicle-specific issue. Failure leaks coolant into the oil, causing widespread damage to timing components and triggering P0016. This is a widely discussed topic in owner forums.

Mechanic-Grade Diagnostic Values

• VCT Solenoid Internal Resistance — expected: 7 to 14 Ohms. Failure: A reading outside of this range indicates a faulty solenoid coil.
• Camshaft Position Sensor (Hall Effect Type) Power Supply Pin Voltage — expected: Battery Voltage (approx. 12V) with ignition on.. Failure: No voltage suggests a wiring or PCM power supply issue.
• Camshaft Position Sensor (Hall Effect Type) Signal Pin Voltage — expected: Around 5V. Failure: A reading that is significantly different or absent points to a faulty sensor or wiring issue.

Hidden / Shadow Codes Worth Checking

• N/A: While no specific 'shadow codes' are commonly reported for P0016, a dealer-level scan tool like Ford's Integrated Diagnostic System (IDS) is required to perform in-depth pinpoint tests (like 'Pinpoint Test HK' mentioned in TSBs) and view manufacturer-specific PIDs. These extended diagnostics are essential for distinguishing between a sensor, solenoid, or mechanical timing fault. (see via Ford Integrated Diagnostic System (IDS))

Scan Tool Commands That Help

• Ford IDS or equivalent professional scan tool: VCT Solenoid Actuator Test / Bidirectional Control — This command is used to manually cycle the VCT solenoid with the engine running. If the solenoid is working mechanically, activating it should cause the engine to hesitate or stall. If there is no change in engine operation, the solenoid is likely stuck or there is an oil flow blockage. This is a key step mentioned in TSBs to attempt to clear debris before replacing the part.

Wiring & Ground Locations

• Front Bumper Grounds — Behind the front bumper cover, there are ground connections on both the driver and passenger side of the vehicle frame.. While not exclusively for the cam/crank sensor circuits, these are major chassis and engine harness grounds. A poor ground connection at these points can introduce electrical noise or voltage drops that could potentially affect sensor readings, leading to intermittent or false codes.

OEM Part Supersession History

• FT4Z-6M280-A → FT4Z-6M280-B — Part revision by the manufacturer for improved performance or durability.
  Heads up: The new part number (FT4Z-6M280-B) is the correct replacement for the original. This applies to the VCT solenoid for the 2.7L and 3.0L EcoBoost engines.

Model Year Variations Within This Range

• 2015-2021 (Engine Specific): The most likely cause of P0016 varies significantly by engine. For the 3.5L V6, a failing internal water pump is a primary and unique suspect that must be investigated. For the 2.0L and 2.7L EcoBoost engines, the cause is more commonly a sticking VCT solenoid due to oil debris (as noted in TSBs) or a stretched timing chain.
