P0016 on 2008-2009 Pontiac G8: Stretched Timing Chain Guide

What's Unique About the 2008-2009 Pontiac G8

The 2008-2009 Pontiac G8's base model uses the 3.6L LY7 V6 engine, which has a widely known, manufacturer-acknowledged weakness: the timing chains are prone to premature stretching. This isn't a random part failure; it's a specific design issue that plagued this engine across multiple GM vehicles. As a result, P0016 on a V6 G8 is rarely a simple sensor fault and almost always points to the need for a complex timing chain replacement. 🎬 Watch: Full-length timing chain removal and installation walkthrough. The issue is so common that GM released multiple Technical Service Bulletins (TSBs) and created special coverage programs for this exact problem, though the G8 was not explicitly included in the special coverage.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rattling or scraping noise from the front of the engine, especially on cold starts
• Rough or unstable idle
• Reduced engine power and sluggish acceleration
• Engine may be difficult to start or may crank but not fire
• Decreased fuel economy
• Engine RPMs hesitate or break up at higher RPM (e.g., above 5,000 RPM).

Most Likely Causes

1. Stretched Timing Chains 🔴 High Probability → Shop Engine Timing Chain The 3.6L LY7 V6 has a documented history of premature timing chain wear and stretching. The chains don't literally stretch; rather, the pins and holes in each link wear, causing the overall length to increase. GM issued TSBs #PIP3423P and #12-06-01-009F acknowledging the problem and the availability of updated parts.
   How to confirm: A mechanic can use a scan tool to view cam/crank correlation data. However, the definitive diagnosis is a physical inspection of the chain's tension and slack, which requires removing the engine's front timing cover. Upon removal, the old chain can be laid next to a new one to clearly see the elongation.
   Typical fix: Replace all three timing chains, all guides, and all tensioners with an updated kit. This is a major repair. It is critical to use the newer, more robust parts specified by GM in their TSBs.
   Est. part cost: $250-$600 for a complete kit
2. Failed Timing Chain Tensioners or Guides 🔴 High Probability → Shop Engine Timing Chain The tensioners and plastic guides wear out along with the chains, or can fail independently, causing slack in the system. The tensioners are hydraulic and lose their ability to keep the chain taut if oil pressure is low or the oil is sludgy.
   How to confirm: Visual inspection during a timing chain service. A rattling noise is a strong indicator of guide or tensioner failure. Broken pieces of the plastic guides may be found in the oil pan.
   Typical fix: Always replaced as part of a complete timing chain service. It is not recommended to replace only a failed tensioner without replacing the chains.
   Est. part cost: Included in timing chain kits.
3. Low or Dirty Engine Oil 🟡 Medium Probability The timing chain tensioners are hydraulic and rely on clean oil at the correct pressure to function. GM's original oil life monitor (OLM) calibration was often too long (10,000+ miles), leading to oil breakdown, sludge formation, and accelerated chain wear. This is considered a primary contributing factor to the widespread failures.
   How to confirm: Check the oil level and condition on the dipstick. Review vehicle service history for oil change intervals. Many owners who experienced this failure were following the manufacturer's OLM recommendations.
   Typical fix: Change the oil and filter with a quality full-synthetic 5W-30 oil. However, if the chain has already stretched and set a P0016 code, an oil change alone will not fix it. Future prevention requires shortening oil change intervals to 3,000-5,000 miles.
   Est. part cost: $40-$80
4. Faulty Camshaft or Crankshaft Position Sensor ⚪ Low Probability → Shop Engine Crankshaft Position Sensor While sensors can fail on any vehicle, they are not the common cause for this code on the G8 V6. Many owners have needlessly replaced these sensors only to have the code return, confirming the underlying mechanical issue.
   How to confirm: Test the sensor's voltage and resistance with a multimeter according to the service manual. Swapping the suspect sensor with a known good one from another position (if compatible) can also be a diagnostic step.
   Typical fix: Replace the faulty sensor. This is a simple and inexpensive repair, but it is highly unlikely to solve a P0016 code on this specific engine.
   Est. part cost: $20-$70 per sensor

Rare But Worth Checking

• Slipped Crankshaft Reluctor Wheel: → Shop Engine Crankshaft TSB #PIP3423P and its successors mention that the reluctor ring, which the crankshaft sensor reads, can move on the crankshaft. This causes a timing correlation error even with a perfect timing chain. Diagnosis can sometimes be done with a borescope through the crank sensor hole. If it has slipped, the crankshaft must be replaced.
• Faulty VVT Solenoid (Oil Control Valve): A clogged or failed VVT solenoid can affect camshaft timing and potentially trigger this code, though it's less common than chain stretch. It can become clogged with sludge from degraded oil, which is a common problem in these engines. It's a simpler part to check and replace before tearing into the timing cover.

Diagnosis Steps

1. Confirm the code P0016 (and any others) with an OBD-II scanner.
2. Check engine oil level and condition. If low or dirty, perform an oil and filter change with full synthetic 5W-30 oil, clear the code, and see if it returns. Be aware this is unlikely to be a permanent fix.
3. Listen for a rattling or scraping noise from the front of the engine (timing cover area), especially during a cold start. A rattle is a strong indicator of a timing chain issue.
4. Using a scan tool with live data, observe the camshaft/crankshaft correlation data or cam deviation angles. Significant deviation (often more than 6-9 degrees) confirms a timing issue.
5. Inspect the wiring and connectors for the Bank 1 intake camshaft position sensor and the crankshaft position sensor for any damage.
6. If no obvious cause is found, the next step is to remove the valve cover and/or timing cover to physically inspect the timing chains for slack and check the condition of the guides and tensioners. This is the definitive diagnostic step for this vehicle.

Parts You'll Likely Need

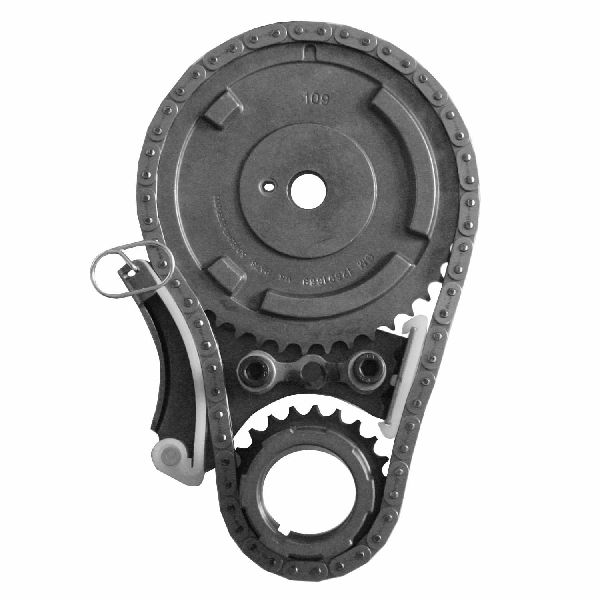

• Timing Chain Kit (OEM #12651450) — This is the most common failure. A complete kit ensures all related wear items (chains, guides, tensioners) are replaced at once with updated parts.
  Trusted brands: ACDelco, Cloyes
  OEM price range: $400-$600
  Aftermarket price range: $250-$450
• Cloyes Timing Chain Kit (Popular Aftermarket) (OEM #9-0753S) — A widely used and well-regarded aftermarket kit that includes all necessary chains, guides, and tensioners for the job.
  Trusted brands: Cloyes
  Aftermarket price range: $250-$400

Related Codes That Often Appear With This One

• P0008 — Indicates a general engine position system performance issue for Bank 1. It is often the first code to appear as the chains begin to stretch and is explicitly mentioned in TSBs alongside P0016.
• P0017, P0018, P0019 — These are correlation codes for the other camshafts in the engine (Bank 1 Exhaust, Bank 2 Intake, Bank 2 Exhaust). The presence of multiple codes (e.g., P0016 and P0017) strongly points to a base timing issue like a stretched primary chain affecting the entire engine, not just one sensor.

Technical Service Bulletins (TSBs) & Recalls

• PIP3423P: Notes that P0016, P0017, P0018, P0019, P0008, or P0009 may be set and instructs technicians to inspect for loose timing chains or tensioners. It also details the procedure for checking for a slipped crankshaft reluctor wheel.
• 12-06-01-009F: Discusses the availability of comprehensive timing chain service kits for High Feature V6 engines from 2007-2012 to repair worn/stretched timing chains. It explicitly lists the 2008-2009 Pontiac G8 as an affected vehicle.

Platform-Specific Known Issues

• The 3.6L LY7 V6 engine in the 2008-2009 G8 is notorious for premature timing chain stretch. This was exacerbated by early software calibrations for the oil life monitoring system that allowed for excessively long oil change intervals, leading to oil breakdown and accelerated wear.
• GM issued TSB #12-06-01-009F regarding the availability of replacement timing chain kits for this specific issue. This TSB lists the Pontiac G8 and confirms the codes P0016, P0017, etc., are related to stretched chains.
• GM TSB #PIP3423P directly links codes like P0016 to loose timing chains or tensioners on the 3.6L engine in the G8. It also provides guidance on the rarer possibility of a slipped crankshaft reluctor wheel.
• Due to the high failure rate across many models with this engine, GM initiated a special coverage program (#11340C) that extended the warranty for timing chain wear to 10 years or 120,000 miles. While this has expired for all 2008-2009 G8s, it serves as an official acknowledgment of the defect.

Mechanic-Grade Diagnostic Values

• Camshaft Phase Deviation (Live Scan Tool Data) — expected: Close to 0 degrees at idle and steady RPM.. Failure: A consistent deviation greater than +/- 5-9 degrees strongly indicates a mechanical timing issue (stretched chain).
• Engine Oil Pressure (Mechanical Gauge) — expected: At least 25 PSI at idle.. Failure: Pressure significantly below 25 PSI at idle can indicate a worn oil pump or other systemic oiling issue, which would starve the hydraulic tensioners and accelerate chain wear.
• Camshaft Position Sensor (CMP) Signal Voltage — expected: The signal wire should toggle between approximately 0V and 5V as the engine is cranked.. Failure: A flatline voltage (stuck high or low) or erratic signal indicates a failed sensor or wiring issue.

Scan Tool Commands That Help

• GDS2 / Tech2 (or equivalent professional scanner): Camshaft Position Actuator Solenoid Control — This bidirectional test allows a technician to command the VVT solenoids on and off to verify their mechanical operation. A change in engine RPM or an audible click from the solenoid confirms it is responding, helping to rule it out as the cause before performing a timing chain replacement.
• GDS2 / Tech2 (or equivalent professional scanner): Crankshaft Position Variation Learn — This procedure is required after replacing a crankshaft position sensor or the ECM to allow the new components to learn the minor variations in the crankshaft reluctor wheel, ensuring accurate timing calculations.

Wiring & Ground Locations

• G103 — From the right front cylinder head to the ABS bracket.. This is a primary engine block ground. A poor connection here can introduce electrical noise and cause incorrect readings from the cam and crank sensors, potentially triggering false correlation codes.
• G108 — On the right rear of the engine block.. This is another critical engine block ground point. Ensuring it is clean and tight is essential for stable sensor operation.
• G112 — From the left rear cylinder head to the engine harness.. Provides the ground path for the driver's side (Bank 2) of the engine harness, but ensuring all major grounds are solid is a key step in diagnosing any electrical fault.
• Camshaft Position Sensor Connector — On the front of each cylinder head, one for each camshaft (4 total on the V6).. A poor connection, corrosion, or damaged wiring at the Bank 1 Intake sensor connector can cause an intermittent or lost signal, directly leading to a P0016 code. GM issued a TSB regarding poor connections at these connectors for some 3.6L applications.

Real Owner Repair Stories

• Reddit user in r/MechanicAdvice (2009 Pontiac G8 3.6L V6 (LY7)) — Intermittent P0008 code, which shares the same root cause as P0016.
  ❌ Tried (didn't work) Initially suspected dirty camshaft sensors after finding them grimy during an inspection.
  ✅ What actually fixed it The owner performed a full timing chain replacement. After the job, they reported a "noticeable difference in torque and idle" and confirmed the code was resolved.
• g8board.com forum user (2008 Pontiac G8 V6, 78,000 miles) — P0016 and P0008 codes present.
  ❌ Tried (didn't work) Replaced camshaft position sensor., Replaced VVT solenoid.
  ✅ What actually fixed it A DIY replacement of all three timing chains, guides, and tensioners. The owner noted a visible difference in length when comparing the old primary chain to the new one, confirming the stretch.

OEM Part Supersession History

• 12651450 (and earlier versions) → 12679117 -> 12693218 -> 12700436 (latest OEM kit number) — GM updated the timing chain kits multiple times to incorporate more durable chains and improved guide designs to combat the premature stretching and wear issues.
  Heads up: Using an older, superseded kit (old stock) will likely lead to a repeat failure. It is critical to source the latest available OEM part number or a quality aftermarket kit (like Cloyes 9-0753S) that is based on the latest, more durable inverted-tooth chain design.

Model Year Variations Within This Range

• 2008-2009: There are no significant mechanical differences between the 2008 and 2009 Pontiac G8 models equipped with the 3.6L LY7 V6 that would alter the diagnosis or common causes of a P0016 code. Both model years are equally susceptible to the timing chain stretch issue.
