P0018 on 2005-2011 Cadillac STS: Causes and Fixes for Crank/Cam Correlation

What's Unique About the 2005-2011 Cadillac STS

The 2005-2011 Cadillac STS uses the GM High Feature 3.6L V6 (LY7 and early LLT) engine, which is notorious for premature timing chain stretching. This is not a random part failure; it's a widely documented weakness. The primary causes are believed to be the original chain design and, more significantly, the excessively long oil change intervals recommended by the early GM Oil Life Monitor (OLM) system. Inadequate lubrication from old or low oil accelerates wear, causing the chains to stretch. The issue was so prevalent that GM issued multiple Technical Service Bulletins (TSBs) and a special coverage program (#11340C) for this exact problem. Therefore, unlike in many other vehicles where P0018 might point to a simple sensor issue, on the 3.6L STS, it is very frequently a sign of this underlying mechanical fault.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rattling or scraping noise from the front of the engine, especially on a cold start
🎬 See this video of a hard start and engine noise.
• Rough or unstable idle
• Reduced engine power and hesitation during acceleration
• Engine stalling
• Decreased fuel efficiency
• Hard starting or no-start scenario

Most Likely Causes

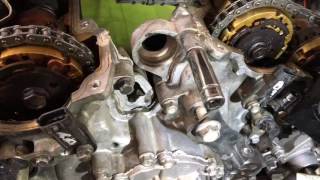

1. Stretched Timing Chains 🔴 High Probability → Shop Engine Timing Chain The original timing chains on the 3.6L LY7 engine were made of a material prone to premature wear and stretching. This was significantly exacerbated by long oil change intervals (sometimes over 10,000 miles) recommended by the original GM Oil Life Monitor system, which led to oil breakdown and poor lubrication of the chains and tensioners.
   How to confirm: A technician will use a scan tool to monitor camshaft deviation angles; a consistent deviation of more than 4-5 degrees at idle, or spikes over 9 degrees, strongly suggests a stretched chain. Physical inspection by removing the engine's front cover is the ultimate confirmation, which involves measuring chain slack.
   Typical fix: Replace all three timing chains (one primary, two secondary), all tensioners, and all guides with updated parts. This is typically done as a complete kit. 🎬 Watch: Expert tips and tricks for the easiest timing replacement. It is also recommended to update the ECM with the latest Oil Life Monitor calibration and adopt a 5,000-mile oil change interval.
   Est. part cost: $250-$600
2. Failed Timing Chain Tensioner(s) 🟡 Medium Probability → Shop Engine Timing Chain The tensioners, which use oil pressure to keep the chains tight, can fail, collapse, or get clogged with sludge from infrequent oil changes, allowing the chains to become slack. This is often part of the overall timing chain wear issue and a new set of tensioners is included in all reputable timing kits.
   How to confirm: Diagnosed during a physical inspection of the timing system. A failed tensioner may be visibly collapsed, leaking, or allow for excessive chain deflection when pushed on.
   Typical fix: Replace the failed tensioner. However, it is strongly recommended to replace all chains, guides, and tensioners at the same time, as a failed tensioner is a symptom of a worn system.
   Est. part cost: $50-$150
3. Low or Dirty Engine Oil ⚪ Low Probability The entire variable valve timing (VVT) system, including the camshaft phasers and timing chain tensioners, is hydraulically operated by engine oil. Low oil levels or oil that is broken down and full of sludge can cause them to function improperly, leading to correlation codes. An oil change is a cheap first step but rarely a permanent fix if the chains are already stretched.
   How to confirm: Check the oil level on the dipstick and review vehicle maintenance records. The oil should be full, clean, and of the correct viscosity (5W-30 synthetic is specified).
   Typical fix: Perform an oil and filter change using a high-quality 5W-30 synthetic oil and new filter. Clear codes and see if they return. If they do, mechanical wear is likely.
   Est. part cost: $50-$100

Rare But Worth Checking

• Faulty Camshaft Position Actuator Solenoid (VVT Solenoid): → Shop Engine Camshaft These solenoids control oil flow to the cam phasers. They can get clogged with sludge or fail electrically. While less common than chain stretch, they are much easier and cheaper to replace, making them a worthwhile diagnostic check. A resistance test can be performed; a typical reading is between 6.9 and 12 ohms. However, many owners replace these only to find the P0018 code returns, indicating the underlying problem is the chain.
• Faulty Camshaft or Crankshaft Position Sensor: → Shop Engine Crankshaft Position Sensor A sensor can fail and send incorrect data. However, on this engine, it's far more likely the sensor is accurately reporting a mechanical problem. Many owners waste money replacing sensors when the real issue is the timing chain. A sensor-only failure is unlikely to be accompanied by the characteristic chain rattle. There are documented cases of bad batches of even new OEM sensors causing issues.
• Slipped Crankshaft Reluctor Wheel: → Shop Engine Crankshaft The reluctor wheel on the crankshaft, which the crank sensor reads, can physically move from its original position. TSB PIP3423P and its successors mention this as a possible, though uncommon, cause that should be investigated if timing chains are found to be tight. Confirmation requires comparing the wheel's position to a known good crankshaft, sometimes possible with a borescope through the crank sensor hole. The fix requires crankshaft replacement or pinning the wheel in place.

Diagnosis Steps

1. Verify engine oil level and condition. If low or dirty, perform an oil and filter change with 5W-30 synthetic oil, clear the codes, and re-test.
2. Use a professional scan tool (like a GM Tech2 or GDS2) to read all stored fault codes and view live data. Monitor the camshaft position deviation/variance for all four camshafts at idle and during snap-throttle tests. Consistent deviation beyond +/- 4 degrees is a strong indicator of a problem.
3. Listen for a rattling or scraping noise from the front of the engine, especially during a cold start for the first 2-3 seconds. This is a classic sign of a loose timing chain.
4. Perform a bidirectional test using a scan tool to command the Bank 2 intake camshaft position actuator from 0 to 40 degrees. Observe the Camshaft Position Variance parameter; it should remain below 2 degrees. If it exceeds this, it may indicate a faulty phaser.
5. If scan tool data points to a timing issue and/or noise is present, physical inspection is required. This is a labor-intensive step that involves removing the engine's front timing cover.
6. Visually inspect the timing chains for slack. Check the condition of the plastic guides for broken or worn pieces. Manually check the tensioners to ensure they are firm.
7. If the chains are loose or guides are damaged, replace the complete timing chain kit (all chains, guides, and tensioners).
8. If the chains are tight and guides are intact, investigate less common causes like a slipped crankshaft reluctor wheel, as noted in TSB PIP3423P. This may require a borescope or removal of the oil pan for inspection.

Parts You'll Likely Need

• Timing Chain Kit (OEM #12651450 (This part number has been superseded by newer versions like 12700436 or kit 12693218, always verify with VIN)) — This is the definitive fix for the most common cause of P0018 on this engine. A complete kit ensures all worn components (chains, guides, tensioners, gaskets) are replaced with updated, more durable parts.
  Trusted brands: ACDelco (GM Original Equipment), Cloyes
  OEM price range: $400-$600
  Aftermarket price range: $250-$450

Related Codes That Often Appear With This One

• P0008 — Indicates a general engine position system performance error for Bank 1. It is often the first code to appear when timing chains begin to stretch and is explicitly linked with P0018 in GM service bulletins.
• P0016 — This is the same correlation error but for Bank 1 (Intake Cam). It's common to see codes for both banks when the primary timing chain is stretched, as it affects the timing of the entire engine.
• P0017 — This is a correlation error for the exhaust camshaft on Bank 1. The provided TSBs group P0016, P0017, P0018, and P0019 together as symptoms of the same timing chain issue.
• P0019 — This is a correlation error for the exhaust camshaft on Bank 2. Seeing multiple correlation codes (P0016, P0017, P0018, P0019) strongly points to a base timing issue affecting the entire engine, such as a stretched primary chain or a slipped crank reluctor wheel.

Technical Service Bulletins (TSBs) & Recalls

• PIP3423P: (And its successors like M, N, etc.) Notes that codes P0016, P0017, P0018, P0019, P0008, or P0009 may require inspection for loose timing chains or a slipped crankshaft reluctor wheel if chains are tight.
• 12-06-01-009F: Discusses the availability of comprehensive timing chain kits for repairing stretched timing chains that cause DTCs P0008, P0009, P0016, P0017, P0018, and/or P0019, and advises against replacing non-wear items like sprockets and actuators for this specific issue.
• 11340C: This is the Special Coverage Adjustment from GM acknowledging premature timing chain wear on 2007-2009 STS models with the 3.6L engine. It extended the warranty to 10 years/120,000 miles for this specific repair.

Platform-Specific Known Issues

• Premature timing chain stretch is a widely recognized systemic issue on 2005-2011 Cadillac STS models with the 3.6L V6 engine.
• General Motors issued Special Coverage Adjustment #11340C, which extended the warranty for timing chain wear to 10 years or 120,000 miles for affected vehicles, specifically including the 2007-2009 STS. This program acknowledged that an earlier ECM reprogram (#10287) was not a sufficient fix. While this program has expired for all vehicles due to age, it serves as official acknowledgment of the defect.

Mechanic-Grade Diagnostic Values

• Camshaft Position Actuator Solenoid (VVT Solenoid) resistance — expected: 6.9 - 12 ohms. Failure: A reading outside this range (especially infinite for open or near-zero for shorted) indicates a failed solenoid.
• Camshaft End Play — expected: Less than 0.40 mm (0.016 in). Failure: End play equal to or greater than 0.40 mm can indicate excessive wear in the camshaft or head, potentially causing timing codes.
• Camshaft Position Variance (during scan tool actuator test) — expected: Less than 2 degrees. Failure: Variance greater than 2 degrees while commanding the phaser suggests a mechanical problem with the camshaft actuator (phaser).

Scan Tool Commands That Help

• GDS2 / Tech2: Camshaft Position Actuator Control — Use this bidirectional command to manually sweep the cam phaser from 0 to 40 degrees. It helps isolate whether a timing correlation issue is due to a stuck/faulty phaser or another cause like a stretched chain.
• GDS2 / Tech2: Crankshaft Position Variation Relearn — This procedure must be performed after replacing the crankshaft position sensor or if the crankshaft reluctor wheel is disturbed. It allows the ECM to learn the minor variations in the reluctor wheel to ensure accurate timing and misfire detection.

Wiring & Ground Locations

• G103 (on 3.6L) — Top right side of the engine, fastened to the ECM case.. This is a primary ground for the Engine Control Module (ECM). A poor connection here can cause erratic behavior from the ECM and incorrect readings from various engine sensors, including the cam and crank sensors.
• G104 — On the right front frame rail, near the bumper bracket.. This is another important engine bay ground. Verifying it is clean and tight is a crucial step in diagnosing any electrical fault, as poor grounds can cause unpredictable issues that mimic sensor failures.
• G100 / G106 — On the rear side of the right cylinder head (Bank 1).. These grounds are directly on the cylinder head and provide a ground path for components in that area. A loose or corroded connection could potentially affect sensor readings on that bank.

Real Owner Repair Stories

• YouTube channel 'Pine Hollow Auto Diagnostics' (GM 3.6L (similar issue, different model)) — Check engine light with camshaft position sensor fault codes.
  ❌ Tried (didn't work) Replacing the camshaft position sensor with a new aftermarket part., Replacing the sensor again with a new OEM part from a GM dealer., Replacing the sensor a third time with another new OEM part from a GM dealer.
  ✅ What actually fixed it The technician suspected a bad batch of new parts. They purchased a used OEM sensor from eBay, which resolved the issue immediately. The scope pattern returned to normal, confirming the three new sensors (one aftermarket, two dealer) were faulty out of the box.
• YouTube channel 'Kevin Nadeau' (Cadillac CTS 3.6L) — Check Engine Light with codes P0008 and P0017.
  ❌ Tried (didn't work) Initial diagnosis pointed towards timing chains.
  ✅ What actually fixed it As a first step, the owner replaced the bank 1 cam position sensors and cleaned the VVT solenoids. After the repair, the battery was disconnected to clear the codes. Following a five-mile test drive, the check engine light did not return, suggesting the issue was resolved with the sensor replacement and a full system reset.

When the Usual Fixes Don't Work

• While the overwhelming majority of P0018 codes on this engine point to a stretched timing chain, there are documented cases where the root cause was electrical. In one instance, a technician chased a cam sensor code across multiple new OEM sensors, only to find the new parts themselves were defective out of the box. The final fix was a used OEM sensor. This highlights that while mechanical wear is the most probable cause, faulty replacement parts can mimic a much larger problem, leading to misdiagnosis.

OEM Part Supersession History

• 12651450 → 12700436, and later by kit 12693218 — The original timing chains were prone to stretching. Successive part numbers represent updated designs for improved durability.
  Heads up: The most current kit, 12693218, is a comprehensive kit that includes chains, tensioners, guides, and gaskets, and is the preferred replacement to ensure all updated components are used.

Model Year Variations Within This Range

• 2005-2007: These years primarily used the LY7 engine, which is most susceptible to the timing chain issues caused by the original chain design and optimistic Oil Life Monitor (OLM) software.
• 2008-2011: The direct-injection LLT engine was introduced in 2008. While still a 3.6L High Feature V6, it had some design changes. Early LLT engines can still suffer from timing chain issues, but improvements were made in later years. GM also issued software updates (e.g., Field Action 10287C) to revise the Oil Life Monitor calculation to recommend more frequent oil changes.
• 2007+: During the 2007 model year, GM began phasing in a redesigned timing chain with a smaller pitch (7.7mm vs 9.5mm) and an inverted tooth design to improve durability.
