P0021 on 2009-2012 Ford Escape 3.0L V6: Causes and Fixes for Over-Advanced Camshaft Timing

What's Unique About the 2001-2012 Ford Escape

The 3.0L Duratec V6 in the second-generation Escape (2009-2012) is known for its VCT system's sensitivity to oil quality and level. Unlike many engines where VCT solenoids are easily accessible, on this V6 they are located under the valve covers, making replacement a more involved job. Furthermore, this specific engine has a documented, though uncommon, weakness where camshaft bearing cap bolts can loosen over time, which can also trigger timing-related fault codes.

Generation note: The specified vehicle range (2001-2012) covers the first (2001-2007) and second (2008-2012) generations of the Ford Escape. However, the 3.0L Duratec V6 was equipped with Variable Camshaft Timing (VCT) starting in the 2009 model year. Therefore, this trouble code P0021 is only applicable to 2009, 2010, 2011, and 2012 Ford Escape models.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle
• Hesitation or stumbling on acceleration
• Engine stalling
• Reduced fuel economy
• Hard starting
• Engine rattling noise

Most Likely Causes

1. Low or Dirty Engine Oil 🔴 High Probability The VCT system is entirely dependent on clean oil at the correct pressure. Sludge from delayed oil changes can clog the small passages in the VCT solenoids and phasers, preventing proper operation.

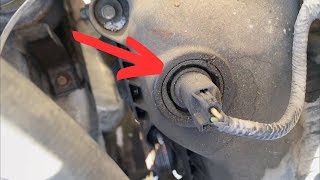

   How to confirm: Check the engine oil dipstick. 🎬 Watch: How to clean VVT components affected by oil sludge. The level should be in the safe range and the oil should not appear excessively dark, thick, or sludgy.
   Typical fix: Perform an oil and filter change using the manufacturer-specified SAE 5W-20 synthetic blend oil. Clear the codes and re-test.
   Est. part cost: $30-$70
2. Failing VCT Solenoid (Oil Control Valve) for Bank 2 🔴 High Probability → Shop Engine Variable Valve Timing (VVT) Solenoid These solenoids cycle constantly and are a common failure point due to electrical failure or clogging from oil debris. Ford TSB 12-10-12 directly addresses this part as the cause for this code on 2012 models.
   How to confirm: The most definitive diagnostic is to swap the Bank 2 (front) and Bank 1 (rear) VCT solenoids. Clear codes and drive. If the code changes to P0011 (Bank 1), the solenoid is confirmed faulty. This requires removing the valve covers. Alternatively, with the solenoid removed, it can be tested with a multimeter; resistance should be between 6.9 and 7.9 ohms.
   Typical fix: Replace the Bank 2 VCT solenoid. Since the valve cover must be removed, it is wise to replace the valve cover gasket at the same time.
   Est. part cost: $40-$80
3. Stuck or Worn Camshaft Phaser (Bank 2) 🟡 Medium Probability → Shop Engine Camshaft Internal components of the phaser can wear or get stuck from oil contamination, preventing it from retarding the cam timing back to the base position.
   How to confirm: Requires advanced diagnostics with a scan tool to command phaser position and observe the response. Physical inspection requires removing the valve cover and potentially the timing cover.
   Typical fix: Replace the camshaft phaser. This is a labor-intensive job often done in conjunction with a full timing chain service.
   Est. part cost: $100-$250

Rare But Worth Checking

• Loose or Broken Camshaft Cap Bolts: → Shop Engine Camshaft This is a known, unique flaw of the 3.0L Duratec engine. If a bolt loosens, the camshaft can lift, affecting valve operation and timing. If the valve cover is already off for a VCT solenoid replacement, it is critical to check the torque on these bolts to 89 lb-in (10 Nm).

Diagnosis Steps

1. Check the engine oil level and condition. If low, dirty, or the wrong viscosity, perform an oil and filter change with SAE 5W-20 oil, clear the code, and re-test.
2. Scan for other DTCs. Address any camshaft position sensor codes (P034x) first.
3. Inspect the wiring harness and connector for the Bank 2 (front) VCT solenoid for any visible damage, corrosion, or loose connections.
4. For a definitive diagnosis, swap the VCT solenoids between Bank 2 (front) and Bank 1 (rear). This is an involved job that requires removing the upper intake manifold and both valve covers.
5. After swapping the solenoids, clear the codes and drive the vehicle. If the code changes to P0011 (Bank 1), the solenoid you moved to the rear bank is faulty and must be replaced.
6. If the code P0021 returns after the swap, the issue is likely not the solenoid. You can test the solenoid electrically. Using a multimeter, check the resistance across the two pins. It should be between 6.9 and 7.9 ohms. If it's out of spec, replace it.
7. If the solenoid tests good and the code returns, the next steps involve mechanical inspection of the Bank 2 cam phaser and timing components, which is best left to a professional.
8. While the valve covers are off for any of the above steps, use a torque wrench to verify the camshaft cap bolts are tightened to 89 lb-in (10 Nm).

Parts You'll Likely Need

• Variable Camshaft Timing (VCT) Solenoid / Oil Control Valve (Bank 2) (OEM #8L3Z-6M280-B) — This is the most common failure point for code P0021 on this engine, as identified by owner experiences and a Ford TSB. Bank 2 is the front bank, near the radiator.
  Trusted brands: Motorcraft, Standard Motor Products (SMP), Dorman (e.g., 917-200)
  OEM price range: $60-$90
  Aftermarket price range: $40-$80
• VCT Solenoid for Bank 1 (for diagnostic swap) (OEM #9L8Z-6M280-B) — This is the corresponding solenoid for the rear bank (Bank 1). It's useful to know this part number if you are swapping solenoids for diagnosis or replacing both as preventative maintenance.
  Trusted brands: Motorcraft
  OEM price range: $50-$90
  Aftermarket price range: $30-$70
• Valve Cover Gasket Set — Required for replacing the VCT solenoid, which is located under the valve cover. The set should include the main gasket and spark plug tube seals.
  Trusted brands: Fel-Pro, Motorcraft, Mahle
  OEM price range: $50-$80
  Aftermarket price range: $30-$60
• Upper Intake Manifold Gasket Set — The upper intake manifold must be removed to access the rear (Bank 1) valve cover if swapping solenoids for diagnosis, and often provides better access to the front (Bank 2) cover.
  Trusted brands: Fel-Pro, Motorcraft
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0011 — This is the equivalent code for Bank 1. It may appear if you swap the VCT solenoids for diagnosis, confirming the solenoid is the fault. It can also appear alongside P0021 if there is a systemic oil pressure/quality issue.
• P0022 — This is the code for an over-retarded condition on the same bank. Seeing both P0021 and P0022 intermittently could point to an erratic VCT solenoid or a sticking cam phaser.
• P0345, P0349 — These are codes for the Bank 2 Camshaft Position Sensor circuit. If one of these is present, the sensor or its wiring should be diagnosed before the VCT components.

Technical Service Bulletins (TSBs) & Recalls

• TSB 12-10-12: For 2012 Escape and Fusion with the 3.0L engine, this bulletin advises replacing the VCT oil control solenoid if codes P0011, P0012, P0021, or P0022 are present.
🎬 See this walkthrough on how to fix P0021 codes.

Platform-Specific Known Issues

• A known but uncommon issue on the 3.0L Duratec V6 is the loosening or breaking of camshaft bearing cap bolts. This can cause a loss of oil pressure to the phasers or improper camshaft alignment, triggering timing codes.

Mechanic-Grade Diagnostic Values

• VCT Solenoid Electrical Resistance — expected: 6.9 to 7.9 ohms. Failure: A reading outside this range, or an open/short circuit (OL or near 0 ohms), indicates a failed solenoid coil.
• Scan Tool PID: VCT_ADV_ERR (VCT Advance Error) — expected: Close to 0 degrees at idle and under steady-state driving.. Failure: A persistent value greater than +/- 5 degrees indicates the PCM cannot control the cam angle as commanded.
• Engine Oil Pressure at Idle — expected: Minimum of 15 PSI at hot idle with the VCT system inactive (accelerator pedal not pressed).. Failure: Pressure below 15 PSI can cause erratic VCT operation and drivability issues, even without a specific low oil pressure code.

Hidden / Shadow Codes Worth Checking

• Mode $06, TID $81, $82: These Test IDs (TID) within Mode $06 data relate to the VCT monitor. They show raw test results for camshaft timing performance, which can indicate if the timing is approaching its failure threshold even before a full-blown DTC like P0021 is set. (see via A professional scan tool or advanced DIY software (like FORScan) that can access and interpret Ford's Mode $06 data.)

Scan Tool Commands That Help

• Ford IDS (Integrated Diagnostic System): VCT Solenoid On/Off State Command — This bidirectional control allows a technician to command the VCT solenoid on and off while the engine is idling. A functional solenoid will produce an audible click and a noticeable change in idle quality (stumble or roughness), confirming the solenoid is mechanically responding to electrical commands.
• Ford IDS (Integrated Diagnostic System): Datalogger with VCT PIDs (VCT_ADV, VCT_ADV_ERR, RCAM, VCT_DUTY) — Used to graph the commanded vs. actual cam angle and the error between them during a test drive. This is crucial for diagnosing intermittent issues or determining if the problem lies with the solenoid's response time or the phaser's mechanical movement.

Wiring & Ground Locations

• VCT Solenoid Connector — On top of the VCT solenoid, under the Bank 2 (front) valve cover.. This 2-pin connector provides power and the control signal from the PCM. Pin 1 is typically 12V+ from the PCM power relay, and Pin 2 is the ground-side control wire from the PCM. Corrosion or damage here can interrupt the signal and cause P0021.
• G108 — On the 3.0L engine, this ground point is located at the rear of the engine compartment.. This is a primary engine ground point. A loose or corroded connection at G108 can cause various sensor and actuator issues, including erratic VCT operation, due to an unstable ground reference for the PCM and its components.
• PCM Connector C175B — Located at the Powertrain Control Module (PCM) on the firewall.. This is one of the main PCM connectors where the control wire for the Bank 2 VCT solenoid terminates. A poor pin fit or corrosion at this connector could be a rare but possible cause of the code, especially if wiring tests show an issue between the solenoid and PCM.

Real Owner Repair Stories

• escape-city.com forum user summary (2012 Ford Escape 3.0L V6) — Check Engine Light with both P0011 (Bank 1) and P0021 (Bank 2) codes present simultaneously, indicating a potential systemic issue.
  ❌ Tried (didn't work) Initial oil and filter change did not resolve the codes.
  ✅ What actually fixed it After swapping the VCT solenoids between banks to confirm a fault, the owner replaced BOTH VCT solenoids (Bank 1 and Bank 2) along with new valve cover gaskets. This resolved both codes permanently.

OEM Part Supersession History

• 8L3Z-6M280-A, 3L3Z-6M280-EA → 8L3Z-6M280-B — Part revision and improvement by the manufacturer.
  Heads up: The newest part number (8L3Z-6M280-B) should always be used for replacement. While older versions may physically fit, the updated part is recommended for reliability.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Rear Shock Tower Rust 🔴 High — Extremely common, especially in northern climates (Rust Belt). Can occur as early as 5-7 years. The passenger side is noted to rust out more frequently than the driver's side. (Ref: No TSB or recall, but a well-known issue with aftermarket repair solutions available, such as Dorman part 924-358.)
• Internal Timing-Chain Driven Water Pump 🔴 High → Shop Engine Timing Chain — Failure is less frequent than other issues but is catastrophic when it occurs. Replacement is a major, labor-intensive repair (10+ hours) as the timing cover must be removed.
• Collapsing PCV System Hose 🟠 Medium — Common issue where a specific pre-formed hose in the PCV system softens with age and collapses under vacuum, causing a loud humming/whistling noise, rough idle, and lean codes.
• Leaking Driver's Side Transaxle (Axle Shaft) Seal 🟠 Medium — A widely reported leak on 2009-2012 models equipped with the 6F35 transmission, leading to transmission fluid loss. (Ref: Ford offers a repair kit for this issue.)
• Cracked Front ABS Tone Ring 🟡 Low — Common failure where the toothed ring on the front axle shaft cracks due to rust, causing the ABS and Traction Control lights to illuminate and the systems to activate erratically at low speeds.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, using a salvaged part is NOT recommended for the VCT solenoids or cam phasers. These parts fail due to internal wear and sludge contamination, and the condition of a used part is impossible to verify. A used valve cover or intake manifold is acceptable if the original is cracked or damaged during removal.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For hard parts like a valve cover, ensure there are no cracks, especially around bolt holes.
• Avoid parts from engines that show heavy sludge buildup when looking into the oil fill hole, as this indicates poor maintenance and likely compromised VCT components.

OEM-only on this vehicle (don't cheap out):

• VCT Solenoid: While some aftermarket brands are acceptable, Motorcraft (OEM) solenoids are widely considered the most reliable choice to avoid repeat failures.
• Cam Phaser: If a phaser replacement is needed, using an OEM Motorcraft part is strongly advised as aftermarket phasers have a high failure rate on many Ford engines.

Aftermarket brands forum-validated for this vehicle:

• Gaskets: Fel-Pro is a highly respected brand for valve cover and intake manifold gaskets.
• VCT Solenoids: Dorman and Standard Motor Products (SMP) are common aftermarket alternatives, though OEM is preferred.

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name VCT solenoids and phasers from online marketplaces often have very high failure rates and should be avoided to prevent having to do this labor-intensive job twice.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0011 — The Bank 1 (rear) equivalent of P0021; often appears simultaneously if oil sludge is affecting both VCT solenoids.
• P0012 — Bank 1 timing over-retarded; cited in TSB 12-10-12 as a related code for the same VCT solenoid failure mode.
• P0022 — Bank 2 timing over-retarded; the companion code to P0021 often caused by the same faulty Bank 2 VCT solenoid or phaser.
• P034X — Camshaft position sensor codes; the diagnostic steps recommend addressing these first before troubleshooting P0021.
