P0032 on 2015-2022 Ram ProMaster City: O2 Sensor Heater Circuit High Causes and Fixes

What's Unique About the 2015-2022 Ram ProMaster City

The 2.4L MultiAir engine in the ProMaster City is shared with other FCA (now Stellantis) vehicles like the Jeep Cherokee, Jeep Renegade, Chrysler 200, and Dodge Dart. For this P0032 code, owner and mechanic experiences across these platforms consistently show that the upstream O2 sensor itself is the most frequent point of failure, with its internal heater element shorting out. While wiring issues can occur, especially melting due to proximity to the exhaust, a faulty sensor is the primary suspect on this platform.

Symptoms You May Notice

• Check Engine Light illuminated
• Decreased fuel economy
• Failing an emissions test
• Possible rough idle or hesitation, though often not noticeable
• Engine may take longer to enter 'closed-loop' operation, affecting performance during warm-up.

Most Likely Causes

1. Failed Upstream Oxygen Sensor (Bank 1, Sensor 1) 🔴 High Probability → Shop Oxygen Sensor Based on extensive mechanic experience with the 2.4L MultiAir engine across multiple vehicle platforms, the internal heater element of the O2 sensor is the most common component to fail, causing a short circuit.
   How to confirm: Disconnect the sensor and use a multimeter to test the resistance between the two heater circuit pins (usually the two same-colored wires, often black). A reading near zero ohms indicates a shorted heater. A normal reading is typically between 2 and 30 ohms.

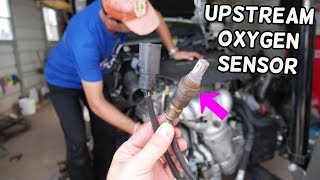

   Typical fix: Replace the upstream oxygen sensor located on the exhaust manifold. This is accessible from the top of the engine bay. 🎬 See this walkthrough for replacing the upstream oxygen sensor
   Est. part cost: $50-$185
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness for the oxygen sensor is routed near hot exhaust components. Over time, the protective loom can degrade, leading to melted wires that can short to power or each other. The connector itself can also become contaminated with oil or debris, leading to a poor connection.
   How to confirm: Visually inspect the entire length of the oxygen sensor's wiring harness and its connector. Look for any signs of melting, chafing, corrosion, or broken wires. Check for a secure connection at the sensor and where the harness connects to the main engine loom.
   Typical fix: Repair the damaged section of wiring or replace the pigtail connector if it is corroded or melted.
   Est. part cost: $15-$40 for a pigtail connector

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) A failure within the PCM's internal driver for the O2 sensor heater circuit can cause it to send continuous voltage, triggering the P0032 code. This is very uncommon and should only be considered after the sensor and wiring have been definitively proven to be good.
• Blown Fuse or Faulty Relay: While possible, a blown fuse is more commonly associated with 'low' or 'no voltage' codes (like P0031). However, it's a quick and easy check to perform as part of a thorough diagnosis. The O2 sensor heater circuit may have a dedicated fuse or relay in the under-hood fuse box, sometimes labeled 'AF heater' or similar.

Diagnosis Steps

1. Scan for any other diagnostic trouble codes. Address other codes first if they are present.
2. Turn the vehicle off and allow the exhaust to cool completely.
3. Locate the upstream oxygen sensor (Bank 1, Sensor 1) on the exhaust manifold. It is accessible from the top of the engine bay, just behind the radiator fans.
4. Carefully inspect the sensor's wiring harness and connector for any signs of melting, chafing, or corrosion.
5. Check the fuse box (typically under the hood) for any blown fuses related to the emissions system or O2 sensor heaters.
6. If the wiring appears intact, disconnect the sensor. Use a multimeter set to Ohms (Ω) to measure the resistance of the heater circuit on the sensor side (between the two wires of the same color). A reading near zero ohms confirms the sensor's heater is shorted and the sensor must be replaced. A healthy sensor should read between 2-30 Ohms.
7. If the sensor tests good, you must test the harness side. With the key on and engine off, check for battery voltage on the heater power wire at the connector. If voltage is present when it shouldn't be, it could indicate a short to power in the harness or a faulty PCM driver.
8. If all else fails, consider checking for PCM software updates with a dealer, as some drivability issues on this platform have been resolved with software flashes.

Parts You'll Likely Need

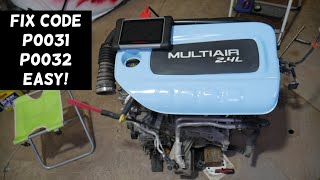

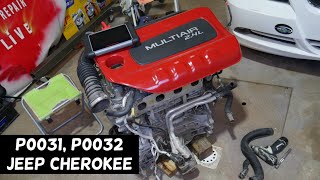

• Upstream Oxygen Sensor (OEM #68195741AA) — This is the most common cause of code P0032 on the 2.4L MultiAir engine, as the internal heater element is prone to shorting out. 🎬 Watch: Fixing P0032 on the shared 2.4L Jeep platform This part number is consistent across multiple FCA vehicles with the same engine.
  Trusted brands: Mopar, Bosch (e.g., 17355), Denso (e.g., 234-4545), NTK (e.g., 24361)
  OEM price range: $100-$200
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• P0031 — This code is for 'HO2S Heater Control Circuit Low'. It relates to the same sensor and circuit. Seeing either P0031 or P0032 strongly points to a failure in the Bank 1, Sensor 1 heater circuit, most often the sensor itself.
• P0135 — This is a more generic code for 'O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)'. It often appears alongside P0031 or P0032, further isolating the problem to the heater element of the upstream O2 sensor.

Technical Service Bulletins (TSBs) & Recalls

• TSB 18-030-16: Addresses various powertrain diagnostic codes for the 2015 ProMaster City, including P0133 for O2 sensor slow response, fixed by a PCM software update. While not directly for P0032, it shows a precedent for software fixes related to O2 sensor logic.

Platform-Specific Known Issues

• While no specific TSB for P0032 on the ProMaster City was found, TSB 18-030-16 addresses a P0133 (O2 Sensor Slow Response) code for the 2015 model year via a PCM software update. If the sensor and wiring check out, verifying your PCM software is up-to-date with a dealer is a worthwhile step before suspecting the PCM itself.

Mechanic-Grade Diagnostic Values

• Upstream O2 Sensor Heater Element Resistance — expected: 4.5 to 8.0 Ohms at 20°C (68°F). Many OEM Mopar sensors for this platform measure between 5 and 7 Ohms.. Failure: A reading of infinity (OL) indicates an open circuit (more common with P0031), while a reading near zero ohms indicates a short circuit (the typical cause for P0032).
• Heater Circuit Current Draw — expected: Typically under 8 Amps.. Failure: The P0032 code is often triggered when the PCM detects current draw above a specific threshold, which can be around 10 Amps, indicating a short to ground in the heater element or wiring.
• Heater Circuit Power Supply Voltage (at harness connector, power pin to ground) — expected: Battery voltage (~12V) with Key On, Engine Off.. Failure: A constant 12V on the *control* wire (not the power supply wire) with the sensor disconnected can indicate a short to power in the harness or a failed PCM driver.

Scan Tool Commands That Help

• Professional Scan Tool (e.g., wiTECH): O2 Heater Test / Actuator Test — This function allows a technician to command the O2 sensor heater circuit on and off manually. It's used to verify if the PCM driver is capable of controlling the circuit and to monitor voltage and current response in real-time without waiting for the engine to enter closed loop, helping to isolate the fault between the PCM, wiring, and the sensor itself.

Wiring & Ground Locations

• Upstream O2 Sensor Connector — Follow the wire from the sensor on the exhaust manifold towards the rear of the engine. The connector is often clipped to a bracket on the back of the engine block, near the firewall. It can be difficult to access and may require removing the air filter box.. This connector is a primary point of failure due to heat and vibration. A P0032 code can be caused by internal corrosion or by the wiring shorting to power or ground near this connector.
• Fuse F17 (Power Distribution Center) — In the under-hood fuse box (Power Distribution Center).. On many 2.4L MultiAir platforms like the Fiat 500X, fuse F17 (15A) supplies power to the O2 sensor heaters. While a blown fuse typically causes a 'low' circuit code (P0031), an intermittent short in the heater element can sometimes blow this fuse, and it should be checked as a preliminary step.
• Primary Engine Ground Strap — A key ground location on the ProMaster City platform is the braided strap connecting the transmission case to the chassis, near the transmission mount.. While less likely to cause a 'high' circuit code, a poor engine ground can cause a variety of bizarre electrical issues and unstable sensor readings. Verifying this ground is clean and tight is a best practice during any electrical diagnosis on this platform.

OEM Part Supersession History

• 5149180AA → 05149180AB — This is the part number for the *downstream* sensor on the same engine platform. While not the direct part for P0032, it shows a history of Mopar updating O2 sensors for the 2.4L MultiAir. It's crucial to verify the correct part number for the *upstream* sensor (68195741AA) for your specific VIN.
  Heads up: Using a downstream sensor in the upstream position will not work and will cause persistent codes.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption 🔴 High — Common enough to warrant a warranty extension (XB1) and multiple TSBs. Can manifest as the low oil pressure light illuminating between changes. (Ref: TSB 09-003-23)
• Transmission Shifting Issues / Failure 🔴 High — The 948TE 9-speed transmission can exhibit harsh shifting, unexpected shifts to neutral, and premature failure. Some issues were addressed by recalls and software updates. (Ref: Recall for unexpected shifts to neutral on 2015-2016 models due to CAN bus connector corrosion.)
• Proxy Alignment / Configuration Mismatch 🟠 Medium — After battery replacement or when modules lose communication, a "Proxy Alignment" procedure with a capable scan tool is often needed to restore full functionality and clear configuration mismatch codes.
• Slow Coolant Leaks from Radiator 🟠 Medium — Slow leaks from the seams where the plastic side tanks are crimped to the aluminum core are a very common issue on the larger ProMaster vans, and can also affect the ProMaster City. (Ref: A TSB was issued for the larger ProMaster van to replace the radiator under warranty for this symptom.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Never. O2 sensors are wear items with a finite lifespan, typically around 100,000 miles. The heater element is the most common failure point. A used sensor has unknown life remaining and is a poor value proposition given the low cost of a new aftermarket part.

What to inspect on the donor part:

• Not applicable. Do not buy used O2 sensors.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, using a known high-quality brand is critical. The PCM is sensitive to the heater's resistance and current draw. Cheap, no-name sensors are a very common cause of immediate code return.

Aftermarket brands forum-validated for this vehicle:

• NTK / NGK: Widely considered the OEM supplier for many FCA vehicles and the safest aftermarket choice.
• Denso: A top-tier OE supplier with a strong reputation for reliability.
• Bosch: A quality option, though some forum users across Jeep platforms have reported occasional compatibility issues.

Brands owners have reported issues with on this vehicle:

• Generic, unbranded parts from online marketplaces. These often have incorrect resistance values for the heater circuit, causing the P0032 or P0031 code to return immediately after installation.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0031 — Companion code for the same Bank 1 Sensor 1 heater circuit. P0031 indicates a circuit low (short to ground) condition, while P0032 indicates a circuit high (short to power). Both point to the same failed sensor heater or wiring issue.
• P0135 — A more generic code for O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1). A fault that triggers the more specific P0032 code is, by definition, a heater circuit malfunction.
• P0133 — O2 Sensor Circuit Slow Response (Bank 1 Sensor 1). TSB 18-030-16 addresses this code on the 2015 ProMaster City with a PCM software update, showing a precedent for software-related issues with the same sensor.
• P0038 — HO2S Heater Control Circuit High (Bank 1 Sensor 2). This code points to the downstream sensor's heater. A wiring issue in a shared harness or a systemic electrical problem could potentially cause faults in both sensor heater circuits.
• P0420 — Catalyst System Efficiency Below Threshold (Bank 1). A faulty upstream O2 sensor causing P0032 can result in incorrect air/fuel ratio data, leading the PCM to misdiagnose the catalytic converter's health or even cause damage to it over time.
