P0036 on 2005-2008 Audi A4 2.0T: O2 Sensor Heater Circuit Causes and Fixes

What's Unique About the 2005-2008 Audi A4

The 2005-2008 Audi A4 (B7 generation) with the 2.0T engine is generally reliable, but like many vehicles of this era, the oxygen sensors are a common wear item. The wiring for the downstream O2 sensor runs near hot exhaust components, making it susceptible to heat damage over time. Forum users have specifically reported finding broken or melted connectors as the cause of P0036 on this platform, confirming the vulnerability of the wiring harness.

Symptoms You May Notice

• Check Engine Light is on.
• Failure to pass an emissions test.
• In rare cases, slightly reduced fuel economy over time.
• Rough idle or hesitation for a few seconds on a cold start.

Most Likely Causes

1. Failed Downstream Oxygen Sensor (Bank 1, Sensor 2) 🔴 High Probability → Shop Oxygen Sensor The internal heater element within the O2 sensor is a common failure point due to age and constant heat cycles. It's the most frequent cause of P0036.
   How to confirm: Disconnect the sensor and measure the resistance across the two heater circuit wires (usually the two same-colored wires, often white). A healthy sensor should have a resistance between 3-25 Ohms at room temperature. 🎬 See how to test the O2 sensor heater element An open circuit (infinite resistance) or a direct short (near zero resistance) indicates a failed heater element.
   Typical fix: Replace the Bank 1, Sensor 2 oxygen sensor.
   Est. part cost: $70-$250
2. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness for the O2 sensor is routed near the hot exhaust system, which can cause the insulation to become brittle, melt, or crack over time, leading to a short or open circuit.
   How to confirm: Visually inspect the entire length of the O2 sensor wiring harness and its connector for signs of melting, chafing, corrosion, or loose pins. A user on AudiWorld forums reported solving their P0036 code by repairing a broken connector.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $5-$50
3. Blown Fuse ⚪ Low Probability A short circuit in the heater element or its wiring can cause the corresponding fuse to blow.
   How to confirm: Locate and inspect the fuse for the oxygen sensor heater circuit. On the B7 A4, this can be in the main fuse panel on the driver's side of the dashboard or in the under-hood E-box. Check fuse #44 (30A) in the main panel or fuse #4 in the E-box, though locations can vary. If other heater circuit codes (like P0031) are present, a blown fuse is more likely.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, it indicates a persistent short circuit that must be found and repaired.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. The ECM should only be considered a potential cause after all other possibilities (sensor, wiring, fuses) have been exhaustively tested and ruled out. A failure of the internal driver transistor for the heater circuit can cause this code.

Diagnosis Steps

1. Scan the vehicle's computer for codes to confirm P0036 is the primary code present. Note any other codes.
2. Visually inspect the Bank 1, Sensor 2 (downstream) oxygen sensor's wiring harness and connector. Look for any signs of melting, burning, chafing, or corrosion, paying close attention to where the harness runs near the exhaust.
3. Check the fuse for the O2 sensor heater circuit. On the B7 A4, this is often fuse #44 (30A) in the driver's side dash panel or a fuse in the under-hood electronics box.
4. If the wiring and fuse are intact, disconnect the O2 sensor.
5. Using a multimeter set to Ohms, measure the resistance between the two heater pins on the sensor side of the connector (they are typically the two wires of the same color, e.g., both white). A reading of infinite resistance (open loop) or near-zero Ohms (short circuit) means the heater element is broken and the sensor must be replaced. A healthy sensor will typically read between 3 and 25 ohms.
6. If resistance is within spec, check for 12-volt power and a good ground at the vehicle harness connector with the key on, engine off. The ECM provides a pulsed ground, so a test light may be more effective than a voltmeter for checking the control side.
🎬 Watch: Easy testing of the O2 heater circuit
7. If power and ground are present and the sensor's heater resistance is good, the sensor itself is still the most likely culprit due to intermittent failure, but a wiring issue between the connector and ECM is possible.

Parts You'll Likely Need

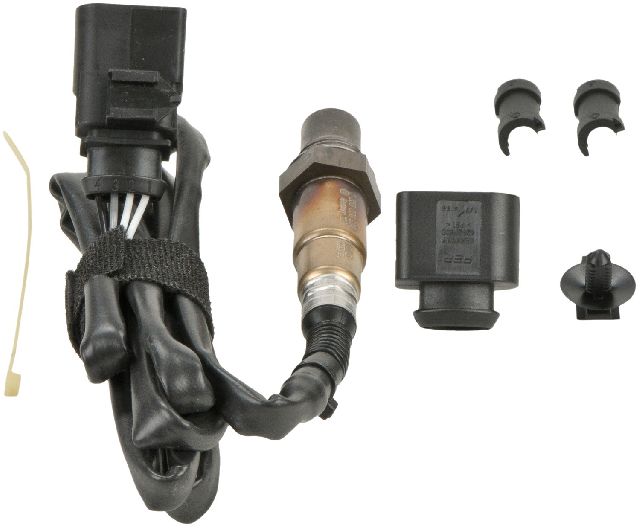

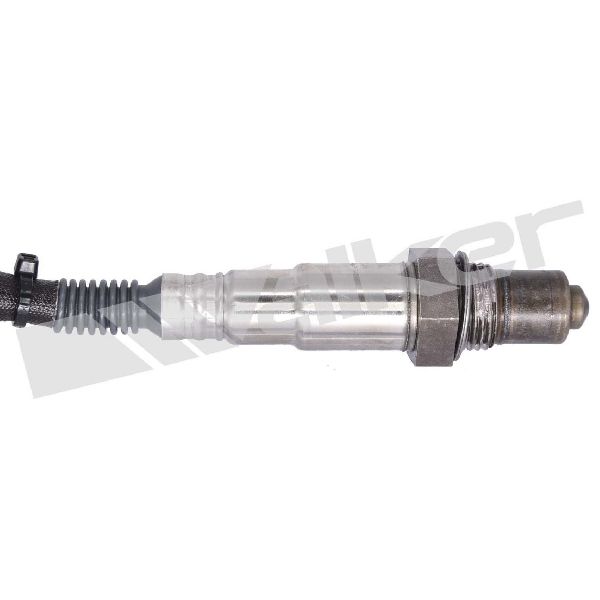

• Downstream Oxygen Sensor (Bank 1, Sensor 2) (OEM #1K0998262D (or superseding numbers)) — The internal heater element fails from age and heat cycles, which is the most common cause of P0036.
  Trusted brands: Bosch (OEM supplier, part #17090 is a common direct fit), Denso, NGK/NTK
  OEM price range: $180-$250
  Aftermarket price range: $70-$150

Related Codes That Often Appear With This One

• P0031 — This code is for the Bank 1, Sensor 1 heater circuit. If both P0031 and P0036 appear together, it strongly suggests a shared power supply issue, such as a blown fuse or faulty relay that powers both O2 sensor heaters.

Platform-Specific Known Issues

• A user on AudiWorld's B7 A4 forum traced their P0036 code to a broken connector on the vehicle's wiring harness side, not the sensor itself. This highlights the importance of checking the full length of the wiring and the integrity of the plastic connectors.

Mechanic-Grade Diagnostic Values

• Downstream O2 Sensor (B1S2) Heater Element Resistance — expected: 4-10 Ohms when cold. Some sources cite a wider acceptable range up to 25 Ohms, but values under 10 are most common for a healthy sensor.. Failure: Infinite resistance (open circuit) or near-zero resistance (short circuit).
• Voltage at O2 Sensor Heater Power Supply Pin (Harness Side) — expected: Battery voltage (~12V) with Key On, Engine Off (KOEO).. Failure: No voltage or significantly low voltage, indicating a blown fuse, faulty relay, or break in the power supply wire.
• Engine Block to Chassis Ground Resistance — expected: Near 0 Ohms (e.g., less than 0.5 Ohms).. Failure: Higher resistance reading, which can indicate a corroded or loose main engine ground strap, potentially causing intermittent electrical issues for sensors grounded through the block.

Scan Tool Commands That Help

• VCDS (VAG-COM): Engine -> Measuring Blocks -> Group 030, 034, 036, or 041 — These measuring blocks can be used to monitor the status of the oxygen sensor heaters. The ECU runs tests on the heaters, and the status will be displayed (e.g., 'Test ON', 'Test OFF', 'Heater OK', 'Heater NOT OK'). This provides a live view of the ECU's diagnostics for the heater circuit, confirming if the fault is currently active.

Wiring & Ground Locations

• G11 — In the engine bay, right next to the battery.. This is the main chassis ground connection from the negative battery terminal. A poor connection here can cause widespread, intermittent electrical issues across the entire vehicle.
• G12 — Located at the center of the firewall in the engine bay.. This ground point serves the Engine Control Module (ECM). A faulty ground here can directly impact the ECM's ability to correctly read sensor data and control outputs like the O2 sensor heater circuit.
• O2 Sensor Connector (Downstream) — Underneath the vehicle, on the exhaust pipe after the catalytic converter. The vehicle-side harness connector is typically mounted to the underbody or a bracket nearby.. This is the primary point of failure for wiring issues. The plastic can become brittle from heat and road debris, causing pins to lose connection or wires to break internally at the back of the connector.

Real Owner Repair Stories

• Reddit user on r/MechanicAdvice (Ford Focus 1.0 EcoBoost (Illustrates a common cross-platform issue)) — Check Engine Light with P0036. Code would return after 2-3 cold starts.
  ❌ Tried (didn't work) Clearing the codes., Replacing both oxygen sensors.
  ✅ What actually fixed it The user's problem persisted after replacing the sensor, and a P0420 (Catalyst Efficiency) code became pending. This indicates the next diagnostic steps must focus on the wiring harness for power/ground and signal integrity, or a potential issue with the new aftermarket sensor being faulty or incompatible. The resolution was not posted, but it highlights that a new sensor is not a guaranteed fix.

OEM Part Supersession History

• 1K0998262D → This part number is a kit that has been used across many VW/Audi models and may be replaced by other numbers depending on the specific application and date. It is often cross-referenced directly to the Bosch 17090 or 17351 sensors. — Standard part evolution and supplier changes.
  Heads up: While many sensors are physically compatible, using a non-direct-fit or 'universal' sensor that requires splicing can introduce resistance issues and is a common cause of repeat failures. Always use a direct-fit replacement from a reputable OE-supplier like Bosch.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• HPFP Cam Follower Failure 🔴 High — Very common. Recommended to inspect every 10,000-20,000 miles and replace preventatively. Failure can occur from 50,000 miles onward. (Ref: Audi issued TSB 2013147 and an extended warranty to 10 years/120,000 miles for this part.)
• PCV System Failure 🟠 Medium — Common failure item, often after 60,000 miles. Can cause oil leaks, high oil consumption, rough idle, and lean codes.
• Excessive Oil Consumption 🔴 High — A notorious issue, particularly in later 2.0T engines, but can also affect the B7. Often caused by faulty piston rings. Consumption can be as high as 1 quart per 500-1000 miles. (Ref: Subject of class-action lawsuits, though primarily focused on later model years.)
• Intake Valve Carbon Buildup 🟠 Medium — Inherent to all direct-injection engines. Typically requires cleaning every 50,000-80,000 miles to prevent misfires and loss of power.
• Diverter Valve (DV) Failure 🟡 Low — The original diaphragm-style DV is prone to tearing, causing a loss of boost pressure. A common and relatively easy upgrade to a piston-style valve.
• Ignition Coil Failure 🟡 Low — A common cause of misfires. Coils can fail intermittently. Many owners keep a spare in the trunk. Audi has had recalls and updated part numbers over the years. (Ref: Recalls were issued for certain VIN ranges.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Buying a used oxygen sensor is never recommended as they are wear items with a finite lifespan. However, sourcing a used vehicle-side wiring harness pigtail from a junkyard is an excellent, cost-effective solution if your original connector is broken, melted, or corroded. It provides an OEM-quality connector and wire colors for a proper repair.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, inspect for any signs of melting or heat stress on the plastic connector.
• Ensure the locking tab on the connector is intact and functional.
• Check that the wires are flexible and not brittle or cracked.
• Cut the pigtail with at least 6-8 inches of wire to allow for easy splicing.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, it is highly recommended to use an O2 sensor from the original equipment supplier, which is typically Bosch for this vehicle.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the OEM part without the Audi/VW logo)
• NTK/NGK
• Denso

Brands owners have reported issues with on this vehicle:

• Generic, unbranded sensors from online marketplaces (e.g., eBay, Amazon) are frequently reported by forum users to be dead-on-arrival, have incorrect resistance values, or fail prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0031 — Oxygen Sensor Heater Control Circuit Low (Bank 1, Sensor 1); often appears with P0036 if the common heater circuit fuse is blown.
• P0136 — O2 Sensor Circuit Malfunction (Bank 1, Sensor 2); relates to the same downstream sensor as P0036 and can be triggered by the same wiring or sensor failure.
• P0141 — O2 Sensor Heater Circuit Malfunction (Bank 1, Sensor 2); a companion code to P0036 specifically identifying a fault in the heater element circuit.
• P0171 — System Too Lean; can be caused by the PCV system failure mentioned as a common known issue for this vehicle platform.
