P0052 on 2024 Jeep Wrangler: O2 Sensor Heater Circuit High Causes & Fixes

What's Unique About the 2024-2024 Jeep WRANGLER

For the 2024 Jeep Wrangler (JL/JLU), a P0052 code can be more than just a bad sensor. Multiple Technical Service Bulletins (TSBs) confirm that a group of O2 sensor heater circuit high codes (including P0052) can be caused by a PCM software glitch. This glitch can send excessive voltage to the sensor's heater, causing it to fail prematurely. Owners often report replacing the sensor only for the code to return, making a dealer software update a necessary step for a permanent fix. Additionally, the Wrangler's off-road nature makes its wiring harnesses susceptible to chafing and damage, especially near the exhaust and frame, which can cause a short to power and trigger this code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Reduced fuel economy
• Engine may run rough, especially during warm-up
• Possible black smoke from the exhaust
• In some cases with related electrical issues, multiple warning lights (ABS, Power Steering) may appear simultaneously.

Most Likely Causes

1. Failed Bank 2, Sensor 1 Oxygen Sensor 🔴 High Probability → Shop Oxygen Sensor While sensors fail naturally, 2024 models have a known PCM software issue that can cause an overvoltage condition, leading to premature failure of the sensor's internal heater. This is the most common reason for the code.
   How to confirm: After checking wiring, test the resistance of the heater circuit within the O2 sensor using a multimeter. Disconnect the sensor and measure across the two same-colored heater wires. A reading of infinite resistance (open circuit) or a value far from the typical 2-30 ohms indicates a failed heater.
   Typical fix: Replace the Bank 2, Sensor 1 oxygen sensor. It is highly recommended to use an OEM Mopar or OEM-supplier part like NTK to avoid compatibility issues. If the code returns, a PCM software update is likely necessary.
   Est. part cost: $50-$120
2. Damaged Wiring or Connectors 🟡 Medium Probability As an off-road vehicle, the wiring harness leading to the exhaust is susceptible to damage from rocks, water, mud, and chafing against the frame or engine components. A common area for damage is where the harness passes near the exhaust manifold or control arms.
   How to confirm: Visually inspect the entire wiring harness from the O2 sensor to the engine. Look for frayed wires, melted insulation, or corrosion in the connector. Check for battery voltage on the heater control circuit at the sensor connector with the key on, which would indicate a short to power.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector. Secure the harness away from sharp edges or hot exhaust components with zip ties.
   Est. part cost: $10-$50
3. Blown Fuse for O2 Heater Circuit ⚪ Low Probability
   How to confirm: Locate the fuse for the O2 sensor heater circuit in the vehicle's fuse box (often labeled 'O2 HTR' or similar) and check if it is blown.
   Typical fix: Replace the blown fuse. If it blows again immediately, this indicates a short circuit in the wiring or the sensor itself that must be found and repaired.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM) or Software: → Shop Engine Control Module (ECM) This is a notable cause for this specific vehicle. Before condemning the PCM hardware, a software update (reflash) from a dealership is the most likely fix, as noted in multiple TSBs (e.g., 18-003-26, 18-050-24). This update corrects the logic that controls the voltage sent to the heater circuit.

Diagnosis Steps

1. Verify the code with an OBD-II scanner.
2. Locate the Bank 2, Sensor 1 oxygen sensor. On a 3.6L Pentastar V6, Bank 2 is the driver's side. Sensor 1 is the upstream sensor before the catalytic converter, often accessible from the wheel well after removing the fender liner.
3. Thoroughly inspect the sensor's wiring harness and connector for any signs of melting, fraying, chafing, or corrosion. Pay close attention to where the harness may contact the frame or other engine components.
4. Check the O2 sensor heater circuit fuse in the main fuse box.
5. Using a multimeter, disconnect the sensor and test the resistance of the heater element across the two heater circuit pins (usually same-colored wires) on the sensor side. A reading of infinite resistance means the heater is burned out. A good sensor typically reads between 2 and 30 ohms.
6. With the key on and engine off, check for voltage at the harness connector. A 'Circuit High' code often points to a short to voltage, so check the signal wire for unexpected battery voltage.
7. If the wiring and fuse are good but the sensor's heater circuit is open, replace the oxygen sensor. Use an O2 sensor socket for easier removal.
8. After replacement, clear the codes. If the P0052 code returns, consult a dealer about performing a PCM reflash per the relevant TSBs (18-003-26, 18-008-25, 18-050-24).

Parts You'll Likely Need

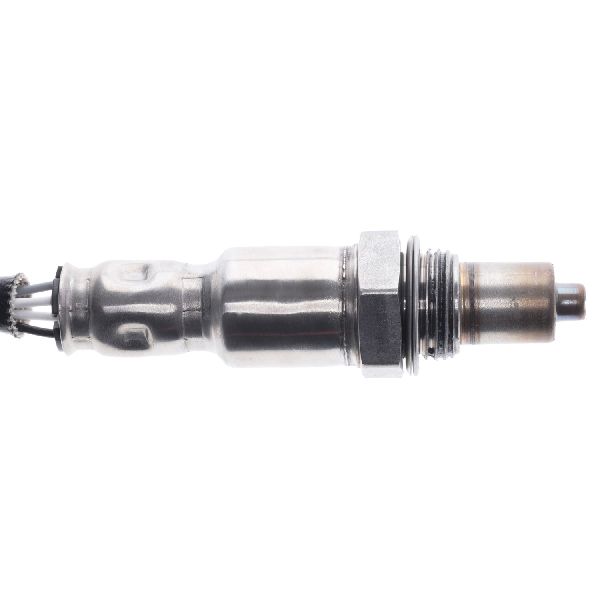

• Upstream Oxygen Sensor (Bank 2, Sensor 1) (OEM #68529732AA) — The internal heater element is the most common failure point for this code, often exacerbated by the PCM software issue on this platform.
  Trusted brands: Mopar (OEM), NTK (Often the OEM supplier), Denso, Bosch
  OEM price range: $115-$341
  Aftermarket price range: $50-$150

Related Codes That Often Appear With This One

• P0032 — This is the 'Heater Circuit High' code for Bank 1, Sensor 1. Seeing both may point to a systemic issue like a PCM software problem or a shared power/ground fault, as mentioned in TSBs. [⭐]
• P0038 — This is the 'Heater Circuit High' code for Bank 1, Sensor 2 (downstream). [⭐]
• P0058 — This is the 'Heater Circuit High' code for Bank 2, Sensor 2 (downstream). Seeing multiple heater circuit high codes together strongly suggests a wiring, ground, or PCM issue rather than multiple failed sensors. [⭐, 20]
• P1129 — This code for 'Closed Loop Fueling Not Achieved' can appear alongside O2 sensor codes because the faulty sensor prevents the system from properly adjusting the air-fuel mixture. It is explicitly mentioned in the same TSBs as P0052. [⭐, 15]
• P0563 — This code for 'System Voltage High' is sometimes seen with O2 heater codes on this platform, as a systemic over-voltage condition can trigger faults in multiple components, including the O2 sensor heaters. TSBs link these issues.

Technical Service Bulletins (TSBs) & Recalls

• 18-003-26: Lists P0052 as part of a potential software update for Manual Transmission vehicles. [⭐]
• 18-008-25 REV. A: Groups P0052 with other DTCs that may be addressed by a PCM reflash. [⭐]
• 18-008-25: Original bulletin also listing P0052 as part of a group of DTCs. [⭐]
• 18-050-24 REV. A: Another bulletin that includes P0052 in a list of O2 sensor heater circuit high codes, sometimes related to system over-voltage. [⭐, 7]

Platform-Specific Known Issues

• Several Technical Service Bulletins (TSBs), including #18-003-26, #18-008-25, and #18-050-24, list P0052 among a group of O2 sensor heater circuit codes that may be resolved with a PCM software update. [⭐]
• TSB #18-003-26 specifically notes that the issue may apply to vehicles with a Manual Transmission Only. [⭐]
• Some owners report recurring O2 sensor failures, suggesting an underlying issue where the PCM sends excess voltage to the sensor's heater, damaging it. In these cases, a dealer software update is required for a permanent fix.
• Forum users on JLWranglerForums.com have documented instances of wiring harnesses rubbing through behind the passenger fender liner, causing various electrical faults, including O2 sensor codes.

Mechanic-Grade Diagnostic Values

• O2 Sensor Heater Element Resistance — expected: 2.0 to 30.0 Ohms at ambient temperature (approx. 70°F / 21°C). A more specific range for Pentastar engines is often 4-10 Ohms.. Failure: A reading of infinite resistance (Open Loop/OL) or near zero ohms (short circuit).
• O2 Heater Control Circuit Voltage (at harness connector) — expected: With Key On, Engine Off, should be near 0V. Immediately after engine start, it should show battery voltage (12V+) and then may be pulse-width modulated (pulsing ground) by the PCM.. Failure: Constant battery voltage on the control circuit when the engine is off or running indicates a short to power.
• O2 Heater Ground Circuit Resistance — expected: Less than 5.0 Ohms when measured from the harness connector ground pin to a known good chassis ground.. Failure: High or infinite resistance (Open Loop/OL) indicates a bad ground connection.

Scan Tool Commands That Help

• wiTECH (or advanced bidirectional scanner): PCM Flash / Reprogramming — This is a critical step if the P0052 code returns after the sensor and wiring have been verified as good. Multiple TSBs for the 2024 Wrangler indicate a software update is the required fix for recurring O2 heater circuit codes.

Wiring & Ground Locations

• PCM Connector C2, Pin 17 — This is the Powertrain Control Module connector. On JK models, which have a similar engine architecture, this specific pin is for the Bank 2, Sensor 1 heater control circuit.. This is the specific pin on the PCM that controls the heater for the sensor in question. Testing for continuity and voltage at this pin can definitively isolate a wiring problem from a PCM problem.
• G104 — On older JK Wranglers, this ground point is located on the engine block and is a shared ground for the O2 sensor heaters.. Although this is from a previous generation, ground locations are often carried over. A loose or corroded G104 could cause high resistance in the ground circuit, potentially leading to heater circuit codes for multiple sensors. A technician found high resistance on this ground when diagnosing multiple heater codes.

Real Owner Repair Stories

• JK-Forum.com user (2007 Jeep Wrangler JK) — Check Engine Light with code P0052.
  ❌ Tried (didn't work) Replacing the Bank 2, Sensor 1 oxygen sensor., Clearing the code by disconnecting the battery for several hours.
  ✅ What actually fixed it The user confirmed they replaced the correct sensor, but the code returned immediately. The resolution was not posted, but the diagnostic information provided in the thread pointed toward checking the wiring for a short to voltage or a faulty PCM, confirming that the sensor itself is not always the root cause.
• South Main Auto Repair (YouTube) (2008 Jeep Wrangler) — P0052 and P0038 (Heater Circuit High for B2S1 and B1S2).
  ❌ Tried (didn't work) A previous shop had already replaced the oxygen sensors, but the codes remained.
  ✅ What actually fixed it The technician diagnosed open circuits in the heaters of the brand new, incorrect aftermarket sensors that had been installed. The resistance of the bad new sensors was infinite (OL), while a known-good sensor measured around 3.9 Ohms. The final fix was to install correct, functional O2 sensors. This highlights the importance of part quality and verifying the new part is good.

Model Year Variations Within This Range

• 2024 (Manual Transmission Only): TSB #18-003-26 explicitly states that the PCM reflash to correct a group of O2 sensor heater codes, including P0052, is for vehicles equipped with a manual transmission only. [⭐]
