P0068 on 2006-2013 Chevrolet Corvette: MAP/MAF - Throttle Position Correlation Causes and Fixes

What's Unique About the 2006-2013 Chevrolet CORVETTE

On the C6 Corvette, this code is frequently associated with the 'Reduced Engine Power' message on the driver information center, which can be alarming and significantly limit performance. A GM Technical Service Bulletin (TSB #PIP4578B) specifically links P0068 to idle surges and reduced power mode on high-mileage vehicles, pointing towards issues with the throttle body assembly. Forum discussions among C6 owners confirm that a dirty or carbon-fouled throttle body is a very common trigger for this code, often more so than actual sensor failure. The TSB also notes that after cleaning the throttle body, an 'Idle Learn Reset' must be performed with a scan tool, otherwise the ECM may continue to compensate for the previous carbon buildup, causing other codes and similar symptoms to return.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Reduced Engine Power message displayed
🎬 Watch: Why your C6 Corvette is showing Reduced Engine Power
• Check Engine Light is on
• Rough or surging idle
• Hesitation or poor acceleration
• Engine may stall when coming to a stop
• Service Traction Control message may appear
• Increased fuel consumption

Most Likely Causes

1. Dirty Throttle Body 🔴 High Probability → Shop Fuel Injection Throttle Body As mentioned in TSB #PIP4578B, carbon and oil deposits can build up in the throttle body over time, especially on higher mileage vehicles. As carbon builds, the ECM learns to open the throttle plate more to maintain idle speed. This buildup restricts airflow and can cause the throttle plate to stick, leading to a mismatch between the expected and actual airflow.
   How to confirm: Remove the air intake tube from the throttle body and visually inspect the throttle plate and bore for a dark, greasy carbon layer.
   Typical fix: Clean the throttle body thoroughly with a dedicated throttle body cleaner and a soft cloth or brush. 🎬 See this walkthrough on cleaning your Corvette's air intake system After cleaning, an 'Idle Learn Reset' procedure should be performed using a scan tool to allow the ECM to relearn the new clean throttle plate position.
   Est. part cost: $5-$15
2. Vacuum Leak 🟡 Medium Probability Intake manifold gaskets can become brittle with age and heat cycles. A loose oil filler cap can also cause a significant unmetered air leak. Hoses for the PCV (Positive Crankcase Ventilation) system can also crack or become disconnected. Some owners on CorvetteForum have specifically noted that loose intake manifold bolts can be a cause, allowing unmetered air to enter.
   How to confirm: With the engine running, listen for hissing sounds around the intake manifold. You can also perform a smoke test by introducing smoke into the intake system and watching for where it escapes. Another method is to carefully spray carb cleaner around the intake manifold gaskets with the engine running; a sudden spike in engine RPM indicates the location of the leak.
   Typical fix: Tighten loose bolts to the correct torque specification or replace the leaking gasket or hose.
   Est. part cost: $20-$100
3. Faulty Manifold Absolute Pressure (MAP) Sensor 🟡 Medium Probability → Shop Manifold Absolute Pressure Sensor
   How to confirm: Use a scan tool to monitor the MAP sensor voltage with the key on, engine off. It should correlate with your local barometric pressure. With the engine running at idle, the voltage should drop to around 1 volt. The reading should change smoothly in response to throttle changes. A sensor that is stuck on one value or provides erratic readings is likely faulty.
   Typical fix: Replace the MAP sensor. It is typically located on the top front of the intake manifold. 🎬 Watch: How to locate and clean a dirty MAP sensor
   Est. part cost: $30-$70
4. Dirty or Faulty Mass Airflow (MAF) Sensor ⚪ Low Probability → Shop Fuel Injection Air Flow Meter
   How to confirm: The MAF sensor's sensitive wires can become contaminated by dirt or oil, especially if an aftermarket oiled air filter is over-oiled. Inspect the sensor wires (located in the intake tube after the air filter box) for contamination. You can try cleaning it first with a dedicated MAF sensor cleaner. Do not touch the delicate wires.
   Typical fix: Clean the sensor with MAF sensor cleaner. If cleaning doesn't work, replace the MAF sensor assembly.
   Est. part cost: $10 (cleaner) - $150 (sensor)

Rare But Worth Checking

• Aftermarket Air Intake or Ported Throttle Body: → Shop Fuel Injection Throttle Body Modifications that significantly change the airflow characteristics without a corresponding ECU tune can cause the ECM's predicted airflow models to be incorrect, triggering a P0068 code. Forum members on CorvetteForum and LS1Tech have repeatedly confirmed that installing a ported throttle body or a new cold air intake can immediately cause this code, which often requires adjusting the 'Max Airflow vs RPM' table in the tune using software like HP Tuners.
• Wiring Issues: Corroded connectors or damaged wires for the MAP, MAF, or throttle body can cause intermittent signal loss, leading to this code. One owner on CorvetteForum found broken wires inside the insulation near the throttle body connector on a high-mileage car. This is often accompanied by other codes, such as P0641 (Sensor Reference Voltage 'A' Circuit/Open).
• Cracked Spark Plug Insulator: In one documented case on CorvetteForum, a user chased multiple codes including P0068 and found the root cause to be a cracked porcelain insulator on a spark plug in cylinder 8, which was likely causing misfires and confusing the engine load calculations.

Diagnosis Steps

1. Scan for any other stored trouble codes. Address codes related to specific sensors (like P0106 or P0121) first.
2. Inspect the entire air intake system from the air filter to the throttle body for any loose clamps, cracked hoses, or disconnected lines. Pay special attention to the couplers.
3. Check that the engine oil filler cap is tight and properly sealed, as a loose cap can cause a vacuum leak.
4. Remove the intake duct and visually inspect the throttle body bore and plate for carbon buildup. Clean if dirty.
5. Inspect the wiring and connectors going to the MAF sensor, MAP sensor, and throttle body for any signs of damage, corrosion, or looseness.
6. Using a scan tool with live data, monitor the readings from the MAP, MAF, and TPS sensors at idle and while slowly opening the throttle. The values should change smoothly and correlate with each other.
7. If a vacuum leak is suspected but not visible, perform a smoke test or use the carb cleaner method to pinpoint the source of the leak. Check for loose intake manifold bolts.
8. If a specific sensor is suspected, test its circuit for proper voltage and ground before replacing the part.
9. After cleaning the throttle body or replacing components, perform the 'Idle Learn Reset' procedure as specified in TSB #PIP4578B, which may require a dealer-level scan tool.

Parts You'll Likely Need

• Throttle Body Cleaner — This is the most common and least expensive first step, as a dirty throttle body is a primary cause of P0068 on this vehicle.
  Trusted brands: CRC, ACDelco
  OEM price range: $10-$15
  Aftermarket price range: $5-$10
• Manifold Absolute Pressure (MAP) Sensor (OEM #12644228 (Superseded by 12711681)) — If cleaning the throttle body doesn't resolve the issue, a failing MAP sensor is the next most likely component to have failed.
  Trusted brands: ACDelco, Bosch
  OEM price range: $50-$80
  Aftermarket price range: $30-$60

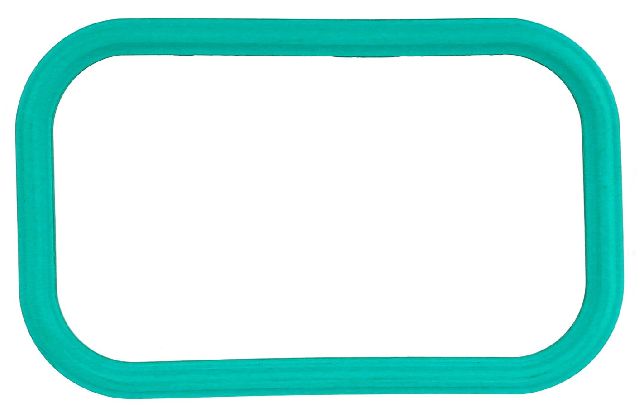

• Intake Manifold Gaskets (OEM #12590958) — If a vacuum leak is diagnosed at the intake manifold, these gaskets will need to be replaced. This is a known issu

Related Codes That Often Appear With This One

• P0121 — Throttle/Pedal Position Sensor/Switch 'A' Circuit Range/Performance. This code is often seen with P0068 as they both relate to throttle body performance and are mentioned together in TSB #PIP4578B.
• P2101 — Throttle Actuator Control Motor Circuit Range/Performance. This points to a problem with the electronic motor that controls the throttle plate, which can be triggered by the same conditions as P0068.
• P0106 — Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance. This code points more directly to a problem with the MAP sensor or its circuit, which is a primary input for the P0068 calculation.
• P2279 — Intake Air System Leak. This code specifically indicates unmetered air is entering the engine, which is a direct cause of the sensor correlation issue in P0068.

Technical Service Bulletins (TSBs) & Recalls

• PIP4578B: This PI was superseded to update model years and add information concerning idle surge, reduced engine power mode, and/or DTCs P0068, P0121, P1516, P2101, P2119, and/or P2176 that may be experienced on high mileage vehicles.

Platform-Specific Known Issues

• GM Technical Service Bulletin #PIP4578B directly addresses P0068 on high-mileage vehicles, noting it can cause an idle surge and trigger Reduced Engine Power mode. The bulletin points towards issues with the throttle body assembly and explicitly states that an 'Idle Learn Reset' must be performed after cleaning to prevent the issue from recurring.
• Owners on CorvetteForum frequently report that this code appears immediately after installing an aftermarket cold air intake (like a Vararam) or a ported throttle body, indicating the stock ECU tune is very sensitive to changes in airflow dynamics.

Mechanic-Grade Diagnostic Values

• Mass Airflow (MAF) Sensor at hot, unloaded idle — expected: Should be approximately equal to engine displacement in liters (e.g., ~6.2 g/s for LS3, ~7.0 g/s for LS7). Readings between 4-7 g/s are generally considered normal for most LS engines.. Failure: A significantly higher reading (e.g., 10+ g/s) can indicate an 'over-reporting' sensor, which may be dirty. This often correlates with negative fuel trims at idle.
• Manifold Absolute Pressure (MAP) Sensor Voltage at idle — expected: Between 0.8V and 4.0V with the engine at operating temperature. Should change smoothly and gradually as engine speed increases and returns to idle.. Failure: Voltage outside the 0.8V - 4.0V range or readings that do not change smoothly with RPM may indicate a faulty sensor.
• Throttle Position Sensor (TPS) Voltage — expected: Approximately 0.2V - 0.8V at closed throttle/idle, and around 4.0V - 4.5V at wide-open throttle.. Failure: Voltage that does not change smoothly with pedal movement, or is outside the expected range at idle or WOT.

Scan Tool Commands That Help

• Tech2 / GDS2 or equivalent professional scan tool: Idle Learn Reset — Required after cleaning or replacing the throttle body. The command is typically found under 'Module Setup'. This resets the learned airflow values stored in the ECM, allowing it to adapt to the clean throttle body. Failure to perform this can cause the idle to be unstable or for the P0068 code to return.
• Tech2 / GDS2 or equivalent professional scan tool: Throttle Activation Test — To diagnose a sticking or binding throttle body. The tool commands the throttle plate to open in set increments (e.g., 20%, 50%, 80%). Any hesitation, binding, or inconsistent response indicates a physical problem with the throttle body.

Wiring & Ground Locations

• G106 — On the passenger's side of the engine block, above the starter.. This is a main engine ground, providing a ground path for the PCM. A poor connection here can cause erratic sensor readings and various electrical issues. It is critical to disconnect the battery before servicing this ground due to its proximity to the starter's positive lug.
• G105 — On the driver's side of the engine block, forward of the oil filter housing.. This is another critical engine block ground. Like G106, a loose or corroded connection can lead to unstable sensor data, contributing to correlation codes like P0068.
• G104 / G108 — On the frame, just forward and outboard of the battery.. This is the main battery-to-chassis ground. A poor connection here can cause a variety of electrical gremlins throughout the vehicle, affecting the stability of the entire electrical system that the sensors rely on.
• ECM Connector (E38/E67) — Located behind the passenger side front fender, accessible by removing the wheelhouse liner.. Technicians may need to test sensor signal, reference voltage, and ground wires directly at the ECM pins to rule out wiring harness issues between the sensors and the computer. Knowing the physical location is the first step.

Real Owner Repair Stories

• iATN (International Automotive Technicians Network) (Vehicle unspecified, but GM with P0068 and P0102) — Check Engine Light with codes P0068 (MAF Low Voltage) and P0102.
  ❌ Tried (didn't work) Following standard diagnostic flow charts.
  ✅ What actually fixed it The final fix was a bad ground wire for the MAF sensor circuit.
• iATN (International Automotive Technicians Network) (GM vehicle with P0068 and P1101) — Check Engine Light, Reduced Engine Power.
  ❌ Tried (didn't work) Cleaning or replacing sensors.
  ✅ What actually fixed it The issue was resolved after performing a throttle position relearn procedure using a Tech 2 scan tool.

OEM Part Supersession History

• 12591290 → 12644228 — Standard part evolution and consolidation by GM.
  Heads up: Part number 12644228 is a widely used MAP sensor across many GM vehicles from 2008-2018 and is the correct service replacement for the earlier part number.

Model Year Variations Within This Range

• 2006-2013: The C6 generation used different Engine Control Modules (ECMs). The 2005 model used the E40, while 2006-2013 models primarily used the E38 ECM. The supercharged ZR1 (LS9) used the E67 ECM. While the diagnostic approach for P0068 is nearly identical, tuners working with modified cars need to be aware of the specific ECM (E38 vs E67) as the software tables and capabilities differ slightly, especially for forced induction.
• 2006-2007 vs 2008-2013: The base engine changed from the 6.0L LS2 to the 6.2L LS3 in 2008. While they share a similar architecture, some sensors and their locations may vary slightly. However, the fundamental causes and diagnostic procedures for P0068 remain consistent across these engines.
