P0068 on 2008-2010 Toyota Highlander Hybrid: MAP/MAF & Throttle Correlation Fixes

What's Unique About the 2008-2010 Toyota Highlander Hybrid

For the 3.3L 3MZ-FE V6 engine in this Highlander Hybrid, the causes for P0068 are not typically due to a unique design flaw but rather common issues that arise with age. Carbon buildup on the electronic throttle body and contamination of the MAF sensor are frequent culprits, as is the deterioration of rubber vacuum hoses and intake components. The large plastic/rubber air intake hose is particularly prone to developing cracks, creating an unmetered air leak that is a primary trigger for this code.

Symptoms You May Notice

• Check Engine Light is on
• Rough, unstable, or surging idle
• Hesitation or sluggishness when accelerating
• Reduced engine power
• Engine may stall when coming to a stop
• Decreased fuel economy
• A whistling or sucking sound from the engine bay at idle (indicating a vacuum leak)

Most Likely Causes

1. Vacuum Leak (Cracked Air Intake Hose) 🔴 High Probability Over time, the large rubber air intake hose (also called an intake boot) between the air filter box and the throttle body becomes brittle from engine heat and age. It commonly develops cracks, especially in the accordion-like flex sections or near the clamp at the throttle body. This allows unmetered air to enter the engine, which the MAF sensor cannot account for, causing the correlation fault.
   How to confirm: Visually inspect the entire air intake hose, bending and squeezing it to reveal hidden cracks. Pay close attention to the ribbed sections. With the engine running, you can carefully spray carburetor cleaner or smoke from a smoke machine around the hose; a change in engine idle or visible smoke escaping indicates a leak.
   Typical fix: Replace the cracked air intake hose. The OEM part number is often cited as 17881-0P020, but it's critical to verify with your vehicle's VIN. Ensure all clamps are tight after replacement.
   Est. part cost: $40-$150 for the hose.
2. Dirty Throttle Body 🔴 High Probability → Shop Fuel Injection Throttle Body Carbon and oil vapor from the PCV system can build up on the throttle plate and bore, restricting airflow or preventing the plate from closing correctly. This causes the actual airflow to differ from what the throttle position sensor reports, triggering the P0068 code.
   How to confirm: Remove the air intake hose from the throttle body and visually inspect the throttle plate and bore for a black, greasy or sooty buildup. The buildup is often heaviest on the side facing the intake manifold.
   Typical fix: Clean the throttle body using a dedicated throttle body cleaner and a soft cloth or brush. The throttle body should be removed from the intake manifold for a thorough cleaning. You must replace the throttle body gasket (Part #22271-0P020) when reinstalling to prevent a vacuum leak.
   Est. part cost: $5-$20 for cleaner and a new gasket.
3. Dirty or Faulty Mass Airflow (MAF) Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter
   How to confirm: The MAF sensor is located in the intake tube just after the air filter box. It can be removed by unscrewing two screws. If the delicate wires inside appear dirty or coated, it can be cleaned with a dedicated MAF sensor cleaner spray. Do not touch the sensor wires or use other cleaners like brake or carb cleaner.
   Typical fix: Cleaning the MAF sensor often resolves the issue. If cleaning doesn't work and the sensor is confirmed to be faulty via scan tool live data (g/s reading does not increase with RPM), it will need to be replaced. The OEM sensor is made by Denso.
   Est. part cost: $10 for cleaner, $70-$200 for a replacement sensor.
4. Faulty Manifold Absolute Pressure (MAP) Sensor ⚪ Low Probability → Shop Manifold Absolute Pressure Sensor
   How to confirm: The MAP sensor's voltage can be tested with a multimeter or its readings can be observed with an OBD-II scan tool to see if they are logical for the given engine load and throttle position. It is typically mounted directly on the intake manifold.
   Typical fix: If the sensor is tested and found to be providing incorrect readings, it must be replaced.
   Est. part cost: $60-$250

Rare But Worth Checking

• Faulty Throttle Position Sensor (TPS): → Shop Fuel Injection Throttle Body The TPS is integrated into the electronic throttle body on the 3MZ-FE engine. A failure is uncommon and usually requires replacing the entire throttle body assembly. This would typically be accompanied by other throttle-specific codes.
• Clogged Air Filter: A severely clogged engine air filter can restrict airflow enough to cause a correlation error. This is easy to check and should be part of routine maintenance.
• Wiring Issues: Damaged wiring or corroded connectors for the MAF, MAP, or throttle body can cause erratic signals, leading to the P0068 code. This should be investigated before replacing expensive components.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM should only be considered after all other possibilities, including wiring issues, have been exhaustively ruled out by a professional.

Diagnosis Steps

1. Read the code with an OBD-II scanner and note any other codes that may be present, such as P0171 or P0174, which would strongly suggest a vacuum leak.
2. Perform a thorough visual inspection of the entire air intake system. Specifically, remove the plastic engine covers and carefully examine the rubber air intake hose (boot) for cracks, especially in the flexible accordion sections and around the clamps.
3. Remove and inspect the engine air filter. Replace if it is dirty or clogged.
4. Remove the MAF sensor (located on the air filter housing). Visually inspect it for contamination and clean it using only dedicated MAF sensor cleaner. Allow it to dry completely before reinstalling.
5. Remove the air intake hose from the throttle body. Inspect the throttle plate and bore for carbon buildup. For best results, remove the throttle body from the engine and clean it thoroughly with throttle body cleaner and a soft rag. Always use a new gasket upon reinstallation.

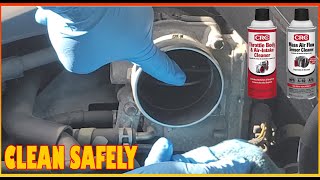

🎬 See this walkthrough for cleaning your throttle body and MAF
6. If the code persists, perform a vacuum leak test. The most effective method is a smoke test to pinpoint the source of any unmetered air that was missed visually.
7. Using a scan tool with live data, monitor the g/s from the MAF, the pressure from the MAP, and the percentage from the TPS at idle and while opening the throttle. The readings should change smoothly and correlate with each other. Any sensor that is stuck or provides erratic readings is likely faulty.
8. Inspect the wiring and connectors for the MAP, MAF, and throttle body for any signs of damage, corrosion, or loose pins.
9. If a sensor is confirmed to be faulty through testing, replace it with a quality OEM or equivalent part.

Parts You'll Likely Need

• Air Intake Hose / Boot (OEM #17881-0P020 (Verify with VIN)) — This is the most common failure point leading to a vacuum leak that causes P0068. The rubber cracks from age and heat.
  Trusted brands: Toyota (OEM), Dorman, Gates
  OEM price range: $100-$150
  Aftermarket price range: $40-$80
• Throttle Body Gasket (OEM #22271-0P020) — This gasket must be replaced any time the throttle body is removed for cleaning to prevent creating a new vacuum leak.
  Trusted brands: Toyota (OEM), Fel-Pro, Mahle
  OEM price range: $6-$10
  Aftermarket price range: $3-$8
• Mass Airflow (MAF) Sensor (OEM #22204-21010 (Denso 197-6020)) — If cleaning the sensor doesn't resolve the issue and testing confirms it's faulty, replacement is necessary. 🎬 Watch: How to safely clean a Toyota mass airflow sensor
  Trusted brands: Denso (OEM), Hitachi, Walker
  OEM price range: $150-$200
  Aftermarket price range: $70-$120
• MAF Sensor Cleaner / Throttle Body Cleaner — Often, the MAF sensor is just dirty, not broken. A specific cleaner is required to safely remove contaminants without damaging the delicate sensor elements. Throttle body cleaner is needed for carbon buildup.
  Trusted brands: CRC, Liqui Moly, WD-40 Specialist
  Aftermarket price range: $10-$15 per can

Related Codes That Often Appear With This One

• P0171 (System Too Lean Bank 1)
• P0174 (System Too Lean Bank 2)

Technical Service Bulletins (TSBs) & Recalls

• Toyota Customer Support Program ZJ3 (NHTSA ID 10162337) - While not for P0068, this program addresses a very common and expensive issue on this platform: failure of the Brake Actuator Assembly and Brake Booster Pump Assembly. It extended the warranty coverage for this specific failure.

Platform-Specific Known Issues

• A user on Toyotanation reported their 2008 Highlander Hybrid threw P0068 and P0171 codes. After cleaning the MAF and throttle body with no success, they found a large crack in the air intake boot on the underside, which was not visible from above. Replacing the boot (part #17881-0P020) resolved the issue completely.

Mechanic-Grade Diagnostic Values

• Mass Airflow (MAF) Sensor Live Data at Idle — expected: Approximately 3.3 g/s (rule of thumb is 1 g/s per liter of engine displacement).. Failure: Readings that are significantly lower (suggesting a vacuum leak after the MAF) or do not increase smoothly with RPM.
• Manifold Absolute Pressure (MAP) Sensor Voltage (Key On, Engine Off) — expected: Approx. 3.8 - 4.2 V, corresponding to atmospheric pressure.. Failure: Voltage significantly outside this range indicates a potential sensor or wiring issue.
• Manifold Absolute Pressure (MAP) Sensor Voltage (Engine at Idle) — expected: Approx. 1.0 - 1.2 V.. Failure: Voltage that is too high at idle can indicate a vacuum leak.
• Throttle Position Sensor (TPS) Voltage — expected: Smooth transition from ~0.5V (closed throttle) to ~4.5V (wide open throttle).. Failure: Any spikes, drops, or non-linear readings during a slow sweep of the throttle pedal indicate a faulty sensor.

Scan Tool Commands That Help

• Toyota Techstream: Active Test for MAF, MAP, and TPS — After initial checks, use the Active Test function to command and observe sensor outputs in real-time without needing to drive the vehicle. This allows a technician to isolate whether a sensor is responding to PCM commands and helps differentiate between a faulty sensor and a wiring issue.

Wiring & Ground Locations

• EA1 — On the right side of the cylinder head.. This is a joining connector for the engine wire harness and the sensor wire harness. A poor connection or corrosion at this point could affect signals from the MAF, MAP, or throttle body, causing correlation issues.

Real Owner Repair Stories

• ClubLexus forum user (2008 Lexus RX400h (same 3.3L 3MZ-FE hybrid powertrain)) — Check Engine Light with code P0068 and VSC light.
  ❌ Tried (didn't work) Cleaning the MAF sensor, Cleaning the throttle body
  ✅ What actually fixed it The user discovered a significant crack in the air intake hose located on the bottom, which was not visible from a top-down inspection. Replacing the intake hose resolved the P0068 code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• ABS Actuator / Brake Booster Pump Failure 🔴 High → Shop Power Brake Booster — Commonly occurs over 100,000 miles. Owners report a loud buzzing noise from the engine bay, a hard brake pedal, and multiple brake-related warning lights. (Ref: Toyota Customer Support Program ZJ3 extended coverage for the Brake Actuator Assembly and Brake Booster Pump Assembly.)
• Hybrid Inverter Failure 🔴 High — Can occur without warning, causing the vehicle to stall and not restart. Often presents with a "Check Hybrid System" message. While not extremely common, it is a known, high-cost failure point. (Ref: A recall was issued for the Intelligent Power Module (IPM) inside the inverter for some 2006-2010 models.)
• VVT-i Oil Line Rupture (on related V6 engines) 🔴 High — While more documented on the 2GR-FE, the underlying issue of a rubber hose section failing under pressure is a known Toyota V6 problem from this era. A rupture leads to rapid oil loss and catastrophic engine failure if not shut down immediately. (Ref: Toyota issued a Limited Service Campaign (LSC) to replace the all-rubber line with an improved metal/rubber line on many V6 models.)
• Oil Leaks (Timing Cover & Valve Covers) 🟠 Medium — Slow leaks from the timing cover and valve cover gaskets are common as the vehicle ages. While not immediately critical, they can become significant over time.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A complete used throttle body assembly from a low-mileage donor can be a cost-effective alternative to a new one, as it includes the integrated throttle position sensor. A used air filter housing/box is also a safe purchase if the original is cracked or damaged.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For intake hoses, inspect the rubber for any signs of dry rot, brittleness, or hairline cracks, especially in the accordion sections.
• For a throttle body, check for a clean throttle plate and bore; excessive carbon may indicate a high-mileage or poorly maintained engine.
• Verify the part number on the donor part matches the required part for your vehicle.

OEM-only on this vehicle (don't cheap out):

• Mass Airflow (MAF) Sensor: While more expensive, the OEM Denso sensor is highly recommended. Aftermarket MAF sensors are known to have a higher failure rate or provide slightly inaccurate readings that can cause persistent performance issues.
• Air Intake Hose: Given that this is the most common failure point, investing in a new OEM hose is advisable for longevity. Aftermarket rubber components can sometimes be made of inferior materials that degrade more quickly.

Aftermarket brands forum-validated for this vehicle:

• Denso (for sensors, as they are the OEM supplier)
• Gates (for hoses)

Brands owners have reported issues with on this vehicle:

• Dorman (for the air intake hose): Some user reports indicate that Dorman's rubber products, including intake hoses, can become brittle and fail prematurely compared to OEM.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0171 — A lean condition code that often appears alongside P0068 when a cracked intake boot allows unmetered air into the engine.
• P0174 — A lean condition code for bank 2 that may accompany P0068, strongly suggesting a vacuum leak in the air intake system.
• P0101 — Related to MAF sensor circuit range/performance; often triggered by the same dirty or faulty MAF sensor that causes P0068 correlation issues.
• P0106 — Related to MAP sensor performance; the MAP sensor is one of the primary inputs compared against the TPS and MAF to trigger a P0068 fault.
