P0074 on 2014-2016 Ford Transit Connect: Causes and Fixes for A/C Problems

What's Unique About the 2014-2016 Ford TRANSIT CONNECT

This is a well-documented issue on the 2.5L engine in the 2014-2016 Transit Connect, specifically addressed by Ford in Technical Service Bulletin (TSB) 16-0054. The most common and confusing symptom for owners is not an incorrect temperature reading, but the air conditioning suddenly becoming inoperative. This happens because the faulty sensor sends an erroneously low temperature reading (e.g., below -1.1 °C / 30 °F), causing the system to disable the A/C compressor as a protective measure to prevent damage from operating in what it perceives as freezing conditions.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Air conditioning (A/C) is inoperative or works intermittently.
• Ambient air temperature display on the message center is inaccurate, blank, or shows an extremely low reading (like -40°F).
• Check Engine Light is illuminated.
• A/C system blows warm air because the PCM has disabled the compressor.
🎬 Watch: How to fix a Transit Connect with no A/C operation.

Most Likely Causes

1. Faulty Ambient Air Temperature (AAT) Sensor 🔴 High Probability → Shop Ambient Air Temperature Sensor The sensor is located in a vulnerable position behind the front grille, exposed to moisture, road debris, and vibration, which can lead to internal failure or intermittent connections.
   How to confirm: Use a scan tool to monitor the AAT sensor's data PID. If the temperature reading is erratic, nonsensical (e.g., -40°F on a warm day), or doesn't change, the sensor is likely bad. A forum user confirmed replacing the sensor fixed the issue after getting a -40F reading. You can also test the sensor's resistance with a multimeter; it should change predictably with temperature.
   Typical fix: Replace the AAT sensor. This is a common and relatively simple repair.
   Est. part cost: $15-$40
2. Damaged Wiring or Connector 🔴 High Probability Ford issued TSB 16-0054 specifically recommending a connector pigtail replacement for this issue, indicating a known weakness in the factory connector or wiring. The location behind the grille makes the wiring susceptible to chafing, corrosion, and loose pins from vibration.
   How to confirm: With the vehicle running, wiggle the wiring harness and connector for the AAT sensor while observing the temperature reading on a scan tool. If the reading jumps or cuts out, you've found the location of the intermittent connection. Visually inspect the pins inside the connector for corrosion or being spread too far apart.
   Typical fix: Repair the damaged section of wire or, more commonly, replace the sensor's electrical connector with a new pigtail kit as outlined in TSB 16-0054. The Motorcraft pigtail kit includes the connector, wires, and heat-shrink butt connectors for a durable repair.
   Est. part cost: $20-$50
3. Powertrain Control Module (PCM) Failure ⚪ Low Probability → Shop Engine Control Module (ECM)
   How to confirm: This should only be considered after the sensor and wiring have been thoroughly tested and ruled out. A professional diagnosis is required to confirm a faulty PCM.
   Typical fix: Replace and reprogram the PCM. This is an expensive and rare repair for this code.
   Est. part cost: $500-$1000

Diagnosis Steps

1. Verify the symptoms. Is the A/C not working and is the temperature display inaccurate?
2. Connect an OBD-II scanner and check for P0074, P0073, or U0422 in the PCM and/or IPC modules.
3. Visually inspect the AAT sensor and its connector. The sensor is located behind the front bumper cover, near the lower grille opening on the driver's side. Look for obvious signs of damage, corrosion, or loose connections.
4. Using the live data function on your scan tool, monitor the AAT PID (Parameter ID). Observe if the reading is stable or jumping erratically. A normal reading should reflect the actual outside temperature.
5. Perform a 'wiggle test': Gently wiggle the connector and nearby wiring while watching the live data. If the temperature reading fluctuates wildly, the problem is in the wiring or connector.
6. If the wiggle test points to a bad connection, replace the AAT sensor connector pigtail. The TSB procedure involves cutting the old connector off, 🎬 Watch: Step-by-step repair guide for the P0074 intermittent circuit code. splicing the new pigtail wires using butt connectors, and sealing with heat shrink.
7. If the wiring seems stable and the wiggle test causes no change, the sensor itself is the most likely culprit. Replace the Ambient Air Temperature sensor.
8. After the repair, clear the trouble codes with the scan tool and reset the Keep Alive Memory (KAM) as suggested by the TSB. Perform a test drive to confirm the A/C and temperature display function correctly. Note that it may take up to 20 minutes of driving for the display to show a stable, correct temperature as the system averages the new readings.

Parts You'll Likely Need

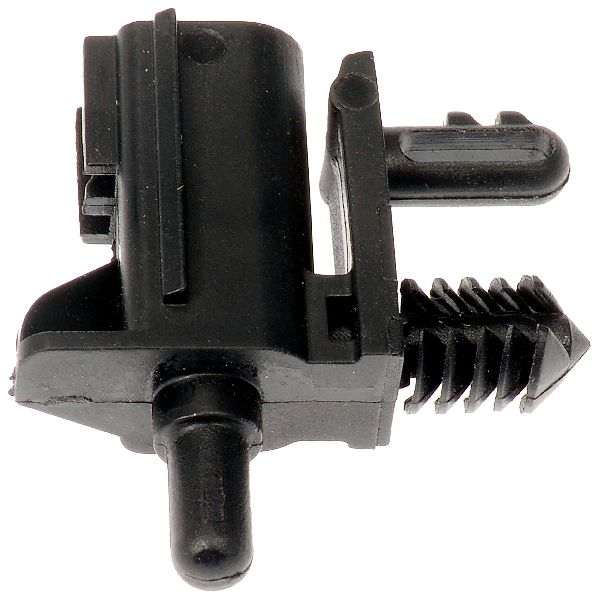

• Ambient Air Temperature Sensor (OEM #DY1160 (also AU5Z-12A647-B)) — This sensor is the most common failure point for P0074. It provides the temperature reading that the system finds intermittent.
  Trusted brands: Motorcraft, Dorman, Standard Motor Products
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• AAT Sensor Connector Pigtail (OEM #WPT-1283 (Service P/N CU2Z-14S411-ACA)) — Ford's TSB specifically calls for replacing the connector in many cases, indicating it's a known weak point that causes intermittent signals.
  Trusted brands: Motorcraft, Standard Motor Products (S2495)
  OEM price range: $30-$50
  Aftermarket price range: $20-$35

Related Codes That Often Appear With This One

• P0073 — This code for 'AAT Sensor Circuit High' is also mentioned in Ford's TSB 16-0054 and relates to the same sensor circuit.
• U0422 — This code for 'Invalid Data Received From Body Control Module' is also listed in TSB 16-0054, indicating a communication breakdown often triggered by the erratic AAT sensor data.

Technical Service Bulletins (TSBs) & Recalls

• 16-0054: 2.5L - Air conditioning (A/C) inoperative and/or message center ambient air temperature display inaccurate - DTCS P0073, P0074, and/or U0422.

Platform-Specific Known Issues

• Ford Technical Service Bulletin (TSB) 16-0054 was issued for 2014-2016 Transit Connects with the 2.5L engine for this exact issue. The bulletin addresses an inoperative A/C and/or inaccurate temperature display caused by an intermittent AAT sensor circuit, often requiring a new connector pigtail.
• The TSB service procedure explicitly states to first check for the symptom, then check for codes, reset the KAM, and if the issue is resolved temporarily, to replace the AAT sensor and then *also* replace the connector pigtail as a comprehensive fix.

Mechanic-Grade Diagnostic Values

• AAT Sensor Resistance — expected: Approximately 37,000 Ohms at 0°C (32°F), 17,000 Ohms at 20°C (68°F), and 8,000 Ohms at 40°C (104°F). The resistance is inversely proportional to temperature.. 🎬 See this guide for testing and replacing the ambient temperature sensor. Failure: Resistance is infinite (open circuit), near zero (short circuit), or does not change smoothly as sensor temperature changes.
• AAT Sensor Circuit Voltage — expected: A 5-volt reference is sent from the Instrument Panel Cluster (IPC) to the sensor. The return voltage will vary based on temperature (and resulting sensor resistance).. Failure: Voltage that is stuck at 5V or 0V, or fluctuates erratically unrelated to temperature changes, indicates a circuit or sensor fault.

Scan Tool Commands That Help

• Ford Integrated Diagnostic System (IDS): Reset the Keep Alive Memory (KAM) — This is a required step in TSB 16-0054 after checking for codes. It clears learned values and can temporarily restore A/C function, which helps confirm the AAT circuit is the root cause before replacing parts.

Wiring & Ground Locations

• AAT Sensor Connector — Behind the front bumper cover, near the lower grille opening on the driver's side.. This connector and its wiring are the most common failure point, as identified in TSB 16-0054. Wiggling this connector while monitoring live data is a key diagnostic step.
• Instrument Panel Cluster (IPC) Connectors — Behind the instrument cluster in the dashboard.. On some Ford models, the AAT sensor circuit runs directly to the IPC. A technical document specifies the 5-volt reference leaves the IPC on one pin and the signal returns on another, making the IPC the control module for the sensor.
• Ground Point G203 — A common Ford ground point located in the passenger side kick panel area.. While not directly cited for the AAT sensor, a bad instrument panel ground can cause a host of erratic electrical issues, including faulty sensor readings processed by the cluster. If the sensor and wiring test good, checking major grounds like this is a valid next step.

Real Owner Repair Stories

• Raster-Burn.com blog post (2015 Ford Transit Connect) — Outside air temperature display would fluctuate wildly, especially in hot weather. The A/C would stop working when the display showed a temperature below freezing (e.g., -20 degrees).
  ✅ What actually fixed it Replacing the ambient air temperature sensor (Standard part number AX352). The author also noted to check the connector pins for corrosion during the repair.

OEM Part Supersession History

• AU5T-12A647-AC → AU5Z-12A647-B (also sold as DY1160) — Part revision/update. The sensor is used across many Ford models.
  Heads up: The part AU5Z-12A647-B also replaces part numbers DY1345 and FC4Z-12A647-A.
