P0087 on 2015-2019 GMC Savana: Fuel Pressure Too Low Causes and Fixes

What's Unique About the 2015-2019 Gmc SAVANA

For this generation of GMC Savana and its twin, the Chevrolet Express, the P0087 code is strongly linked to specific issues documented by General Motors. Multiple Technical Service Bulletins (TSBs) point towards problems with fuel system contamination and, most notably, a tendency for the in-tank fuel pump to fail in cold weather, leading to a no-start or stall condition. For vans equipped with the 6.6L Duramax diesel, P0087 can also be an early indicator of a failing CP4 high-pressure fuel pump, a known issue that can lead to catastrophic fuel system contamination if not addressed.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine is hard to start or will not start.
• Engine starts and then immediately stalls. [Bulletin #18NA103]
• Loss of engine power, especially under acceleration or load. [Bulletin #18NA103]
• Rough or uneven idle.
• Engine hesitation or stumbling
• Engine enters 'limp mode' with severely restricted power (more common on Duramax models).

Most Likely Causes

1. Failing In-Tank Fuel Pump 🔴 High Probability → Shop Fuel Pump A specific GM TSB (#18NA103) identifies a problem with the in-tank fuel pump failing at temperatures below 20°F (-6°C), causing P0087 and a no-start or stall condition. These pumps can also weaken over time, failing to provide adequate volume under load.
   How to confirm: Connect a mechanical fuel pressure gauge to the fuel rail's test port. With the key on and engine off, pressure should be around 60-66 PSI for gasoline engines. If pressure is low, or if it drops off quickly under load, the pump is likely weak. The replacement process requires dropping the fuel tank. 🎬 Watch: Step-by-step guide to replacing the in-tank fuel pump.
   Typical fix: Replace the in-tank fuel pump module. It is highly recommended to use a quality OEM part like ACDelco to avoid premature failure.
   Est. part cost: $790-$1,084
2. Clogged Fuel Filter / Fuel System Contamination 🟡 Medium Probability → Shop Fuel Filter Multiple TSBs (#PIP5151F, #16-NA-102) warn that fuel system contamination is a known issue on these vans, leading to low pressure and setting code P0087. In one documented case, a collapsed, low-quality aftermarket fuel filter was the direct cause of a P0087 code under load.
   How to confirm: If fuel pressure is low, replacing the fuel filter is the first and most cost-effective diagnostic step. If contamination is suspected (e.g., debris found in the old filter), an inspection of the fuel tank may be necessary. For Duramax models, metal shavings on the fuel pressure regulator screen are a sign of CP4 pump failure.
   Typical fix: Replace the fuel filter. If heavy contamination is found, the entire fuel system may need to be cleaned as per TSB recommendations.
   Est. part cost: $20-$50
3. Faulty Fuel Pressure Sensor ⚪ Low Probability → Shop Fuel Pressure Sensor
   How to confirm: Compare the reading from the fuel pressure sensor (using an OBD-II scan tool with live data) to the reading from a mechanical fuel pressure gauge. If the mechanical gauge shows correct pressure but the scan tool shows low pressure, the sensor is sending false information to the ECM.
   Typical fix: Replace the fuel rail pressure sensor.
   Est. part cost: $70-$125

Rare But Worth Checking

• Kinked or Damaged Fuel Line: → Shop Fuel Line A physical restriction in a fuel line can mimic a weak pump. It's worth performing a visual inspection of the lines running from the tank to the engine before replacing expensive parts.
• Fuel Pump Driver Module (FPDM) Fault: → Shop Fuel Pump The FPDM, which GM calls the Fuel Pump Flow Control Module, controls the voltage and speed of the in-tank fuel pump. While less common than pump failure, a faulty module can fail to send the correct power to the pump, resulting in low pressure. It is typically located on the frame rail near the rear of the vehicle.
🎬 See how to replace and program the fuel pump control module.
• High-Pressure Fuel Pump (CP4) Failure (6.6L Duramax Only): → Shop Fuel Pump For vans with the LGH Duramax engine, the P0087 code is a notorious symptom of the Bosch CP4 high-pressure pump failing. This failure often sends metal debris throughout the entire fuel system, requiring a very expensive repair that includes replacing the pump, all injectors, and fuel rails, and cleaning the tank.

Diagnosis Steps

1. Check for other stored DTCs that may provide more context, such as P0191, P2635, or misfire codes.
2. Connect a fuel pressure gauge to the service port on the engine's fuel rail (gasoline engines).
3. Turn the ignition to 'ON' (without starting the engine) to let the fuel pump prime. The pressure should jump to the specified range (typically 60-66 PSI for gasoline V8s) and hold steady.
4. If pressure is low, the primary suspects are the fuel filter or the in-tank fuel pump.
5. Start by replacing the fuel filter. It is an inexpensive, routine maintenance item and a known cause of this code. After replacement, re-test the pressure.
6. If pressure is still low, the in-tank fuel pump is the most likely culprit. Before ordering a replacement, inspect the wiring and connector at the Fuel Pump Driver Module (FPDM) and the pump itself for corrosion or damage.
7. If initial pressure is good but drops under engine load (while driving), this also points to a weak fuel pump or a clogged filter that can't supply enough volume.
8. If mechanical pressure is good but the code persists, test the fuel pressure sensor by comparing the mechanical gauge reading to the live data on a scan tool.
9. For 6.6L Duramax Only: If the filter is clean and the lift pump is working, the next step is to inspect the high-pressure fuel pressure regulator for metallic debris, which is a tell-tale sign of a failing CP4 injection pump.
🎬 Watch: How to diagnose P0087 and limp mode on Duramax engines.

Parts You'll Likely Need

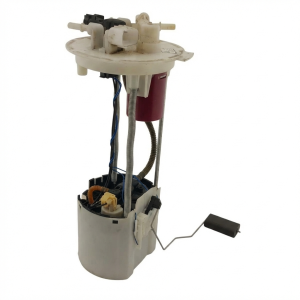

• Fuel Pump Module Assembly (OEM #ACDelco MU2101 (GM 19303293)) — This is the most common cause of P0087 on this vehicle, especially in cold climates, as documented by GM TSB #18NA103.
  Trusted brands: ACDelco, Delphi
  OEM price range: $900-$1100
  Aftermarket price range: $450-$700
• Fuel Filter — A clogged fuel filter is a common cause of fuel pressure restriction and should be the first part replaced during diagnosis due to its low cost. Using a cheap, poor-quality filter can lead to collapse and cause the code.
  Trusted brands: ACDelco, Wix, Baldwin
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Fuel Rail Pressure Sensor (OEM #12651990) — Though less common, a faulty sensor can send incorrect low-pressure readings to the ECM, triggering the code even if the mechanical pressure is correct.
  Trusted brands: ACDelco, Standard Motor Products, Bosch
  OEM price range: $120-$150
  Aftermarket price range: $70-$100

Related Codes That Often Appear With This One

• P0088 — This code for 'Fuel Rail/System Pressure - Too High' can appear with P0087 if the fuel pressure regulator or sensor is failing erratically, as noted in TSBs #PIP5151F and #16-NA-102.
• P0191 — This code for 'Fuel Rail Pressure Sensor Circuit Range/Performance' often accompanies P0087, indicating the sensor's readings are illogical or out of the expected range, which can be caused by either a bad sensor or actual pressure problems. [Bulletin #PIP5151F, #16-NA-102, #PIP4949E]
• P2635 — This code for 'Fuel Pump 'A' Flow/Performance' directly relates to the low-pressure fuel pump's performance and is often set alongside P0087 when the pump is failing, especially in the cold-weather failure scenario described in TSB #18NA103.

Technical Service Bulletins (TSBs) & Recalls

• 18NA103: Addresses in-tank fuel pump failure in cold temperatures causing P0087 and other codes.
• PIP5151F: Discusses diagnosis for P0087 related to hard start/no start conditions and the need to inspect for fuel system contamination.
• 16-NA-102: Provides a procedure to inspect and replace fuel components due to contamination causing P0087.
• PIP4949E: Notes P0087 in relation to hard start/no start issues and directs technicians to follow standard diagnostic procedures.

Platform-Specific Known Issues

• Cold Weather Fuel Pump Failure: TSB #18NA103 specifically calls out failure of the in-tank fuel pump in temperatures below 20°F (-6°C), leading to P0087 along with symptoms like start-and-stall or a no-start condition.
• Fuel System Contamination: TSBs #PIP5151F and #16-NA-102 highlight that debris in the fuel system can cause this code. The fix may require cleaning the entire fuel system, not just replacing one part.
• Duramax CP4 Pump Failure: On 6.6L LGH Duramax engines (2011-2016), P0087 is a common code indicating the high-pressure CP4 injection pump is failing. This is a severe failure that can send metal debris throughout the entire fuel system, requiring a very expensive repair.

Mechanic-Grade Diagnostic Values

• Fuel Rail Pressure Sensor (FRP) Signal Voltage, Key On Engine Off (KOEO) — expected: Approximately 1.5V to 1.8V.. Failure: A reading of 0V, 5V, or a voltage that does not change with pressure indicates a sensor or wiring fault.
• Fuel Rail Pressure Sensor (FRP) Signal Voltage Range — expected: 0.5V to 4.5V, corresponding to the pressure range.. Failure: Voltage is stuck at one value or fluctuates erratically regardless of engine load.
• Duramax Low-Pressure Fuel System Vacuum (for models without a lift pump) — expected: 5 to 8 inches of vacuum under full load.. Failure: More than 8 inches of vacuum indicates a restriction, likely a clogged fuel filter or a pinched line.
• Fuel Pump Power at Connector — expected: Should be battery voltage (approx. 12V) when the pump is commanded on.. Failure: Significantly lower voltage (e.g., 5.4V as seen in one case) points to a wiring issue, a bad ground, or a faulty Fuel Pump Driver Module.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Fuel Pump On/Off and Speed Control — This bidirectional command allows a technician to manually turn the fuel pump on and vary its speed while monitoring fuel pressure with a mechanical gauge. It is essential for determining if the Fuel Pump Driver Module (FPDM) is responding to commands and if the pump itself is capable of building pressure when commanded.
• GDS2 (GM Global Diagnostic System 2): Fuel System Control Module Programming — After replacing the Fuel Pump Driver Module (FPDM), which GM calls the Fuel System Control Module (FSCM), the new module must be programmed to the vehicle. Failure to program the new module will result in a no-start condition as it will not operate the fuel pump.
• High-End OBD-II Scan Tool: Live Data: Desired vs. Actual Fuel Rail Pressure — This is the primary data to watch when diagnosing P0087. If 'Desired' pressure is high but 'Actual' pressure is low, it confirms a fuel delivery problem (pump, filter, leak). If 'Desired' and 'Actual' are both low and match, the ECM may not be commanding enough pressure, pointing towards other sensor inputs.

Wiring & Ground Locations

• Fuel Pump Driver Module (FPDM/FSCM) — Typically located on the frame rail, near the spare tire at the rear of the vehicle.. This module controls the fuel pump. Its location makes it highly susceptible to corrosion from road salt and water, which can damage the module itself or its electrical connector, leading to a loss of power to the fuel pump and causing P0087.
• Fuel Pump Relay Control Wire — Dark Green with White stripe wire. Can be tested at the FPDM connector or at Pin 50 of the black ECM connector (X1/J1).. A break in this wire between the ECM and the FPDM will prevent the fuel pump from being commanded on, causing a no-start and P0087. The wire is known to chafe and break along the driver's side frame rail.
• Fuel Pump Ground — The ground wire from the fuel pump connector is typically a black wire that attaches to the chassis, often on the left front of the engine compartment or near the pump itself.. A corroded or loose ground connection increases resistance in the fuel pump circuit, causing the pump to run slower and produce less pressure, directly leading to a P0087 code.

Real Owner Repair Stories

• Reddit user on r/MechanicAdvice (2012 GMC Savana 3500) — Fuel pump issues, likely no-start or stalling.
  ❌ Tried (didn't work) Initial diagnosis focused on the fuel pump itself.
  ✅ What actually fixed it The problem was traced to low voltage at the fuel pump connector, reading only 5.4V. This indicated the problem was not the pump, but the electrical supply to it, pointing towards a wiring issue, a bad ground, or a failing Fuel Pump Driver Module. The final fix would be repairing the high-resistance point in the circuit.

OEM Part Supersession History

• Unknown → ACDelco MU2101 (GM Part #19303293) — This is the current GM Genuine Parts fuel pump module assembly listed for many applications within this year range. TSB #18NA103, which addresses cold weather failures, implies that design or manufacturing improvements were likely made to the pump assembly over time.
  Heads up: While this part number is listed for the Savana, it is also listed for vehicles like the Camaro and Caprice. Always verify the exact part number for your specific VIN and engine combination, as there can be variations in the module design.

Model Year Variations Within This Range

• 2017-2019 (Gasoline): Starting in 2017, the gasoline V8 engines (4.8L and 6.0L) were replaced with new Gen V engines (4.3L V6 LV1 and 6.0L V8 L96 with FlexFuel). While the fundamental fuel system design is similar, component locations, part numbers for sensors, and diagnostic procedures may differ slightly from the 2015-2016 models.
