P0087 on 2007-2009 Saturn Sky Red Line: Low Fuel Rail Pressure Causes & Fixes

What's Unique About the 2007-2009 Saturn Sky Red Line

The LNF 2.0L Turbo engine, shared with the Pontiac Solstice GXP and Chevy Cobalt SS, was one of GM's early Spark Ignited Direct Injection (SIDI) platforms. As with many early-generation technologies, the High-Pressure Fuel Pump (HPFP) is a well-known weak point. The HPFP is mechanically driven by a special three-lobed section on the intake camshaft, and both the pump's internal seals and the cam follower that rides on the lobe are common failure points. When P0087 appears on a Sky Red Line, the HPFP is the prime suspect, often more so than on other vehicles with a generic P0087 code.

Symptoms You May Notice

• Check Engine Light is on
• Engine Power Reduced message on the display
• Significant loss of power and acceleration (limp mode)
• Engine hesitation or stumbling, especially under load
• Rough idle
• Hard starting or extended cranking
• Engine stalling
• Strong smell of gasoline in the engine oil (on the dipstick)

Most Likely Causes

1. High-Pressure Fuel Pump (HPFP) Failure 🔴 High Probability → Shop Fuel Pump The HPFP on the LNF engine is a widely documented common failure item. A primary failure mode is the internal seal, which allows high-pressure gasoline to leak into the crankcase, diluting the engine oil. The internal components or the integrated pressure regulator can also wear out, leading to insufficient pressure.
   How to confirm: First, check the engine oil dipstick for a strong smell of gasoline; this is a definitive sign of HPFP internal seal failure. Use an OBD-II scan tool to monitor 'Desired Fuel Rail Pressure' vs. 'Actual Fuel Rail Pressure'. If the actual pressure consistently lags behind 🎬 See how to diagnose fuel pressure issues using a scan tool. the desired pressure, especially under acceleration, the HPFP is failing. At warm idle, pressure should be around 400-600 PSI; under load, it should rise above 1500 PSI. A reading stuck at low-pressure (e.g., 70 PSI) indicates the high-pressure pump is not working.
   Typical fix: Replace the High-Pressure Fuel Pump. It is located on the rear of the cylinder head. 🎬 Watch: A quick walkthrough of the HPFP location and replacement. The single-use high-pressure fuel line connecting the pump to the rail should also be replaced to prevent leaks.
   Est. part cost: $200-$600

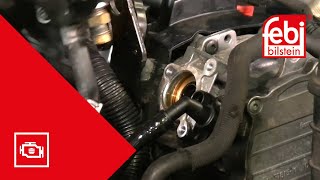

2. Worn HPFP Cam Follower (Tappet) 🟡 Medium Probability → Shop Fuel Pump The cam follower is a small cap that sits between the camshaft lobe and the HPFP plunger. It can wear down, score, or even be punctured over time, reducing the pump's stroke and its ability to build pressure.
   How to confirm: This requires physical inspection. The HPFP must be removed to access and inspect the cam follower for wear, scoring, or damage. If the follower is damaged, the camshaft lobe that drives it should also be inspected for wear.
   Typical fix: Replace the cam follower. It is highly recommended to replace this part whenever the HPFP is replaced, regardless of its apparent condition, as it is a critical wear item.
   Est. part cost: $20-$50
3. Faulty Fuel Rail Pressure Sensor (FRPS) ⚪ Low Probability → Shop Fuel Pressure Sensor While less common than pump failure, the sensor can fail and send incorrect low-pressure readings to the ECM.
   How to confirm: With the key on and engine off, the scan tool should show a plausible baseline pressure (typically near zero). If the reading is erratic, stuck at a high value, or nonsensical, the sensor may be bad. An owner on a forum replaced the sensor first, but it did not solve the P0087 issue, which was ultimately the HPFP.
   Typical fix: Replace the Fuel Rail Pressure Sensor. It is located on the high-pressure fuel rail.
   Est. part cost: $70-$150
4. Failing In-Tank (Low-Pressure) Fuel Pump ⚪ Low Probability → Shop Fuel Pump The HPFP cannot function correctly if it is not being supplied with adequate fuel from the low-pressure pump in the tank. While possible, it's a less frequent cause for P0087 on this specific platform compared to HPFP failure. Running the tank very low on fuel can strain this pump.
   How to confirm: Test the low-pressure fuel system pressure at the schrader valve on the fuel line before the HPFP. The pressure should be stable and within the manufacturer's specification (typically 50-70 PSI). If pressure drops under load, the in-tank pump may be weak.
   Typical fix: Replace the in-tank fuel pump module.
   Est. part cost: $150-$300

Rare But Worth Checking

• Clogged fuel filter (part of the in-tank pump assembly)
• Damaged or corroded wiring to the HPFP or fuel rail pressure sensor

Diagnosis Steps

1. Check the engine oil on the dipstick. If it is overfilled and/or smells strongly of gasoline, the HPFP internal seal has failed. Stop diagnosis and replace the HPFP and change the oil and filter.
2. Connect a high-quality OBD-II scanner and check for any other accompanying codes, such as P0089.
3. Monitor both 'Desired Fuel Rail Pressure' and 'Actual Fuel Rail Pressure' PIDs (Parameter IDs).
4. With the engine idling, observe the pressures. Actual should match desired and be stable (around 400-600 PSI when warm).
5. If possible, test the low-pressure fuel system to rule out a weak in-tank pump. Pressure should be stable and within spec (around 50-70 PSI).
6. If the low-pressure side is healthy, perform a safe, brief wide-open throttle acceleration. Observe if the 'Actual' pressure fails to keep up with the 'Desired' pressure. A significant and sustained gap confirms a failing HPFP.
7. If diagnosis points to the high-pressure side, remove the HPFP for inspection.
8. Inspect the HPFP cam follower for wear, scoring, or holes. If it's worn, replace it.
9. Given the high probability, if the diagnosis points to a weak high-pressure system, replace the High-Pressure Fuel Pump and its single-use fuel line. It is best practice to replace the follower at the same time.

Parts You'll Likely Need

• High-Pressure Fuel Pump (HPFP) (OEM #12641847) — This is the most common failure point on the LNF engine that causes code P0087. The original part may have been superseded by this number. Previous part numbers include 12639694, 12633423, 12608371.
  Trusted brands: ACDelco (GM Genuine), Bosch
  OEM price range: $350-$600
  Aftermarket price range: $200-$450
• HPFP Cam Follower / Tappet — This part wears out and can cause low fuel pressure. It should always be replaced when replacing the HPFP.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $20-$50
  Aftermarket price range: $15-$30
• High-Pressure Fuel Pump to Fuel Rail Line — This is a single-use, crush-fit metal line. It must be replaced whenever it is removed to ensure a high-pressure seal and prevent dangerous fuel leaks.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $30-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0089 — This code for 'Fuel Pressure Regulator Performance' often appears with P0087 because the regulator is integrated into the HPFP. A failing HPFP mechanism often triggers both codes.
• P0300-P0304 — These are random or specific cylinder misfire codes. Insufficient fuel pressure leads to a lean air/fuel mixture, which causes misfires.

Technical Service Bulletins (TSBs) & Recalls

• While owners frequently search for Technical Service Bulletins (TSBs) regarding P0087 on the LNF engine, no specific bulletin targeting this code and its common HPFP cause is widely referenced. The issue is treated more as a known component failure pattern rather than a condition addressed by a specific software update or revised diagnostic procedure.

Platform-Specific Known Issues

• Real-World Repair Story: An owner of a 2008 HHR SS (same LNF engine) experienced P0087 and P0089 with 'reduced power' mode. Their scan tool showed fuel pressure at only 70 PSI at idle, when it should have been in the hundreds. After confirming the fuel rail pressure sensor was not the issue, the problem was traced to a mechanical failure in the HPFP. This is a classic example of the failure pattern on this engine.

Mechanic-Grade Diagnostic Values

• High-Pressure Fuel Pump (HPFP) Solenoid Resistance — expected: 0.3 - 0.6 Ohms. Failure: A reading outside of this range indicates a faulty solenoid, which is integrated into the HPFP.
• Fuel Rail Pressure Sensor (FRPS) Voltage — expected: Approx. 0.5V at low pressure (KOEO) to 4.5V at max pressure.. Failure: Voltage that is stuck, erratic, or does not correspond to pressure changes indicates a faulty sensor or wiring.
• Low-Side Fuel Pressure (In-tank pump) — expected: 45 - 70 PSI. Failure: Pressure below 45 PSI at the schrader valve before the HPFP points to a weak in-tank pump or clogged filter.
• High-Side Fuel Pressure (Scan Tool, Warm Idle) — expected: ~315 - 600 PSI. Failure: A reading that matches the low-side pressure (e.g., ~70 PSI) indicates a complete failure of the HPFP to build pressure.

Scan Tool Commands That Help

• GM Tech2 / GDS2: Fuel Pump Relay/Fuel Pump Driver Module Command — This bidirectional control allows a technician to manually turn the in-tank (low-pressure) fuel pump on and off to verify its operation and check for stable low-side pressure without starting the engine.
• GM Tech2 / GDS2: Live Data Graphing - Desired vs. Actual Fuel Rail Pressure — While not a direct command, graphing these two PIDs during idle, revving, and a test drive is the primary diagnostic function. It visually shows if the HPFP is failing to meet the pressure requested by the ECM, especially under load.

Wiring & Ground Locations

• HPFP Regulator Solenoid ECM Pins — At the Engine Control Module (ECM) connector. The ECM is at the left rear corner of the engine compartment, near the brake master cylinder.. To test for a wiring fault between the ECM and the HPFP, check for continuity on the two wires for the regulator solenoid. These wires lead to pins 5 and 73 on the ECM connector.
• G103 — On the cowl at the left rear of the engine compartment, above the brake booster.. This is a critical ground point that provides the ground path for the Engine Control Module (ECM). A poor connection here can cause a wide range of engine management issues, including incorrect sensor readings and faulty component control.
• G104 — On the right front corner of the engine block.. This serves as a primary engine ground. A loose or corroded connection can create electrical noise and resistance, potentially affecting sensor signals related to the fuel system.
• G400 — In the rear of the vehicle, near the fuel tank assembly.. This ground is for the fuel tank unit, which includes the in-tank low-pressure fuel pump and sender assembly. A bad ground here can cause the low-pressure pump to perform poorly, starving the HPFP of fuel.

Real Owner Repair Stories

• Cobalt SS Network & Chevy HHR Network forums (2008 Chevrolet HHR SS (same LNF engine and fuel system)) — Engine went into 'reduced power' mode, Check Engine Light on with codes P0087 and P0089. Scan tool showed actual fuel pressure was only 70 PSI at idle.
  ❌ Tried (didn't work) Replacing the Fuel Rail Pressure Sensor (FRPS) did not solve the problem or change the symptoms.
  ✅ What actually fixed it The owner diagnosed a mechanical failure of the High-Pressure Fuel Pump (HPFP). The diagnostic path involved confirming the FRPS was not the issue and then planning to check wiring continuity from the HPFP solenoid to ECM pins 5 and 73 before replacing the pump, confirming the HPFP as the root cause.

OEM Part Supersession History

• 12608371, 12633115, 12633423, 12639694 → 12641847 — Standard part evolution by the manufacturer to improve reliability and address failure modes.
  Heads up: All listed part numbers are interchangeable, with the latest number (12641847) being the current recommended service replacement.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Timing Chain Stretch and Tensioner Failure 🔴 High — Common around 100,000 miles, but can occur earlier. Often presents as a rattling noise on startup or codes like P0016/P0017. (Ref: Revised tensioner designs were released, but no formal recall. It is considered a wear item.)
• Rear Axle Pinion Seal Leak 🟠 Medium — Common enough to warrant a safety recall. Can lead to differential noise (whining) and eventual failure if fluid runs low. (Ref: GM Safety Recall 07204A was issued for leaking differential seals that did not meet specifications.)
• Turbocharger Wastegate Actuator Adjustment/Failure 🟠 Medium — Can cause slow or erratic boost pressure. Sometimes requires a simple preload adjustment, other times the actuator itself fails. (Ref: There is a GM technical service bulletin detailing the wastegate actuator adjustment procedure.)
• Hard Brake Pedal on Cold Start 🟡 Low — Some owners of 2007-2008 models reported a very hard brake pedal for the first minute after a cold start, attributed to the vacuum system design. Saturn dealers at the time often described this as 'normal'.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the High-Pressure Fuel Pump (HPFP) on an LNF engine, a used part is almost never a smart choice. The failure rate of this component is exceptionally high, and an internal failure (like a leaking seal) is not externally visible. A used pump carries a very high risk of premature failure.

Donor-vehicle mileage cap: roughly under 30000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the mileage of the donor vehicle is extremely low.
• Inspect for any external corrosion or damage to the housing and electrical connector.
• Avoid parts from vehicles that have been sitting for a long time, as seals can dry out.

OEM-only on this vehicle (don't cheap out):

• High-Pressure Fuel Pump (HPFP) - Due to the precision required and high failure rate of cheap alternatives, GM Genuine/ACDelco or a reputable performance brand is strongly advised.
• High-Pressure Fuel Line - This is a one-time use, torque-to-yield part. It MUST be replaced with a new OEM part whenever it is loosened to prevent catastrophic fuel leaks.

Aftermarket brands forum-validated for this vehicle:

• ZZPerformance (ZZP) is a widely trusted and forum-validated source for both OEM-replacement and upgraded HPFPs for the LNF engine.

Brands owners have reported issues with on this vehicle:

• Generic, unbranded pumps from marketplaces like eBay or Amazon. While attractively priced, they have a poor reputation for reliability and longevity in the LNF community.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0089 — Fuel Pressure Regulator Performance code; often appears alongside P0087 when the HPFP's integrated pressure regulator or mechanical components fail.
• P0016 — Crankshaft Position - Camshaft Position Correlation; related to timing chain stretch, another known issue on the LNF engine that can occur alongside fuel system problems.
• P0017 — Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B); similar to P0016, this relates to the common timing chain and tensioner failures on this platform.

Frequently Asked Questions
