P0101 on 2007-2010 Chevy Silverado 2500: MAF Sensor Range/Performance Causes and Fixes

What's Unique About the 2007-2010 Chevrolet SILVERADO 2500

For the GMT900 generation Silverado HD, the P0101 code is a very common issue. While a dirty sensor is the usual suspect for both the 6.0L gas and 6.6L Duramax diesel engines, each has its own quirks. On the LMM Duramax diesel, this code can be triggered by using non-GM (aftermarket) air filters, including oiled K&N or dry filters, that change the airflow dynamics just enough to throw off the sensor's readings. A GM technical document specifically notes that non-GM filters can cause slightly higher MAF readings, leading to a P0101. Additionally, on both engines, a partially clogged catalytic converter can create exhaust backpressure that restricts airflow into the engine, leading the computer to mistakenly flag the MAF sensor.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine hesitates or surges, especially during acceleration
• Rough or unstable idle
• Reduced engine power or 'limp mode'
• Worse-than-normal fuel economy
• Difficulty starting the engine
• Black smoke from the exhaust
• Engine stalling

Most Likely Causes

1. Dirty or Contaminated MAF Sensor 🔴 High Probability → Shop Fuel Injection Air Flow Meter The MAF sensor's sensing element is delicate and exposed to the incoming air. Over time, dust, oil vapors (especially from over-oiled aftermarket air filters), and other debris can bake onto the element, insulating it and causing inaccurate readings.
   How to confirm: Remove the sensor and visually inspect the small wires or filament inside. If they appear coated or dirty, cleaning is warranted. A scan tool may show g/s readings that are lower than expected at idle.
   Typical fix: Carefully remove the sensor and spray the sensing elements with a dedicated Mass Air Flow sensor cleaner. Do not touch the elements. Let it dry completely before reinstalling. 🎬 Watch: How to clean or replace your Silverado's MAF sensor.
   Est. part cost: $10-$15
2. Vacuum Leak in the Air Intake System 🟡 Medium Probability → Shop Engine Air Intake Resonator The plastic and rubber components of the intake system can become brittle and crack over time due to heat and age, allowing unmetered air to enter the engine after the MAF sensor. Common failure points include the intake boot itself, the PCV hose connection, and on the Duramax, the intercooler pipe O-rings.
   How to confirm: Visually inspect all intake ducting, hoses, and connections between the MAF sensor and the engine for cracks or looseness. A smoke test is the most effective way to pinpoint a leak. On the Duramax, pressurizing the intake system can help find boost leaks.
   Typical fix: Replace the cracked intake boot, tighten loose clamps, or replace the faulty gasket or O-ring that is causing the leak.
   Est. part cost: $20-$150

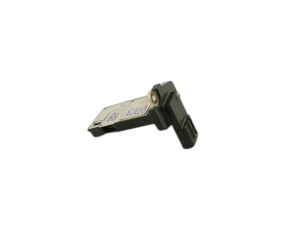

3. Faulty Mass Air Flow (MAF) Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter
   How to confirm: If cleaning the sensor and checking for vacuum leaks doesn't resolve the code, the sensor itself may have failed electronically. This can be confirmed by monitoring its output (in grams/second) with a scan tool to see if readings are erratic or don't increase smoothly with engine RPM. Compare readings to known-good values.
   Typical fix: Replace the MAF sensor. It is typically held in place by two screws and has one electrical connector.
   Est. part cost: $70-$260
4. Clogged Catalytic Converter ⚪ Low Probability This is a known, though less common, cause on GM trucks. An internal failure of the converter can create a blockage in the exhaust system, reducing the volume of air the engine can draw in.
   How to confirm: Symptoms include a significant loss of power, especially at high RPMs, and sometimes a sulfur or 'rotten egg' smell from the exhaust. A professional can perform an exhaust backpressure test to confirm a restriction. Often accompanied by code P0420.
   Typical fix: The clogged catalytic converter must be replaced.
   Est. part cost: $500-$2000+
5. Dirty or Clogged Engine Air Filter ⚪ Low Probability → Shop Air Cleaner Assembly
   How to confirm: Visually inspect the engine air filter. If it is visibly dirty, black, or clogged with debris, it is restricting airflow.
   Typical fix: Replace the engine air filter. This is a simple maintenance item that should be checked first.
   Est. part cost: $20-$50

Rare But Worth Checking

• Aftermarket Air Filter (6.6L Duramax): → Shop Air Cleaner Assembly On the LMM Duramax engine, some non-GM air filters (both oiled and dry types) can cause a P0101 code even if they are clean. The airflow characteristics are different enough to cause the MAF reading to be slightly out of the expected range. A GM document confirms this can cause higher-than-normal MAF readings. If you have this code and an aftermarket filter, the first step should be swapping to an AC Delco filter.
🎬 See why aftermarket filters cause P0101 codes on Duramax engines.
• Faulty EGR Valve (6.6L Duramax): A stuck or improperly seating EGR valve can disrupt expected airflow readings by allowing exhaust gases into the intake at the wrong time, leading to a P0101 code. One owner on a forum reported this as the root cause after extensive troubleshooting, confirmed by a repair shop. This can sometimes be accompanied by a P0401 (EGR Flow Insufficient) code.
• Wiring Harness or Connector Issue: Check the wiring and connector going to the MAF sensor for any signs of damage, corrosion, or loose pins. A poor connection can cause the same symptoms as a failed sensor. One owner found a broken wire in the harness 🎬 Watch this pro find a hidden wiring issue causing P0101. was the ultimate cause after replacing the sensor didn't work.
• Cracked Intake Resonator (6.6L Duramax): → Shop Exhaust Resonator The plastic intake resonator on the Duramax engine can develop cracks, creating a vacuum leak after the MAF sensor. This is a known failure point that can set a P0101.

Diagnosis Steps

1. Read the code with an OBD-II scanner and check for any other accompanying codes. Note freeze frame data if available.
2. Inspect the engine air filter. If it's dirty, replace it. If it's an aftermarket filter on a Duramax, consider replacing it with a stock AC Delco filter as a primary diagnostic step.
3. Visually inspect the entire air intake tract from the airbox to the throttle body (or turbo inlet on diesel). Look for any cracks, loose clamps, or disconnected hoses. Pay special attention to the large intake boot and the PCV system hoses.
4. Unplug and remove the MAF sensor. Inspect the connector for corrosion or damage. Spray the sensor's internal wires/elements with dedicated MAF sensor cleaner. Do not touch the elements. Let it dry completely before reinstalling.
5. Clear the code and test drive the vehicle. If the code returns, proceed with further diagnosis.
6. Using a scan tool with live data, monitor the MAF sensor reading (in g/s) at a fully warmed-up idle. For the 6.0L LY6 gas engine, the reading should be approximately 5.5-7.0 g/s. For the 6.6L LMM Duramax, a normal reading at idle with EGR off is ~40-45 g/s, and with EGR on is ~15-20 g/s. The reading should increase smoothly with RPM.
7. If a vacuum leak is suspected, perform a smoke test to find the source of the leak. On a Duramax, a boost leak test by pressurizing the system is also effective.
8. If a significant loss of power is a primary symptom, test the exhaust system for excessive backpressure, which would indicate a clogged catalytic converter.

Parts You'll Likely Need

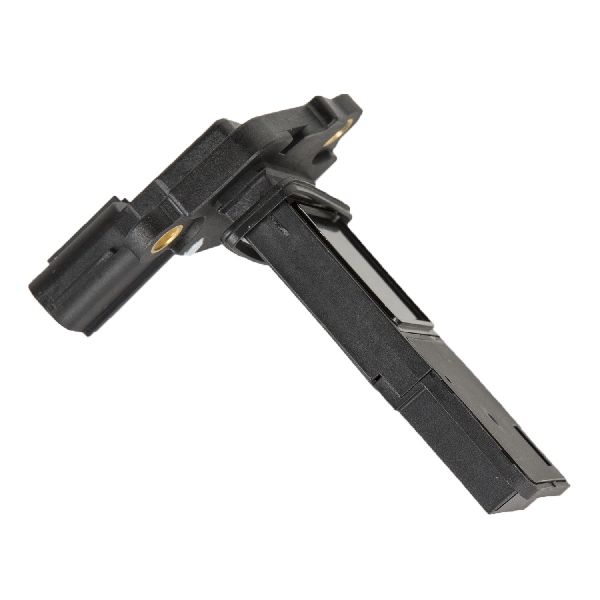

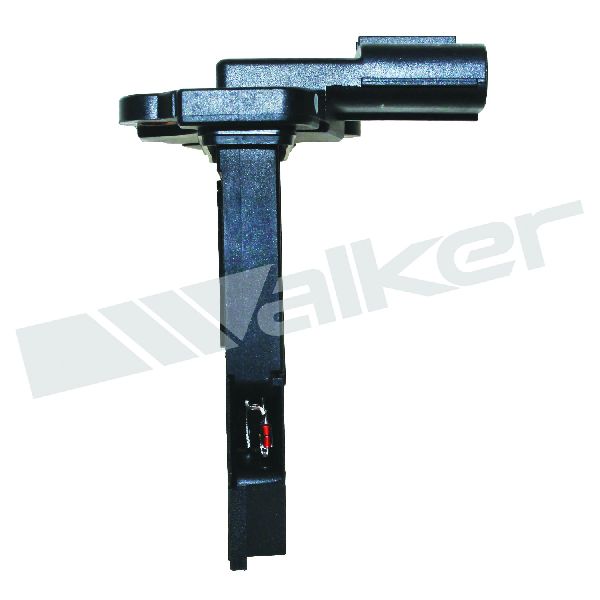

• Mass Air Flow (MAF) Sensor (OEM #ACDelco 213-3856 (for 6.6L LMM Duramax) or ACDelco 10393948 (for 6.0L LY6 Gas)) — This is the most common part to fail or require replacement if cleaning does not resolve the issue.
  Trusted brands: ACDelco, Delphi, Bosch, Denso
  OEM price range: $150-$260
  Aftermarket price range: $50-$120
• Mass Air Flow Sensor Cleaner — Often, the sensor is just dirty, not broken. This specialized cleaner is the correct first step before replacing the sensor.

Related Codes That Often Appear With This One

• P0171 — System Too Lean (Bank 1) - A vacuum leak allows unmetered air into the engine, causing a lean condition and often triggering P0101 simultaneously.
• P0174 — System Too Lean (Bank 2) - Same as P0171, but for the opposite cylinder bank on V8 engines.
• P0300 — Random/Multiple Cylinder Misfire Detected - A clogged catalytic converter or a major vacuum leak can disrupt the air/fuel mixture enough to cause misfires across multiple cylinders.
• P0401 — Exhaust Gas Recirculation (EGR) Flow Insufficient Detected - Often seen on Duramax models when a faulty EGR valve is the root cause of the incorrect airflow reading setting the P0101.

Technical Service Bulletins (TSBs) & Recalls

• PIP4932D: A general bulletin noting that technicians may encounter DTC P0101 and should follow standard service information for diagnosis. It also mentions that non-GM air filters can be a cause on LMM Duramax engines.

Platform-Specific Known Issues

• On the 6.6L LMM Duramax engine, some aftermarket (non-GM) air filters have been shown to cause a P0101 code due to slightly different airflow characteristics.
• The provided Technical Service Bulletin (TSB) #PIP4932D for the Duramax engine advises technicians to check the Airflow Leak Equivalency Ratio (ALER) with a scan tool to help diagnose whether an air leak is present before or after the turbocharger.

Mechanic-Grade Diagnostic Values

• MAF Sensor Signal (GM 3-wire digital type) — expected: At idle (~680 RPM), ~3.2 KHz. At 1500 RPM, ~4.2 KHz. At 2500 RPM, ~5.2 KHz. The frequency should increase smoothly with RPM.. Failure: No signal, or a signal that does not increase with engine RPM.
• MAF Sensor Power Supply Voltage (Key On, Engine Off) — expected: 12 Volts DC on the Pink wire at the MAF sensor connector.. Failure: Voltage significantly below 12V or no voltage indicates a wiring or fuse issue before the sensor.
• MAF Sensor Ground Circuit — expected: Near 0 Volts DC when testing between the Black/White wire at the MAF connector and the battery negative terminal.. Failure: Any significant voltage reading indicates a poor ground connection, which can cause incorrect sensor readings.
• MAF Sensor Live Data (6.6L LMM Duramax) — expected: A working sensor should read 31-33 g/s at idle.. Failure: A faulty new aftermarket sensor read 26 g/s, and a known bad original sensor read 24 g/s, both causing the P0101 code.

Scan Tool Commands That Help

• Tech2 / GDS2: Graphing MAF Sensor Data (Frequency or g/s) — Use this to watch for glitches, dropouts, or a non-linear response from the MAF sensor while wiggling the harness connector or lightly tapping on the sensor. A stable, linear graph indicates a good sensor and connection.

Wiring & Ground Locations

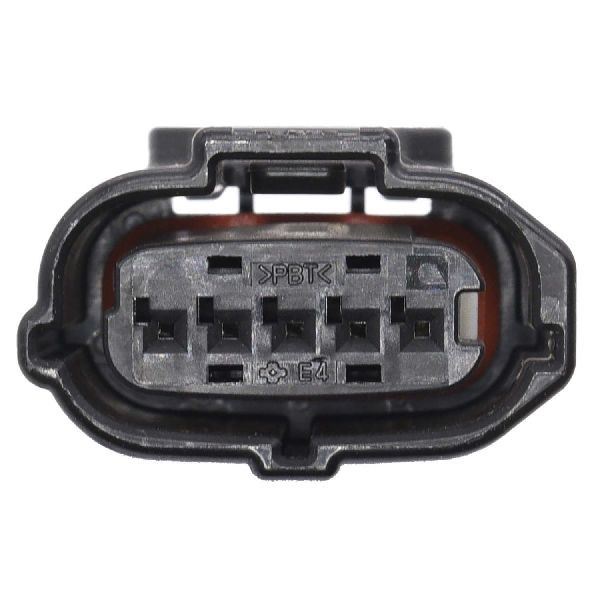

• MAF Sensor Connector (Both Engines) — On the air intake tube, between the air filter housing and the engine throttle body/turbo inlet.. This is the primary connection for the sensor. The 6.0L Gas and 6.6L Diesel use a 5-pin connector. Pin functions are typically: 12V Power (Pink), Ground (Black/White), MAF Signal (Yellow), and two wires for the integrated IAT sensor.
• G103 — On the cowl in the left rear of the engine compartment, above the brake booster.. This is a major ground point for the Body Control Module (BCM) and Engine Control Module (ECM). A poor connection here can cause a variety of seemingly unrelated electrical issues, including faulty sensor readings.
• G105 — At the left front of the engine compartment, sometimes behind cooling fan relays.. This ground serves several engine components, and ensuring it is clean and tight is critical for proper sensor operation.
• Firewall Ground Strap (Duramax) — A braided ground strap connecting the back of the driver's side cylinder head to the firewall.. This is a critical cab-to-engine ground. Corrosion or a loose connection here is a common source of electrical gremlins on high-mileage trucks.
• Engine Block Grounds — Multiple grounds are attached directly to the engine block, often on both sides near the front or rear of the cylinder heads.. The ECM and its sensors rely on a solid engine ground. On older trucks, these are common failure points due to corrosion.

Real Owner Repair Stories

• YouTube user 'Mr Farmer' (LMM Duramax (year not specified)) — P0101 code and 'Engine Power is Reduced' message.
  ❌ Tried (didn't work) Installed a brand new MAF sensor from NAPA, but the code and symptoms immediately returned.
  ✅ What actually fixed it The new NAPA MAF sensor was faulty out of the box. Testing it with a scan tool showed it was reading only 26 g/s at idle, while a known-good sensor from another Duramax read 31-33 g/s. Installing a borrowed, working OEM sensor resolved the issue, proving the aftermarket part was the problem.
• Reddit user 'Cam_777' (2010 Silverado 3500HD LMM Duramax) — P0101 code and limp mode immediately after reassembling the cooling stack (radiator, intercooler). Code would clear but return as soon as the truck was put into Park after driving.
  ❌ Tried (didn't work) Cleaning the original MAF sensor., Replacing the MAF sensor with a new one., Confirming the air filter was a clean OEM unit., Checking intercooler piping connections for tightness.
  ✅ What actually fixed it The user did not post a final resolution, but the symptoms strongly point to a boost/vacuum leak from a component that was disturbed during the radiator service, such as an intercooler pipe boot that wasn't seated correctly, despite appearing tight. The code setting when put into Park suggests a change in airflow dynamics at idle after a drive cycle is triggering the fault.
• DuramaxDiesels.com forum user (LMM Duramax (year not specified)) — Persistent P0101 code.
  ❌ Tried (didn't work) Replacing the MAF sensor.
  ✅ What actually fixed it The user discovered a broken wire within the MAF sensor wiring harness. Repairing the broken wire resolved the code. This highlights the importance of performing a 'wiggle test' on the harness while monitoring live data.

"I Checked Everything" — The Actual Cause

• On the 6.6L LMM Duramax, a common scenario is for all intake boots and connections to appear tight and pass a visual inspection or even a smoke test at low pressure, yet a P0101 code persists. The actual cause is often a small leak in an intercooler pipe boot that only opens up under boost pressure while driving. A dedicated boost leak test, where the system is pressurized to 10-20 PSI, is required to find these leaks.

When the Usual Fixes Don't Work

• In several documented cases for the LMM Duramax, owners replaced the MAF sensor multiple times, including with new OEM parts, without fixing the P0101 code. The final solution was often not the sensor itself, but an underlying issue causing an airflow rationality fault. The most common culprits found after replacing the sensor were boost leaks from intercooler pipes, a stuck EGR valve, or the use of an aftermarket air intake system that the factory calibration could not adapt to.

OEM Part Supersession History

• 15865791 (For LMM Duramax and other GM applications) → ACDelco 213-4222 — Standard part number update and consolidation by GM.
  Heads up: While 213-4222 is the correct service replacement, some aftermarket versions of this part have been reported to be faulty out of the box, causing an immediate P0101 code due to incorrect calibration.

Model Year Variations Within This Range

• 2007.5-2010: The LMM Duramax engine was introduced mid-2007 to meet stricter emissions standards. Compared to the previous LBZ engine, the LMM added a Diesel Particulate Filter (DPF) and a larger EGR cooler. These emissions components, particularly a clogged DPF or malfunctioning EGR system, can directly impact airflow and are potential root causes for a P0101 code on these specific model years.
