P0101 on 2019-2020 Kia Forte: MAF, Throttle Body, and Software Fixes

What's Unique About the 2019-2020 Kia FORTE

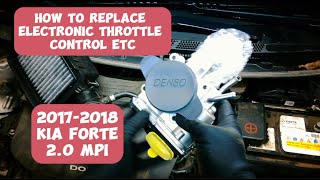

For this specific generation of Kia Forte with the 2.0L NU Atkinson engine, P0101 is not always a straightforward MAF sensor issue. Kia issued a Technical Service Bulletin (TSB #TSB_FUE047 🎬 Watch: Understanding the Kia TSB and software update process.) indicating that a problem with the Electronic Throttle Control (ETC) system's software logic can incorrectly trigger this code, often alongside P0106 and P0068. This means the root cause is frequently a software glitch that needs a dealer-installed update, rather than a hardware failure of the MAF sensor itself. The same issue exists on the 2017-2020 Hyundai Elantra, which uses the same engine and has a corresponding TSB (21-01-041H).

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Hesitation or lack of power during acceleration
• Rough idle
• Poor fuel economy
• Engine stalling

Most Likely Causes

1. Electronic Throttle Control (ETC) System Software Logic 🔴 High Probability A known issue documented by Kia in TSB #TSB_FUE047 for the 2019-2020 Forte with the 2.0L NU MPI Atkinson engine. Hyundai also issued TSB 21-01-041H for the same issue on the platform-mate Elantra.
   How to confirm: Check if codes P0106 and/or P0068 are also present. A Kia dealership can verify if the TSB applies to your vehicle's VIN and if the software update has been performed. This should be the first step before replacing any parts.
   Typical fix: The dealership will perform an ECM (Engine Control Module) software update. In some cases, the Electronic Throttle Body may need to be replaced.
   Est. part cost: $0-$500
2. Dirty or Faulty Mass Airflow (MAF) Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter The MAF sensor's heated wire can become contaminated with dirt, oil, or debris over time, leading to inaccurate readings.
   How to confirm: Visually inspect the sensor element for contamination. You can try cleaning it with a dedicated MAF sensor cleaner. If cleaning doesn't work, the sensor's output voltage can be tested with a multimeter or observed with a capable scan tool. Some owners report that these vehicles are sensitive and may perform better with an OEM sensor versus an aftermarket one.
   Typical fix: Clean the sensor with a specialized cleaner. If cleaning fails or the sensor tests bad, it must be replaced.
   Est. part cost: $70-$200
3. Vacuum Leaks 🟡 Medium Probability Cracked or disconnected vacuum hoses or a leaking intake manifold gasket allow unmetered air to enter the engine after the MAF sensor, confusing the PCM.
   How to confirm: Visually inspect all vacuum lines and the air intake boot for cracks or loose connections. A smoke test is the most effective way to pinpoint the source of a leak.
   Typical fix: Replace the damaged hose, gasket, or seal.
   Est. part cost: $10-$100
4. Clogged or Dirty Engine Air Filter ⚪ Low Probability → Shop Air Cleaner Assembly A severely restricted air filter can reduce airflow enough to cause the MAF sensor readings to be lower than expected for a given engine RPM.
   How to confirm: Visually inspect the engine air filter. If it is visibly dirty or clogged, it needs replacement.
   Typical fix: Replace the engine air filter.
   Est. part cost: $15-$40

Rare But Worth Checking

• Clogged Catalytic Converter: A restricted exhaust can cause excessive backpressure, affecting airflow through the engine and skewing MAF sensor readings. This usually presents with other symptoms like a significant loss of power, especially at high RPMs.
• MAF Sensor Wiring Issues: → Shop Fuel Injection Air Flow Meter Damaged wires or a corroded connector for the MAF sensor can interrupt the signal to the PCM, causing this code.
• Internal Engine Problems (Piston Rings): The 2.0L Nu engine in some 2020-2021 Kia Soul and Seltos models was subject to recall SC209 for improperly heat-treated piston oil rings, which could lead to scuffing, oil consumption, and engine damage. While not a direct cause of P0101, the resulting poor performance, stalling, or engine noise could be misdiagnosed. A similar issue was noted for the Hyundai Elantra.

Diagnosis Steps

1. Read all stored trouble codes with an OBD-II scanner. Note if P0106 or P0068 are present, as this strongly points to the TSB issue.
2. Contact a Kia dealership with your VIN and reference TSB #TSB_FUE047. Ask if the ECM software update has been performed. This is the most important first step.
3. If the TSB does not apply or has been performed, inspect the engine air filter and replace it if it's dirty.
4. Carefully inspect the air intake tube between the air filter housing and the throttle body for any cracks, tears, or loose connections.
5. Inspect the MAF sensor's wiring harness and connector for any signs of damage, corrosion, or a loose fit.
6. Remove the MAF sensor and visually inspect its sensing elements. If they appear dirty, clean them using only dedicated MAF sensor cleaner. Do not touch the elements.
7. Check for vacuum leaks using a smoke machine or by carefully spraying carb cleaner around intake gaskets and vacuum lines while listening for a change in engine idle.
8. If the software update is performed and the code returns, the Electronic Throttle Body may be faulty and require replacement, as suggested by the TSB.

Parts You'll Likely Need

• Mass Airflow Sensor (OEM #28164-2E000) — This sensor is a common cause if it's dirty or has failed, though it should be checked after investigating the TSB. Part fits 2019-2023 Kia Forte with the 2.0L Nu engine.
  Trusted brands: Kia (Genuine), Bosch, Delphi
  OEM price range: $150-$220
  Aftermarket price range: $70-$150

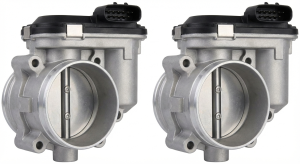

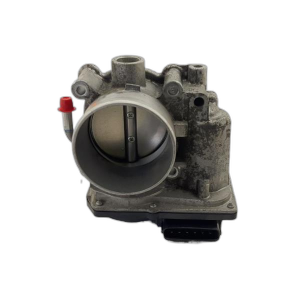

• Electronic Throttle Body (OEM #35100-2E600) — Identified by TSB #TSB_FUE047 as a potential cause of the code, often requiring replacement if a software update doesn't resolve the issue. Part number appears to fit multiple Kia/Hyundai 2.0L models.
  Trusted brands: Kia (Genuine)
  OEM price range: $400-$600
  Aftermarket price range: $250-$400

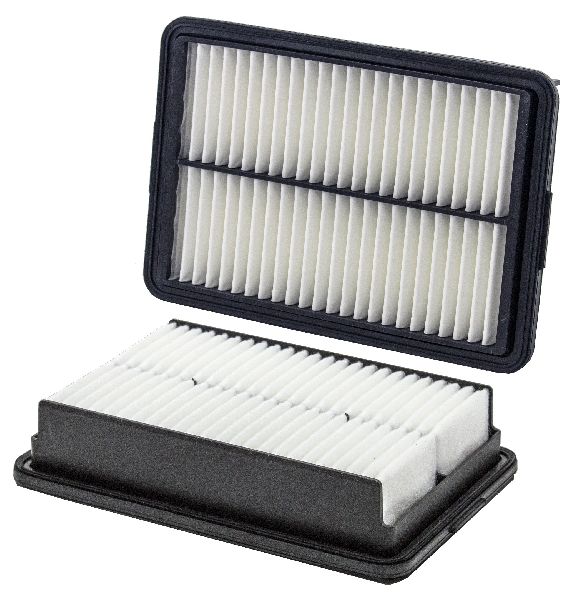

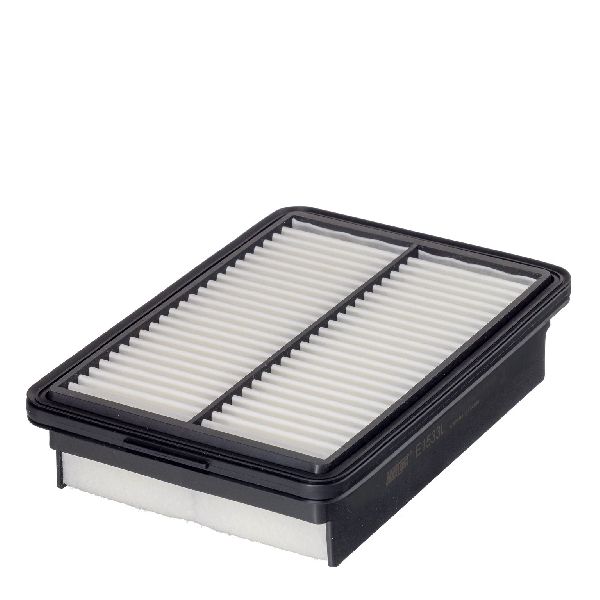

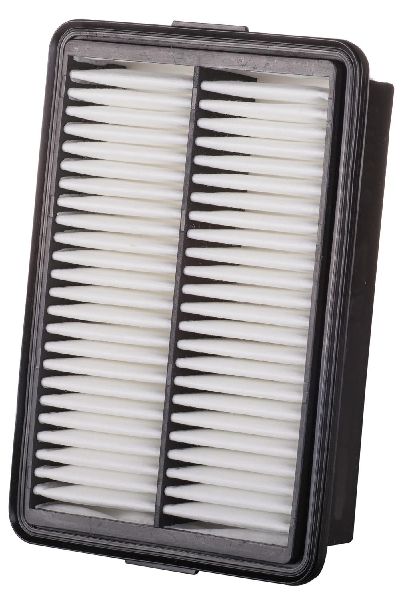

• Engine Air Filter — A clogged air filter is a simple and inexpensive item to check and is a potential cause of restricted airflow.
  Trusted brands: WIX, Purolator, Fram
  OEM price range: $25-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0106 — Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem. This code is explicitly mentioned in TSB #TSB_FUE047 and the related Hyundai TSB as appearing with P0101 due to the same ETC software issue.
• P0068 — MAP/MAF - Throttle Position Correlation. This code is also mentioned in TSB #TSB_FUE047, directly pointing to a discrepancy between the airflow sensors and the throttle body caused by the software logic.

Technical Service Bulletins (TSBs) & Recalls

• TSB #TSB_FUE047: Addresses a potential MIL with DTC P0101, P0106, and/or P0068 on some 2019-2020 Forte vehicles with the NU 2.0L MPI Atkinson engine, related to the Electronic Throttle Control (ETC).
• Hyundai TSB #21-01-041H: A related service campaign for the 2020 Hyundai Elantra with the 2.0L engine to update ECM software to revise the logic for DTCs P0068, P0101, and P0106.

Platform-Specific Known Issues

• Kia Technical Service Bulletin #TSB_FUE047 specifically calls out that on 2019-2020 Forte models with the 2.0L NU MPI Atkinson engine, DTC P0101 can be triggered by a software logic issue in the Electronic Throttle Control (ETC) system. This is often accompanied by codes P0106 and P0068.
• This exact issue is mirrored in the platform-mate 2017-2020 Hyundai Elantra, which received its own TSB (21-01-041H) for the same software flaw.

Mechanic-Grade Diagnostic Values

• Mass Airflow Sensor Signal Type — expected: Frequency. Failure: An incorrect or unstable frequency output when measured with an oscilloscope would indicate a sensor failure.

Scan Tool Commands That Help

• Kia GDS (or capable bidirectional scanner): ETC (Electronic Throttle Control) Relearn / Reset Adaptive Values — This function should be used after cleaning or replacing the electronic throttle body to make the ECM relearn the throttle plate's base position and range.
• No Tool Required: Manual Throttle Position Relearn — If a capable scan tool is not available, a manual relearn can be attempted after throttle body service or battery disconnection. The procedure involves a sequence of turning the ignition on (engine off) for a set time, then off, repeated multiple times to allow the ECU to passively relearn throttle limits.

Wiring & Ground Locations

• Mass Airflow (MAF) Sensor Connector — On the air intake tube, between the air filter box and the flexible intake hose leading to the throttle body.. Damaged wiring or a corroded connector at the MAF sensor will directly cause a P0101 code by interrupting the signal to the ECM. The pinout is critical for testing continuity and voltage. For the 2019 Forte, with the connector clip facing up, the pins are: Pin 1 (Yellow), Pin 2 (Black), Pin 3 (Not Used), Pin 4 (Orange), Pin 5 (Red).
• Engine Control Module (ECM) — Typically located in the engine bay, near the battery, and held in by a few 10mm bolts.. This is the computer that receives the MAF signal and triggers the P0101 code. Its location is needed for checking its connectors for corrosion or for replacement, which requires programming.

Real Owner Repair Stories

• Reddit user on r/kia (2019 Kia Forte S) — Car would hesitate and stall, throwing an ECM error code.
  ❌ Tried (didn't work) The user did not specify a list of failed attempts, but focused on the final solution.
  ✅ What actually fixed it The problem was resolved after replacing the spark plugs and using gasoline from a different station. The user believed the spark plugs were 90% of the problem.

When the Usual Fixes Don't Work

• While the TSB and common knowledge point heavily towards a software update or a direct intake system fault (MAF, throttle body, vacuum leak), there is evidence that underlying engine running issues can trigger a P0101. In one documented case for a 2019 Forte S experiencing hesitation and stalling, the final solution was not related to the intake system at all, but was resolved by replacing worn spark plugs. This suggests that if the primary TSB-related fixes do not work, technicians should consider basic ignition components as a potential, albeit less common, root cause before condemning expensive parts like the ECM.
