P0102 on 1997-2004 Porsche Boxster: MAF Sensor Causes and Fixes

What's Unique About the 1997-2004 Porsche Boxster

The 986 Boxster's MAF sensor is notoriously sensitive to contamination. Oiled aftermarket air filters (like K&N) are a frequent cause of premature MAF failure, as the oil can coat the sensor's delicate hot-wire element. Similarly, aftermarket intake systems can alter airflow characteristics and cause persistent P0102 codes that are only resolved by returning to the stock airbox. A failing Air-Oil Separator (AOS), another common 986 issue, can also allow oil vapor into the intake tract, contaminating and destroying the MAF sensor. A critical point for this platform is the MAF sensor changeover. For models around the year 2000, Porsche switched the type of MAF sensor used. Per TSB 1/00 2445, replacing an old style sensor (e.g., part number 996.606.124.00) with a new one (e.g., 986.606.125.01) requires a DME software update with a Porsche-specific scan tool (PST2 or PIWIS) to function correctly.

Symptoms You May Notice

• Check Engine Light (CEL) is on
• Rough or unstable idle, sometimes called 'idle hunting'
• Engine stalling, especially when coming to a stop
• Hesitation or sluggish acceleration
• Reduced engine power
• Poor fuel economy
• Difficulty starting the engine, requiring throttle input to keep it running

Most Likely Causes

1. Dirty Mass Air Flow (MAF) Sensor 🔴 High Probability → Shop Fuel Injection Air Flow Meter Use of oiled aftermarket air filters or a failing Air-Oil Separator (AOS) can easily contaminate the sensor. A user on the 986 Forum, 'joe_boxster', reported getting a P0102 after installing a K&N filter which persisted after cleaning, pointing to contamination.
   How to confirm: Visually inspect the sensor's wire or film elements. If they appear dirty or oily, cleaning is necessary. The first diagnostic step is often to clean the sensor regardless of appearance.
   Typical fix: Remove the sensor and clean it thoroughly with a dedicated Mass Air Flow sensor cleaner spray. 🎬 Watch this DIY guide for cleaning your MAF and air filter. Do not use brake cleaner or other harsh chemicals. Let it air dry completely before reinstalling.
   Est. part cost: $10-$20 for cleaner spray
2. Failed Mass Air Flow (MAF) Sensor 🔴 High Probability → Shop Fuel Injection Air Flow Meter The hot-film sensors used in these cars have a finite lifespan and are sensitive to contamination that can cause permanent failure. Many owners on forums report that cleaning provides only a temporary fix, with replacement being the final solution.
   How to confirm: If cleaning the MAF doesn't resolve the issue, the next step is replacement. A common diagnostic test is to unplug the MAF sensor's electrical connector; if the engine runs noticeably better on its base map, the sensor is likely faulty. Advanced diagnostics with a tool like Durametric may show the MAF signal voltage stuck at a low value (e.g., ~1.0V) instead of increasing with RPM.
   Typical fix: Replace the MAF sensor. It is highly recommended to use a genuine Bosch sensor, as they are the original equipment manufacturer (OEM). Many forum users warn that cheap, non-branded aftermarket sensors often fail immediately or cause other running issues. 🎬 See why you should avoid cheap aftermarket sensors during replacement.
   Est. part cost: $150-$280 for a Bosch unit
3. Vacuum Leak 🟡 Medium Probability Aging rubber and plastic hoses in the intake system can crack and cause unmetered air to enter the engine after the MAF sensor. A cracked oil filler tube is a very common source of vacuum leaks on the 986 that can cause a P0102 and other fuel trim codes.
   How to confirm: Listen for hissing sounds from the engine bay at idle. A smoke test is the most effective way to find the source of a vacuum leak. A user on the 986 Forum found a leaking oil filler tube via smoke test when chasing a P0102.
   Typical fix: Identify and replace the cracked or leaking hose/gasket. The oil filler tube is a common culprit.
   Est. part cost: $20-$150 depending on the hose
4. Wiring Harness or Connector Issue ⚪ Low Probability
   How to confirm: Inspect the MAF sensor connector for corrosion or damage. Check the wiring harness for breaks, chafing, or a short to ground. A specific test involves checking continuity from MAF connector pin 5 to DME connector pin 17; resistance should be less than 5 ohms.
   Typical fix: Repair the damaged wire or clean/replace the connector. It's noted that solder repairs on sensor wiring are not recommended as they can bias the voltage reading.
   Est. part cost: $5-$50

Rare But Worth Checking

• Clogged Air Filter: → Shop Air Cleaner Assembly A severely clogged engine air filter can restrict airflow enough to cause a low reading from the MAF sensor.
• Weak Battery or Poor Ground: A failing battery or a bad ground connection can cause low system voltage, which may affect the reference voltage for sensors and trigger a P0102 code. One forum member reported that replacing an old, incorrect battery finally resolved their lean condition codes.
• Faulty DME (Engine Computer): This is extremely rare, but if all other possibilities, including extensive wiring checks, have been exhausted, the DME itself could be the source of the problem.

Diagnosis Steps

1. Read the code from the OBD-II port to confirm P0102 is present.
2. Visually inspect the engine bay for any obvious vacuum leaks, like disconnected hoses or cracked tubes, especially around the oil filler tube.
3. Remove the MAF sensor. This requires a T20 security Torx bit.
4. Thoroughly clean the MAF sensor using a dedicated MAF sensor cleaner spray. Let it dry completely before reinstalling.
5. Clear the trouble codes using a scan tool and drive the vehicle to see if the code returns. It's also recommended to disconnect the battery for at least 5 minutes to reset the DME's learned adaptations.
6. If the code returns, try unplugging the MAF sensor's electrical connector and driving the car for a short distance. If the car's performance improves, the MAF sensor is almost certainly bad.
7. If a new MAF is installed and the problem persists, check the MAF sensor wiring. Check for 5V reference voltage and good ground at the connector. Check for continuity on the signal wire (Pin 5) between the sensor connector and the DME connector (Pin 17).
8. If wiring is good and a new Bosch MAF sensor does not fix the issue, perform a smoke test to definitively rule out hidden vacuum leaks.

Parts You'll Likely Need

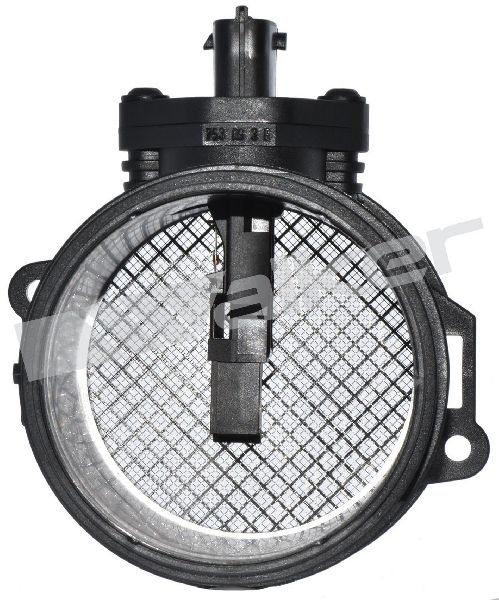

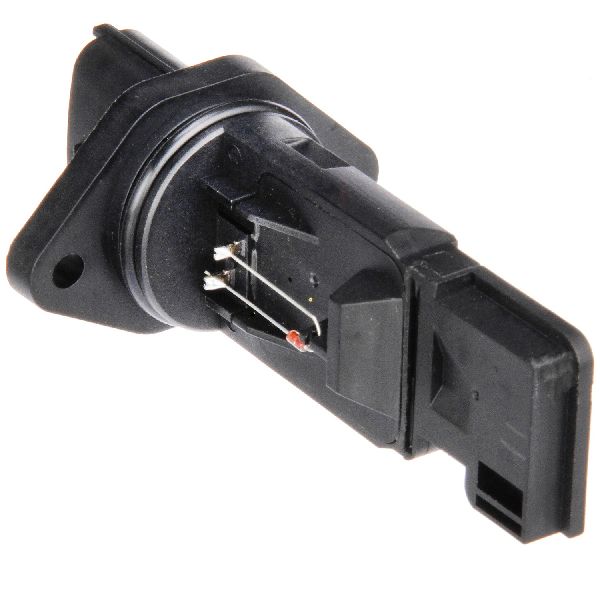

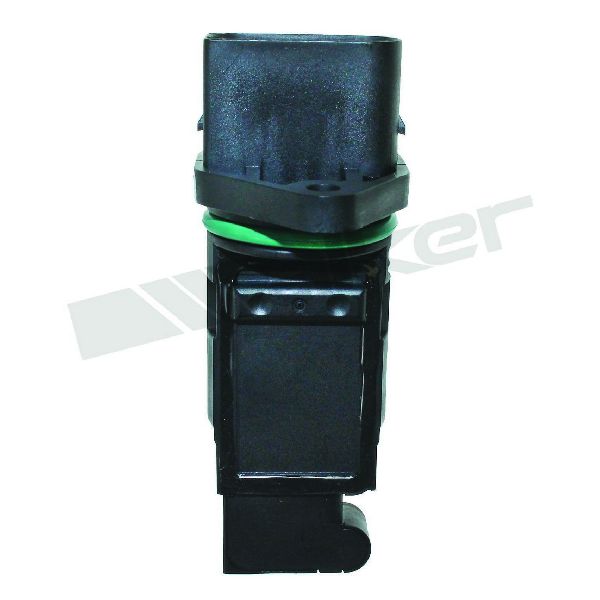

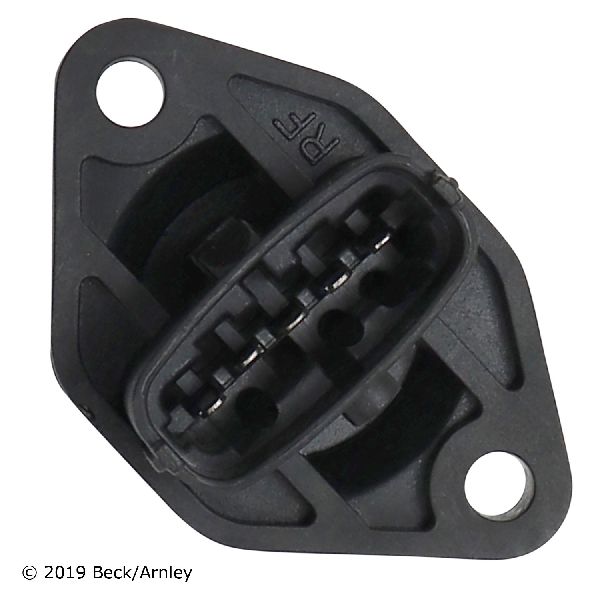

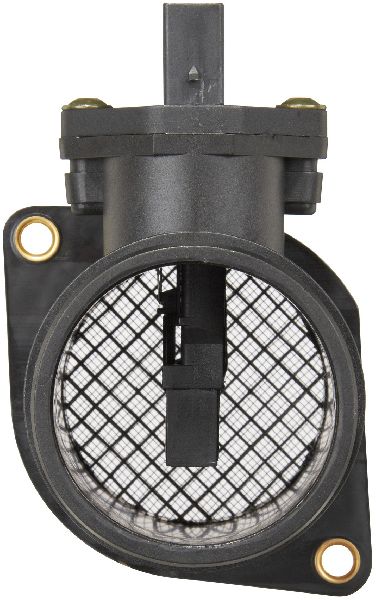

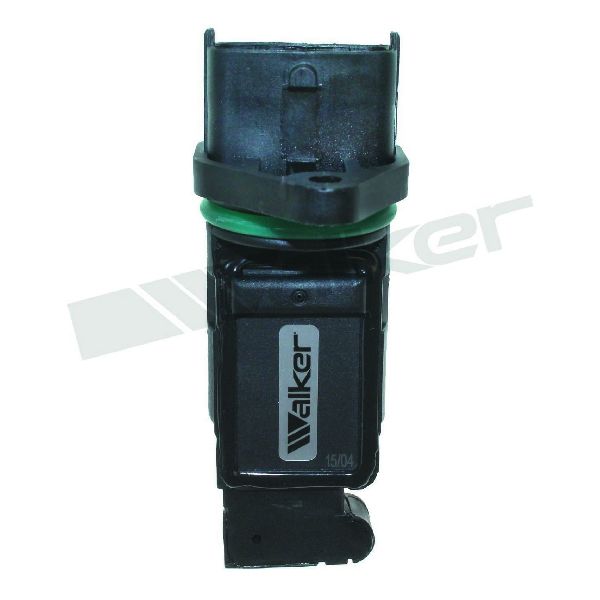

• Mass Air Flow Sensor (OEM #See notes) — This is the most common failure part for code P0102. The sensor gets contaminated or fails electronically.
  Trusted brands: Bosch
  OEM price range: $250-$400 (Porsche Branded)
  Aftermarket price range: $150-$280 (Bosch OEM)
• Mass Air Flow Sensor Cleaner — Often, the sensor is just dirty and cleaning it can resolve the code without needing to replace the part.
  Trusted brands: CRC, Liqui Moly
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0112 — Intake Air Temperature (IAT) Sensor Circuit Low. The IAT sensor is integrated into the MAF sensor assembly on these cars, so a failure of the MAF unit or its wiring often triggers both codes.
🎬 Watch a diagnostic walkthrough for P0102 and P0112 error codes.
• P1124, P1126, P1128, P1130 — These are Porsche-specific codes indicating the fuel trim has reached its rich or lean limit on Bank 1 and Bank 2. This is a direct result of the DME trying to compensate for the incorrect airflow readings from the faulty MAF sensor or a large vacuum leak.

Technical Service Bulletins (TSBs) & Recalls

• Porsche TSB 1/00 2445, dated April 18, 2000, details the introduction of a new MAF sensor (part number 986.606.125.01) to replace the earlier version (996.606.124.00) on MY2000 E-Gas vehicles. It explicitly states that if the new sensor is installed in a car that originally had the old one, the DME control unit must be reprogrammed.

Platform-Specific Known Issues

• Cracked Oil Filler Tube: A cracked oil filler tube is a very common source of a large vacuum leak on the 986 Boxster, which can lead to a P0102 code and other fuel trim errors. The corrugated section of the tube becomes brittle with age and heat.
• Aftermarket Air Intakes/Filters: → Shop Engine Air Intake Resonator Using an oiled aftermarket air filter (like K&N) is known to cause oil contamination on the MAF sensor, leading to P0102. Some owners report that even after cleaning or replacing the MAF, the code only stays away after returning to the stock airbox.
• Model Year 2000 MAF Changeover: A critical mid-year change occurred in 2000. Replacing an early-style MAF (996.606.124.00) with the later style (986.606.125.01) requires a DME software update from a dealer or a shop with a PST2/PIWIS tool, as per TSB 1/00 2445. Failure to do so will result in persistent running issues and codes.

Mechanic-Grade Diagnostic Values

• MAF Sensor Signal Voltage (Key On, Engine Off) — expected: 0.9V to 1.1V. Failure: Voltage is 0V or significantly outside this range.
• MAF Sensor Signal Voltage (Engine at Idle) — expected: 1.2V to 1.5V. Failure: Voltage is stuck at a low value (e.g., 1.0V) and does not increase from the KOEO reading, or does not increase with RPM.
• MAF Live Data (Air Mass at Idle) — expected: Approximately 13-16 kg/hr for a healthy engine at operating temperature.. Failure: Readings are significantly lower, such as 10 kg/hr, which can indicate a vacuum leak downstream of the MAF. A reading that is completely static or stuck at 0 indicates a failed sensor or wiring issue.
• Long Term Fuel Trim (LTFT) at Idle — expected: Close to 0%, ideally within +/- 5%.. Failure: Highly positive values (e.g., +25% or higher) indicate the DME is adding a large amount of fuel to compensate for what it perceives as a lean condition (caused by a bad MAF reading or a vacuum leak).
• MAF Sensor Connector Pin 5 to DME Connector Pin 17 Continuity — expected: Less than 5 Ohms. Failure: High or infinite resistance (open circuit) indicates a break in the signal wire.

Scan Tool Commands That Help

• Durametric: Actual Values > Mass Air Flow (HFM) and Mass Air Flow (kg/h) — This is the primary function for diagnosing a P0102. It allows you to monitor the live data from the MAF sensor to see if it's providing a plausible signal that increases with engine RPM. A static or zero value points to a failed sensor or wiring.
• PST2 / PIWIS (Porsche Dealer Tool): DME Reprogramming for new MAF sensor — This is mandatory when replacing an early 2000 model year MAF sensor (996.606.124.00) with the later, updated part (986.606.125.01 or newer). The DME map must be updated to recognize the new sensor's output.
• Any OBD-II Scanner: Clear Fault Codes / Reset ECU — After replacing the MAF sensor, it is critical to clear the fault codes. Many owners also recommend disconnecting the battery for 15-60 minutes to force a reset of all learned fuel trim adaptations, allowing the DME to learn the values from the new sensor from a clean slate.

Wiring & Ground Locations

• MAF Connector Pin 5 — The 5-pin electrical connector on the MAF sensor itself.. This is the signal wire that sends the airflow measurement voltage to the DME. A break or short to ground on this wire is a direct cause of P0102.
• DME Connector Pin 17 — On the main engine computer (DME) connector harness.. This is the receiving pin for the MAF signal from Pin 5. Checking continuity between MAF Pin 5 and DME Pin 17 is a definitive test of the signal wire's integrity.
• Ground Point 5 (GP5) — Described as the main 'Electronics ground'.. A poor electronics ground can cause erratic voltage readings for multiple sensors, including the MAF, potentially triggering a P0102 code.
• Ground Point 14 (GP14) — The main body-to-engine ground strap.. A corroded or loose main engine ground can cause a variety of electrical issues and fault codes due to unstable system voltage and poor ground reference for sensors.

Real Owner Repair Stories

• Rennlist user 'sjuggins' (1999 Porsche Boxster C2 (cable throttle)) — Hard to start, would not idle without holding the throttle, lumpy idle. Durametric showed MAF voltage constant at 1.00V regardless of RPM.
  ❌ Tried (didn't work) Comprehensive smoke test (no leaks found), Cleaning IACV and throttle body, Cleaning MAF sensor and connectors, Checking wiring continuity and resistance from DME to MAF plug (all checked out good)
  ✅ What actually fixed it Replacing the MAF sensor with a new Bosch unit finally solved the problem. The new sensor's voltage correctly increased with RPM, and the car idled perfectly.
• 986 Forum user 'Jaak' (2002 Boxster S Tiptronic) — Persistent P0102 code, idle hunt, and lean condition codes (SAS left and right bank).
  ❌ Tried (didn't work) Smoke testing (found and fixed a leaking oil filler tube, but the code returned), Replacing the MAF sensor with a new OEM unit, Mapping oxygen sensors (which showed perfect operation)
  ✅ What actually fixed it Replacing the vehicle's battery. The previous owner had installed an incorrect, undersized battery (48R instead of the required 94R for Tiptronic models). The low reference voltage from the weak/incorrect battery was causing the low input code.
• RennTech.org user 'BoxsterTaff' (Porsche Boxster (year not specified)) — Codes P0102, P1124, P1126. Rough idle and audible hissing from the engine bay.
  ❌ Tried (didn't work) Replacing the MAF with a new Bosch unit, Replacing the AOS, Cleaning the throttle body, Spraying carb cleaner to find leaks (unsuccessful)
  ✅ What actually fixed it A cracked oil filler tube. The user temporarily capped the tube and the hissing and idle issues immediately resolved, confirming it as the source of the unmetered air that caused the codes.

"I Checked Everything" — The Actual Cause

• In one documented case on Rennlist, a user performed a comprehensive smoke test that revealed no vacuum leaks. They also verified all wiring from the DME to the MAF connector was good. Despite these checks, the P0102 code and severe idling problems persisted. The final fix was replacing the MAF sensor itself, which had failed electronically in a way that produced a static low voltage signal but did not represent an open or short circuit.

OEM Part Supersession History

• 996.606.124.00 (Bosch 0280218009) → 986.606.125.00 / 986.606.125.01 (Bosch 0280218054 / 0280218055) — Part design update by Bosch/Porsche.
  Heads up: CRITICAL: If your car has the '124.00' MAF, you cannot simply install the newer '125.01' part. The DME must be reprogrammed using a Porsche PST2 or PIWIS tool to accept the new sensor's signal, as per TSB 1/00 2445.
• 986.606.125.00 (Bosch 0280218054) → 986.606.125.01 (Bosch 0280218055) — Minor revision.
  Heads up: These parts are generally interchangeable without DME reprogramming. If your car came with a '125.00', the '125.01' is the correct replacement.

Model Year Variations Within This Range

• 1997-1999: These models typically use the earliest MAF sensor, part number 996.606.123.00 (Bosch 0280217007), and have a cable-operated throttle. Diagnosis is slightly simpler as there is no E-Gas system to consider.
• 2000: This is a split year. Early 2000 models may have the 996.606.124.00 MAF, while later models have the 986.606.125.00. This is the critical year where a DME reflash is required if upgrading from the early to the late style sensor.
• 2001-2004: These models use the later style MAF (986.606.125.00 or .01) and have E-Gas (electronic throttle). The part numbers 986.606.125.00 and 986.606.125.01 are generally interchangeable with each other without a DME update.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, buying a used MAF sensor is almost never a smart choice. These sensors have a finite lifespan and are highly sensitive to contamination. The risk of buying a part that is already failing or will fail shortly is very high. A used part should only be considered as a last-resort diagnostic tool to see if the problem changes, not as a permanent fix.

Donor-vehicle mileage cap: roughly under 30000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the Bosch and Porsche part numbers on the sensor match what your car requires EXACTLY.
• Inspect the connector pins for any corrosion or damage.
• Look at the sensing element; if it appears oily, coated in debris, or physically damaged, do not buy it.

OEM-only on this vehicle (don't cheap out):

• Mass Air Flow (MAF) Sensor

Aftermarket brands forum-validated for this vehicle:

• Bosch (This is the Original Equipment Manufacturer, or OEM. Buying a Bosch-branded part is identical to the Porsche part but without the Porsche box and markup.)

Brands owners have reported issues with on this vehicle:

• Unnamed / generic / no-brand eBay or Amazon sensors. Forum consensus is overwhelming that these parts are often dead-on-arrival or fail within a very short period, causing more diagnostic headaches.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P1124 — Oxygen Sensing Range 1 (Cylinders 1-3). This code often appears with P0102 because an incorrect airflow reading from the MAF sensor causes the DME to calculate the wrong fuel mixture, pushing the fuel trims to their limits on one bank of the engine.
• P1126 — Oxygen Sensing Range 1 (Cylinders 4-6). Similar to P1124, this code indicates the fuel mixture is out of the acceptable range for the second engine bank. It is a direct consequence of the faulty air metering information that triggers the P0102 code.
