P0102 on 2007-2009 Saturn Aura 2.4L: MAF Circuit Low Causes and Fixes

What's Unique About the 2007-2009 Saturn Aura

The 2.4L Ecotec LE5 engine in the Saturn Aura uses a common GM MAF sensor that is generally reliable but sensitive to contamination and wiring issues. While no major design flaws are specific to the Aura, a known issue on related GM platforms involves the wiring harness. The harness near the EVAP purge solenoid bracket can chafe, causing intermittent shorts to ground that may trigger various codes, including those related to the MAF sensor. Additionally, water intrusion into the MAF sensor connector has been noted on similar GM models, sometimes requiring connector replacement to solve a persistent P0102 code. A critical, often-overlooked issue is a poor connection at ground G107 on the transmission bellhousing, which serves the MAF and ECM and can cause stalling and idle surges without setting other codes.

Symptoms You May Notice

• Check Engine Light is on
• Engine runs rough or has an unstable idle
• Hesitation, jerking, or poor acceleration
• Engine stalling, especially after starting or when coming to a stop
• Reduced fuel economy
• Black smoke from the exhaust (less common, but possible if PCM overcompensates)
• Hard starting or extended cranking

Most Likely Causes

1. Dirty or Contaminated MAF Sensor 🔴 High Probability → Shop Fuel Injection Air Flow Meter This is the most common cause for P0102 across all vehicles. The sensor's delicate hot wire can become coated with dirt, dust, or oil, especially if using an aftermarket oiled air filter, insulating it and causing it to read airflow inaccurately. The Ecotec's tendency for some oil consumption can also contribute to oil vapors contaminating the sensor over time.
   How to confirm: Visually inspect the sensor's wires inside its housing. If they appear dirty, cleaning is the first logical step. A scan tool showing MAF grams/second reading near zero at idle when it should be higher is also a strong indicator.
   Typical fix: Remove the sensor and clean it thoroughly with a dedicated MAF sensor cleaner spray. 🎬 Watch: A quick guide on cleaning your MAF sensor safely. Do not touch the sensor wires or use other chemicals like brake cleaner.
   Est. part cost: $10-$15 for cleaner
2. Failed MAF Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter
   How to confirm: If cleaning the sensor does not resolve the code, and the wiring is confirmed to be good, the sensor's internal electronics have likely failed. Testing with a scan tool to watch live data (grams/second) during a test drive can confirm a lack of response to changing engine load. 🎬 See how to test and replace a faulty MAF sensor.
   Typical fix: Replace the Mass Air Flow sensor. It is located on the air intake duct between the air filter box and the engine.
   Est. part cost: $60-$180
3. Clogged or Dirty Engine Air Filter 🟡 Medium Probability → Shop Air Cleaner Assembly
   How to confirm: Visually inspect the engine air filter. If it is black, full of debris, or has not been changed in a long time, it is likely restricting airflow.
   Typical fix: Replace the engine air filter. This is a simple and inexpensive maintenance item that should be checked early in the diagnosis.
   Est. part cost: $15-$40
4. Vacuum Leak ⚪ Low Probability The intake system has multiple connection points and hoses that can crack or loosen over time. A leak after the MAF sensor allows unmetered air in, which the PCM detects as a discrepancy, sometimes setting a P0102 if the leak is large enough to disrupt airflow across the sensor.
   How to confirm: Inspect all intake ducting, hoses, and vacuum lines after the MAF sensor for cracks, loose connections, or deterioration. A smoke test is the most effective way to find hard-to-see leaks. Pay attention to the PCV hose and intake manifold gaskets.
   Typical fix: Repair or replace the leaking hose, clamp, or gasket. This allows unmetered air to enter the engine, which can cause drivability issues and various codes.
   Est. part cost: $5-$100 depending on the source of the leak
5. Wiring or Connector Issue ⚪ Low Probability A known issue on related GM platforms involves the wiring harness chafing near the EVAP purge solenoid bracket. Water can also enter the connector, causing corrosion on the pins. A critical weak point is ground G107 on the transmission bellhousing, which can become loose or corroded.
   How to confirm: Visually inspect the MAF sensor connector for corrosion, bent pins, or loose wires. Trace the wiring harness back toward the ECM, looking for any signs of chafing, melting, or breaks, paying special attention to where the harness is secured 🎬 Watch: An easy way to locate a ground short. or rubs against other components. Use a multimeter to check for 12V power, good ground, and signal wire integrity. Specifically check for voltage drop at ground G107.
   Typical fix: Repair the damaged section of wire, clean the connector terminals with electrical contact cleaner, or replace the connector pigtail (ACDelco PT2187 is a common replacement) if it is corroded or damaged. Disassemble, clean, and tighten ground G107.
   Est. part cost: $15-$50 for a connector pigtail

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is extremely rare and should only be considered after all other possibilities (sensor, wiring, air leaks, grounds) have been exhaustively ruled out.
• High Resistance in Fuse Box: A spread terminal for the MAF sensor's power fuse (e.g., ENG 1) can cause low voltage to the sensor even if the fuse itself is good. This is a rare but documented cause on other GM vehicles.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0102 is present and note any other codes.
2. Visually inspect the engine air filter. If it's dirty or clogged, replace it before proceeding.
3. Inspect the air intake system between the MAF sensor and the throttle body for any obvious cracks, loose clamps, or disconnected hoses.
4. Carefully remove the MAF sensor. Inspect the sensing element (hot wire) for dirt or contamination.
5. If dirty, clean the sensor using only dedicated MAF sensor cleaner. Spray the wires and housing generously and let it air dry completely. Do not touch the wires.
6. Reinstall the clean sensor, clear the code, and test drive the vehicle to see if the code returns.
7. If the code returns, inspect the MAF sensor's electrical connector for corrosion, moisture, or damaged pins. Ensure it clicks securely into place.
8. Using a multimeter with the key on, engine off, check the MAF connector pins: The Pink/Black wire should have battery voltage (~12V). The Yellow wire should have a 5V reference signal from the PCM. The Black/White wire is the ground.
9. Perform a voltage drop test on the main engine ground. With the engine running, connect a multimeter between the G107 ground point on the transmission bellhousing and the negative battery post. A reading above 50mV (0.05V) indicates a poor ground that needs to be cleaned and tightened.
10. With a scan tool, monitor the MAF sensor reading in grams/second (g/s). At a fully warmed-up idle, it should be around 4-6 g/s for this engine. It should increase smoothly as you raise the RPM. If it's stuck at a very low number or doesn't change, the sensor or its circuit is faulty.
11. If wiring and grounds are good and cleaning did not work, the MAF sensor itself has likely failed and should be replaced.

Parts You'll Likely Need

• Mass Air Flow (MAF) Sensor (OEM #15865791) — This is the most common part to fail if cleaning does not resolve the issue. The internal electronics can fail over time. This part number supersedes the older 12576410.
  Trusted brands: ACDelco (GM Genuine), Delphi, Hitachi
  OEM price range: $120-$180
  Aftermarket price range: $60-$120
• MAF Sensor Cleaner — Often, the sensor is just dirty. This specialized cleaner is designed to safely remove residue without damaging the delicate sensor wires.
  Trusted brands: CRC, Liqui Moly, WD-40 Specialist
  Aftermarket price range: $10-$15

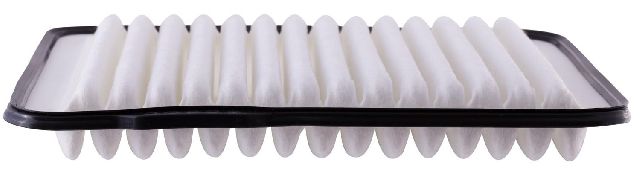

• Engine Air Filter (OEM #ACDelco A3086C (example)) — A severely clogged air filter can restrict airflow enough to trigger a P0102 code and should be replaced as part of routine maintenance.
  Trusted brands: ACDelco, Wix, Fram
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• MAF Sensor Connector Pigtail (OEM #ACDelco PT2187) — If the connector is damaged by heat, corrosion, or broken locking tabs, it can cause a poor connection and trigger a P0102. Water intrusion is a known issue that may require connector replacement.
  Trusted brands: ACDelco, Dorman
  OEM price range: $25-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0171 — System Too Lean. This code often appears with P0102 if there is a significant vacuum leak. The MAF sensor reports low airflow (P0102), but the extra, unmetered air causes a lean condition detected by the oxygen sensors.
• P0101 — MAF Circuit Range/Performance. This code indicates the sensor's readings are erratic or out of the expected performance range, which can be caused by the same issues as P0102, such as dirt, wiring faults, or vacuum leaks.
• P0300 — Random/Multiple Misfire Detected. A poor ground at G107, which affects the MAF sensor, can cause random misfires and may be the only other code present alongside idle/stalling issues.

Technical Service Bulletins (TSBs) & Recalls

• TSB #PIP4549A: While not directly for P0102, this TSB addresses intermittent electrical issues and DTCs on 2007-2009 Saturn Auras with the 2.4L engine due to the engine harness chafing on a bracket, which could be a potential cause.

Platform-Specific Known Issues

• The 2.4L Ecotec engine family can be prone to high oil consumption, which can increase crankcase vapors and potentially contaminate the MAF sensor element with oil mist, leading to inaccurate readings.
• Wiring harness routing on the GM Epsilon platform can lead to chafing in predictable spots. Owners should pay close attention to the harness where it is clipped to the engine or body, especially around the area of the EVAP purge solenoid on the side of the engine.

Mechanic-Grade Diagnostic Values

• MAF Sensor Reading (Scan Tool) — expected: 4-6 g/s at fully warmed-up idle. Should increase smoothly with RPM.. Failure: Reading is stuck near 0.00 g/s or does not change with engine speed.
• MAF Connector Power Pin Voltage (Pink/Black Wire) — expected: ~12V (Battery Voltage) with key on, engine off.. Failure: Significantly lower than battery voltage (e.g., 1.8V or 5V) indicates high resistance in the power supply circuit, possibly at the fuse box.
• MAF Connector Signal Pin Voltage (Yellow Wire) — expected: 4.8V - 5.2V with key on, engine off (5V reference from PCM).. Failure: Voltage is near zero or significantly lower than 5V, indicating a short to ground in the signal wire or a faulty PCM driver.
• G107 Ground Voltage Drop — expected: Around 50mV (0.05V) or less.. Failure: A reading significantly higher than 50mV (e.g., 220mV) indicates high resistance in the ground connection, requiring cleaning and tightening.

Scan Tool Commands That Help

• Tech2 / GDS2 or equivalent: Live Data Graphing (MAF Sensor g/s or Hz) — Use this to perform a 'wiggle test'. While observing the live data graph, wiggle the MAF sensor connector and wiring harness. Any sharp spikes or dropouts on the graph that correspond to your movement indicate an intermittent wiring or connector fault.

Wiring & Ground Locations

• G107 — On the transmission bellhousing.. This is a critical ground for the MAF sensor, ECM, and TCM. A loose or corroded connection here is a known cause of intermittent idle surge, stalling, and lack of power on the 2.4L LE5 platform, often without setting any code other than a P0300 or a MAF-related code like P0102.
• MAF Sensor Connector — On the air intake tube, between the air filter box and the throttle body.. This 5-pin connector provides power, ground, and signal paths. Pin 1: Yellow (Signal), Pin 2: Tan (IAT Signal), Pin 3: Pink/Black (12V Ignition Power), Pin 4: Black/White (Low Reference/Ground to G107), Pin 5: Gray (5V Reference). Incorrect voltage at these pins is a primary diagnostic step.
• Underhood Fuse Block — In the engine compartment.. The fuse that supplies 12V power to the MAF sensor (often labeled ENG 1) is located here. A poor connection at the fuse terminal itself, not just a blown fuse, can cause a voltage drop and trigger P0102.

Real Owner Repair Stories

• Chevy HHR Network forum, based on GM PI #PIP4412 (2006-2008 Chevrolet HHR 2.4L (sister platform with identical engine and ground points)) — Intermittent idle surge, rough idle, lack of power, stall at idle. Engine restarts fine.
  ❌ Tried (didn't work) Standard diagnostics often found no cause, with no DTCs stored or only a P0300 (random misfire).
  ✅ What actually fixed it The cause was a loose or corroded G107 ground on the transmission bellhousing. The fix was to disassemble, clean the ground connection surfaces, reassemble securely, and verify the fix with a voltage drop test.
• Chevrolet Message Forum user (1999 K2500 7.4L Suburban (different vehicle, but demonstrates a proven GM electrical failure pattern)) — Persistent P0102 code, engine starts and then quits, surging idle.
  ❌ Tried (didn't work) Cleaning the MAF sensor., Replacing the MAF sensor., Checking for vacuum leaks.
  ✅ What actually fixed it The 'ENG 1' fuse terminal in the fuse box had a bad connection. A previous mechanic had likely spread the female contact while probing it with a test light. This created high resistance, feeding the sensor only ~5 volts instead of the required 12 volts. Replacing or repairing the fuse box terminal resolved the issue.
• NHTSA ODI #10469048 (Saturn LS owner report) — An owner reported that after a line was fixed, the car immediately shut off in traffic and began giving a P0102 code, which refers to low voltage for the Mass Air Flow sensor.

"I Checked Everything" — The Actual Cause

• A common scenario for this platform is passing a smoke test (no vacuum leaks) but still having P0102 with stalling or surging. The actual cause is often electrical, specifically a high-resistance ground at G107 on the transmission bellhousing. This ground fault mimics a vacuum leak to the computer but won't be found with a smoke machine.
• Another hidden electrical issue is a spread terminal in the fuse box for the MAF sensor's power fuse. The circuit will have continuity and the fuse will be intact, but the poor connection causes a voltage drop under load that triggers the code. This will not be found by a visual inspection or smoke test.

OEM Part Supersession History

• 12576410 → 15865791 — GM regularly updates service parts to integrate new materials, technologies, or manufacturing processes.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Timing Chain Guide/Tensioner Failure 🔴 High — Common over 80,000 miles, especially if oil changes are neglected. Symptoms include a rattling noise on startup. (Ref: No specific recall for the Aura, but a well-documented problem for the 2.4L Ecotec engine family.)
• 4T45-E Transmission Shift Solenoid Failure 🟠 Medium — Can occur at higher mileage (100k+ miles), leading to harsh shifting, delayed engagement, or failure to shift into certain gears.
• Excessive Oil Consumption 🟠 Medium — Some 2.4L Ecotec engines are known to consume oil, requiring owners to check levels frequently. This can exacerbate other issues like timing chain wear and VVT system problems.
• EVAP Vent Valve Failure 🟡 Low — A common issue leading to a Check Engine Light (often for EVAP codes) and difficulty refueling. The valve can get stuck due to dirt and debris.
• Power Steering Whine / Leaks 🟡 Low — The hydraulic power steering system on V6 models, and some 4-cylinders, can develop leaks from lines or the pump itself, often noticed as a whining noise that changes with steering input.
• Shift to Park Message / Rollaway Risk 🔴 High — A broken shift cable clip could cause the vehicle to be in a different gear than indicated, creating a rollaway risk. This prompted a recall. (Ref: GM Recall N120113 (NHTSA 12V460000) was issued for this issue on 2007-2010 models with 4-speed automatic transmissions.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used OEM MAF sensor from a reputable salvage yard is a reasonable choice for this repair, as the OEM units are generally reliable. Given the low cost of a new quality aftermarket part, a used part makes the most sense if the price is significantly lower (e.g., under $40).

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the donor vehicle's mileage; aim for a vehicle with under 100,000 miles, as failure rates increase after this point.
• Inspect the sensor for physical damage to the housing or connector.
• Look at the sensing wires if possible; avoid any that look physically broken or heavily caked with unremovable debris.
• Ensure the salvage yard offers a short warranty (e.g., 30-90 days) to protect against a dead-on-arrival part.

Aftermarket brands forum-validated for this vehicle:

• Delphi (often the original GM supplier)
• Hitachi

Brands owners have reported issues with on this vehicle:

• Be cautious with unbranded, 'white-box' sensors from online marketplaces, as their calibration and longevity can be inconsistent.
• While some remanufactured units (like Cardone) can be cost-effective, their quality can be debated in forums; a new quality aftermarket part is often a safer bet for a similar price.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0101 — Often related to MAF sensor performance issues or irrational signals, similar to the low-input failure of P0102.
• P0171 — A lean condition code that often appears with P0102 because a contaminated MAF sensor or vacuum leak causes the PCM to miscalculate the air-fuel mixture.
• P0442 — Related to the EVAP system; the wiring harness for the MAF is routed near the EVAP purge solenoid where chafing frequently occurs, potentially affecting both circuits.

Frequently Asked Questions
