P0116 on 1996-2000 Volvo V70: Engine Coolant Temp Causes and Fixes

What's Unique About the 1996-2000 Volvo V70

For the first-generation (P80 platform) Volvo V70, the P0116 code is very frequently linked to a failed thermostat stuck in the open position. While the code points to the sensor circuit, the underlying cause is often the mechanical thermostat itself. The ECT sensor and thermostat are located together in the same housing, making it standard practice for mechanics and experienced owners to replace both parts simultaneously to avoid future issues, as the labor is nearly identical for both jobs. This preventative measure is highly recommended in owner forums.

Symptoms You May Notice

• Check Engine Light is on
• Engine is slow to warm up, especially in colder weather.
• Temperature gauge on the dashboard is erratic, stays on cold, or fluctuates wildly.
• Temperature gauge drops to cold during highway driving, then returns to normal in city traffic.
• Heater may not blow warm air or takes a very long time to get warm.
• Cooling fan runs continuously or stays on for several minutes after the engine is turned off.
• Reduced fuel economy.
• Engine may hesitate or stumble during steady driving.

Most Likely Causes

1. Failed Thermostat (Stuck Open) 🔴 High Probability → Shop Integrated Thermostat Housing Assembly This is the most common failure leading to a P0116 on this platform. The thermostat fails mechanically, allowing coolant to circulate constantly, which prevents the engine from reaching its proper operating temperature in the time the ECM expects.
   How to confirm: Use a scan tool to monitor live coolant temperature data. Start the engine from cold. If the temperature rises very slowly and struggles to reach or maintain the normal operating range (approx. 90-92°C or 194-198°F), the thermostat is almost certainly stuck open. Another symptom is the temp gauge dropping at highway speeds and rising again in stop-and-go traffic.
   Typical fix: Replace the thermostat and its gasket. It is strongly recommended to replace the ECT sensor at the same time. When installing the new thermostat, ensure the small 'jiggle pin' or bleed valve is positioned at the top (12 o'clock position) to allow air to escape the system.
   Est. part cost: $20-$50
2. Faulty Engine Coolant Temperature (ECT) Sensor 🟡 Medium Probability → Shop Engine Coolant Temperature Sensor The sensor is a thermistor that can degrade over time, leading to incorrect resistance readings that the ECM interprets as an impossible temperature. This is the second most likely cause, especially if symptoms are erratic.
   How to confirm: Monitor live data on a scan tool. If the temperature reading is nonsensical (e.g., -40°F), jumps instantly between hot and cold, or doesn't match the ambient temperature after the car has been sitting overnight, the sensor is likely bad. You can also test the sensor's resistance with a multimeter; at 68°F (20°C), it should be between 2,000 and 3,000 ohms.
   Typical fix: Replace the ECT sensor and its sealing washer/o-ring. This is typically done at the same time as the thermostat due to shared location and labor.
   Est. part cost: $20-$50
3. Low Engine Coolant Level / Air in System ⚪ Low Probability → Shop Engine Coolant / Antifreeze If the coolant level is low due to a leak, air pockets can form in the cooling system. If an air pocket passes over the ECT sensor, it will send an incorrect, erratic reading to the ECM, triggering the code.
   How to confirm: Visually inspect the coolant level in the expansion tank when the engine is cold. If it is below the 'MIN' mark, top it off. Check for any visible signs of coolant leaks on hoses, the radiator, or around the water pump.
   Typical fix: Top off the coolant with the correct Volvo-specified type (typically blue/green G48) and bleed the system to remove air. Find and repair the source of the leak if one exists.
   Est. part cost: $15-$30 for coolant
4. Damaged Wiring or Connector ⚪ Low Probability The ECT sensor connector is located under the thermostat housing and can be exposed to heat, oil, and moisture, potentially causing the wiring to become brittle or the connector pins to corrode over time.
   How to confirm: Visually inspect the ECT sensor's electrical connector and the wiring leading to it for any signs of corrosion, cracks, or loose pins. Wiggle the connector while monitoring live data on a scan tool; if the temperature reading jumps, the connection is faulty.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail. Clean corroded terminals and apply dielectric grease to protect the new connection.
   Est. part cost: $10-$25 for a pigtail

Rare But Worth Checking

• Faulty Engine Control Module (ECM): This is extremely rare. The ECM should only be considered a potential cause after all other possibilities (sensor, thermostat, wiring, coolant level) have been definitively ruled out.

Diagnosis Steps

1. Check the coolant level in the expansion tank (when the engine is cold) and inspect for any obvious leaks. Top up if necessary.
2. Connect an OBD-II scanner and check for any other accompanying fault codes.
3. View the live data for the Engine Coolant Temperature sensor. Note the reading with the engine off and cold; it should be close to the ambient air temperature.
4. Start the engine and monitor the temperature as it warms up. If it rises very slowly or fails to reach ~90-92°C (194-198°F) after 10-15 minutes of driving, the thermostat is the primary suspect.
5. If the temperature reading is erratic, jumps to extreme values (like -40°F), or is stuck at a very low number, the ECT sensor is the primary suspect.
6. If the sensor is suspected, turn off the engine and locate the sensor under the thermostat housing. Inspect its connector and wiring for corrosion or damage.

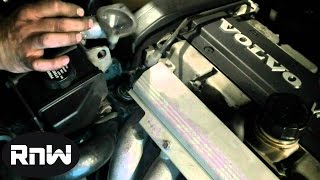

7. For a definitive test, you can remove the sensor and test its resistance with a multimeter while heating it in water, comparing the readings to a temperature/resistance chart. 🎬 Watch: Two quick DIY methods to fix a P0116 code. However, given the low cost of the part and the labor overlap with the thermostat, most people opt to replace it.
8. If both the thermostat and sensor are known to be good and the wiring is intact, the final, very rare possibility is a fault within the ECM.

Parts You'll Likely Need

• Engine Coolant Thermostat (OEM #271664 (replaces 271417)) — This is the most common cause of a P0116 code on this vehicle, failing in the 'stuck open' position.
  Trusted brands: Volvo (OEM), Behr, Wahler
  OEM price range: $30-$60
  Aftermarket price range: $20-$40
• Engine Coolant Temperature (ECT) Sensor (OEM #9186486 (replaces 3545031)) — This is the second most common cause and is replaced as a preventative measure during a thermostat job due to shared labor.
  Trusted brands: Bosch, Hella, Vemo, Genuine Volvo
  OEM price range: $30-$50
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0117 — P0117 (ECT Sensor Circuit Low Input) can occur if the sensor circuit shorts to ground.
• P0118 — P0118 (ECT Sensor Circuit High Input) can occur if the sensor circuit has an open or the connector is unplugged.
• P0125 — P0125 (Insufficient Coolant Temperature for Closed Loop Fuel Control) is closely related, as it indicates the engine isn't reaching the required temperature for efficient operation, often due to a stuck-open thermostat.

Platform-Specific Known Issues

• The two T40 Torx bolts holding the thermostat housing can be difficult to remove and are prone to stripping. Using a quality, long-shank T40 bit to ensure straight-on access is crucial. Applying penetrating oil beforehand is recommended.
• Attempting to break a stripped bolt loose by hammering on the ratchet can crack the lower thermostat housing, turning a simple repair into a much more complex one. If a bolt is stripped, the recommended method is to carefully drill the head off, remove the housing, and then extract the remaining bolt stud with locking pliers.
• Some owners replace the original Torx bolts with standard M7x1.0 33mm hex-head bolts to make future service easier.

Mechanic-Grade Diagnostic Values

• Engine Coolant Temperature (ECT) Sensor Resistance — expected: Approx. 6000 Ω at 32°F (0°C), 2300-2800 Ω at 68°F (20°C), 300 Ω at 176°F (80°C), and 150-190 Ω at 212°F (100°C).. Failure: A reading of infinite resistance (open circuit), zero resistance (short circuit), or values that do not decrease smoothly as the sensor is heated.
• ECT Sensor Signal Voltage (back-probed at connector with key on) — expected: The sensor receives a 5V reference from the ECM. The return signal voltage should be high when cold (e.g., 3.0-3.5V at ~20°C) and decrease as the engine warms up (e.g., ~1.0V at 80°C).. Failure: Voltage that is stuck at 5V or 0V, or voltage that does not change logically with engine temperature.

Wiring & Ground Locations

• 31/4 — Main engine block ground connection.. The ECT sensor, like many other engine sensors, relies on a clean and secure ground connection to provide an accurate signal. A corroded or loose engine ground at location 31/4 can introduce resistance, altering the voltage reading from the sensor and potentially triggering a P0116 code even if the sensor itself is good.

Real Owner Repair Stories

• Volvo Owners Club Forum user 'norton' (Volvo V70 (year not specified, but in P80 platform context)) — Temperature gauge was fluctuating and a P0116 code was present.
  ✅ What actually fixed it Replacing the thermostat resolved the fluctuating temperature gauge and allowed the P0116 code to be cleared successfully.

OEM Part Supersession History

• 3545031 → 9186486 — Standard part evolution and supplier changes.
  Heads up: The newer part number 9186486 is the correct replacement for the original and is fully compatible.

Model Year Variations Within This Range

• 1999-2000: For the 1999 model year, Volvo began phasing in the new ME7 engine management system, which uses a 'drive-by-wire' electronic throttle instead of a mechanical throttle cable. While the P0116 code's primary causes (thermostat, sensor) remain the same, diagnostics on a 1999 or 2000 model involve the ME7 ECM, whereas 1996-1998 models use the Motronic 4.3 or 4.4 system. This can be relevant when performing advanced diagnostics or checking for software updates.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using used parts is generally not recommended. The primary failure items, the thermostat and ECT sensor, are inexpensive wear items. A used thermostat or sensor carries a high risk of premature failure, negating any small cost savings. A used thermostat housing is a viable option if the original is cracked or damaged during bolt removal.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a thermostat housing: ensure there are no cracks, especially around the bolt holes.
• Check that the mating surface is flat and not warped.
• Verify the donor vehicle was not in a front-end collision that could have stressed the housing.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a genuine Volvo or OEM-supplier (Wahler, Behr) thermostat is highly recommended by forum veterans. Some cheaper aftermarket thermostats have been reported to fail quickly or operate at the wrong temperature.

Aftermarket brands forum-validated for this vehicle:

• Thermostat: Wahler, Behr, Calorstat by Vernet
• ECT Sensor: Bosch, Hella, Vemo

Brands owners have reported issues with on this vehicle:

• Some forum discussions mention avoiding unbranded, 'white box' thermostats due to higher failure rates and incorrect temperature calibration.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0128 — Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature). This code is often set for the exact same reason as P0116 on this vehicle: a thermostat that is stuck open, preventing the engine from reaching its proper operating temperature within the time expected by the ECM.
• P0117 — Engine Coolant Temperature Sensor Circuit Low Input. This code points to a specific electrical fault (a short) in the ECT sensor circuit. A failing ECT sensor is a common cause for P0116, and this code may appear alongside it if the sensor fails in this manner.
• P0118 — Engine Coolant Temperature Sensor Circuit High Input. This is the companion to P0117, indicating an open circuit or break in the ECT sensor wiring. This fault would cause the erratic or nonsensical readings mentioned as a key symptom of a bad sensor, triggering P0116.
• P0125 — Insufficient Coolant Temperature for Closed Loop Fuel Control. Similar to P0128, this code indicates the engine isn't warming up quickly enough. A stuck-open thermostat is the primary cause, directly linking it to the most common failure mode for P0116.
• P0300 — Random/Multiple Cylinder Misfire Detected. One of the listed symptoms for P0116 is the engine hesitating or stumbling. This is often caused by an incorrect fuel mixture delivered by the ECM based on faulty temperature data from a bad ECT sensor, which can lead to misfires.
