P0121 on 2001-2008 Ford Escape: Throttle Position Sensor Causes and Fixes

What's Unique About the 2001-2008 Ford Escape

For the 2001-2008 Ford Escape, the Throttle Position Sensor (TPS) is almost always a separate, replaceable component that bolts onto the throttle body. This is a significant advantage for DIY repair, as it's a much cheaper and simpler fix than on later 2009+ models, which integrated the sensor into the entire electronic throttle body assembly. While the 3.0L V6 models were subject to a recall (NHTSA #12V353000) for a mechanical issue where the cruise control cable could cause a stuck throttle, this is separate from the electronic failure that triggers a P0121 code.

Generation note: The 2001-2008 model years cover the first generation (2001-2007) and the first year of the second 🎬 Watch: Common problems to look for on second generation Escapes generation (2008). For the P0121 code, the diagnosis and repair are very similar across these years, as they all typically use a separate, bolt-on throttle position sensor. The primary differences will be in the specific part numbers for the sensor depending on the engine (2.0L, 2.3L, or 3.0L). The Mazda Tribute and Mercury Mariner are platform mates that share this exact design and failure mode.

Symptoms You May Notice

• Check Engine Light is on
• Hesitation or stumbling during acceleration
• Rough or unstable idle
• Engine stalling, especially at low speeds or when coming to a stop
• Lack of power or poor engine performance
• In automatic transmission models, improper, delayed, or harsh shifting
• Black smoke from exhaust during acceleration
• Sudden surging or bucking while driving

Most Likely Causes

1. Faulty Throttle Position Sensor (TPS) 🔴 High Probability → Shop Fuel Injection Throttle Body The TPS is a potentiometer with a wiper that moves across a resistive strip. Over many thousands of throttle movements, this strip wears out, creating 'dead spots' that cause the voltage signal to become erratic. Failure is common after 80,000 miles.
   How to confirm: Use a multimeter set to DC volts to back-probe the signal wire. It should show a smooth sweep from ~0.9V to ~4.5V as the throttle is opened manually. Any drops, spikes, or dead spots indicate a bad sensor.
   Typical fix: Replace the throttle position sensor. On this generation of Escape, it is a separate part bolted to the throttle body with two screws.
   Est. part cost: $30-$80
2. Dirty or Carbon-Clogged Throttle Body 🟡 Medium Probability → Shop Fuel Injection Throttle Body Carbon and oil vapor from the PCV system can build up around the throttle plate, causing it to stick slightly or not close fully. This makes the actual throttle angle differ from what the TPS is reporting, which the PCM can interpret as a sensor performance problem. A manufacturer report for a similar Ford throttle system (NHTSA ODI #10255038) noted that technicians pinpointed an electronic throttle body physically sticking closed, which triggered P0121 along with P2104 and P2112.

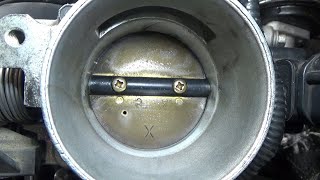

   How to confirm: Remove the intake air duct from the throttle body and visually inspect for black carbon buildup around the throttle plate and bore. The plate may feel sticky when moved by hand.
   Typical fix: Clean the throttle body bore and plate thoroughly with a dedicated throttle body cleaner and a soft brush. Do not spray 🎬 Watch: How to clean the throttle body on a 3.0L Escape cleaner directly into an electronic throttle body if applicable.
   Est. part cost: $5-$15
3. Damaged Wiring or Corroded Connector ⚪ Low Probability The wiring harness leading to the TPS is subject to engine heat and vibration, which can cause wires to fray or insulation to crack over time. The connector pins can also accumulate moisture and corrode, causing high resistance.
   How to confirm: Visually inspect the wiring harness for any signs of damage, chafing, or melting. Unplug the connector and check the pins for corrosion (green or white powder). Wiggle the harness with the engine running to see if it affects idle.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail. Clean corroded pins with an electrical contact cleaner.
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is extremely rare. The PCM should only be considered after the TPS, wiring, and throttle body have been definitively ruled out as the cause. In some Ford service records, such as NHTSA ODI #10286213, a PCM reflash was performed alongside testing when P0121 was present.
• Failing Catalytic Converter: A clogged catalytic converter can cause a lack of power and hesitation that can be misdiagnosed. The resulting discrepancy between expected and actual engine load (which the PCM cross-references with TPS data) can sometimes trigger a P0121 code, although other codes are more common. This is an unlikely but possible cause if all TPS circuit tests pass.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm that P0121 is present. Check for any other related codes like P0122, P0123, or P0221.
2. Using the scanner's live data function, monitor the voltage of TPS 'A'. It should read approximately 0.9-1.0V at idle and increase smoothly to around 4.5V at wide-open throttle.
3. If the live data is erratic or incorrect, proceed with a physical inspection. Check the wiring harness and connector for any visible damage, corrosion, or loose connections.
4. Remove the intake ducting and inspect the throttle body for heavy carbon buildup. A sticking throttle plate can cause this code.
5. If wiring and throttle body cleanliness are good, test the sensor directly. Disconnect the connector. Use a multimeter to verify you have a 5V reference and a good ground at the connector.
6. Reconnect the connector and back-probe the signal wire. Manually open and close the throttle slowly. The voltage should sweep smoothly with no dropouts or spikes. If it does, the TPS is faulty.
7. If the sensor tests good but the problem persists, the issue may be a poor connection or a rare PCM fault.

Parts You'll Likely Need

• Throttle Position Sensor (TPS) (OEM #YS4Z-9B989-BB (For 2.3L Engine, verify for others)) — This is the most common point of failure for a P0121 code on this vehicle, as the sensor's internal components wear out over time.
  Trusted brands: Motorcraft, Bosch, Delphi, Standard Motor Products (SMP)
  OEM price range: $60-$100
  Aftermarket price range: $30-$60

Related Codes That Often Appear With This One

• P0122 — This code indicates 'TPS Circuit Low Input,' which can be caused by the same sensor or wiring faults that trigger P0121.
• P0123 — This code indicates 'TPS Circuit High Input,' which points to a short to power in the circuit or a complete failure of the sensor, often related to the root cause of P0121.
• P0221 — This code relates to the 'Throttle/Pedal Position Sensor/Switch 'B' Circuit'. On systems with multiple sensors, a fault in one can trigger performance codes for the other.
• P2104 / P2112 — These codes often appear with P0121 in Ford systems when the PCM detects the throttle actuator is stuck or forced into a limited power mode, as noted in NHTSA ODI #10257081.

Platform-Specific Known Issues

• For 2001-2004 3.0L V6 models, a recall (NHTSA #12V353000) was issued for the cruise control cable potentially binding on the engine cover and causing the throttle to stick. While this is a mechanical issue, it's an important throttle-related problem to be aware of for this platform.

Mechanic-Grade Diagnostic Values

• TPS Reference Voltage (at connector, Key On Engine Off) — expected: 5.0 Volts (+/- 0.5V). Failure: No voltage or voltage significantly outside this range indicates a PCM or wiring issue.
• TPS Signal Voltage (back-probed, Key On Engine Off) — expected: 0.3V to 0.9V at closed throttle, sweeping smoothly up to 3.9V to 4.8V at wide-open throttle.. Failure: Voltage that is stuck, jumps, or has dead spots during the sweep indicates a failed sensor.
• TPS Total Resistance (sensor disconnected) — expected: Greater than 4k ohms.. Failure: Readings significantly lower than 4k ohms or an open circuit (O.L.) suggest a faulty sensor.
• TPS Ground Circuit (at connector) — expected: Near 0 Volts.. Failure: Any significant voltage reading indicates a bad ground connection.

Scan Tool Commands That Help

• Ford IDS (or equivalent professional scanner): Reset KAM (Keep Alive Memory) — After replacing the TPS or cleaning the throttle body, resetting the KAM forces the PCM to discard old adaptive learning values and start fresh. This is Ford's recommended procedure instead of a specific 'relearn' function for this model range.
• Generic OBD-II Scanner: Live Data Monitoring (TPS%) — Essential first step to observe the sensor's reported percentage from closed to wide-open throttle. It should be a smooth, linear progression. Any jumps or erratic behavior points to a sensor or wiring issue.

Wiring & Ground Locations

• Battery Junction Box (BJB) — Under the hood, this is the main fuse box.. The power supply for the PCM, which provides the 5V reference to the TPS, is fused here. A corroded or faulty fuse/terminal in the BJB can cause intermittent power issues to the entire engine management system.
• G102 / G103 — These are primary engine bay ground points, typically located on the chassis rails or near the strut towers.. The TPS requires a clean ground reference, which is provided by the PCM. The PCM itself relies on these main chassis grounds. A corroded or loose G102 or G103 can cause floating ground issues, leading to erratic sensor readings across the engine, including the TPS.
• TPS Connector Pins (at sensor) — On the throttle body, where the harness plugs into the TPS.. Specific pins must be tested: Pin 3 for 5V reference, Pin 1 for ground, and Pin 2 for the signal return to the PCM. Knowing the pinout is critical for accurate multimeter testing.

OEM Part Supersession History

• F5RZ-9B989-B, F5RF-9B989-BA, F79Z-9B989-AA → YS4Z-9B989-BB (also sold as Motorcraft DY871) — Part consolidation and potential minor revisions over the long production run of compatible vehicles.
  Heads up: While many aftermarket sensors exist, forums frequently report that using the genuine Motorcraft part (YS4Z-9B989-BB) resolves intermittent issues that cheaper alternatives do not, suggesting tighter tolerances or material quality in the OEM sensor.

Model Year Variations Within This Range

• 2001-2004: These early first-generation models are the primary focus of the cruise control cable recall (3.0L V6 only). The interior and exterior styling are distinct from the 2005+ models.
• 2005-2007: Received a mid-cycle refresh with updated front/rear fascias, a new 2.3L I4 engine replacing the 2.0L, and interior updates. The fundamental separate TPS design remained the same. The 2.3L engine uses TPS part number YS4Z-9B989-BB.
• 2008: This is the first year of the second generation, featuring a significant exterior and interior redesign. However, it is a transitional year and carries over the same engines, transmissions, and separate TPS design from the 2005-2007 models. The switch to an integrated electronic throttle body occurred in the 2009 model year.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Subframe Rust / Lower Control Arm Separation 🔴 High — Very common in 'salt belt' regions on 2001-2004 models, leading to a major recall. (Ref: NHTSA Campaign ID: 14V165000 (Ford Recall 14S02).)
• Automatic Transmission Failure (CD4E) 🔴 High — Widespread complaints of premature failure, often before 100,000 miles. Problems include failed torque converters and burnt shift solenoids. 2006-2009 models are frequently cited.
• Ignition Coil Failure 🟠 Medium — Common failure item, often due to moisture intrusion or heat degradation, leading to engine misfires.
• Alternator Failure (3.0L V6) 🟠 Medium — The alternator is poorly placed near the exhaust manifold, leading to premature failure from heat. Replacement is labor-intensive, requiring removal of the passenger side axle shaft.
• Sticking Throttle from Cruise Control Cable (3.0L V6) 🔴 High — Affects 2001-2004 models with the 3.0L V6. The cruise control cable could snag on the engine cover, preventing the throttle from closing. (Ref: NHTSA Campaign ID: 12V353000.)
• Spontaneously Shattering Rear Tailgate Glass 🟡 Low — Reported across many first-generation models. The cause is suspected to be stress from improperly torqued mounting points.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used throttle body assembly from a low-mileage donor vehicle can be a good value if you need the entire unit, not just the sensor. However, for a P0121 code, the sensor itself is the most likely failure point, and buying a new sensor is strongly recommended.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for a clean throttle plate and bore with minimal carbon buildup.
• Ensure the TPS connector pins are clean, straight, and free of corrosion.
• Verify the throttle plate moves smoothly by hand without sticking or binding.
• Ask for the VIN of the donor car to check for recall history if possible.

Aftermarket brands forum-validated for this vehicle:

• Motorcraft (OEM)
• Bosch
• Delphi
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' parts from online marketplaces are frequently cited in forums as having a high failure rate or causing persistent intermittent issues.

Documented NHTSA Reports

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0122 — Often appears alongside P0121; it indicates a low voltage output from the Throttle Position Sensor circuit.
• P0123 — A companion code to P0121 that indicates high voltage in the TPS circuit, often caused by the same sensor or wiring faults.
• P0221 — Related to Throttle/Pedal Position Sensor/Switch 'B' Circuit Range/Performance, which the PCM monitors in conjunction with the 'A' circuit (P0121).
• P0300 — General misfire code that may occur if ignition coils fail, a common known issue on this platform that can mimic some performance symptoms of P0121.
