P0128 on 2005-2007 Ford Five Hundred: Causes and Fixes for Low Coolant Temperature

What's Unique About the 2005-2007 Ford Five Hundred

The Ford Five Hundred and its platform siblings (Mercury Montego, Ford Freestyle) use the 3.0L Duratec V6, which has a straightforward and reliable cooling system. However, like many vehicles, the thermostat is a common wear-and-tear component. There are no major design flaws that make this platform uniquely prone to P0128, but the thermostat failing in the 'stuck open' position is a very frequent cause for this code across many Ford models. The plastic thermostat housing has also been noted as a potential leak point as it can become brittle over time.

Symptoms You May Notice

• Check Engine Light is on.
• Engine temperature gauge reads lower than normal or takes a very long time to move off 'C'.
• Heater blows lukewarm or cool air, especially on colder days.
• Noticeable decrease in fuel economy.
• Failing an emissions test.

Most Likely Causes

1. Thermostat stuck in the open position 🔴 High Probability → Shop Integrated Thermostat Housing Assembly The thermostat is a mechanical wear item that is designed to fail in the open position after many heating and cooling cycles. This is by far the most common cause for P0128.
   How to confirm: Use a scan tool to monitor live coolant temperature data. Start the engine cold. The temperature should rise steadily and then stabilize between 190-215°F. If the temperature rises very slowly, never reaches this range, or drops significantly at highway speeds, the thermostat is almost certainly stuck open. Another sign is the upper radiator hose getting warm gradually instead of becoming hot suddenly when the thermostat opens.

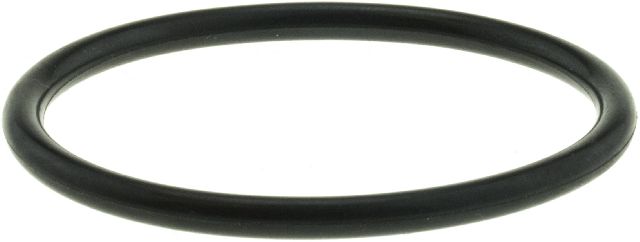

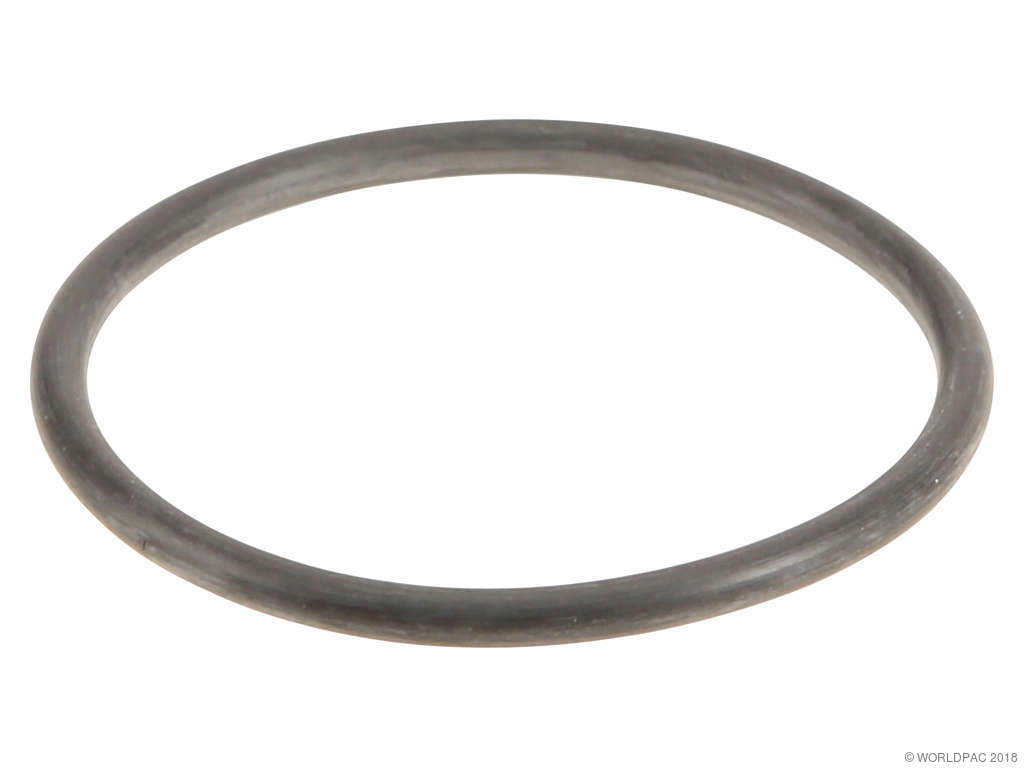

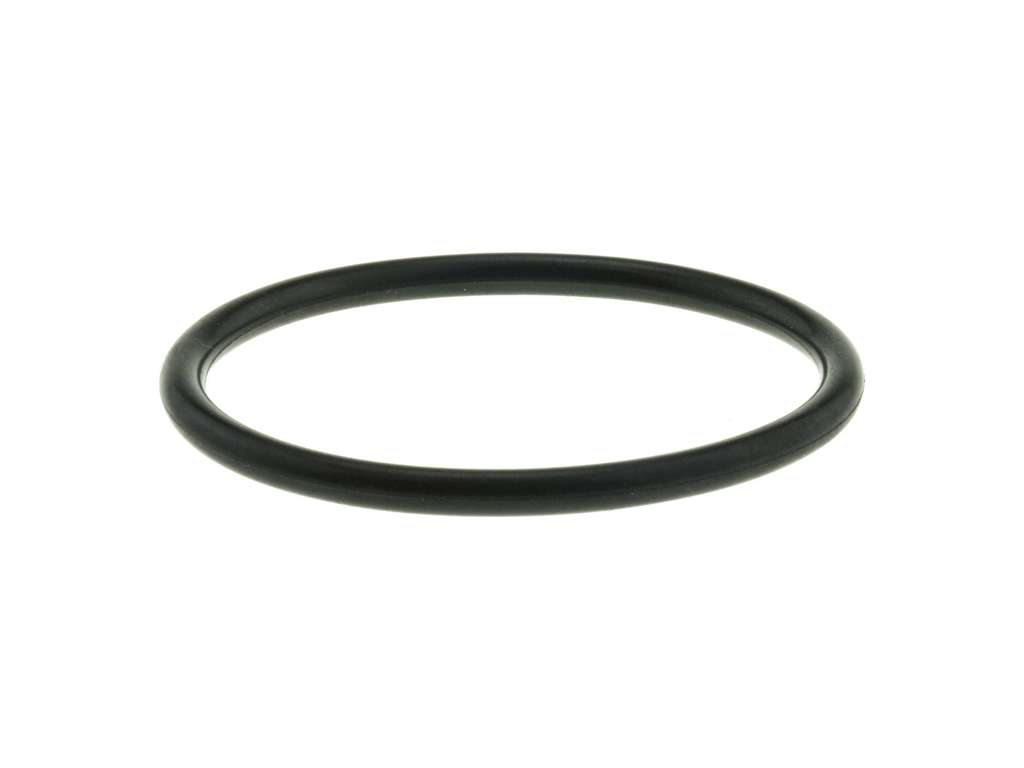

   Typical fix: Replace the engine coolant thermostat and the corresponding gasket or O-ring. The thermostat is located in a housing where the lower radiator hose connects to the engine. It is highly recommended to drain and replace the engine coolant at the same time and properly bleed the system of air.
   Est. part cost: $20-$50
2. Low engine coolant level 🟡 Medium Probability Coolant can be lost over time due to small, undetected leaks in hoses, the radiator, water pump, or the plastic thermostat housing itself. An air pocket near the ECT sensor caused by low coolant can lead to an incorrect reading.
   How to confirm: Visually inspect the coolant level in the overflow reservoir when the engine is cold. The level should be between the 'MIN' and 'MAX' lines. If low, inspect the entire cooling system for visible leaks, paying attention to the radiator, hoses, and thermostat housing area.
   Typical fix: Top off the coolant with the correct type (Ford specifies Motorcraft Gold VC-7-B) and bleed any air from the system. If a leak is found, the leaking component must be repaired or replaced.
   Est. part cost: $15-$30 for coolant
3. Faulty Engine Coolant Temperature (ECT) Sensor ⚪ Low Probability → Shop Engine Coolant Temperature Sensor While less common than a thermostat failure for P0128, sensors can fail over time by sending inaccurate readings to the computer. On the 3.0L V6, the ECT sensor is located near the thermostat housing and can be replaced without draining the entire cooling system.
   How to confirm: Monitor the ECT sensor reading on a scan tool. If the reading is erratic, nonsensical (e.g., reading -40°F on a warm day), or doesn't change as the engine warms up, the sensor is likely faulty. A faulty ECT sensor will often trigger other codes in addition to P0128, such as P0116, P0117, or P0118.
   Typical fix: Replace the Engine Coolant Temperature (ECT) sensor. It is recommended to use a quality OEM (Motorcraft) or premium aftermarket brand (NGK, Delphi) for reliability.
   Est. part cost: $25-$60

Rare But Worth Checking

• Cooling fan running constantly: → Shop Engine Cooling Fan Blade If the electric cooling fan is stuck on, it can over-cool the engine, especially in cold weather or at low speeds. This could be caused by a faulty fan relay, a short in the control circuit, or a faulty ECT sensor sending a false overheat signal.

Diagnosis Steps

1. Verify the Check Engine Light is on and use a scan tool to confirm P0128 is the stored code.
2. With the engine cold, check the coolant level in the overflow reservoir. Ensure it is between the 'MIN' and 'MAX' marks.
3. Inspect for any visible signs of coolant leaks around hoses, the radiator, and the water pump area. Pay special attention to the plastic thermostat housing.
4. Connect a scan tool that can display live data. Monitor the Engine Coolant Temperature (ECT) value.
5. Start the engine from cold and observe the ECT reading. It should climb steadily. The lower radiator hose (where the thermostat is) should remain cool until the engine temperature reaches ~190-195°F, at which point the thermostat should open, and the hose will become hot.
6. If the temperature climbs very slowly and the lower radiator hose gets warm gradually along with the engine, the thermostat is likely stuck open.
7. If the temperature reading on the scan tool is erratic or does not seem plausible (e.g., reads extremely high or low on a cold engine), suspect a faulty ECT sensor or wiring issue. Check for other sensor-specific codes.
8. Confirm the cooling fans are not running constantly when the engine is cold.

Parts You'll Likely Need

• Engine Coolant Thermostat (OEM #5F9Z-8575-A) — This is the most common cause of code P0128, as the original part can fail and stick in the open position. The part number 5F9Z-8575-A replaces the previous number 5F9Z-8575-AA.
  Trusted brands: Motorcraft (OEM), Gates, Motorad
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Engine Coolant / Antifreeze (OEM #VC-7-B (Motorcraft Gold)) — Coolant must be drained to replace the thermostat and should be refilled with the correct type to ensure proper cooling system performance and longevity. The system must be properly bled of air after service.
  Trusted brands: Motorcraft, PEAK, Prestone
  OEM price range: $20-$25 per gallon
  Aftermarket price range: $15-$20 per gallon

Platform-Specific Known Issues

• Thermostat Location and Alignment: → Shop Integrated Thermostat Housing Assembly On the 3.0L Duratec V6, the thermostat is located in the lower housing where the lower radiator hose connects to the engine block. When replacing, the new thermostat must be aligned with marks inside the housing to ensure it is seated correctly before the housing is bolted back on. A YouTube video by 'danny sturgill' provides a detailed step-by-step replacement, highlighting the need to mark the housing externally to aid alignment.
• Plastic Thermostat Housing Leaks: → Shop Integrated Thermostat Housing Assembly The thermostat housing on the 3.0L engine is made of plastic and can become brittle with age and heat cycles, leading to coolant leaks. If a leak is observed in this area, it is often recommended to replace the entire housing assembly, which typically includes a new thermostat and gasket.

Mechanic-Grade Diagnostic Values

• Engine Coolant Temperature (ECT) Sensor Resistance — expected: Approximately 2,000-3,000 Ohms at 68°F (20°C), decreasing to 200-300 Ohms at 194°F (90°C).. Failure: An open circuit (infinite resistance), short circuit (zero resistance), or a value that does not decrease as the sensor warms up indicates a faulty sensor.
• Engine Coolant Temperature (ECT) Sensor Voltage — expected: With the key on and engine off, the reference wire should have ~5V from the PCM. The signal return wire voltage will vary with temperature, typically around 2.0V when cold and dropping to ~0.5V at full operating temperature.. Failure: No reference voltage suggests a PCM or wiring issue. A signal voltage that is stuck high (near 5V) or low (near 0V) regardless of temperature change points to a failed sensor or a short/open in the wiring.

Scan Tool Commands That Help

• ForScan / Ford IDS / Capable OBD-II Scanner: Live Data PID Monitoring (ECT, IAT) — This is the most critical diagnostic step after a visual inspection. Before starting a cold engine (after it has sat for several hours), compare the Intake Air Temperature (IAT) and Engine Coolant Temperature (ECT) readings. They should be within a few degrees of each other and the ambient air temperature. A significant difference (e.g., ECT reads 80°F while IAT reads 40°F) points directly to a faulty ECT sensor or wiring, not the thermostat.

Wiring & Ground Locations

• ECT Sensor — Located on the top rear of the 3.0L V6 engine, near the thermostat housing.. This is the primary sensor the PCM uses to determine if the engine is warming up correctly. Its reading is the trigger for code P0128.
• G101 / G102 — These are major engine grounds located at the rear or side of the engine compartment. For example, on a similar platform, G101 is at the center rear of the engine compartment.. The ECT sensor relies on a clean ground path back to the PCM. A corroded or loose main engine ground can create a voltage offset, causing the PCM to misinterpret the sensor's reading and potentially set a false P0128 code.
• Smart Junction Box (SJB) — The main interior fuse/relay box located under the driver's side of the dashboard.. The SJB powers the PCM and other modules. While less likely to be a direct cause for P0128, a fault here can cause widespread electrical issues, including problems with the PCM that processes the ECT signal. Fuse #16 (7.5A) in the SJB is critical for the PCM and starter relay coil.

OEM Part Supersession History

• 5F9Z-8575-AA (Motorcraft RT-1182) → 5F9Z-8575-A (Motorcraft RT-1261) — Standard part revision and improvement by the manufacturer.
  Heads up: The parts are interchangeable. 5F9Z-8575-A is the current and correct service part for the entire 2005-2007 range.

Model Year Variations Within This Range

• 2005-2007: No significant variations in the cooling system, engine management, or parts related to code P0128 exist across the 2005-2007 model years. The primary mechanical difference on the platform is the use of a 6-speed automatic transmission for FWD models and a CVT for AWD models, which does not affect this code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• CVT Transmission Failure (AWD Models) 🔴 High — Common on AWD models, especially over 100k miles. Symptoms include shuddering, slipping, and complete failure to engage.
• Electronic Throttle Body Malfunction 🟠 Medium — Widespread issue causing stalling, surging, or entering 'limp mode' (wrench light). Often triggers codes like P2104. Cleaning can sometimes help, but replacement is often necessary. (Ref: TSB 05-25-13 was issued for this problem.)
• Failed Engine/Transmission Mounts 🟠 Medium — Very common problem causing a loud clunk or lurch when shifting from Park into Drive or Reverse. The rear mount is particularly difficult to replace.
• A/C Compressor Scroll Valve Failure 🟡 Low — Common issue where the A/C blows warm at idle but gets cold when driving. The scroll valve within the compressor sticks.
• Chafed Wiring Harness 🟠 Medium — On higher mileage vehicles, the engine wiring harness can chafe against an A/C line near the firewall, causing shorts and various sensor-related engine problems.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is NOT recommended for the thermostat itself, as it is a critical wear item that should always be replaced new. A used thermostat housing assembly from a junkyard may be considered a last resort if the original plastic housing is cracked and a new assembly is not available, but the included used thermostat should be discarded and replaced with a new one.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Inspect the plastic housing for any hairline cracks, especially around the bolt holes and hose connections.
• Avoid parts that look chalky, faded, or feel excessively brittle.
• Ensure all connector locking tabs and hose barbs are intact and not broken.

OEM-only on this vehicle (don't cheap out):

• Engine Coolant Thermostat: While aftermarket options exist, forum consensus strongly suggests using an OEM Motorcraft thermostat is the most reliable way to prevent a premature failure that leads to the same P0128 code returning.

Aftermarket brands forum-validated for this vehicle:

• Stant
• Gates

Brands owners have reported issues with on this vehicle:

• "Fail-Safe" branded thermostats: Some owners have reported these are designed to fail in the open position as a safety feature, but can do so prematurely, causing a P0128 code to appear.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0116 — An Engine Coolant Temperature (ECT) sensor circuit range/performance code that often triggers alongside P0128 if the sensor is sending inaccurate or erratic readings.
• P0117 — A code indicating low input from the ECT sensor, which may appear if the sensor or its wiring is faulty, a secondary cause for P0128.
• P0118 — A code indicating high input from the ECT sensor, often appearing with P0128 when the sensor fails to provide plausible temperature data.
• P2104 — A 'limp mode' throttle system code mentioned as a common platform issue for the Five Hundred, often occurring independently but alongside general engine management concerns.
• P2111 — A throttle actuator control system code (stuck open) reported by owners of the 2005 Five Hundred, representing another common electronic fault on this vehicle.
