P0128 on 2003-2007 Saturn Ion 2.2L: Coolant Temp Low Causes and Fixes

What's Unique About the 2003-2007 Saturn Ion

The 2.2L L61 Ecotec engine used across the GM family, including the Saturn Ion, is well-known for this specific issue. The cause for P0128 is overwhelmingly a simple, mechanical failure of the thermostat sticking open, often due to the rubber gasket on the thermostat itself deteriorating and jamming the valve. Unlike on some other vehicles where this code could be caused by sensors or wiring, on the Ion it's a near certainty that the thermostat is the culprit. This makes diagnosis straightforward and is a very common repair for owners of these cars and their platform mates like the Chevy Cobalt and HHR.

Symptoms You May Notice

• Check Engine Light illuminated
• Temperature gauge on the dashboard reads lower than normal, stays on cold, or drops at highway speeds
• Heater blows lukewarm or cold air
• Noticeably worse fuel economy
• Air Conditioning (A/C) may not work; the ECM disables the compressor as a default action when P0128 is set
• Cooling fans may run constantly at full speed, even when the engine is cold. This is a key symptom and a programmed ECM response to this specific fault code.

Most Likely Causes

1. Engine Thermostat Stuck Open 🔴 High Probability → Shop Integrated Thermostat Housing Assembly This is a very common failure point for the 2.2L Ecotec engine family. The thermostat is a mechanical part with a wax motor and spring that can wear out. A frequent failure mode is the integrated rubber gasket breaking apart and lodging in the valve, forcing it to stay open.
   How to confirm: After a cold start, feel the upper radiator hose. It should remain cool for several minutes. If it starts getting warm almost immediately (within 1-2 minutes), the thermostat is stuck open, allowing coolant to circulate to the radiator before the engine is warm.
   Typical fix: Replace the engine thermostat and its integrated seal. It is highly recommended to use the specific OEM-spec part, ACDelco #131-158, as cheaper aftermarket versions are known to fail prematurely.
   Est. part cost: $25-$50 for the recommended ACDelco part
2. Low Engine Coolant ⚪ Low Probability
   How to confirm: Visually inspect the coolant level in the coolant reservoir when the engine is cold. If it is below the 'MIN' or 'COLD' line, an air pocket could form near the ECT sensor, causing an inaccurate reading.
   Typical fix: Top off the coolant with DEX-COOL compatible coolant and inspect the cooling system for leaks from hoses, the radiator, water pump, or thermostat housing.
   Est. part cost: $15-$30 for a gallon of coolant

Rare But Worth Checking

• Faulty Engine Coolant Temperature (ECT) Sensor: → Shop Engine Coolant Temperature Sensor While this can cause a P0128, it is very rarely the cause on this specific vehicle. It's much more likely to be the thermostat. Replacing the sensor first is a common misdiagnosis, as confirmed by owner experiences.
• Cooling Fan Stuck On: → Shop Engine Cooling Fan Blade A faulty fan relay or control module could cause the fans to run continuously, over-cooling the engine. However, on this platform, the fans running constantly is more often a symptom of the P0128 code itself, as the ECM commands them on as a default action.

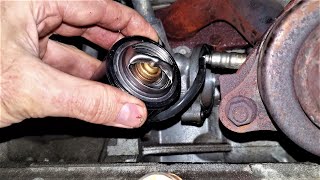

🎬 Watch: A DIY guide to fixing the P0128 fault code.

Diagnosis Steps

1. Verify the P0128 code is present using an OBD-II scanner.
2. Check the coolant level in the reservoir when the engine is cold. Top off if necessary with DEX-COOL.
3. Start the cold engine and let it idle. Feel the upper radiator hose that leads to the top of the radiator.
4. If the hose becomes warm within the first 1-2 minutes, the thermostat is stuck open and must be replaced.
5. If the hose remains cold for 5-10 minutes and the engine temperature gauge still doesn't rise, you can further suspect the thermostat or a faulty temperature gauge/sensor.
6. Given the extremely high probability on this vehicle, replacing the thermostat (specifically with ACDelco 131-158) is the most logical and effective repair.
🎬 Watch: A complete walkthrough of the Saturn Ion thermostat replacement.

Parts You'll Likely Need

• Engine Coolant Thermostat (OEM #ACDelco 131-158 (GM 12622410)) — This is the most common failure item causing code P0128 on the 2.2L Ecotec engine. The original part fails by sticking open. Using this specific OEM part is critical for a lasting repair.
  Trusted brands: ACDelco (GM Original Equipment)
  OEM price range: $25-$50
  Aftermarket price range: $15-$40

Technical Service Bulletins (TSBs) & Recalls

• GM Recall #14V047: Faulty Ignition Switch
• GM Recall #14V153000: Electric Power Steering Failure
• GM Recall #09226 / #12V459: Fuel Pump Module Leak

Platform-Specific Known Issues

• The integrated rubber seal on the factory thermostat is a known weak point; it often degrades, breaks off, and jams the thermostat valve in the open position, directly causing the P0128 code.

Mechanic-Grade Diagnostic Values

• Engine Coolant Temperature (ECT) Sensor Resistance — expected: Approximately 3520 Ω at 68°F (20°C) and 241 Ω at 194°F (90°C).. Failure: Readings that are significantly outside this range, or an open/shorted circuit reading (infinite or zero ohms), indicate a faulty sensor.
• Engine Coolant Temperature (ECT) Sensor Signal Voltage (Key On, Engine Off) — expected: Approximately 2.0V - 3.0V on a cold engine (e.g., 68°F / 20°C). The voltage should drop as the engine warms up.. Failure: A voltage that is stuck, does not change with temperature, or is pinned at 0V (indicating a short to ground) or 5V (indicating an open circuit) points to a sensor or wiring fault.
• Live Data Scan Tool ECT vs IAT on Cold Start — expected: On a 'cold-soaked' engine (off for several hours), the Engine Coolant Temperature (ECT) and Intake Air Temperature (IAT) readings should be very close to each other and to the ambient air temperature.. Failure: If the ECT reads significantly different from the IAT on a cold engine, the ECT sensor is likely faulty. For example, if the IAT is 70°F and the ECT reads -40°F or 250°F, the sensor has failed.

Hidden / Shadow Codes Worth Checking

• Pending P0128: The ECM may detect the warm-up failure on a drive cycle but not immediately illuminate the Check Engine Light. It will store the code as 'pending'. If the fault is detected on a subsequent drive cycle, the light will be turned on. Some OBD-II readers show this as a 'yellow' light or status. (see via An OBD-II scan tool with the capability to read pending or permanent codes.)

Wiring & Ground Locations

• G105 — On the lower left rear of the engine, above the starter.. This is a primary engine ground. While not directly for the ECT sensor itself, a poor connection here can cause a variety of strange electrical issues with engine components and sensors, potentially affecting the ECM's ability to get accurate readings.
• G107 — Located on the left rear corner of the cylinder head (for 2.2L/2.4L engines).. This ground is physically close to the ECT sensor and other top-end engine sensors. A corroded or loose G107 ground is a more likely candidate for causing sensor signal integrity problems than more distant grounds.
• ECT Sensor Connector — On the thermostat housing, below the ignition coil pack on the driver's side of the engine.. This is the direct connection to the sensor. The two pins are for the 5V reference voltage from the ECM and the signal return wire. Wiggling this connector while observing live data can help identify intermittent connections. The wires are typically Yellow (signal) and Black (low reference/ground).

Real Owner Repair Stories

• Reddit user on r/Cartalk (2007 Saturn Ion) — Check Engine Light with code P0128. Temperature gauge on the dash would show zero after about 10 minutes of driving. A/C would not work. Live data from an OBD-II app showed the sensor was reading temperature (~70F cold, ~140F running), even when the dash gauge was at zero.
  ❌ Tried (didn't work) Replacing the Engine Coolant Temperature (ECT) sensor., Checking sensor wiring for shorts/breaks., Unplugging the ECU to check for clean connections., Disconnecting the battery to reset the ECU.
  ✅ What actually fixed it Replacing the engine thermostat resolved all symptoms. The temperature gauge returned to normal operation and the P0128 code was cleared.

OEM Part Supersession History

• 21018811, 55350941, 90537453, 12615097 → GM 12622410 (also sold as ACDelco 131-158) — Part consolidation and design updates over the long production run of the Ecotec engine family.
  Heads up: The current part number, 12622410 / 131-158, is the correct 180°F OEM specification for this vehicle. Using older stock or an incorrect cross-reference could lead to installing a part with a different temperature rating.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Faulty Ignition Switch 🔴 High — Extremely widespread; subject of a major safety recall. The switch can move out of the 'run' position while driving, causing engine stall and disabling airbags. (Ref: GM Recall #14V047.)
• Electric Power Steering (EPS) Failure 🔴 High — Very common problem causing a sudden loss of steering assist. Subject to recalls and extended warranties. (Ref: GM Recall #14V153000.)
• Cracked Fuel Pump Module / Fuel Leak 🔴 High — Common for vehicles in warm-weather states. The plastic port on the fuel pump module cracks, causing a fuel leak and fire hazard. (Ref: GM Recall #09226 / 12V459.)
• Front Control Arm Bushing Failure 🟠 Medium — A very common wear item, typically noticeable after 80,000-100,000 miles. Causes clunking noises from the front suspension, wandering steering, and uneven tire wear.
• Front Turn Signal / DRL Malfunction 🟡 Low — Common enough to warrant a recall. The bulb loses contact with the socket, causing the light to stop working. (Ref: GM Recall #04V547.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Never. A thermostat is a low-cost wear-and-tear item. The labor to install it far outweighs the part cost. Installing a used thermostat with an unknown history is a poor investment of time and introduces a high risk of premature failure, requiring the job to be done again.

What to inspect on the donor part:

• Not applicable as a used part is not recommended.

OEM-only on this vehicle (don't cheap out):

• Engine Coolant Thermostat

Aftermarket brands forum-validated for this vehicle:

• Stant
• Gates

Brands owners have reported issues with on this vehicle:

• Generic 'white box' or store-brand parts with a reputation for failure (e.g., some forum users report issues with lower-tier parts from major auto parts chains).
• Motorad (some users report premature failure).
• Fail-Safe branded thermostats (some users report they can fail in the open position without an actual overheat event).

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0116 — Related to the Engine Coolant Temperature (ECT) sensor circuit range/performance; often diagnosed alongside P0128 when the gauge reads inaccurately.
• P0117 — ECT sensor circuit low input; related to the cooling system monitoring logic that triggers P0128.
• P0118 — ECT sensor circuit high input; another companion code for cooling system temperature irregularities.
• P0480 — Cooling Fan Relay Control Circuit; related because the ECM commands fans to run constantly at full speed when P0128 is active.
